Is it ok to use one of these?

[Turf1600]

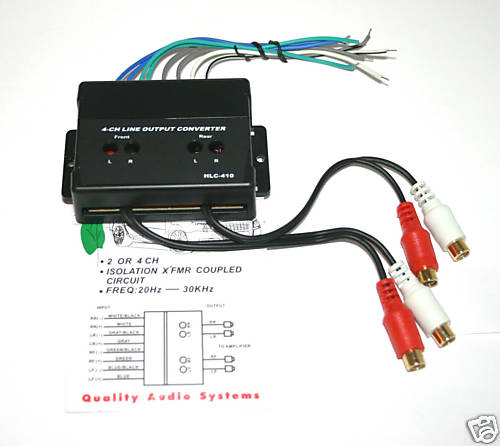

I'm preparing for an audio install and have 3 HUs to choose from but for 2 of them I will have to use this due to a lack of pre outs:


Are these things ok or should I go with a HU that has 3 sets of pre outs?

[willworkfore30s]

What do you need 6 sets of pre outs for?

[Turf1600]

What do you need 6 sets of pre outs for?

My bad - 3 sets, 6 total.

[reelizmpro]

I would avoid it if possible. I have one in the E39 for a sub and while it gets the job done, it's by no means "clean."

[Turf1600]

So what's the best way to amplify a HU with only 1 set of pre outs?

[Jean]

Any number of line level pre-amps (audiocontrol/phoenix gold) , what you have above is not the same thing (speaker level to line level).

[Morrison]

Make sure to use an electronic "line-out converter" not a passive one. The passive ones have a natural bass roll-off starting around 80 Hz.

I can't tell which type that one is, but I would probably go with a used Audio Control LC6i off ebay if one pops up for a good price.

[CrusherCurtis]

I would avoid it if possible. I have one in the E39 for a sub and while it gets the job done, it's by no means "clean."

+1 had one back in high school, once I went to an aftermarket HU it was a night and day difference.

[KenC]

I have a new Kicker KX2 electronic crossover that I'll give you a great deal on ($40 shipped). One pair of RCA inputs to it, and it splits to two pairs and creates a high and low (adjustable frequencies) set. That would be your best bet, and would maintain a clean sound.

PM me if you want it.

[Turf1600]

I have a new Kicker KX2 electronic crossover that I'll give you a great deal on ($40 shipped). One pair of RCA inputs to it, and it splits to two pairs and creates a high and low (adjustable frequencies) set. That would be your best bet, and would maintain a clean sound.

PM me if you want it.

I wish that would help me - but I need to turn one set into 3. I have a nakamichi cd 400 that has one set for the sub. I need 2 more to control the F and R speakers. I have a new HU that has 3 sets that I'll probably end up using to avoid all the extra effort. It's a JVC KD-HDR70 that has color control so I should be able to get it to look ok in the e30.

[KenC]

You could use Y adapters to split the "high" signal for the fronts and rears since they'll get the same freq

[dwvw]

You could also solder RCA connectors to the speaker outs if you are using high quality equipment downstream. But head units with Front/Rear/Sub outs are cheap nowadays and that would be best.

[Jean]

You could also solder RCA connectors to the speaker outs if you are using high quality equipment downstream.

uhh yeah, don't do that.

[dwvw]

Why not? I have done it before. But your downstream equipment will need to handle 10-15V of input power.

[Turf1600]

My CD400 is non op so I'll be using a HU with 3 sets of RCAs. Problem solved.
