My Vert Custom Audio Install

[BadfishTX]

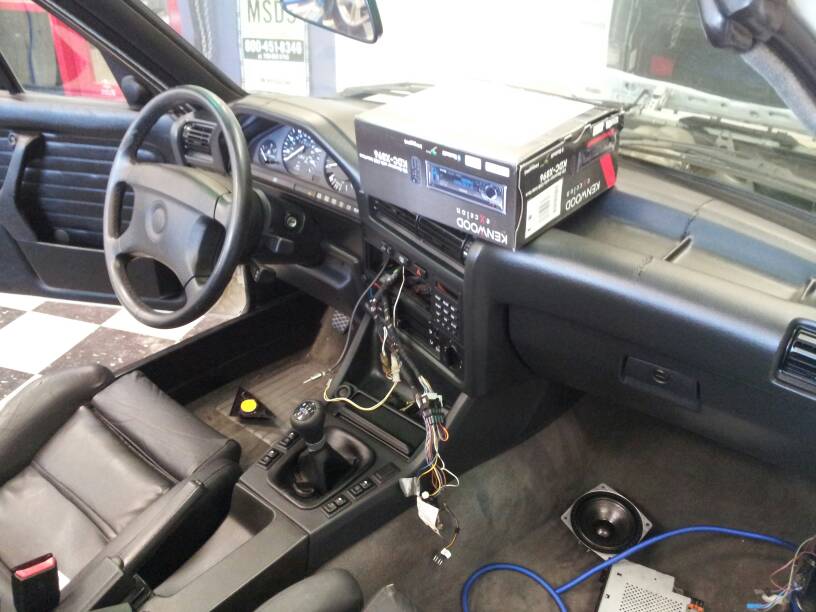

Headunit:Kenwood KDC-x896
Front Components: 6.5" JL Audio C3-650 Convertable Components
Rear Speakers: 5.25 Focal Coaxal Speakers
Amp: JL Audio HD900/5
Subwoofer: JL Audio 12W6v2-D4

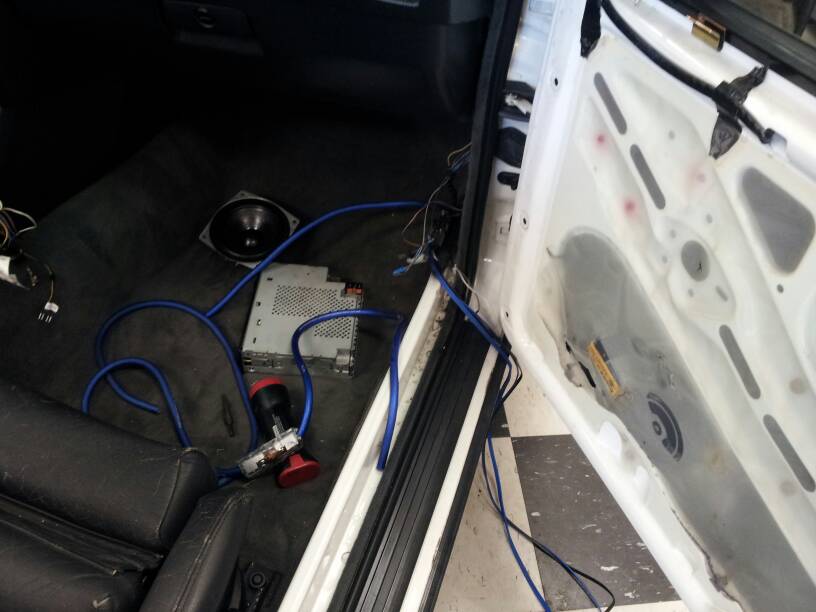

It is being custom built,installed and re-wired at Car Toys in Houston by a guy named Alex.

[BadfishTX]

Sent from my SPH-D710 using Tapatalk 2

[DRTSRFR]

How is the boom gonna get into the cabin?

[BadfishTX]

See the cut out ported holes? I sent him Lukes thread and he is going to copy the pvc tube idea

Sent from my SPH-D710 using Tapatalk 2

[randomquickness]

please post more pics with progress, I have a vert that needs some audio love.

[BadfishTX]

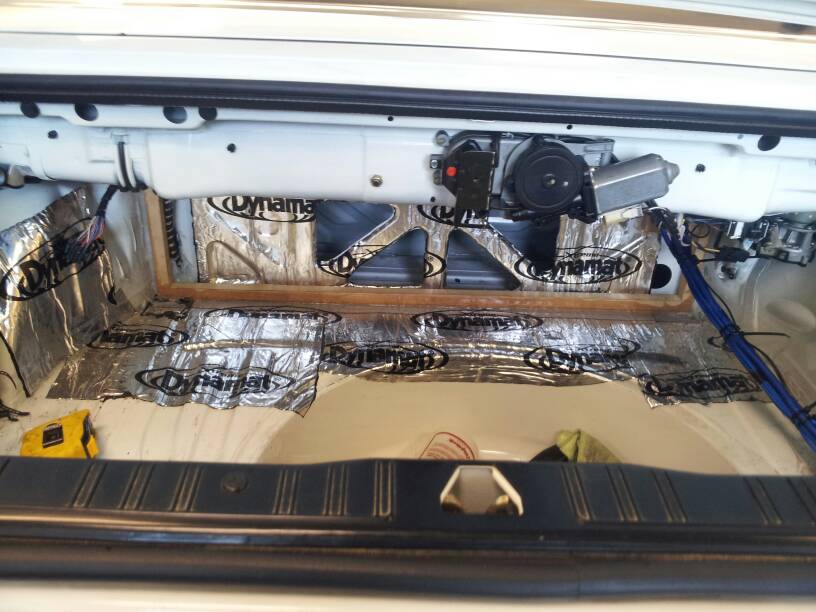

Heres a few more pictures. Installed the JL Audio Bass Control Knob, Cut out port holes behind the rear seats, and installed the box. Should hopefully be completed Friday evening.

[DRTSRFR]

Ahhh...didn't see the port holes in the first pics.

That 12 should hit pretty good if your builder did his math...

[BadfishTX]

Ahhh...didn't see the port holes in the first pics.

That 12 should hit pretty good if your builder did his math...

Yea he didn't do it until last night. 1st set of pictures were from earlier this week. Can't wait to get this thing back. I will have the coilovers here today at the shop hopefully. Have them installed Saturday afternoon and Rims here middle of next month.

[achtunge30]

Is trunk carpet going back in? I JUST installed the vert Lukebox and man was that an involved install! I wish I knew someone in my area reputable to do these kind of installs delicately in an old BMW.

[BadfishTX]

Is trunk carpet going back in? I JUST installed the vert Lukebox and man was that an involved install! I wish I knew someone in my area reputable to do these kind of installs delicately in an old BMW.

Yes I am pretty sure trunk carpet will be back in the car. I think that was a test fit.

[DRTSRFR]

My Lukebox fit with the carpet...

...and make sure you seal the crap out of the cavity. There are a TON of potential leaks. I probably spent two hours in there. Have your Bandaids ready!

[achtunge30]

My Lukebox fit with the carpet...

As did mine - which is why I asked...good stuff.

[BadfishTX]

My Lukebox fit with the carpet...

...and make sure you seal the crap out of the cavity. There are a TON of potential leaks. I probably spent two hours in there. Have your Bandaids ready!

Confused.. Which cavity? The one where the spare tire is? :/ I will inquire about the original carpet.

[DRTSRFR]

No, the cavity between the trunk and seat back. It has to be air tight for the 5th order concept to work efficiently.

[StereoInstaller1]

Wait...let me get this straight...you showed some dude at Car Toys my design and he built this? Nice...once again my work get plagiarized, while we go broke.

All you clowns do realize the whole fucking reason we had all the issues we had was lack of sales, right? All of you asshats who all said "build me a box for my vert" and then I fucking killed myself to get this pile of shit done and I sold...6 boxes. You do know I spent like 150 hours dreaming this shit up and sold like 6 boxes, right? Do the math, that is like 85 cents an hour...and that dude never ever would have come up with my solution, nor would you.

Well, I hope it works out for you, but it really looks to me like he never touched a calculator at all. The W6 is a horrible choice for bandpass applications, thats for sure. If I were you, I would make certain that the woofer is easily accessible for servicing.


BTW, make sure the inside of that cavity gets dynamatted too.

Oh, by the way, what is the dude charging you for stealing my design?
