    What wire is this behind the cluster?! HELP!!

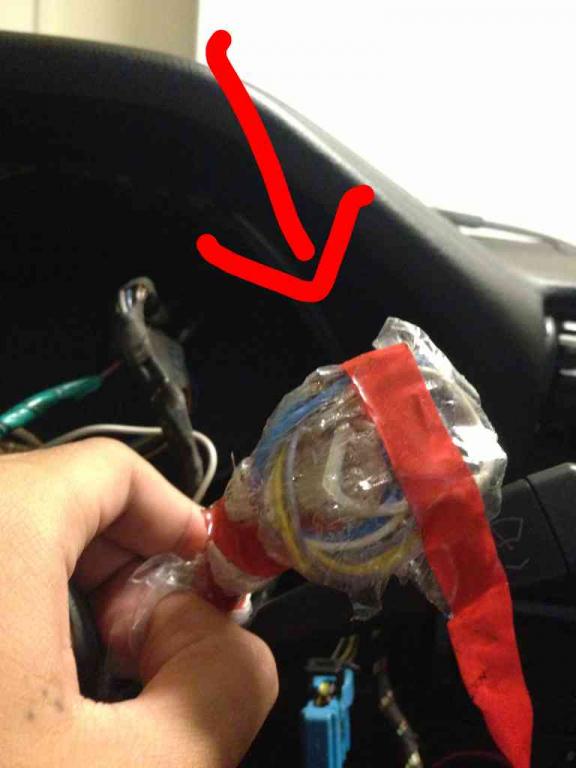

    Recently picked up a 88 325ic, love it, never going back to Hondas. Started to strip the interior to dye my carpet black and fix the dash cracks and noticed the cluster wiring was all types of mickeymoused. Anyone know where this wire leads to?! Thanks in advance!

    Click image for larger version

Name:	ImageUploadedByTapatalk1378927851.883039.jpg
Views:	1
Size:	39.4 KB
ID:	7235449
    Transaction Feedback
    Various E30 Parts for Sale!
    Z3 Steering Racks for Sale!

    Current Fleet:
    -1987 Delphin Grey 325iS
    -1989 Bronzit Beige 325iS

    #2
    That's gonna be a tough one...

    Can you unwrap it so we can see the connectors? If any...
    Suspension tips here...
    http://www.r3vlimited.com/board/album.php?albumid=757

    sigpic

    Comment


      #3
      Originally posted by ScottSneed View Post
      Recently picked up a 88 325ic, love it, never going back to Hondas. Started to strip the interior to dye my carpet black and fix the dash cracks and noticed the cluster wiring was all types of mickeymoused. Anyone know where this wire leads to?! Thanks in advance!

      [ATTACH]76531[/ATTACH]

      Stock radio wires. i would guess

      Comment


        #4
        Originally posted by Bmr View Post
        Stock radio wires. i would guess
        Turns out it was the radio wires, thanks!

        New problem however, the previous owner tapped into the radio wires to light the two bulbs for the cluster, any idea where those bulbs SHOULD be powered from?
        Transaction Feedback
        Various E30 Parts for Sale!
        Z3 Steering Racks for Sale!

        Current Fleet:
        -1987 Delphin Grey 325iS
        -1989 Bronzit Beige 325iS

        Comment


          #5
          They should be wired from the white connector that plugs into the cluster. Grey/Red wire, pin 23.
          Owner - Bavarian Restoration
          BMW and European Electronics Repair and Restoration
          www.BavRest.com
          My Feedback Thread
          Our Facebook!
          Follow our Instagram!

          Comment


            #6
            Originally posted by Gregs///M View Post
            They should be wired from the white connector that plugs into the cluster. Grey/Red wire, pin 23.
            Sweet thanks, where should I ground thee?
            Transaction Feedback
            Various E30 Parts for Sale!
            Z3 Steering Racks for Sale!

            Current Fleet:
            -1987 Delphin Grey 325iS
            -1989 Bronzit Beige 325iS

            Comment


              #7
              It should show 12V when the rest of the dash lights illuminate. Pin 24 should show ground.
              Owner - Bavarian Restoration
              BMW and European Electronics Repair and Restoration
              www.BavRest.com
              My Feedback Thread
              Our Facebook!
              Follow our Instagram!

              Comment


                #8
                Originally posted by Gregs///M View Post
                It should show 12V when the rest of the dash lights illuminate. Pin 24 should show ground.
                Thanks! Gonna get on this tomorrow morning. Did the bulb come with a socket? Previous owner had a bulb connected to speaker wire -_-
                Transaction Feedback
                Various E30 Parts for Sale!
                Z3 Steering Racks for Sale!

                Current Fleet:
                -1987 Delphin Grey 325iS
                -1989 Bronzit Beige 325iS

                Comment


                  #9
                  Yes there should be sockets behind the cluster, two of them.
                  Owner - Bavarian Restoration
                  BMW and European Electronics Repair and Restoration
                  www.BavRest.com
                  My Feedback Thread
                  Our Facebook!
                  Follow our Instagram!

                  Comment


                    #10
                    Originally posted by Gregs///M View Post
                    Yes there should be sockets behind the cluster, two of them.
                    Pics? I believe this guy may have removed em or something
                    Transaction Feedback
                    Various E30 Parts for Sale!
                    Z3 Steering Racks for Sale!

                    Current Fleet:
                    -1987 Delphin Grey 325iS
                    -1989 Bronzit Beige 325iS

                    Comment


                      #11
                      Scott, it is the two large bulbs behind the orange light diffusers. They are the only two large bulbs, you cant miss them.
