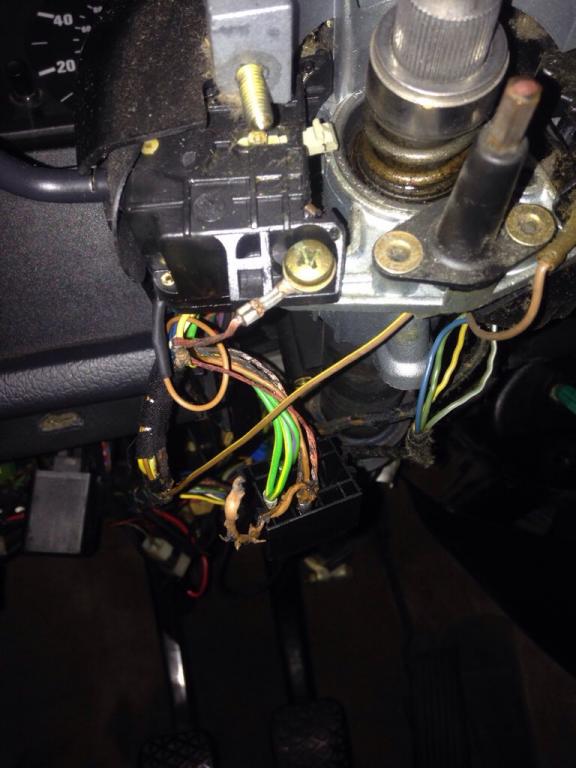

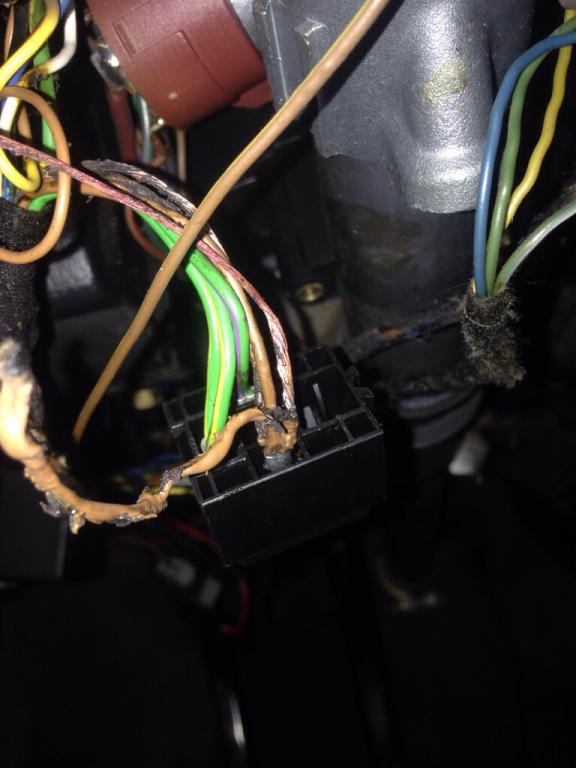

So I pulled and reinstalled my gauge cluster last weekend. After doing so I noticed a clicking feeling in the steering wheel when turning. While investigating it tonight I noticed the headlights would dim if I turned the wheel right. It would only dim at certain spots. Stupidly, I held it at one of the spots and smoke started pouring out of the steering column. The brown wires in the column seemed to have been fried. Anyone know why this would happen? Everything in the gauge cluster worked fine.

https://vimeo.com/110742673
Announcement
Collapse
No announcement yet.
Fried wires
Collapse
X
-
The fuse box has incorrect sized fuses.Owner - Bavarian Restoration
BMW and European Electronics Repair and Restoration
www.BavRest.com
My Feedback Thread
Our Facebook!
Follow our Instagram!
Comment
-
Originally posted by Gregs///M View PostThe fuse box has incorrect sized fuses.
I checked the fuses and they're all good. Basically the turn signal eliminator switch is shorting out on something when it's triggered while turning the wheel right. I don't see any tangled wires or anything else out of the ordinary in the column.
Comment
-
I had a similar thing happen with the wiring for the washer jet heaters - the fried wires were causing a bunch of issues. I just disconnected everything. I have a complete set of spare wires, but I've gone both winters without with no problems. Don't feel like going through the hassle if I don't need them. LOLEstoguy
1986 BMW 325, Alpenweiss ~ "Elsa"
Need a photographer, come visit my site: http://estoguy.wix.com/unique-perspectives
Comment
-
OP did you figure out what caused the clicking in the steering column? My car just started doing this.
1992 M tech 2 Convertible - S50 Swap
1992 e34 Touring- S50 Swap
1992 325i-S50 Swap (SOLD)
1995 e36 M3 Mugello Red - S50 (SOLD)
1991 325i Convertible Laguna Green (SOLD)
1987 325i (SOLD);1992 M tech 2 Convertible (SOLD)
1988 325i Convertible Alpine White (SOLD)
1991 Brilliantrot Convertible 80k Miles (SOLD)
1992 325i Convertible Schwarz (SOLD)
1992 318i Convertible Project-Finished (SOLD)
Comment
-
Originally posted by KIRIEIW View PostOP did you figure out what caused the clicking in the steering column? My car just started doing this.
I think the clicking I'm feeling was the electricity jolting through the column. I still can't figure out why it's shorting out. If you're not burning up wires, clicking would indicate your clock spring is on its way out.
Comment
-
Originally posted by Skychismo View PostI checked the fuses and they're all good. Basically the turn signal eliminator switch is shorting out on something when it's triggered while turning the wheel right. I don't see any tangled wires or anything else out of the ordinary in the column.
If the electrical fuse panel was like OEM, the fuse would have blown and not fried the wires. In your case, someone put a larger amperage rating fuse for that circuit and now the wiring itself is the fuse, not the actual fuse.Owner - Bavarian Restoration
BMW and European Electronics Repair and Restoration
www.BavRest.com
My Feedback Thread
Our Facebook!
Follow our Instagram!
Comment
-
Originally posted by Gregs///M View PostIm not saying to check if the fuses are good, im saying the wrong size fuses are installed.
If the electrical fuse panel was like OEM, the fuse would have blown and not fried the wires. In your case, someone put a larger amperage rating fuse for that circuit and now the wiring itself is the fuse, not the actual fuse.
Sorry, by "good" I meant the correct fuses are installed. I'm not sure why they didn't blow.
