    How do I remove the AC Evaporator core on a convertible?

    So as part of fixing one thing that touches on another thing I decided to convert my system to r134a, part of that includes cleaning out all the old pipes and I had hoped the evaporator. But I cannot for the life of me figure out how to get the evaporator core out of the car. I suspect that the firewall on the convertible is different because of the battery placement, but I am not sure. Here is the best I can get:

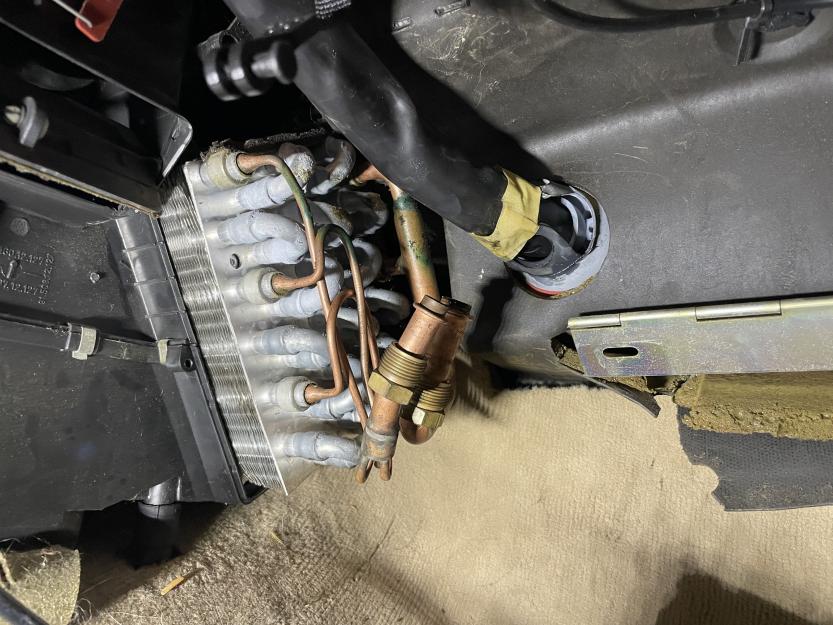

    Click image for larger version Name: IMG_2290.jpg Views: 405 Size: 92.3 KB ID: 10059878



    You can see that there is a grey box the glovebox hinge is attached to as well as the wires to the ECU. The tutorials all say tip it down and it will come out, but all of the images I found don't look like mine.

    Either I am missing something or this just can't be done this way on a convertible. Help!
    Tags: None
    • reelizmpro
      R3V OG
      • Dec 2003
      • 9465
      #2
      Remove the glovebox hinge. You should be able to get it out around the harness.
      "I'd probably take the E30 M3 in this case just because I love that little car, and how tanky that inline 6 is." - thecj

      85 323i M TECH 1 S52 - ALPINEWEISS/SCHWARZE
      88 M3 - LACHSSILBER/SCHWARZE
      89 M3 - ALPINEWEISS II/M TECH CLOTH-ALCANTARA
      91 M TECHNIC CABRIO TURBO - MACAOBLAU/M TECH CLOTH-LEATHER

        Comment

        • Ukko
          Noobie
          • Mar 2012
          • 16
          #3

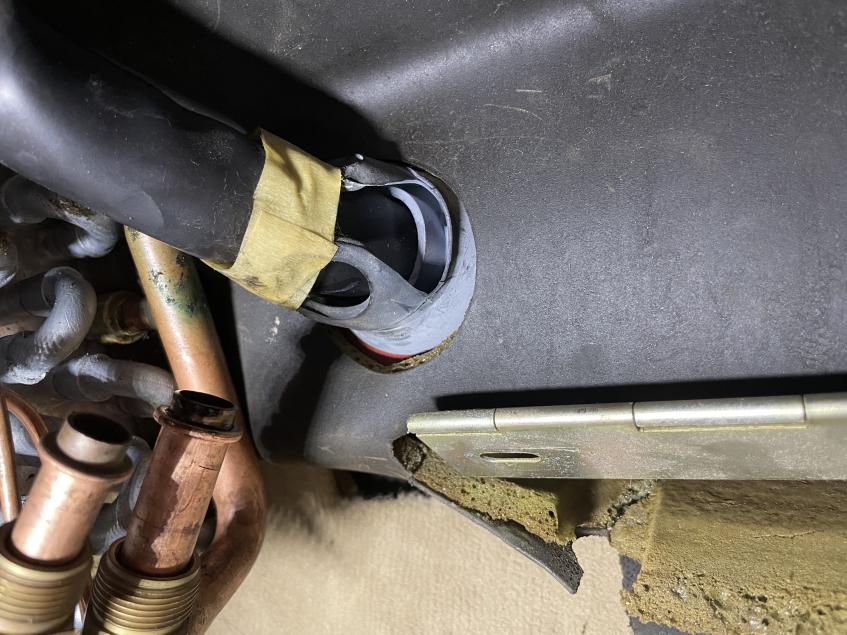

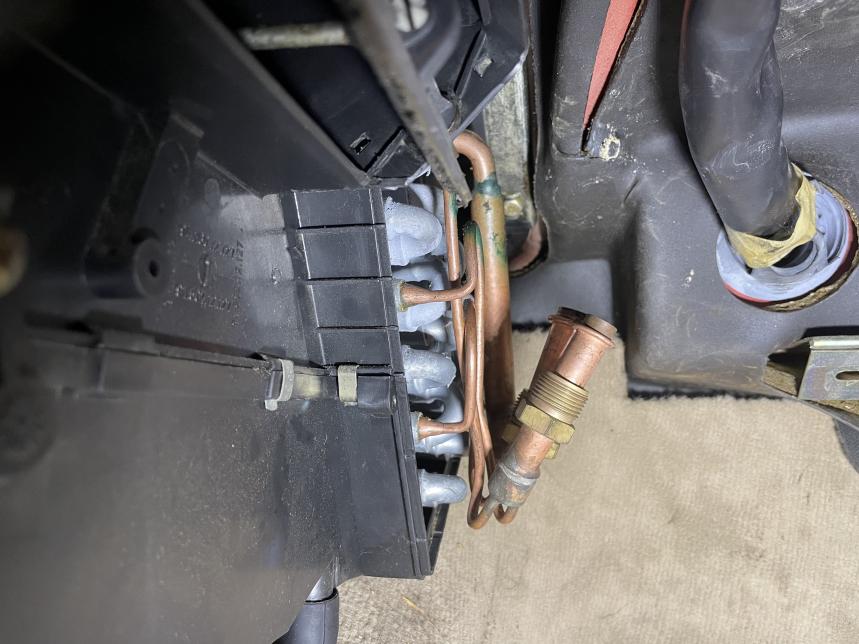

          I was thinking that I would need to do that, but I cannot even get that far. I hit that grey bump, I read stuff about angeling it down and the like but I am only able to slide it in and out, I assume I am not getting it far enough out to be able to angle it yet. Do I need to tear all the foam padding out? Would that make enough room? It is fairly fragile and I don't want to break it on the way out.
          Attached Files

            Comment

            • Ukko
              Noobie
              • Mar 2012
              • 16
              #4
              Just to sorta close the loop on this, I ended up just cleaning the evaporator in place because I could not reasonably get it out. I used a couple of Home Depot vinyl hoses to spray the AC cleaner into the core and then route the stuff coming out into a catch can under the car. I still don't have a dryer so I haven't tried to pull a vacuum on it yet, but hopefully that was good enough.

                Comment

                • Tzantushka
                  Grease Monkey
                  • Nov 2018
                  • 389
                  #5
                  Yep, if it’s not leaking a evap flush is good.
                  reverse flushing is better as you want to avoid lodging crap in there.

                  A RHD evap core replacement is a PITA as you’ve got the steering column as well as the bump in the way.
                  I flushed mine in place and was astounded by the amount of gunk that came out
                  E30 320i vert
                  But daily drive is Volvo V60 Polestar

                    Comment

                    • MoreMayhem
                      Mod Crazy
                      • Feb 2012
                      • 649
                      #6
                      Just removed the evaporator core from my 1988 convertible yesterday. I did not encounter the same problem you experienced. It was a pain to get the core out, but with patience I managed it. The new core seems slightly smaller than the original one and it went in much easier. Hopefully I didn't order the wrong one.

                        Comment
