    help with my convertible

    hey guys i recently got a 1993 bmw 318i convertible
    i am currently have a problem trying to fold down the top. the compartment where the top goes into doesn't want to open from the left side is there a way to unlocking it besides the handle (because thats not working either )

    #2
    Open the flap. Trigger the latch with a long screwdriver.
    '89 lachssilber vert - Frau Blücher
    '84 alpine 2dr - gone to the great beyond...
    '00 titanium 4dr e46 - bricked

    Comment


      #3
      Ok, here are some pics.

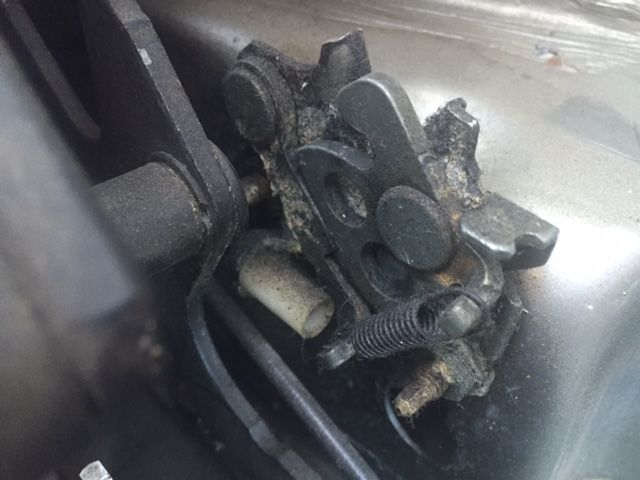

      This is the latch in the locked position, rear of car is to the right, this is the driver's side:


      Press at the point of the arrow in the direction of the arrow:

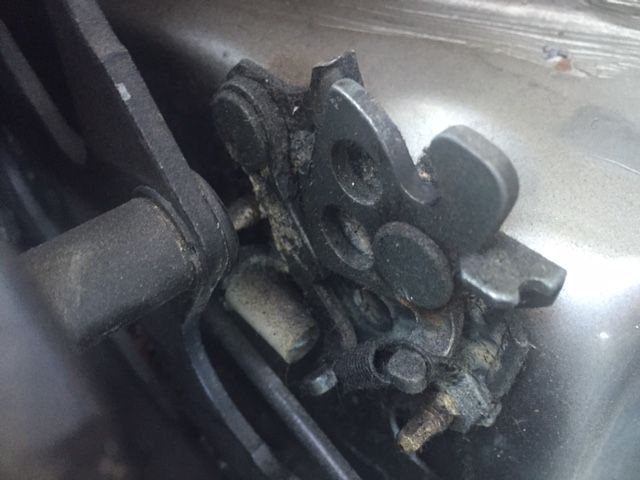

      Unlocked:


      View more from the angle you will have:


      I couldn't get the little lever and spring to show up in the photo but you will be able to see it.

      Good luck,
      '89 lachssilber vert - Frau Blücher
      '84 alpine 2dr - gone to the great beyond...
      '00 titanium 4dr e46 - bricked

      Comment


        #4
        When you get the lid open, you should take the speaker cover and handle off. my guess is that the cable that goes to that side snapped somewhere. shouldn't be too hard of a fix. the harder it is to put the top down, the less you'll use it!

        Comment


          #5
          there are adjusting lugs on the cables - one for each latch. follow the cable from the upside down door handle - and make sure that the latches move their full motion. you MAY be able to adjust the cables to compensate.
          a cable may have come unhooked at either end..
          the cables are and handle are still available OEM and not very expensive

          Comment


            #6
            The new handles have a plastic arm in back where the cable connects. The old ones have a metal arm which you can detach from your broken handle by pushing out the pivot pin and swapping it over. I can't see a plastic arm with 2 cables attached to it lasting very long.
            Seat Shocks....I have passed the baton to John Christy from Ninestitch. Email John or Garrett at ninestitch1@gmail.com

            https://www.r3vlimited.com/board/sho...86#post4944786
            Alice the Time Capsule
            http://www.r3vlimited.com/board/showthread.php?t=360504
            87 Zinno Cabrio barn find 98k and still smells like a barn. Build thread http://www.r3vlimited.com/board/show...20#post3455220
