    Megasquirt Tach output - coil driven tach (M20)

    Hello all,

    Just wanted to see if anyone has successfully used the megasquirt tacho output to run the oem tacho on a tacho that was originally driven by the coil.

    My car is originally an L-jetronic system (m20b23), so the tacho is driven off the negative side of the coil. I'm not exactly sure what signal this is. is it just grounding the cluster tacho output every spark event?

    my understanding is the tacho output of the megasquirt is a 5v pulsed signal.

    I see reference to people using a relay to convert this signal. Not a normal clickly clicky relay i hope?

    Is there any reason i cant just put a transistor circuit on the megasquirt output and pull the tacho input to ground?

    for reference, im running ms2 extra, wasted spark on 6 x LS1 coils. distributor is still in place (to fill the hole) but not connected to anything. Everything is run off the MS2. Everything runs great, but having no tacho on the dash is a little annoying.

    #2
    Ok well i might have found my own answer. Need to use the control side of the relay as it is an inductor. and when the tacho output turns off it simulates the callapsing of the coil and voltage spike, and this drives the oem tacho. Gonna grab a relay and try this tonight.

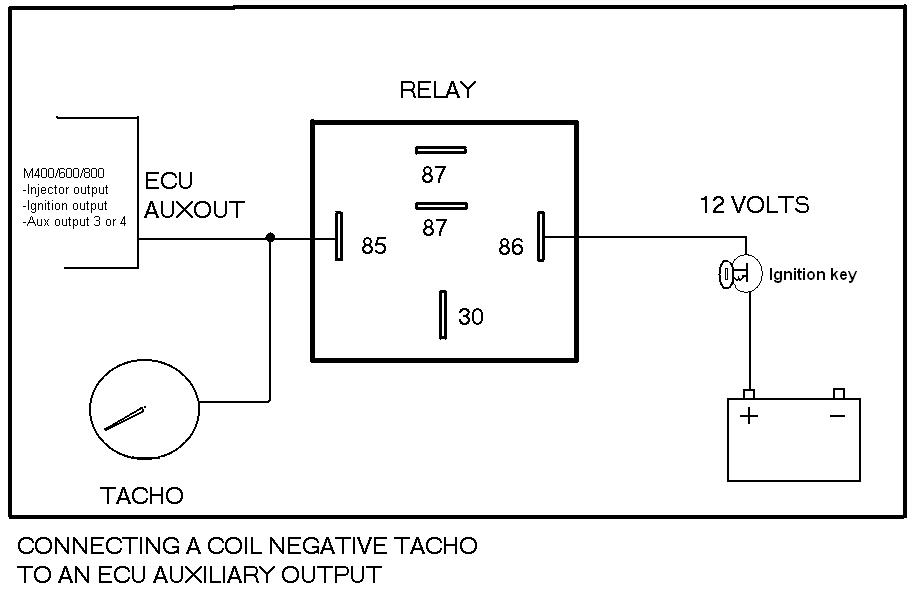

    Attached Files

    Comment


      #3
      I have heard that you can use a standard tach out--as long as it is attached to S12C on the megasquirt board up the line.. I forget the specifics. It looks like this thread on the msextra forums might have your answer:
      http://www.msextra.com/forums/viewtopic.php?t=41954
      '84 318i M10B18 147- Safari Beige
      NA: 93whp/90ftlbs, MS2E w/ LC, 2-Step
      Turbo: ?whp/?ftlbs, MS3x flex @ 17psi

      Comment


        #4
        Would this be the case for a M20B25?
        1969 Chevrolet El Camino - SOLD
        1979 BMW 320i - Traded
        1980 BMW 633CSi - SOLD
        1986 Chevrolet K30 Silverado - SOLD
        1987 BMW 325es - Totaled
        1987 BMW 325ic - Traded
        1990 BMW 325is - First car/Sunday Cruiser
        2004 BMW 325xi - Totaled
        2007 BMW 335i vert - Traded
        2018 Chevrolet Cruze - Totaled
        2019 Subaru Impreza
        ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
        1980 Suzuki GS850 - SOLD
        2004 Harley Davidson Softail - Traded
        2007 Suzuki GZ250 - SOLD
        https://www.flickr.com/photos/155574105@N08/albums

        Comment


          #5
          My understand is the m20b25 ECU is motronic and has a tacho output to the dash cluster. and the megasquirt output can be used the same way. I dont see too many people complaining about the m20b25 tachos not working with megasquirt so it should just work.
