    Turbo Questions

    Gonna drill my e34 pan for the turbo drain while its still off the car, what size should I drill it to? 5/8? and I don't have a welder so I was planning on something like this and tightening it and throwing locktite. Any suggestions?


    #2
    also wheres a good spot to drill it?

    Comment


      #3
      do it right and have it tig welded. Weld the bung as high as you possibly can, this prevents the drain tube from being to far below the oil level line and thus causing drain issues. Also go as big as you can.

      Lets talk in terms of metric -AN sizes which is what you should be using. To prevent backflow of oil I would recommend no less than -10 AN

      Turbo M42 Build Thread :Here
      Ig:ryno_pzk
      I like the tuna here.
      Originally posted by lambo
      Buttchug. The official poster child of r3v.

      Comment


        #4
        yeah i was planning on the 10an fitting. does welding it really make that much better?

        Comment


          #5
          well i mean you can tap the pan but the cast aluminum is prone to stripping. Its so much less headache to weld a bung in, especially if you are going to have to remove the hose from time to time which you have to do when fitting things/ building a turbo engine...

          Turbo M42 Build Thread :Here
          Ig:ryno_pzk
          I like the tuna here.
          Originally posted by lambo
          Buttchug. The official poster child of r3v.

          Comment


            #6
            I'd recommend a -10an. Should be plenty for almost anyone's needs. And I agree with buttchug, makes things so much easier when it's welded on. It'll never leak, and wont back out, unlike a thread-on one would.

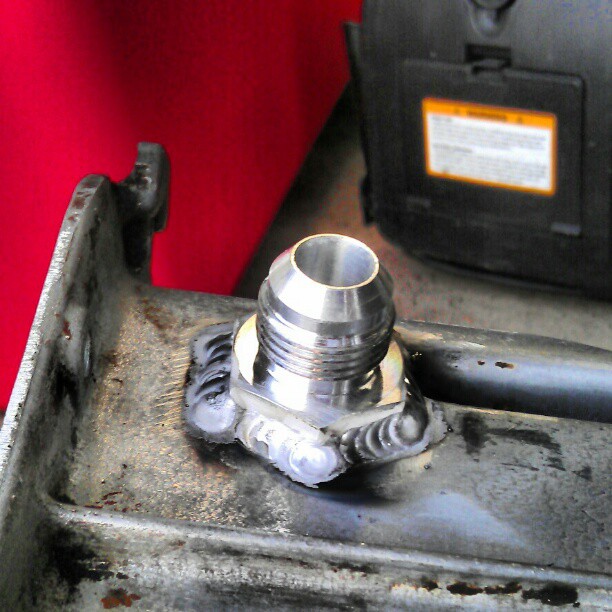

            Here's mine for preference (m20):

            Click image for larger version

Name:	m20turboreturn.jpg
Views:	1
Size:	92.7 KB
ID:	7147994
            Originally posted by audiquattrot
            bimmers b4 b*tches....remember that.
            1990 Alpinweiss 325i - secret 500whp build
            2000 Audi S4 B5 Laser Red
            1990 Nissan 240sx - Drift Missile
            2006 CBR600RR

            Comment


              #7
              Alright I'm gonna look for someone around here who can weld it for me

              Comment


                #8
                Originally posted by JFarhanbod View Post
                Alright I'm gonna look for someone around here who can weld it for me
                Just go to a local machine shop. 99% of them should have a TIG welder and the ability to do it.
                Originally posted by audiquattrot
                bimmers b4 b*tches....remember that.
                1990 Alpinweiss 325i - secret 500whp build
                2000 Audi S4 B5 Laser Red
                1990 Nissan 240sx - Drift Missile
                2006 CBR600RR

                Comment


                  #9
                  Just drill a hole and use a 10an Bulkhead fitting so no welding is necessary. you will need 2x 10an bonded sealing washers and 2 10an locknuts. this is what I usually use in my turbo kits. I use the 90 degree bulkhead for clearance.



                  this with two lock nuts (or drill it and use a cotter pin) and two bonded washers.

                  Derek
                  DedericMS

                  All-Red/MHW style Professional Tinted Tail lights
                  PnP EMS, fuel injectors, wideband o2 systems

                  Comment


                    #10
                    Originally posted by blueapplesoda View Post
                    Just drill a hole and use a 10an Bulkhead fitting so no welding is necessary. you will need 2x 10an bonded sealing washers and 2 10an locknuts. this is what I usually use in my turbo kits. I use the 90 degree bulkhead for clearance.



                    this with two lock nuts (or drill it and use a cotter pin) and two bonded washers.

                    Derek
                    DedericMS

                    This is what I did. It has worked great.

                    Comment


                      #11
                      Originally posted by Dj Buttchug View Post
                      Lets talk in terms of metric -AN
                      AN fittings are actually standard, they came about from the US Military around WWII. Not trying to call you out, I just think that's a cool fact. The pipe sizes correlate to 1/16ths of an inch, i.e. -10 hose and fittings are for 5/8" ID hose.

                      But yeah, I agree. Definitely get it welded as high as possible, no matter what you do it will leak if its not welded. It's just a matter of time.
                      1991 318i SOLD
                      2003 325i SOLD

                      Racecars and stuff.

                      Comment
