    M42 build rotrex + gt3076

    Hello everyone, I am introducing myself from Barcelona, ​​I have an e30 318is in the process of a track car and I wanted to share the project in this forum. First of all apologize for my English by google translate ... I wanted to start with the first modifications made to the car, it is a complete build I do not know if this will be the best section of the forum to post ...


    At the beginning I just wanted a Rotrex supercharger to gain about 100hp with standard internals, but little by little I bought the ecu link, the connecting rods and forged pistons ... in the end, as the parts arrived, my goal was higher. Until a week ago I only had the idea of ​​the Rotrex supercharger, but I was afraid that it would be a somewhat empty power curve at low revs.
    I felt encouraged and bought a gt3076 to attach to the rotrex. In my mind the idea is a series assembly, a pulley so that the rotrex at 4500 is at its limit, then disconnect it with an electromagnetic clutch and that the turbo continues until 7000. I don't know if all this will be possible, but it is what I have proposed to do.


    This is the day I bought the car from the one who is now my boss
    Click image for larger version

Name:	IMG_20180413_145328.jpg
Views:	70
Size:	111.0 KB
ID:	9981621
    Click image for larger version

Name:	IMG_20180413_145339.jpg
Views:	47
Size:	63.4 KB
ID:	9981622
    Click image for larger version

Name:	IMG_20180413_145349.jpg
Views:	49
Size:	107.1 KB
ID:	9981623
    Click image for larger version

Name:	IMG_20180413_145403.jpg
Views:	49
Size:	66.4 KB
ID:	9981624

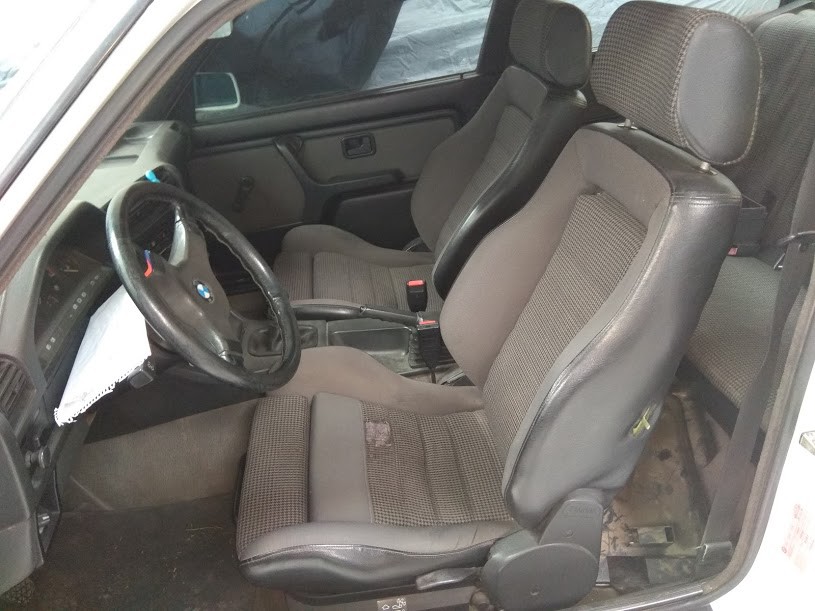

    The car was apparently in good condition, it had oem lsd 168mm, recaro seats and dbilas intake. But my boss already warned me that I had some badly repaired accident from previous owners. Don't pay too much attention to it. After a holidays on the nurburgring circuit with huge kerbs and too short suspension travel came the tragedy. the body was cracked really in very bad condition ...


    Click image for larger version

Name:	IMG_20210405_161329.jpg
Views:	48
Size:	46.4 KB
ID:	9981625

    this photo is after jumping a huge kerb, which just damaged the body
    Last edited by Oriol; 04-05-2021, 01:30 PM.

    #2
    Pics aren't working! Sounds like a cool build though

    Comment


      #3

      Click image for larger version

Name:	IMG_20191223_110933.jpg
Views:	60
Size:	113.2 KB
ID:	9981628
      Click image for larger version

Name:	IMG_20191223_110929.jpg
Views:	56
Size:	109.2 KB
ID:	9981629
      Click image for larger version

Name:	IMG_20191223_111013.jpg
Views:	56
Size:	96.6 KB
ID:	9981630​​
      Click image for larger version

Name:	IMG_20191223_111027.jpg
Views:	54
Size:	59.7 KB
ID:	9981631​​
      ​​
      ​​


      The entire chassis at the front was cracked.
      I had to repair it to continue enjoying this car.

      Click image for larger version

Name:	IMG_20191228_140440.jpg
Views:	56
Size:	67.2 KB
ID:	9981632
      Last edited by Oriol; 04-05-2021, 01:37 PM.

      Comment


        #4

        ​​
        ​​
        ​​
        ​​



        ​​
        ​​

        buy some struts reinforcements plates from intrax suspension

        Click image for larger version

Name:	IMG_20191228_200951.jpg
Views:	61
Size:	71.1 KB
ID:	9981635
        Click image for larger version

Name:	IMG_20200102_134147.jpg
Views:	56
Size:	103.3 KB
ID:	9981636
        Click image for larger version

Name:	IMG_20191229_184032.jpg
Views:	56
Size:	103.6 KB
ID:	9981637
        Click image for larger version

Name:	IMG_20200102_142748.jpg
Views:	57
Size:	65.7 KB
ID:	9981638

        ​​
        ​​
        ​​

        When I already had the chassis repaired, I decided to reinforce the subframe and make many modifications to move the engine 8 cm back for a great balance.


        Click image for larger version

Name:	IMG_20191226_092627.jpg
Views:	57
Size:	104.4 KB
ID:	9981639
        ​​

        Comment


          #5
          Click image for larger version

Name:	IMG_20191226_094247.jpg
Views:	55
Size:	96.7 KB
ID:	9981648

          ​​​​​
          New custom engine mounts arms

          Click image for larger version  Name:	IMG_20191226_211728.jpg Views:	0 Size:	66.3 KB ID:	9981643​​​​​

          I have also rotated the front subframe 180 degrees already from e36, to give more caster to the wheel since the wishbone support is not in the center of the two holes of the subframe. With this and the oem silentblocks of the m3 e36 286cv, my car already had 9 degrees of positive caster according to the alignment machine. It is true that I had to completely modify the atachments of the steering box and it also offers the advantage of having the oilpan behind the subframe free of crashes.

          I also had to make new e36 stabilizer brackets.
          I do not have many photos of this process since I did not plan to publish any of this, when I can take photos and share them, I think it is a good mod.
          Click image for larger version  Name:	IMG_20200105_115236.jpg Views:	0 Size:	103.2 KB ID:	9981644​​​​​

          Here you can see the difference in wheel caster with the standard configuration and the engine position
          Click image for larger version  Name:	IMG_20180413_145403.jpg Views:	0 Size:	66.4 KB ID:	9981645

          Now that we have the chassis in good condition we will start with the upgrades of the little 1.8

          Engine specs:
          crankshaft m42
          cylinder block stock m42 84mm
          forged pistons CPS 9:1 rc
          forged rods ebay edition
          arp cylinderhead and bottom studs
          cometic headgasket
          m44 cylinnderhead with stock cams
          m44 timming case + 10mm oil pump (2mm more than m42)
          rod and cranckshaft king bearings std size
          700cc inyectors from asnu
          340l/h petrol pump from asnu
          link g4x extreme ecu
          rotrex c38/61 kit
          gt3076 ebay edition turbo

          Click image for larger version  Name:	IMG_20200709_134447_549.jpg Views:	0 Size:	111.3 KB ID:	9981646​​​​​
          ​​​​​

          Comment


            #6

            Click image for larger version

Name:	IMG_20210114_104044.jpg
Views:	58
Size:	115.7 KB
ID:	9981650​​​​​​​​​​​
            Click image for larger version

Name:	IMG_20200531_222722_984.jpg
Views:	52
Size:	54.8 KB
ID:	9981651​​​​​​​​​​​
            ​​​​​​​​​​​

            Ok, it's time to disassemble the original motor and start measuring tolerances with the new bearings and install the crankshaft.


            Click image for larger version

Name:	IMG_20200531_222722_985.jpg
Views:	53
Size:	112.3 KB
ID:	9981652​​​​​​​​​​​

            The weight comparison of stock vs upgraded piston an rod.


            Click image for larger version

Name:	IMG_20210115_221915.jpg
Views:	53
Size:	90.0 KB
ID:	9981653​​​​​​​​​​​
            Click image for larger version

Name:	IMG_20210115_221853.jpg
Views:	54
Size:	97.3 KB
ID:	9981654​​​​​​​​​​​

            Comment


              #7

              Click image for larger version

Name:	IMG_20200711_135840_481.jpg
Views:	57
Size:	65.6 KB
ID:	9981656​​​​​​​​​​​​​​​​​​​​​​​
              Click image for larger version

Name:	IMG_20200711_135840_478.jpg
Views:	52
Size:	55.3 KB
ID:	9981657​​​​​​​​​​​​​​​​​​​​​​​

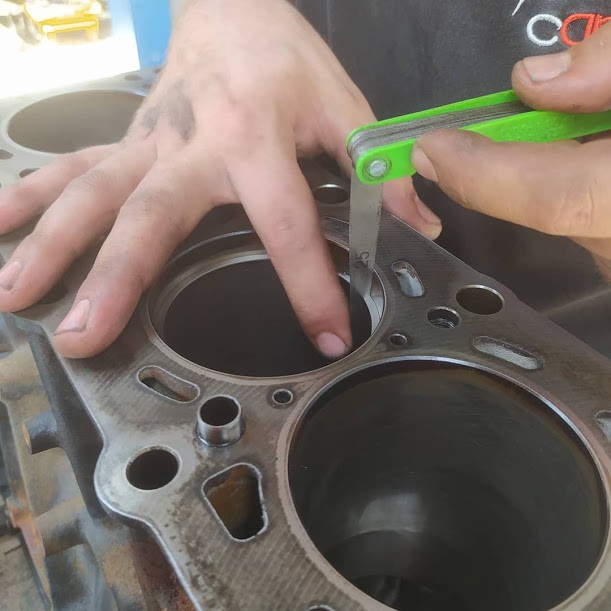

              I have read a lot about this since there is no certainty and after consulting several books my ring end gap setup: top: 0.55mm 2nd: 0.60mm 3rd: 0.30mm

              ​​​​​​​​​​​​​​​​​​​​​​​
              Click image for larger version

Name:	IMG_20210111_195519.jpg
Views:	52
Size:	107.4 KB
ID:	9981658

              Click image for larger version

Name:	IMG_20210111_204146.jpg
Views:	53
Size:	65.4 KB
ID:	9981659​​​​​​​​​​​​​​​​​​​​​​​
              Crankshaft bearing clearance

              Click image for larger version

Name:	IMG_20210113_194042.jpg
Views:	53
Size:	97.9 KB
ID:	9981660​​​​​​​​​​​​​​​​​​​​​​​

              Comment


                #8

                Rod bearing clearance
                Click image for larger version

Name:	IMG_20210131_121039.jpg
Views:	58
Size:	71.4 KB
ID:	9981662​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​


                The connecting rods and pistons have a good alignment of weights, there is only 1 gr of difference between them.

                Click image for larger version

Name:	IMG_20210115_201439.jpg
Views:	53
Size:	105.6 KB
ID:	9981663​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​
                Click image for larger version

Name:	IMG_20210115_203958.jpg
Views:	52
Size:	112.1 KB
ID:	9981664​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​

                I used AMS engine assembly lube it is a very thick grease and it looks very good

                Click image for larger version

Name:	IMG_20210405_172804.jpg
Views:	51
Size:	64.6 KB
ID:	9981665​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​

                Crankshaft pistons and rods instaled!

                Click image for larger version

Name:	IMG_20210131_123937.jpg
Views:	52
Size:	116.4 KB
ID:	9981666​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​

                ​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​


                Comment


                  #9

                  The engine block is waiting to fall in love with the cylinderhead =)

                  Click image for larger version

Name:	IMG_20210131_133311.jpg
Views:	59
Size:	97.2 KB
ID:	9981679

                  Click image for larger version

Name:	IMG_20210216_203605.jpg
Views:	55
Size:	65.8 KB
ID:	9981680

                  only changed the valve springs retainers from a audi rs3/rs6

                  m44stock:

                  Click image for larger version

Name:	IMG_20210405_231854.jpg
Views:	55
Size:	55.3 KB
ID:	9981681

                  rs3 8v / rs6 4.0 fsi:

                  Click image for larger version

Name:	IMG_20200714_090905_610.jpg
Views:	53
Size:	20.4 KB
ID:	9981682

                  Click image for larger version

Name:	IMG_20210218_143333.jpg
Views:	56
Size:	67.9 KB
ID:	9981683

                  Comment


                    #10

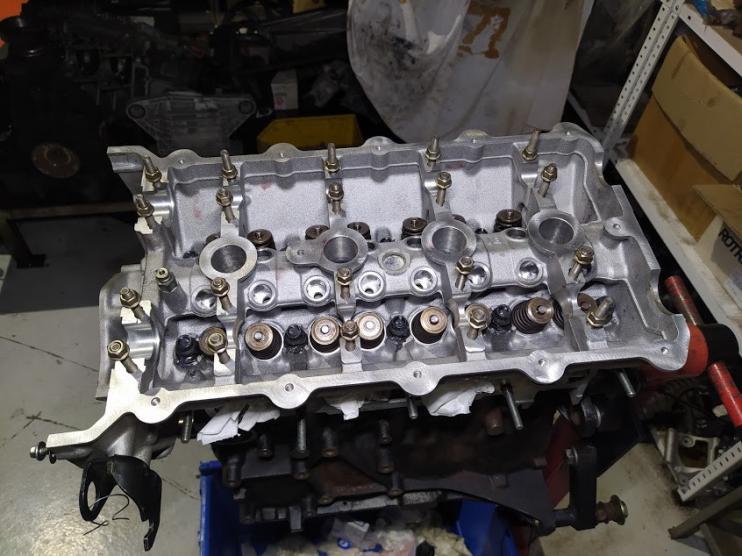

                    The reason why i choosed the m44 cylinderhead is the valvetrain is 70% less friction than m42, from timing chain is better and today have spare parts in bmw (for m42 is ended) and the oil pump is 2mm larger than m42.

                    Click image for larger version

Name:	IMG_20210218_145227.jpg
Views:	65
Size:	67.3 KB
ID:	9981687

                    Click image for larger version

Name:	IMG_20210218_200636.jpg
Views:	55
Size:	93.9 KB
ID:	9981688
                    new timing chain new guides new oil pump and new chain case.

                    Click image for larger version

Name:	IMG_20210329_210145.jpg
Views:	53
Size:	70.9 KB
ID:	9981689
                    Click image for larger version

Name:	IMG_20210331_144324.jpg
Views:	54
Size:	78.1 KB
ID:	9981690


                    The engine is almost finished in the absence of the clutch flywheel and the mocal oil remote filter.
                    Ecu, dash and wiring harness:

                    Click image for larger version

Name:	IMG_20201011_192334_726.jpg
Views:	54
Size:	93.4 KB
ID:	9981691

                    Comment


                      #11
                      I am very excited for this build. Subscribed!

                      Comment


                        #12
                        Click image for larger version

Name:	IMG_20201224_182752.jpg
Views:	83
Size:	67.2 KB
ID:	9981695

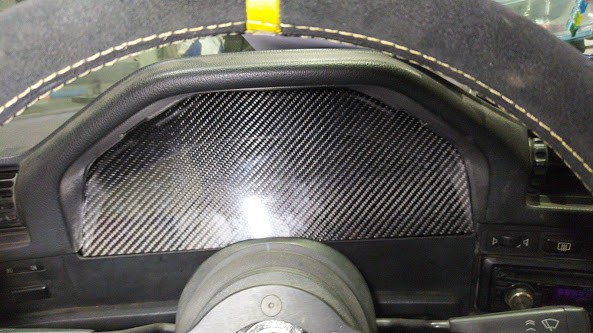

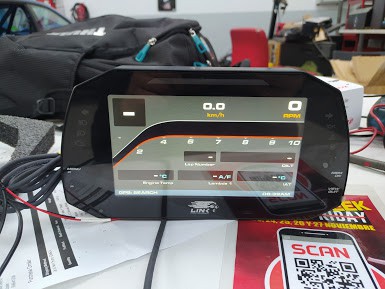

                        I'm really like more the analog speedometer, but at this point I needed something versatile that would give me a lot of information without having 100,000 gauges and something with laptimer programmable alarms and much more, I fell into the temptation.

                        Click image for larger version

Name:	IMG_20201129_154015.jpg
Views:	72
Size:	37.6 KB
ID:	9981696

                        With this I have also greatly simplified the wiring, removing the tacho temperature sensor, alternator charge signal, oil pressure switch ... I will use a pressure sensor, engine oil temperature, rotrex oil, gearbox oil and differential all to the ecu and from ecu to dashboard via can.
                        The dash will also solve some future problems with the differential speed signal, which we will teach you later.

                        Click image for larger version

Name:	IMG-20210112-WA0116.jpeg
Views:	75
Size:	70.9 KB
ID:	9981697
                        Click image for larger version

Name:	IMG_20210112_193437.jpg
Views:	73
Size:	64.9 KB
ID:	9981698

                        and my chaos wiring diagram..
                        Click image for larger version

Name:	IMG_20201213_111558.jpg
Views:	75
Size:	82.1 KB
ID:	9981699



                        Comment


                          #13

                          the intake manifold is made without any calculation, it was something I did to learn aluminum welding, I plan to make one by taking a couple of volume calculations and more appropriate to my application.

                          Click image for larger version

Name:	IMG_20201122_105038.jpg
Views:	77
Size:	63.5 KB
ID:	9981703
                          Click image for larger version

Name:	IMG_20201122_124016.jpg
Views:	74
Size:	63.3 KB
ID:	9981704
                          Click image for larger version

Name:	IMG_20201122_154458.jpg
Views:	73
Size:	97.1 KB
ID:	9981705
                          Click image for larger version

Name:	IMG_20201129_112126.jpg
Views:	72
Size:	61.5 KB
ID:	9981706


                          When I built that manifold I still did not have this beloved book that I am sure you already know but it is 100% recommended:

                          Click image for larger version

Name:	IMG_20210406_000334.jpg
Views:	73
Size:	101.6 KB
ID:	9981707



                          In a few hours I have updated the status of my project in this thread, now I hope to be able to update weekly and advance the work, thanks to all!!

                          Comment


                            #14
                            nice, that is a cool build and a great book to read. What did you do with the Individual throttle bodies (dbilas)?
                            318iS Track Rat :nice: www.drive4corners.com
                            '86 325iX 3.1 Stroker Turbo '86 S38B36 325

                            No one makes this car anymore. The government won't allow them, normal people won't buy them. So it's up to us: the freaks, the weirdos, the informed. To buy them, to appreciate them, and most importantly, to drive them.

                            Comment


                              #15
                              Originally posted by downforce22 View Post
                              nice, that is a cool build and a great book to read. What did you do with the Individual throttle bodies (dbilas)?
                              I sold them a year ago...
