    Verify TPS Connector Wires

    I'm repairing my TPS harness wires and want to make sure I place the pins in the new connector correctly. The Bentley manual doesn't show this, I looked everywhere!

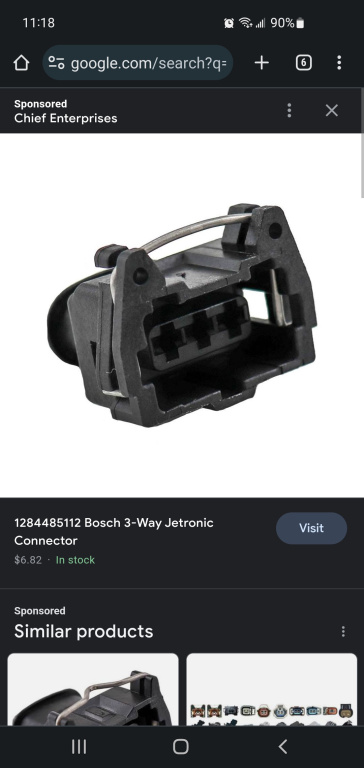

    If you're staring at the connector like below:
    Click image for larger version  Name:	Screenshot_20231014-111814_Chrome.jpg Views:	0 Size:	60.2 KB ID:	10105765
    Which color wires goes where? Let's say from left to right in this position is 1, 2, and 3.

    Colors I have are: Brn/O Brn/Blk Brn/Blu

    I think it goes: 1- Brn/blu 2-Brn/O 3-Brn/Blk

    TIA
    edit: m20 engine
    Last edited by 88Sedan; 10-14-2023, 12:57 PM.

    #2
    No one can check their car for me?
