can anyone tell me where these go?

[dustyperez]

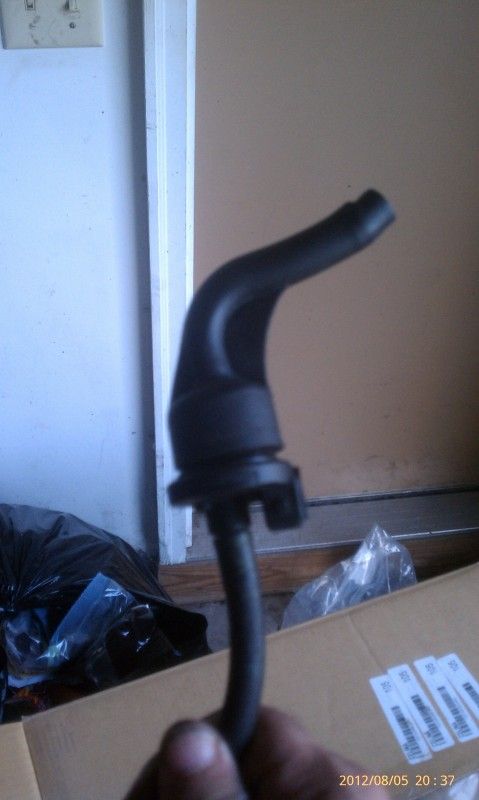

Ok guys i am in the process of putting my engine back in my car. can anyone give me a pic or tell me where the top of this hooks into.

Also where does this go? or do i even need it. I know what it is but i cant remember where it goes. Als if it matters i have ie silicone hoses.
Thx guys

[idanity]

under throttle body

i think the last picture is of part of an idle control unit....

[reelizmpro]

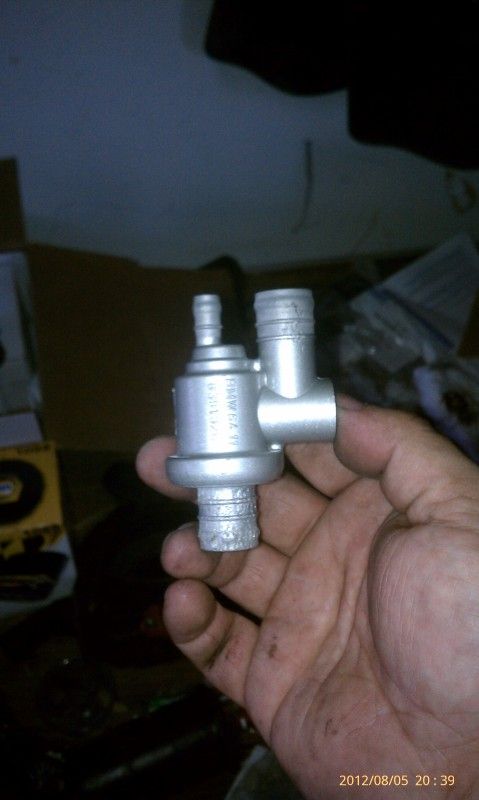

2. Coolant heater core thermostat bypass?

[dustyperez]

well i knew what it is i am looking for a pic of where they go or maybe an explanation. i have looked on real oem but it seems inconclusive ....

[Vin-barrett]

its squeezed between the firewall and the back of the engine jus before the heater. It's an add-on thing from a service bulletin so may not be explained well on realoem, i removed mine but know its a safety device to keep antifreeze from entering the cabin

[barry]

Time to buy a Bently if you really want to do fix it right and learn???

[dustyperez]

thx for the replies. and i do have a bently. just looking for some outside help. bently isnt perfect. Any help on where the upper hose on the black part goes??

[idanity]

i spent about 10 minutes searching for it, and came up with nothing...just the occasional boob shot to keep me interested...

it hangs under the tb...
pointy side up..and fits over a brass thingy..really, its been a while since ive been there, but its way the hell in the back, not easy to reach even with the airbox and elbow removed..its a shot in the dark when i had to re-attatch, and thought, this needs a clamp..but never did..

maybe, if i leave early enough, i will take a pic with my phone and post it later...
