    #16
    Hope everyone had a good Thanksgiving !

    Small update pt 2 - Did some little work today and I finally got the intake manifold out! :D Damn, I swear I lost like 5 pounds in sweat just wrestling with it lol Ether-D wasn't lying about the "bitch tube"

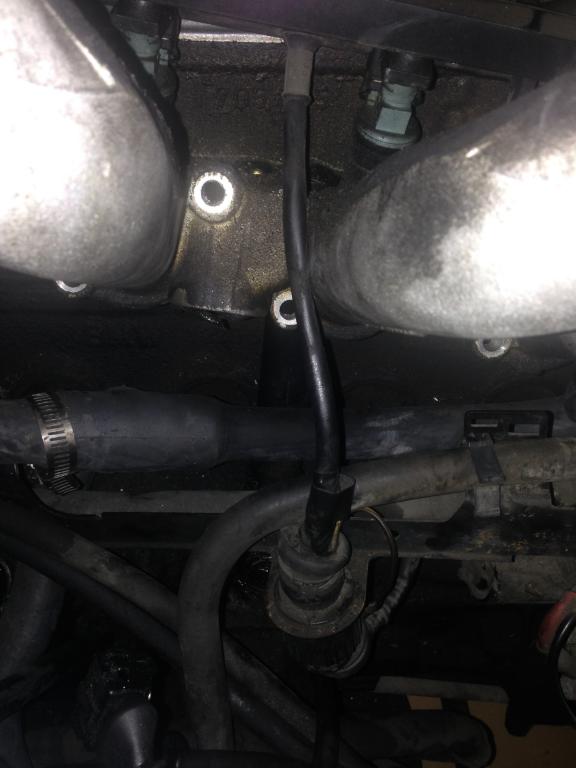

    But now i'm stuck again.. There is a wire from the fuel injector rail stuck to this bottom end and i'm unsure how to remove it anyone know ?

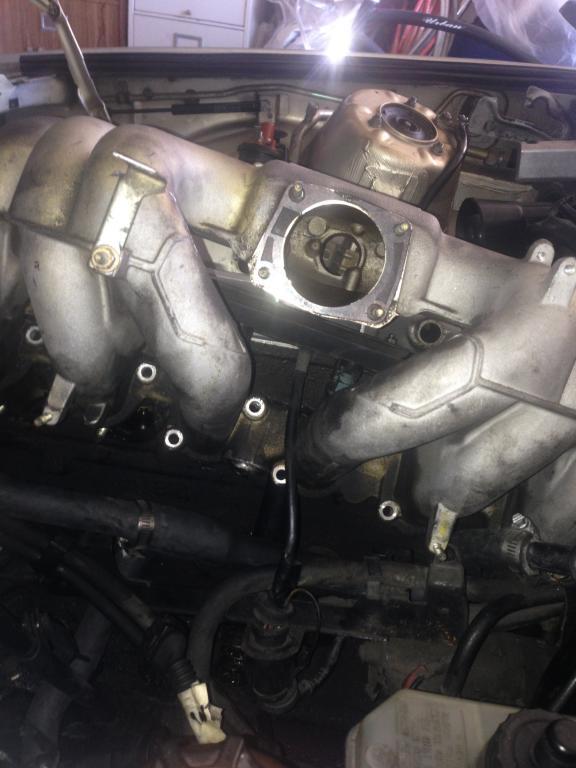

    Here are a few iphone pics

    Click image for larger version

Name:	image2.jpg
Views:	1
Size:	51.9 KB
ID:	7172404

    Click image for larger version

Name:	image3.jpg
Views:	1
Size:	40.1 KB
ID:	7172405

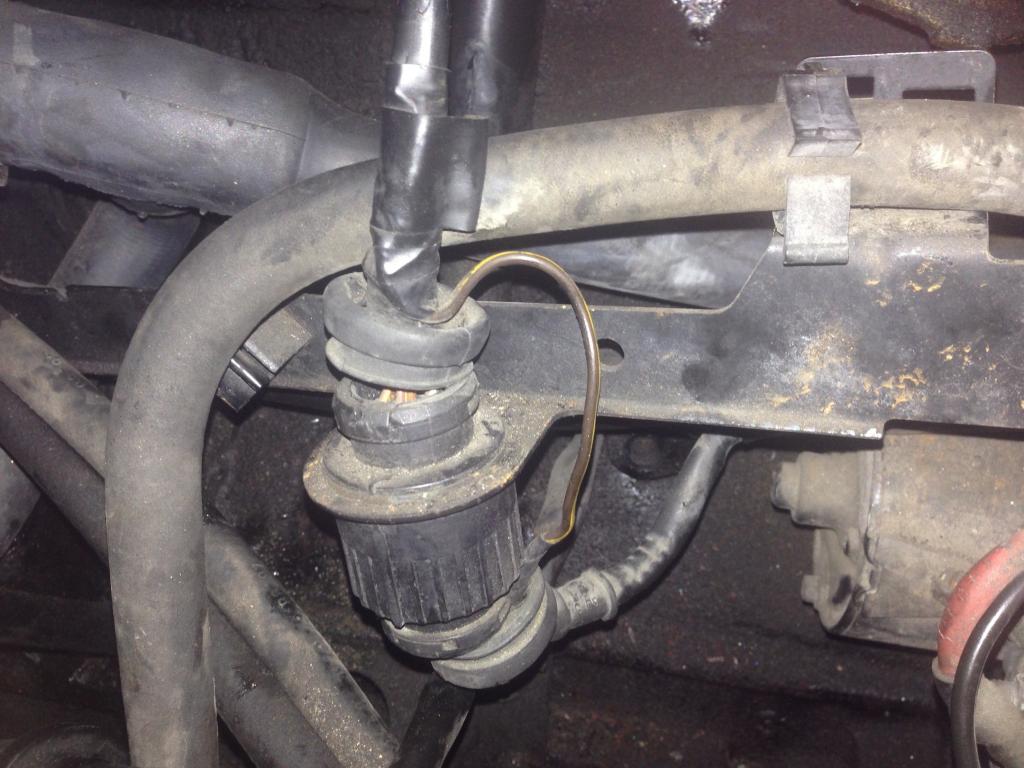

    and here's the bottom end of it
    (plus that wire sticking out; is that normal?)

    Click image for larger version

Name:	image8.jpg
Views:	1
Size:	100.4 KB
ID:	7172403
    Last edited by unitt01; 11-28-2014, 01:21 PM.
    FS: Plug n Play Second Trunk Light !
    My Parts for Sale Thread~

    x 1984 325e 2.7i ~ CastroMotorsport Built x Daily Driven

    Comment


      #17
      That bottom plastic part with the lines around it is a connector. Turn it and it will come apart.

      Comment


        #18
        Originally posted by NitroRustlerDriver View Post
        That bottom plastic part with the lines around it is a connector. Turn it and it will come apart.
        Does it just slide off after I turn it counter clockwise ? I've been messing with it and it just turns a little amount, not even half way.
        FS: Plug n Play Second Trunk Light !
        My Parts for Sale Thread~

        x 1984 325e 2.7i ~ CastroMotorsport Built x Daily Driven

        Comment


          #19
          It may only turn a quarter turn or so. That wire has be been rigged in there for something. Maybe one of the connections fried or something. Just cut it then splice it back later.
          Originally posted by Andy.B
          Whenever I am about to make a particularly questionable decision regarding a worryingly cheap diy solution, I just ask myself, "What would Ether-D do?"
          1987 325iS m30b34 Muscle car (Engine electrical phase)
          ~~~~~~~~~~
          I was born on 3/25…
          ~~~~~~~~~~

          Comment


            #20
            As it turns, it will pull the plug apart.

            Comment


              #21
              Turn it like you would the O2 sensor (to the left) plug and hold both (top and bottom) ends. Then start pulling. The connectors inside are old and corroded, thats why it doesn't want to let up. Don't forget to spray some MAF sensor cleaner or any other contact cleaner to clean them up a bit. Also, there is a thingy right under the harness that holds "top" connector and the harness in place. Screw that off too.

              Mine doesn't have any external wires, and judging by the electric tape on the top connector it looks like a bypass (imo the connectors are toast, or at least one). Replace.

              Comment


                #22
                Thanks guys for the replies it really means a lot. :)

                Update pt 3

                Couldn't work on it much last week since it was pretty rainy here in SoCal but after it cleared I did a ton to make up for those days. I was able to take out the intake manifold by removing the fuel injector rail. I just said f it and might as well get them cleaned too. Also removed the hood and man it makes a TON of difference to work on. :D

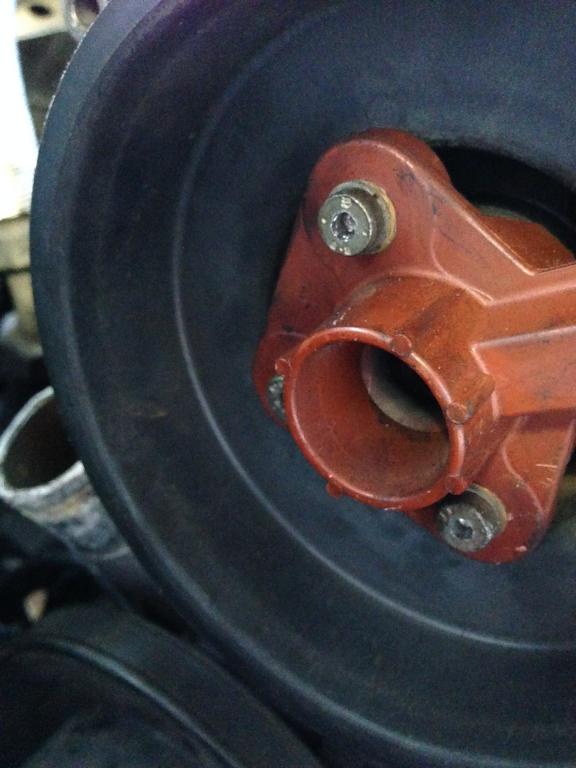

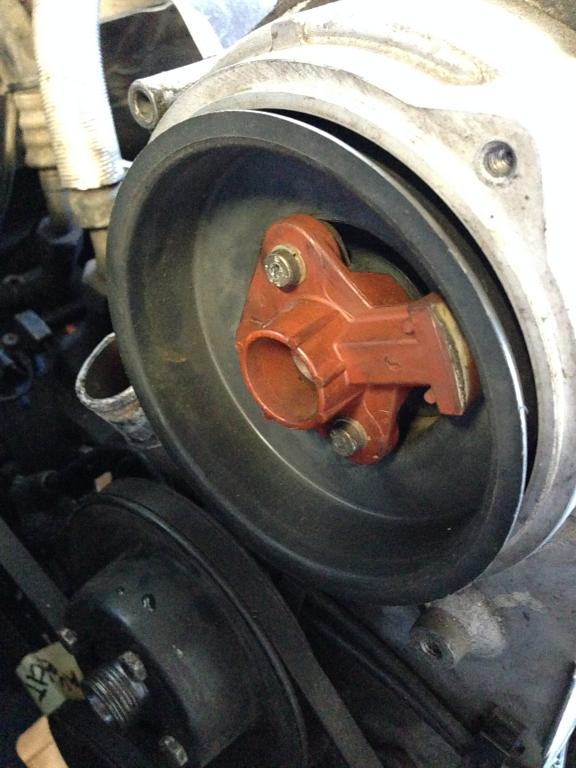

                But as always theres small problems that you'll come across like my most recent is that I can't take off the redish rotor that is in front of the timing belt cover since the 3 screws are stripped :(

                Some iPhone pics:

                Click image for larger version

Name:	stupid1.jpg
Views:	1
Size:	60.0 KB
ID:	7172560

                Click image for larger version

Name:	stupid2.jpg
Views:	1
Size:	49.3 KB
ID:	7172561

                Now I gotta figure out how to get these out.. (btw anyone know the part number for these ??)
                FS: Plug n Play Second Trunk Light !
                My Parts for Sale Thread~

                x 1984 325e 2.7i ~ CastroMotorsport Built x Daily Driven

                Comment


                  #23
                  Not sure what the best way to remove the stripped bolts is - I've read that a Dremel works, but evaluate the sense of that approach for yourself. Vice grips maybe?

                  As for bolt part numbers, a new rotor will come with new bolts (I'm 99% sure you can't buy just the bolts...unless your local nut/bolt shop has a really comprehensive selection of stock), so...you have to buy a new rotor...or, find a used one - they are removable.

                  Also, stripped bolts aside, looking at the state of your rotor in that top picture, it's looks like it's about due for replacement.

                  Rotor part number: 12111715906

                  Cost is approx $30.
                  Last edited by Lugnuts; 12-09-2014, 05:23 PM.

                  Comment


                    #24

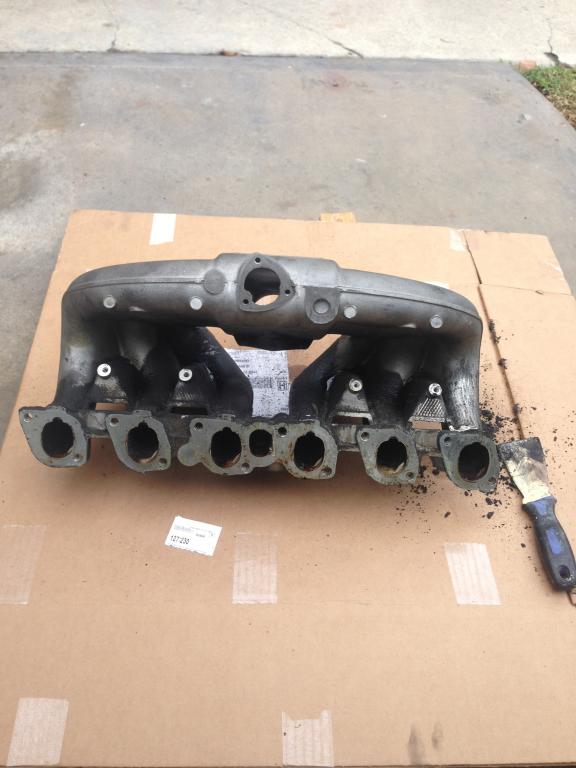

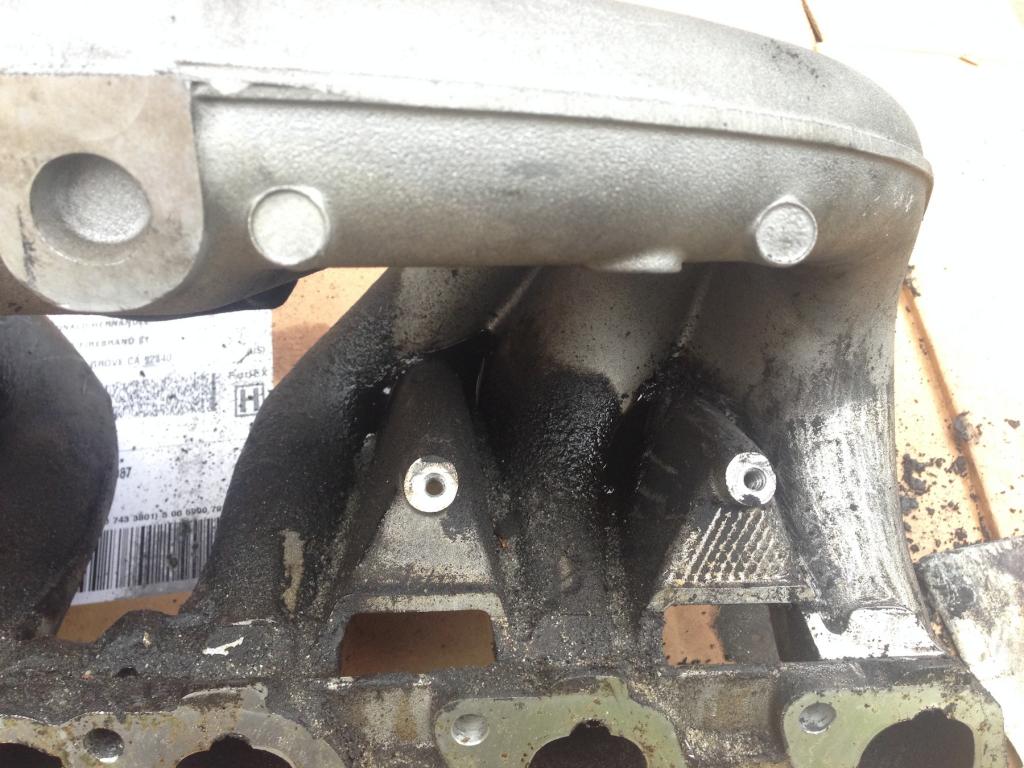

                    Also some before and after pics of the intake manifold

                    Click image for larger version

Name:	intake2.jpg
Views:	1
Size:	48.9 KB
ID:	7172562

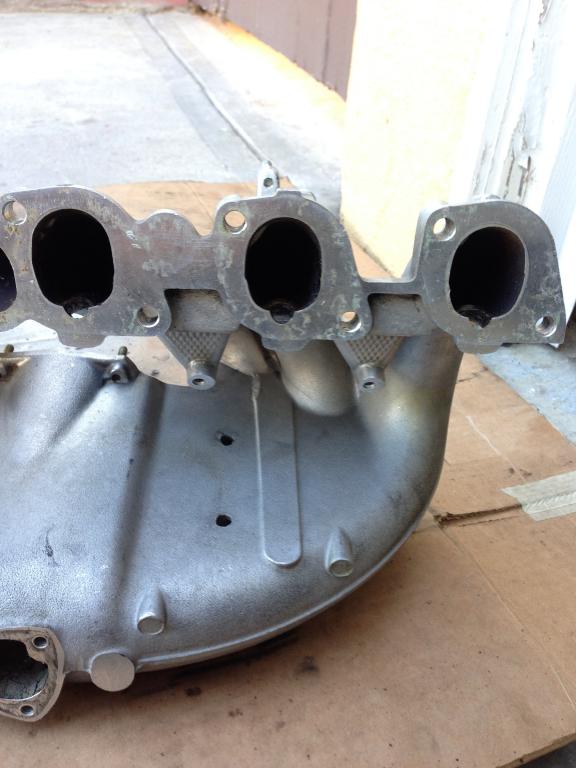

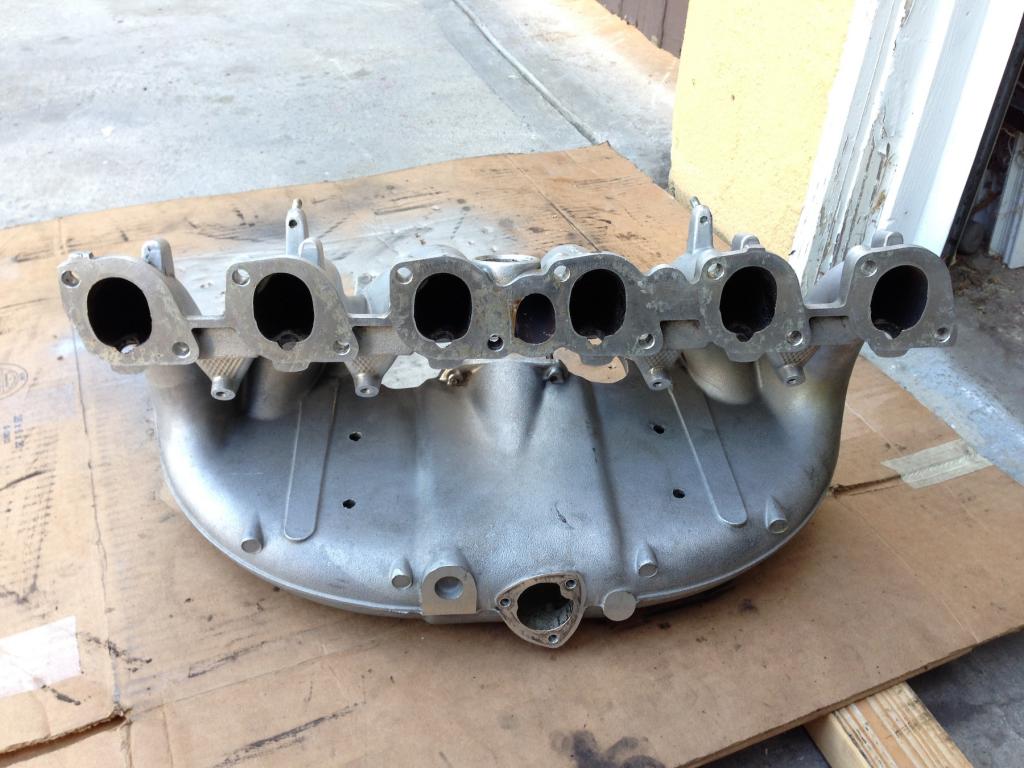

                    Using some carb cleaner

                    Click image for larger version

Name:	intake4.jpg
Views:	1
Size:	114.9 KB
ID:	7172563

                    still gotta clean up the heads where the gaskets go with a blade

                    Click image for larger version

Name:	intake9.jpg
Views:	1
Size:	52.0 KB
ID:	7172565

                    Click image for larger version

Name:	intake8.jpg
Views:	1
Size:	98.7 KB
ID:	7172564

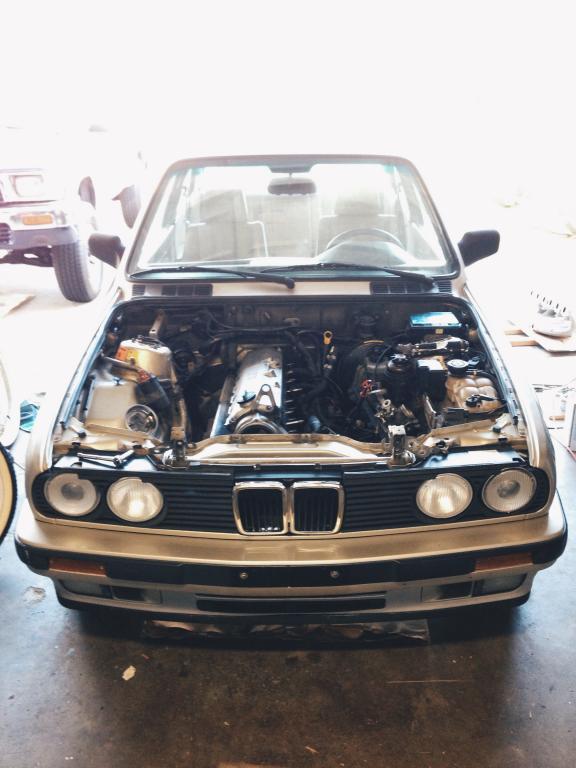

                    Andddddddd here's how he sits so far....

                    Click image for larger version

Name:	image6.jpg
Views:	1
Size:	56.3 KB
ID:	7172566
                    FS: Plug n Play Second Trunk Light !
                    My Parts for Sale Thread~

                    x 1984 325e 2.7i ~ CastroMotorsport Built x Daily Driven

                    Comment


                      #25
                      Looking good man. Have you tackled the exhaust/manifold yet?

                      I would personally recommend adding 2x 11151714390 ($1 each) to the list of parts to buy. These are the o-rings that sit at the top and bottom of the bitch pipe. Unless of course yours are in good condition (and you're better at resisting the "while I'm in there" temptation ;-))

                      Edit: make that 4x orings - always prefer to have a couple of spares on hand in case you pinch/snap/lose one somehow...

                      Comment


                        #26
                        Originally posted by Lugnuts View Post
                        Looking good man. Have you tackled the exhaust/manifold yet?

                        I would personally recommend adding 2x 11151714390 ($1 each) to the list of parts to buy. These are the o-rings that sit at the top and bottom of the bitch pipe. Unless of course yours are in good condition (and you're better at resisting the "while I'm in there" temptation ;-))
                        Wasn't expecting a quick reply from someone so quick aha :p yeah I got the o ring, I believe it should've come with the head gasket set..?
                        Appreciate the suggestions btw! :)
                        FS: Plug n Play Second Trunk Light !
                        My Parts for Sale Thread~

                        x 1984 325e 2.7i ~ CastroMotorsport Built x Daily Driven

                        Comment


                          #27
                          Sub'd to the thead and working from home - quit distracting me ;-)

                          No idea what comes with the BMW gasket kit, would be nice to get a good close up to see what they include.

                          Comment


                            #28
                            Use a dremel on the screws to create a flathead notch.


                            Sent from my iPhone using Tapatalk
                            sigpic
                            1987 325e Lachssilber w/ MarkD chip and late bumpers, Zender EVO spoiler, s3.25 LSD

                            Originally posted by nando
                            I don't think there's really strong evidence that ZDDP harms cats.

                            Comment


                              #29
                              No no no. I used a pair of vicegrips and it worked great for the stripped bolts on the rotor.

                              Comment


                                #30
                                Originally posted by E30NJ View Post
                                No no no. I used a pair of vicegrips and it worked great for the stripped bolts on the rotor.
                                Yooooo E30NJ when u making a new video man ? :D haha
                                And I feel like this would work. Are they the same lefty loosey type of screw or are they clockwise ?
