Swapping my motor into a nicer chassis. I am transferring motor, transmission, wiring harness, and ecu from 5/88 e30 to to 4/87. Does any one know of any compatibility issues I may run into.
Announcement
Collapse
No announcement yet.
5/88 m20 into a 4/87 chassis
Collapse
X
-
some harnesses are different. If it was me, I would keep your old harness on the new engine. other than that, it is all compatible.
90% of the time, I had luck with using a dif harness, but there were the 10% when it wouldnt run, and I had to change the harness in the car- still not that hard, but easier when they are both on the ground.
Comment
-
I think this fuel tank is bigger in the 88 maby not hum
1986 325es (69k) Garage Queen Buy It Now 10k;1986 325es (track rat) 2.7i How-To & 1.1/1.3Motronic UpGrade
1991 318is (daily driver) 1991 318is M42 Maintenance How-To;1989 325i (parts car)
Comment
-
A Concern
Ran into a small problem...

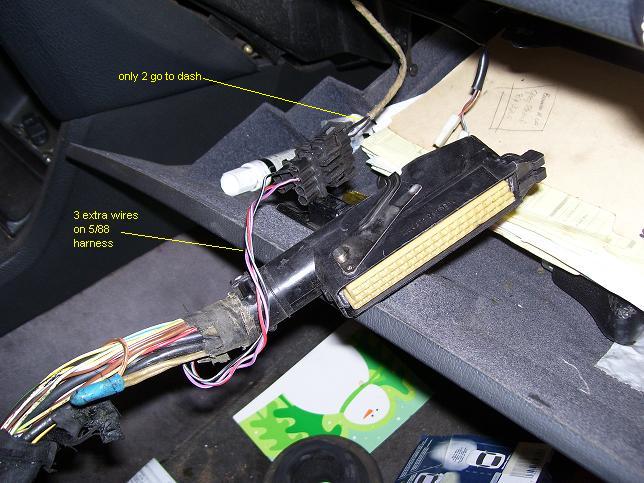

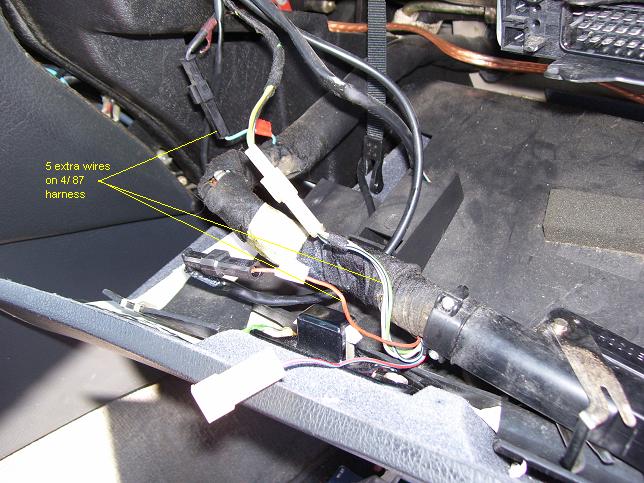

where the wiring harness plugs into the ECU there are some other connectors that split off and run into the dash. The one in the 5/88(the donor car) has 2 wires that run into the dash. The one in the 4/87(the recipient car) has 5 wires that run into the dash. Not sure what to do.
Equal rights should be all or nothing, not picked and chosen based on what's convenient for ones personal agenda.
Comment
-
Originally posted by badvibrations View PostRan into a small problem...
where the wiring harness plugs into the ECU there are some other connectors that split off and run into the dash. The one in the 5/88(the donor car) has 2 wires that run into the dash. The one in the 4/87(the recipient car) has 5 wires that run into the dash. Not sure what to do.
Having the same problem here!
4/87 my car and the swap came from 88+ car.
I cannot make my econometer (it always points above 30 litres/100km, and therefore the obc readings are wrong) to work, all other instruments work fine though.
and the ECU always pops out the following error code,
24),it has to do with the speed sensor
I do not know the exact translation from greek to english but the above sums it up.
Sorry if i jacked your thread.Originally posted by scabzzzzPlastic bumpers eat a chrome dick!
Comment
-
the 87 harness has the c104 plug, these provided power to the ecu from the OBC fuel cut relay, the tach signal to the tach, and the fuel rate output to the OBC. On the 88 harness these functions are run threw the c101 round engine plug. So you either need to run wires from the round plug to the rectangular plug, or just use the 87 harness85 325e 2.7 ITB'd stroker
Comment
-
Originally posted by rs4pro3 View Postthe 87 harness has the c104 plug, these provided power to the ecu from the OBC fuel cut relay, the tach signal to the tach, and the fuel rate output to the OBC. On the 88 harness these functions are run threw the c101 round engine plug. So you either need to run wires from the round plug to the rectangular plug, or just use the 87 harness
Equal rights should be all or nothing, not picked and chosen based on what's convenient for ones personal agenda.
Comment
-
Ok on the big round c101 plug(main plug that connects the engine harness to the fuse box). You want to connect pin 7(green wire) to the green wire on pin #2 of the white 3-pin rectangular plug.
Pin 8 White/black to pin 3 white/yellow wire
and pin 9 black to pin 1 black.
Yes everything will plug in with the 87 harness, and you can use either ecu.85 325e 2.7 ITB'd stroker
Comment
-
Ya. Think I am just gonna use the 87 harness and ECU. Thanks. I may pm you if i have any more questions...Last edited by badvibrations; 04-02-2008, 09:06 PM.
Equal rights should be all or nothing, not picked and chosen based on what's convenient for ones personal agenda.
Comment
-
Originally posted by MR 325 View PostThe cooling systems are different too. You'll either need to put the early style water pump on your motor or convert your car to the late model system.
Equal rights should be all or nothing, not picked and chosen based on what's convenient for ones personal agenda.
Comment
-
Originally posted by rs4pro3 View PostOk on the big round c101 plug(main plug that connects the engine harness to the fuse box). You want to connect pin 7(green wire) to the green wire on pin #2 of the white 3-pin rectangular plug.
Pin 8 White/black to pin 3 white/yellow wire
and pin 9 black to pin 1 black.
