    Late model fuel lines

    I keep seeing different answers when I search. Which is feed, return, & charcoal cannister
    Attached Files
  • bmwman91
    No R3VLimiter
    • Oct 2004
    • 3128

    #2

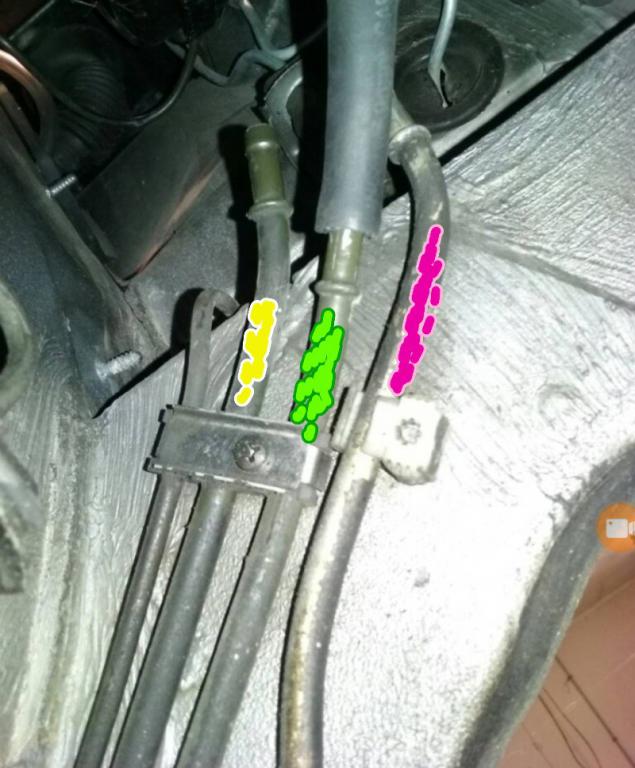

    Yellow = Return (pipe with more bends that connects to the left-most port on the fuel rail)
    Green = Feed (pipe which goes to the right-most port on the fuel rail)
    Pink = Charcoal can

    Transaction Feedback: LINK

    Comment

    • band wagon
      Noobie
      • Jun 2017
      • 3

      #3
      Thanks
