Hiya, had some questions on a manual swap for my 03/85 325e and figured I'd ask the original forum as well as the FB group.

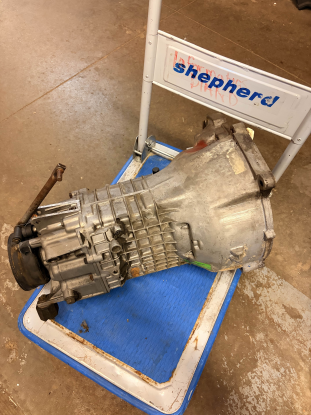

I really just needed a sanity check on my parts list for a manual swap on my 03/85 325e. I was planning to ride out this auto for a while but I fell upon a cheap G260 ('late' early model with deeper bellhousing, described as coming out of a 1985 325e by the wrecker) for $400 CAD with 75k km so I'm now looking for parts. The box has provisions for both the late model shifter and sheet metal shifter, so my preference lies in the late model shifter.
Any further feedback is welcome, thanks!
I really just needed a sanity check on my parts list for a manual swap on my 03/85 325e. I was planning to ride out this auto for a while but I fell upon a cheap G260 ('late' early model with deeper bellhousing, described as coming out of a 1985 325e by the wrecker) for $400 CAD with 75k km so I'm now looking for parts. The box has provisions for both the late model shifter and sheet metal shifter, so my preference lies in the late model shifter.
- Clutch, flywheel, throwout bearing etc - probably grabbing this Turner kit, has the longer TOB and the flywheel seems to have the reference sensor boss (https://www.turnermotorsport.com/p-2...wheel-kit-eta/)
- Shifter arm - shifter arm has 2 different PNs depending on a 'late' early model from 06/86-09/87 (25111221053) and late model (25111221201). I'm assuming there's a length difference due to bellhousing depth? DSSR's also have 3 different lengths (190mm, 180mm, 187mm) depending on year of build so it makes sense, but needed to confirm. Sourcing one of these will probably be a pain.
- Shifter arm body mount - my early model won't have the tabs for the late model mount (25111220707), but post #9 (https://www.r3vlimited.com/board/for...on-early-model) has me thinking I can mount it without the tabs. Anyone done this? I'd rather flip it if possible to give the mount a larger bearing surface.
- Drive shaft - any reviews on aftermarket driveshafts or am I better off finding a used one? RealOEM says my auto driveshaft would be 1337mm long, an 06/86-09/87 manual driveshaft would be 1483mm long. I gotta measure the output shaft diameter on the transmission still to verify for sure if I have the larger (06/86-09/87 supposedly) or smaller output shaft.
Any further feedback is welcome, thanks!
