Hey guys, I pulled the Transmission out of my 325i and I bought a used one from a guy on Craigslist. My drive line will not fit. The rest of the transmission looks the same.
Can you help me?
Can you help me?
Attached Files
-
-
Should be a 260 if it came from a 6 cylinder car.
Drive shaft does have slide-collar adjustment for length behind Center Support Bearing. Compensates for slight differences and things like the harmonic balancer. -
The transmission id is on the left side of the bell housing.The car makes it possible, but the driver makes it happen.
Jim Levie, Huntsville, ALComment
-

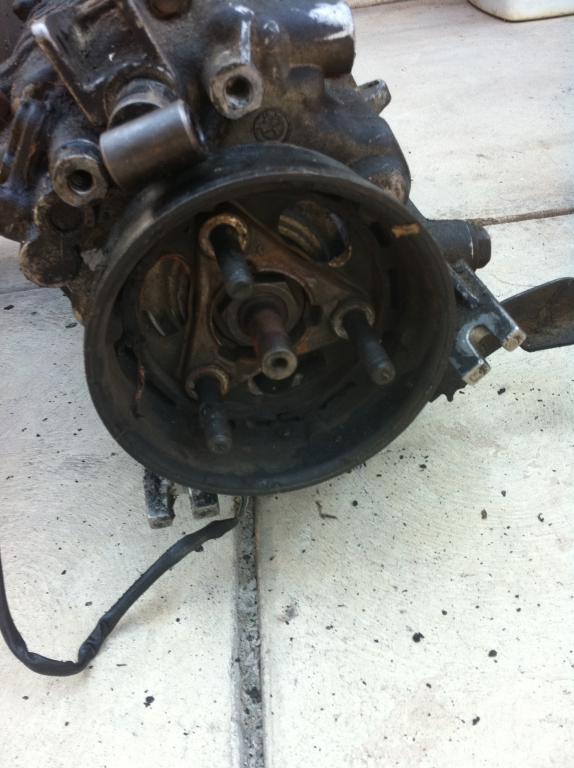

Thanks, where can i find a guide that tells me how to decode the transmission ID? And whay does this Transmission have the the round cover over the output shaft? I've looked at 5 different transmissions and never seen it before. If I use this transmission, I would have to swap the output flange because there are studs in it.Comment
-
The round thing is a vibration damper that was installed on a good many (but not all) E30's.The car makes it possible, but the driver makes it happen.
Jim Levie, Huntsville, ALComment
-
Well I just checked and the code on the side says 260.0.127.90. So I guess it's a 260. I'm just confused why the stupid round cover is on the output flange. I'll have to get puller and swap it out.Comment
-
I thought the vibration damper was on the driveline? Not on the output flange.Comment
-
Okay, Thanks guys, Its a Dampener and a 260 GETRAG. I'm on my way to Sears to get a thin walled 30mm and a puller. Hope to have it off in a few hours.Comment
-
its a damper cover. You can swap on the old tail from your G260 and use it with existing hardware. the early cars had a Guibo (flex disc) that lived inside the cover, these were the sheet metal shifter cars. studs also came out of the trans output, unlike the modern units with bolts and nuts.Originally posted by Purplehazedog View PostOBD1 M54/M52TU swap as a M50b25
Z4 non powered steering rack fits e30
Euro e46 2005/6 320d 6mt gearbox into E30 with M20 hardy and beck 1985 327s engine
Comment
-
If your car has the vibration dampener on the driveshaft you can always remove that one and leave the trans as is. I have removed the dampener completely on many E30's with no issue.Comment
-
I was always paranoid to take off the driveshaft dampener but did so on the Mtech when I did the 5 speed swap. Matt is 100% correct, no difference with or without the dampener expect that the short shifter selector shaft does not rub on the dampener like on my 89 vert.Originally posted by MR 325 View Post
Cheers,
JimsigpicComment
-
I thing some where i read its 260 at present. But i am not too sure about this.Chúng tôi là một trong những công ty tu van du hoc hàng đầu Việt Nam .Chúng tôi là đại diện cho nhiều tập đoàn du hoc hàng đầu TG tại Vietnam .Hàng năm đều có các xuất hoc bong du hoc miễn phí đi vụ du hoc singapore.tu van du hoc voi lai hoc bong du hocComment
-
-
NO SHIT? That "driveshaft dampener" was giving me a hemmoroid yesterday while I was trying to drop the tranny this weekend on my new 325e, any idea how to take it off without dropping/disconnecting the driveshaft? It's keeping everything in place with all the bolts loose.
91 318i | 87 535iSComment
-
I second that, my auto was great. But I manual swapped my 87’ 325is and it came with the sheet metal shifter that didn’t work with the car so I got the late model set up and z3m shifter. Drives great but the dampener got in the way. Deleted it because it was a pain in the ass, to get the driveshaft on and off. No noticeable differences. Drove great for a while but my center support bearing was going out and finally shit the bedComment
