5 speed question

[Dirty325ix]

I am collecting the final peaces for my auto to manual swap and I was woundering if I could get any pictures of how the shifter fits to the transmission. I have seen the diagrams on realoem but do not get how it fits together because they break it down to much

[jlevie]

That depends on whether you are using the sheet metal or aluminum shifter console.

[Dirty325ix]

well i have been looking up parts for my five speed conversion and all it says i am missing is Shifter
-Carrier Arm*
-Selector Rod*
-Bitch Clip*
-Z3 Lever
-White Plastic Cup/O-rings/Spacers/Rubber Seal/Boot*/Knob*
so am i missing the shifter console from my list then?
Which one is better sheet metal or aluminum?

[Dirty325ix]

the transmission is a 1989 off of a ix so does that mean its the aluminum shifter console

[Rob@UUC]

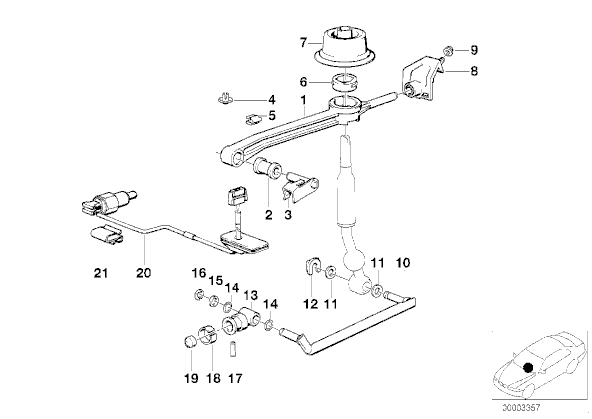

The shifter itself goes through the center hole in the carrier from the top (not like fro below shown in this ETK pic above) and is retained by that white ball cup (#6). The ball cup clips into the carrier (#1), a tab on either side snaps into the slots in the carrier hole.

At the front of the carrier (left side in the pic), where there is the carrier bushing (#2), that part slips between the two upright tabs on the top of the transmission. The carrier is attached by the retaining pin/clip (#3).

Hope that helps!

[nando]

part #1 is ix specific. part #8 is also ix specific, but it's NLA.

[Dirty325ix]

Thanks for that I now see how it fits

so I have to buy part 8 and 1 used from a Ix I guess

[nando]

you can get #1 new but it's not really a wear item so used is fine.

[Dirty325ix]

What about part #10 the selector rod.....its I dif part number

[nando]

if it's a different # assume it's ix specific and nothing else fits.

[Dirty325ix]

Good tip
