more 5 speed swap questions

[cpandrewschmidt]

Hi all, these are probably dumb questions but cant seem to find much online while I'm doing my swap.

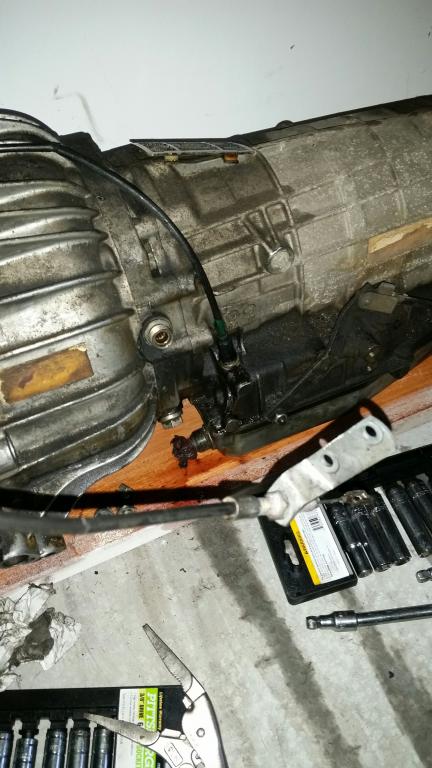

picture 1. old trans this cable was connected by the throttle body and went into here in the auto trans. On the manual I don't see anywhere for it. What is it for?

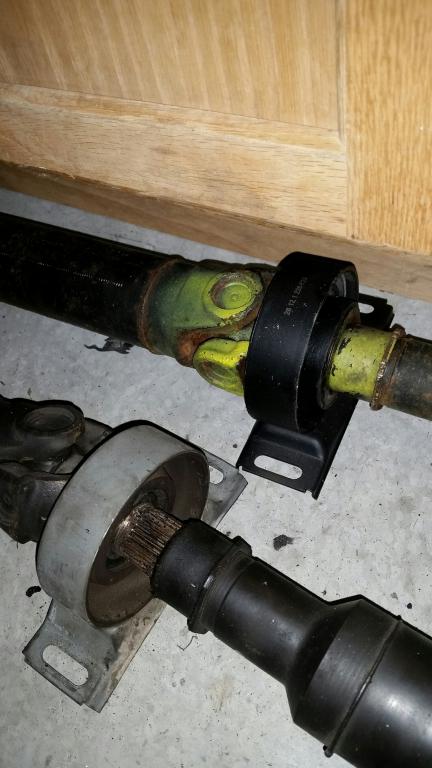

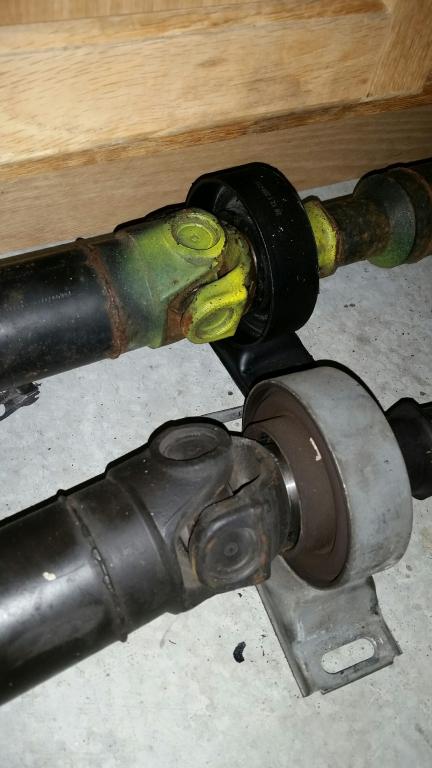

2. Next two pics. I put a new CSB on the drive shaft of the manual. The old one was completely shot. When I pulled the auto drive shaft I noticed that one side of the CSB is more concave than the other. On the manual you can see how I installed it. The concave side is opposite of the way the auto was when I pulled off. Does this matter?

3. On the driveshaft. Manual DS pictured on top. I separated the middle "teeth" section to get the CSB on. My idiot self forgot to mark lines on them. Am I screwed now and it'll likely be out of balance? Driveshaft did come with the new 5 speed, but there are no noticeable markings on the Guibo side to line up flanges on the driveshaft.

Thanks again

Andrew

[jeffnhiscars]

1 that's the kick down cable for the auto trans. You don't need it.

2 the csbs should be the same and there is a front and rear face The Guibo has arrows on it. Some one else will have to chime in as to which way they face

3 The drive shaft has 2 ways to assemble it so there's a 50/50 chance you will get it right. Look for the factory markings..usually white paint
