M60 non power steering belt set-up

  • Filter
  • Time
  • Show
Clear All
new posts

    There are couple of different size pulleys available for M60, as well as two different length belts in the first place...

    Easy to mix them all up :)
    - E34 M5 (x 2) -
    - E30 V8 Cabrio "Kylpyamme" -
    - Alpina D10 Touring #33/94 -

    - E46 318i Touring -
    - Toyota Hiace 4wd -


      Mine ended up being a bad tensioner assembly. I replaced the tensioner and I have no more noise.



        Originally posted by dirty30 View Post
        Thought I would post this here for anyone not running power steering.

        Belt: 7PK 1388
        Tensioner: Stock M60 drive belt tensioner
        Pulleys: Remove larger "idler" and replace with a second tensioner pulley (11281731220 x2)

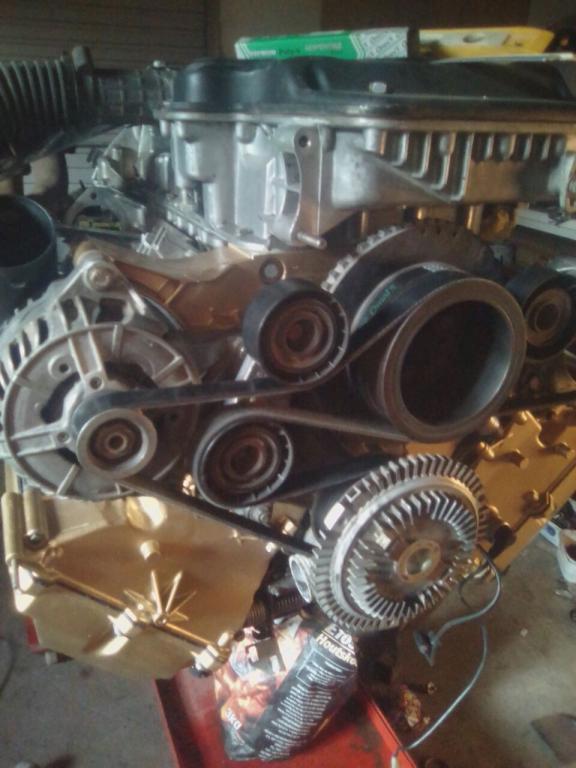

        Belt routing:

        You're done!!
        Hey guys
        Firstly let me say I am no expect on mechanical things ,just learning slowly as I go.....if I never owned an e30 I probably would never been doing what I do now days. That said I was wondering is it possible to run the belt like in my attached picture. I don't understand how these tensioners work all I know it keeps the belt tight in place.
        Hope someone will chime in.......
        Also I couldn't find a 7k 1388 belt that everyone uses closest I got was a 6k 1390.
        Spare shop guy say it will run strong because its a heavy duty dayco belt.

        Attached Files
        Last edited by slum dog; 08-17-2018, 09:18 AM. Reason: Att. Picture


          On my previous M60 I ended up swapping the lower smooth pulley out for a grooved pulley and ran the belt under the pulley, in my mind this allowed the tensioner to apply downward force like original.

          However on my recent M62/M60 build I did like yours, belt above smooth pulley and figure I have problems I can change it around later.


            OK thanks Mykk I some how never notice your belt setup in your thread, I think I was to busy drooling at your engine build lol amazing stuff there. Will give it a go and see what happens looking at firing the motor up month end, will post back if all goes well.
