Not Another Cheap V8 Swap... (Pic Heavy)

[E30Whore]

I bagged it years ago.

Ha then you know more about it then i do.. We pulled it off and replaced with Ground Control. Like Rey335 stated above, his buddy just purchased the kit used.

[E30Whore]

Is that white e30 bagged?

Yup... In this picture, sure is. Its on a Airlift kit with V2 management I believe. I don't know very much about air suspension..

[White325is]

It used to be. My boy bought the bags off it

I bagged it years ago.

[Q8y_drifter]

Subbed!

[Reyhan335]

Is that white e30 bagged?

It used to be. My boy bought the bags off it

[White325is]

Is that white e30 bagged?

[E30Whore]

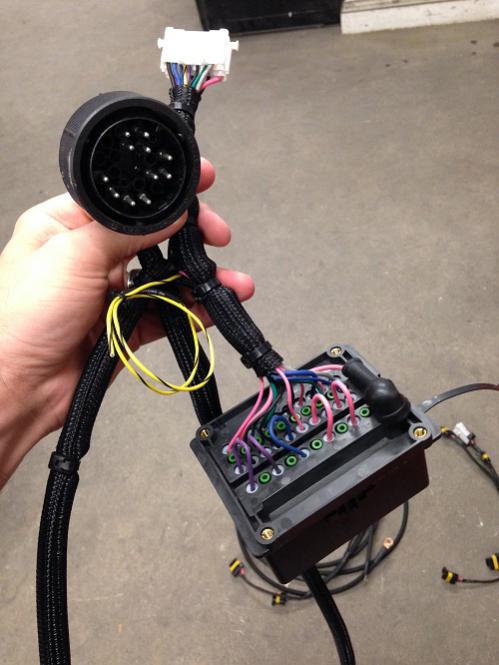

I had the Heads sent out to Harman's in Roanoke City, he is a old school Hot Rod guy with a great reputation with the older community. He came highly recommended and works the heads by hand prior to rebuilding them. During the three week wait, I went ahead and contacted Yury at Wiring Specialties. After some research and several conversations I ordered the Pro-Series Complete Harness for the LSE30. Not cheap but nothing worth it is right?

Harness Specs:
Wiring Specialties Pro-Series

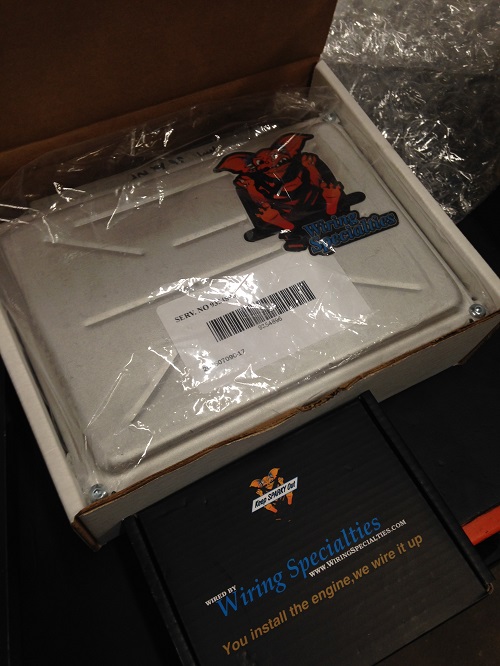

New PCM with Tune
Coolant & Oil Gauge Adapters
GM Compressor Adapter
LS1 Coilpacks
LS1 F-Body o2 Sensor
Grounding Kit
EV1 Injector Type

Price: $1275 Delivered











Kit can be found here.. http://www.wiringspecialties.com/ls1tobmwe30w.html

SWAP METER: $11,643 & climbing fast....

[E30Whore]

Not Another Cheap V8 Swap...

Okay, so for those of you not familiar with the LM7. Its a 5.3 Iron Block version of the LS lineup. At roughly $1600-$2000 cheaper than a LS1. Based on HP per dollar, the 5.3 is 10x better. Also, if you plan to run forced induction, the iron block is a great platform. To each their own but the LM7 has 295 hp and 335 lb·ft of torque which isn't to shabby for a starting point.

Here are a few goodies to spruce up the motor and create some more power out of the 5.3 LM7

Used LS1 Throttle Body attached to a LS6 Intake



LS6 Intake



Used 243 Heads



Brian Tooly .660" Lift Platinum Valve Spring Kit



Tick Performance Mild-Cam



I also have but not pictured:
-Hardened Push Rod Set
-ARP Head Studs
-Katech Race Timing Kit
-Ported and Blueprinted Oil Pump

Price on whats listed above in addition to whats pictured is approximately $1700.

I will start doing a "Swap Meter" below most post that are relevant to build expenses. The "Swap Meter" will represent where I am at financially with the build at said point. For the hell of it, I will include the cost of car and any labor I come across however, I will not add my personal time or traveling expenses that I incur sourcing used parts. This should help those who plan to do a LS Swap down the road have a realistic budget.

SWAP METER: $10,368

[E30Whore]

This makes my swap look like I'm going the cheap route. Sheesh.


Sent from my iPhone using Tapatalk

Nah, I doubt it bud. Different strokes for different folks. I mean, at least you have a LS1 lol and we are about at the same point even though you started a year after me :(

I am summarizing a lot of this just to catch up and bring us to present day however, a lot of planning went into everything I purchased so that I spent it once. I am building this one for me and no one else, I know not everyone will enjoy what I've done but i'm confident they will at least appreciate it!

[E30Whore]

Not Another Cheap V8 Swap...

Lastly, the LS Air Intake kit rounds up the rest of the Sikky products. At this time..... ;)



Up Next...... Some "Go Fast" parts for the 5.3 LM7

[Reyhan335]

This makes my swap look like I'm going the cheap route. Sheesh.


Sent from my iPhone using Tapatalk

[E30Whore]

Not Another Cheap V8 Swap...

E30/36 Steering Shaft



Treehouse Control Arm Bushings

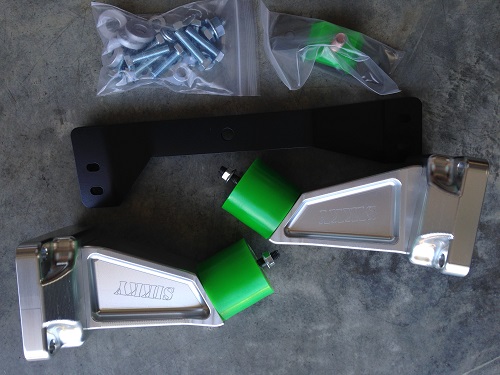

Engine & Transmission Mounts



1 7/8 Headers



Aluminum Drive Shaft

[E30Whore]

Not Another Cheap V8 Swap...

Up to this point, I'm extremely satisfied with all the Sikky products, packaging, craftsmanship, shipping and customer service. Take a look for yourself...

Hydroboost Delete Kit & Power Steering Lines



Hydroboost Delete Mount



Oil Relocation Mounting Kit



Aluminum Oil Pan



Aluminum Oil Pan



The parts speak for themselves :D:D

[E30Whore]

Not Another Cheap V8 Swap...

After careful consideration, I have decided to go with the LM7 5.3 LS truck motor. Before the hate gets spewed from all the keyboard know it all's, I went with this motor because of availability, price, strength of iron block for forced induction and did I mention Price & Availability? After being stood up on two different LS1 for sale adds and being quoted outrageous prices, I scored this bad boy for only $300 bucks

Spec's on motor:
2006 LM7 from a Chevy Silverado 1500
5.3 Iron Block
295 hp and 335 lb·ft of torque
76k Miles

Price: $300 w/ $75 core charge Delivered




Just as much a pain to source "reasonably" was the T56 however, I didn't have a plan-B for this one nor was I able to compromise so after roughly 3 months, Ryan found one in Charleston SC. He called me Thursday, we made the trip Saturday. We scored a rebuilt T56 from a local race shop that was parting their shop car and moving in a different direction. Ryan offered them $1500 picked up and they agreed. We can now check the T56 off the list

Spec's on transmission:
2000 T56 from a Pontiac WS6
Rebuilt Level 2 from Tick Performance
B&M Shifter
Spec Clutch/Flywheel

Price: $1500 Picked Up in South Carolina



Next, parts start arriving! First box to hit the driveway causes all kinds of joy :o

Spec's on swap kit:
Sikky LS Swap Kit
Sikky 1 7/8 Headers
Sikky Hydroboost Delete w/ Pedal
Sikky Intake kit
Sikky Aluminum Drive Shaft
Sikky Aluminum Oil Pan
Sikky Remote Oil Filter Kit
Sikky Engine & Transmission Mounts
Sikky LS Valley Cover
Sikky Power Steering Hoses
Sikky E36 Steering Shaft Assembly
Treehouse Control Arm Bushings
Miscellaneous stainless lines/fittings/nuts/bolts/washers

Price: $5693 Delivered

[E30Whore]

Not Another Cheap V8 Swap...

Out getting familiar with the E30, also decided to meet my Buddy Kevin for lunch. He's also a LS junkie and has been instrumental with my V8 101 crash course. Here is his G8.

[ATTACH]106350[/ATTACH]

Even though shes 20 years the elder, the E30 still looks good!

[ATTACH]106349[/ATTACH]
