M6x alternator to driver side frame rail spacing

[Jean]

Hi,

If you've completed your swap can you post a clear photo showing how much space you ended up with between the alternator and the frame rail?

Thanks!

[delamaize]

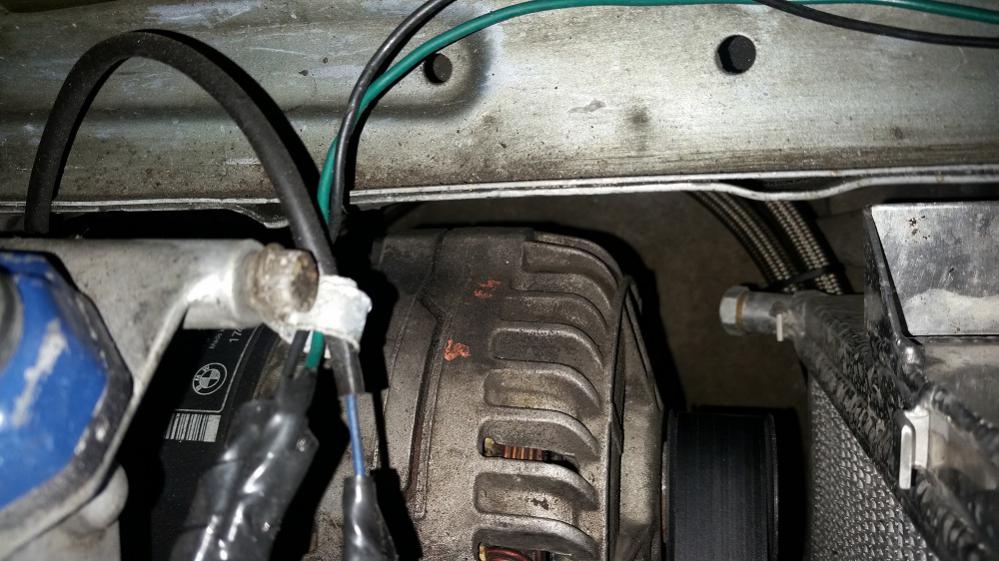

Done and Done.

[Jean]

Thanks delamaize ! This is with what engine arms and mounts?

[36brua]

What he says. basically 0 but 5mm it is tight. I did massage the frame rail abit.

[Jean]

What he says. basically 0 but 5mm it is tight. I did massage the frame rail abit.

Yep, that's my plan as well. Just wanted to confirm you guys are seeing the same and it wasn't something odd.

[delamaize]

Thanks delamaize ! This is with what engine arms and mounts?

I'm using Garagistic arms, with the 95A Poly mounts.

[dasmanschaft012]

I haven't heard of anyone with problems with the alternator. were all on stiff poly mounts, so the motor wont move that much

[Jean]

Yeah, I am not going to risk it as I am building mine to throw around into corners as hard as the tires can handle it . Going to remove the alternator and massage that area a little bit.

[flyboyx]

Can a 6 cylinder alternator fit? I have one laying around and it's a lot smaller diameter than my v8 alternator.

[Jean]

The mounting position on the two is different, v8 is 3 on one side vs 6cyl. I went ahead and massaged that spot to have 1/4" of clearance.

m6x - https://www.ebay.com/itm/97-98-BMW-5...NZ2MNp&vxp=mtr

m5x - https://www.ebay.com/itm/Valeo-Reman....c100005.m1851
