  • DividedBeing
    replied
    So, I figured out that I need to switch the polarity on my welder. Didn't even realize that you could until someone pointed it out to me on a facebook group. Hopefully that will solve the splattering, I'm pretty confident it will. Going to give it a test today on some scrap. I'm kind of bummed that I did the whole front subframe with the wrong polarity, but oh well. This is a good lesson to actually read an instruction manual every now and again.

    Leave a comment:


  • DividedBeing
    replied
    Originally posted by Supadave View Post
    Not to bad for your first time. Nothing a grinder cant fix.
    Thanks man. Someone was telling me to crank up the gas a little more and that might fix it. Going to experiment when I'm ready to do the rear subframe. I think I'm going to give my new tig setup a go with that one.

    Leave a comment:


  • Supadave
    replied
    Not to bad for your first time. Nothing a grinder cant fix.

    Leave a comment:


  • DividedBeing
    replied
    Got the front subframe reinforcements welded up. Lots of cussing but lots of good practice. This is my first real stretch of actual welding, so it was a bit of trial and error. I did the motor mount inserts first, then I went on to the control arm/ball joint reinforcements, then the sway bars.

    This was one of my better sections

    Click image for larger version

Name:	132822841_466561331407152_2111896987596704635_n.jpg
Views:	24
Size:	93.5 KB
ID:	9967181

    Click image for larger version

Name:	133033836_415461326432863_3739219513826749094_n.jpg
Views:	25
Size:	103.2 KB
ID:	9967182

    Like I said, I was having a hard time getting it to stop splattering. Had my gas set at about 25cfh and I was playing around with the power/speed a little trying to dial it in and I was really going pretty wild with the grinder trying to make things clean before I welded. Things got better by the time I was welding up the outer motor mount reinforcements, but it was annoying. Lots of fun trying to pick up a new skill, even if it's a somewhat difficult skill.

    Leave a comment:


  • DividedBeing
    replied

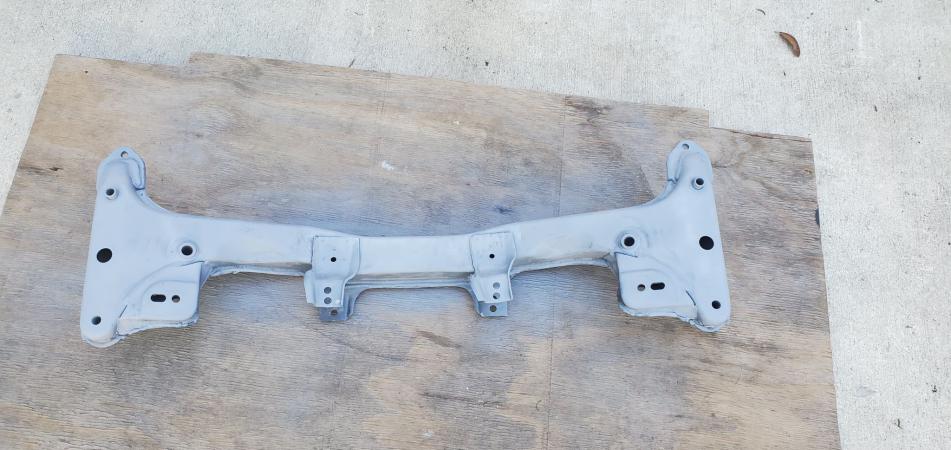

    Got this bad boy out today. Pretty straight forward. Going to degrease, power wash, grind, and hopefully weld up some reinforcements tomorrow.

    Click image for larger version

Name:	subframe.jpg
Views:	33
Size:	74.9 KB
ID:	9966904

    I also had my new toy arrive. Realized after I shot these photos that I completely ignored the color coding and plugged the torch/clamp into the wrong ports. Oh well, I haven't turned it on yet.

    Click image for larger version

Name:	133733103_10223660329317059_4964565919697344195_o.jpg
Views:	36
Size:	98.5 KB
ID:	9966905

    Click image for larger version

Name:	132639407_10223660337317259_8630782474834695391_o.jpg
Views:	34
Size:	97.7 KB
ID:	9966906


    I'll probably use my MIG for these reinforcements, just because I'm more familiar with it, and I've never done any TIG work before. I'd rather practice on some scrap instead of jumping right into my subframes with it.

    Leave a comment:


  • Supadave
    replied
    Nice

    Leave a comment:


  • DividedBeing
    replied
    Waiting on this rain to stop and I'm going to drop the subframes to give them some love. Probably starting with the front.
    Wish I had a nice carport or garage. Might have to finance one in the near future here. I built a concrete pad that's reinforced with rebar and ready for a two post, so it would be great to actually have one.

    Anyway -- my parents heard me talking about a tig welder setup I missed out on through facebook marketplace and told me they wanted to give me some cash toward buying one for Christmas.
    Ended up going with the AHP AlphaTig 201XD. Can't wait to get some practice in and figure out how to stack some dimes. Already picked up and assembled a cart and I need to pick up an argon tank.

    My first project is going to be that low profile steering shaft made from the two E46 steering shafts.
    Going to be helpful for welding some 90s onto the radiator I'm getting as well.

    Click image for larger version  Name:	image_2020-12-20_094432.png Views:	0 Size:	182.5 KB ID:	9965869

    Leave a comment:


  • DividedBeing
    replied


    Click image for larger version

Name:	jackstand.jpg
Views:	70
Size:	71.1 KB
ID:	9965542Click image for larger version

Name:	jackstand2.jpg
Views:	63
Size:	66.7 KB
ID:	9965543

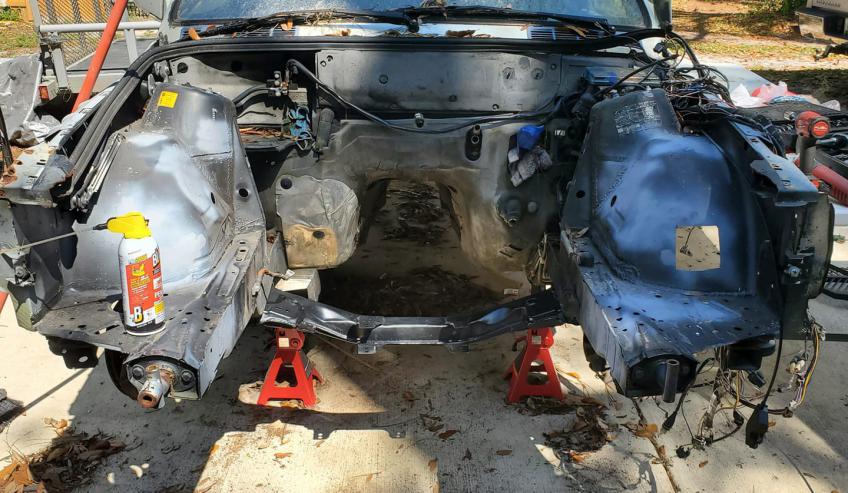

    Finally got the car off of these recalled HF jackstands. I've known about the recall since it was issued, but I wasn't getting under the car since then or I would have replaced them earlier. Told the guy at HF "I brought my death traps in for the death trap recall." I always try to keep a tire/wheel under each side of the car just in case, but god damn is it scary to imagine that these things could have crumpled and killed me.

    Picked up one of those nice Daytona Low Profile jacks in Green while I was at HF too.

    Also, my purple tag E46 steering rack came in the mail. Good stuff.

    Leave a comment:


  • DividedBeing
    replied
    My reinforcement plates showed up in the mail from Garagistic just a moment ago. They look great. Was waiting for these to show up to really get started again, so here we go.

    Excited to finally get a long stretch of welding practice in with this section of the project. Looks like there's about 1001 reinforcement plates, so I should be an expert by the end of this lol.

    Leave a comment:


  • DividedBeing
    replied
    `Ordered the steering column I'm going to need for my wilwood pedal box/boosterless setup. Can't run an airbag steering column, so I have to swap to the non-airbag column. Found it for about $125 on ebay, so that's pretty cool.

    For my steering shaft:

    The low profile sikky, vorshlag, flaming river, and condor steering shafts are pretty damn expensive, so I'm not buying one from them.
    I've been planning on making one for myself out of E34 steering shafts based on the Garrett swap instructions. Well, it turns out those shafts from the E34 might be kind of harder to find and they seem on the expensive side everywhere I've looked.

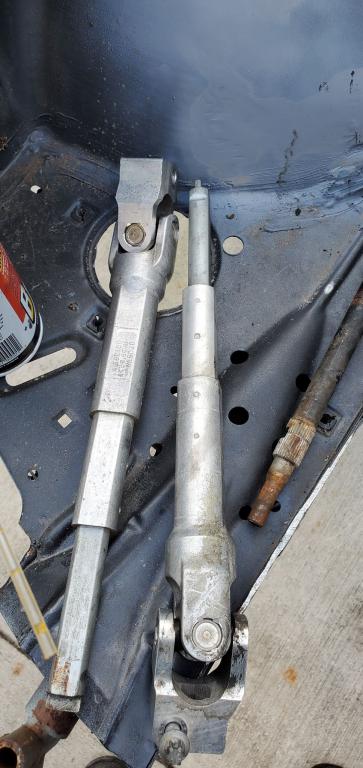

    I came across another method using two E46 shafts that you cut and combine into one. If you have a nearby junk yard with e46s available, you can probably find these pretty damn cheap -- I just paid $75 total for two of them on ebay, and I'm sure they can be found for $20 a piece or less at a junk yard.

    Click image for larger version  Name:	131304738_10223552867870590_6861096553465612537_n.jpg Views:	0 Size:	57.2 KB ID:	9965047

    Here's _JohnnyD_'s thread here on r3v with pretty small photos but good explanation

    And here's a video I found on youtube of someone making one.
    https://www.youtube.com/watch?v=6khEWLPHyUQ


    Yesterday, I almost snagged a basically brand new AHP AlphaTig 201XD setup with a cart and big argon tank on fb marketplace for less than what the machine cost new by itself. Someone else got to it before I did though. Going to have to find a friend nearby with a tig setup.

    Leave a comment:


  • DividedBeing
    replied
    Originally posted by Elysian View Post

    I'm still waiting for the E46 hex style treehouse FCAB's to ship from that sale as well.
    Yeah, they must have been slammed. I also ordered dual caliper mounts that they shipped to me separately, and then a little over a week ago I ordered a full set of delrin bushings that are already here.

    Leave a comment:


  • Elysian
    replied
    Originally posted by DividedBeing View Post
    FabBots adapter for the AR5 just showed up yesterday.
    Just ordered a purple tag E46 steering rack and the garagistic adapter kit.
    Still waiting on my subframe reinforcement kit that I ordered during the black Friday Sale. Kind of annoying, but that's the reality of Black Friday sales at these boutique parts shops.
    I'm still waiting for the E46 hex style treehouse FCAB's to ship from that sale as well.

    Leave a comment:


  • DividedBeing
    replied
    FabBots adapter for the AR5 just showed up yesterday.
    Just ordered a purple tag E46 steering rack and the garagistic adapter kit.
    Still waiting on my subframe reinforcement kit that I ordered during the black Friday Sale. Kind of annoying, but that's the reality of Black Friday sales at these boutique parts shops.

    Leave a comment:


  • DividedBeing
    replied
    So, I should have checked around more. Did quite a bit of digging and didn't realize I could get this driveshaft to BMW diff flange for half price elsewhere.

    But I don't feel like dealing with cancelling this order now...and the Jags That Run guy was helpful about getting this updated as "back in stock" on his website when I called.

    For everyone else's reference:

    Spicer Part # 2-2-1679

    https://www.northerndrivetrain.com/p...-2-2-1679.html

    Leave a comment:


  • DividedBeing
    replied
    So far, my 4l60 bellhousing is the only thing that has arrived in the mail.

    In the mean time, I ordered the slip yoke I'm going to need for the AR5 output, and I just ordered one of those Jags That Run V8 Conversion BMW Diff Flanges with the 1310 UJoint.
    The plan is to do all the reinforcement on my subframes/trailing arms, then have everything ready to go so I can test fit the engine/trans, build a trans mount, and measure to have the driveshaft built.

    Edit:Just ordered a full set of Delrin bushings as well. Those will go in along with the reinforcements.

    Click image for larger version  Name:	jtr1.png Views:	0 Size:	367.2 KB ID:	9964039
    Last edited by DividedBeing; 12-07-2020, 02:13 PM.
