e30 M50 code 1264 after fixing no start issue. May have cut a wire

[e30m20TurbO7]

this thread was originally diagnosing the star issue from when I changed the wiring harness cover 2E 30 and three wiring harness cover I ended up accidentally sniffing a wire that went to pin number seven or I’m not exactly sure which pin but it was it to the ignition switch so we figure that all out but I now have a new issue code 1264 ego heater circuit
not sure if I have to trace wires back in case I accidentally cut something not sure if it’s because I switched DM‘s because I had three different DME‘s that I was using to diagnose the original problem I went ahead and bought a cheap O2 sensor and replaced it but still no change. No idea where to start if anybody has any advice or has ran into this code before what helped you please help me






Need some help can’t remember everything I did

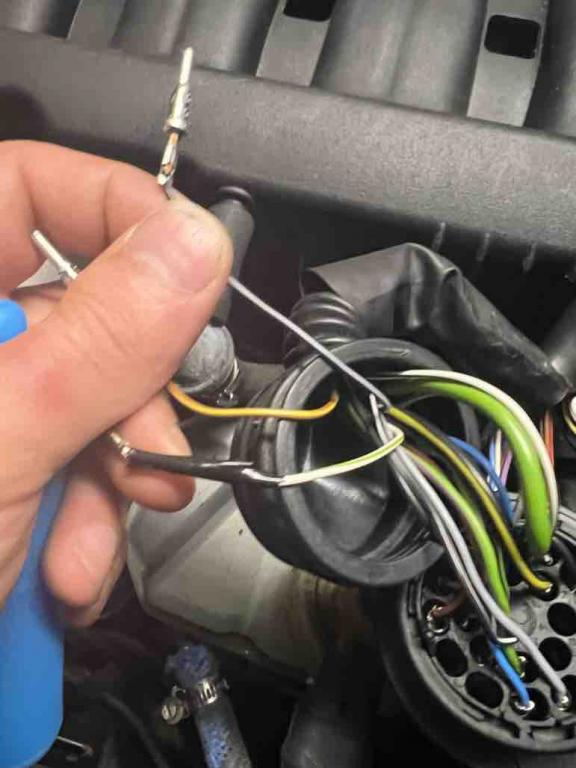

I noticed some wires got pulled out I think for the c101

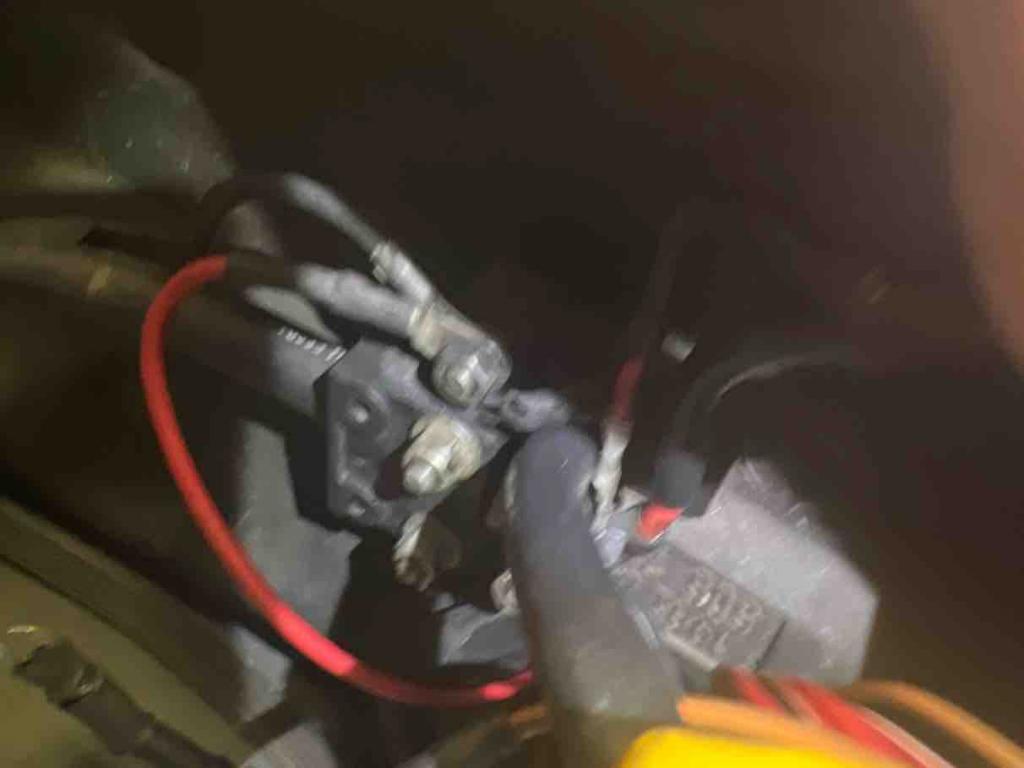

And I’m not sure where these grounds go, or if they’re power wires
Please assist need help
No fuel or spark
No CEL light
88 chassis
95 e34 harness





Sent from my iPhone using Tapatalk

[e30m20TurbO7]

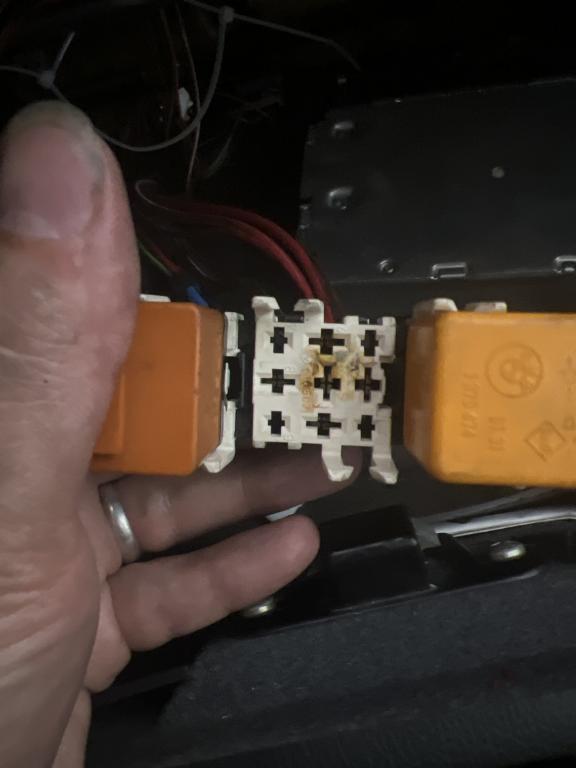

Need a picture of someone’s distribution block. Please help

[mjweimer]

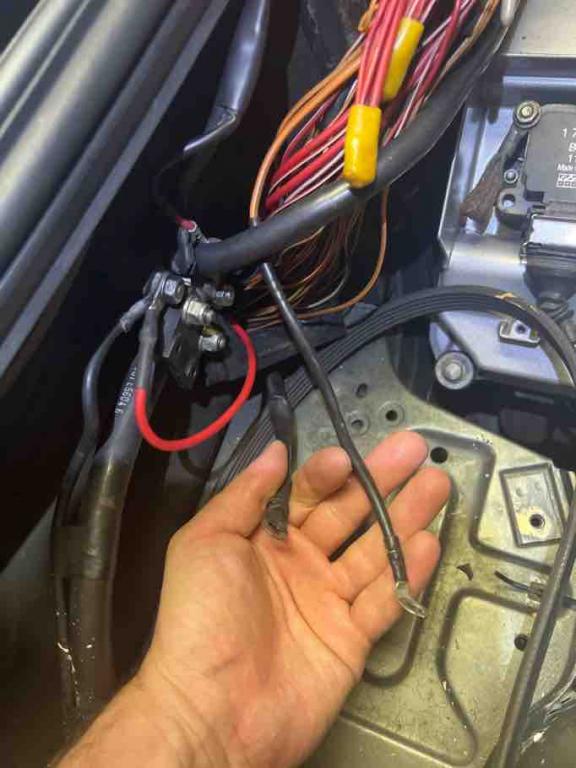

Brown wires are generally ground so it seems that disconnected ring terminal on the right side of your picture could be a ground cable. The other wire on the left looks like it could be either one of the fuse box +12V wires....hard to tell from the pictures.

Every swap harness is a bit different so it might be best to find the component where the wire terminates and then trace it back to the proper +12V or ground location.


Electrical Troubleshooting Manuals are available here:

https://www.millerperformancecars.com/using-joomla/extensions/components/content-component/archived-articles/9-uncategorised/135-bmw-electrical-manual-list

[erasui]

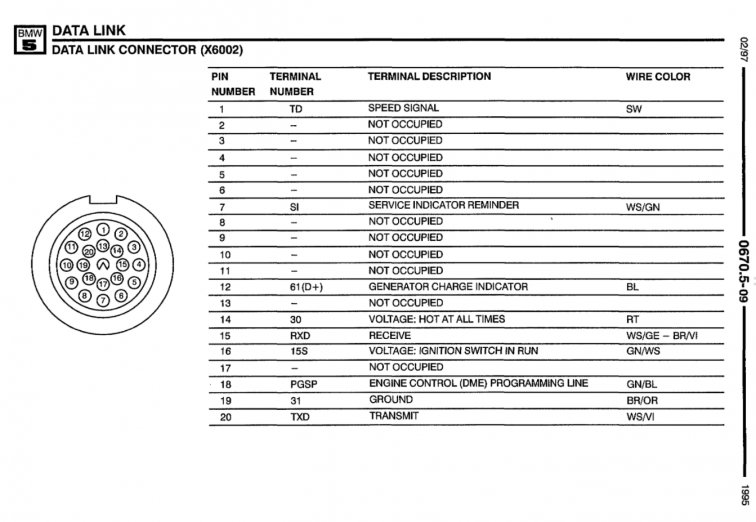

Looks like the Data Link connector. This image from a '95 E34 ETM and German to English color translation may help you.

• rot RT = red
• gelb GE = yellow
• grau GR = gray
• schwarz SW = black
• weiss (weiß ) WS = white
• grun GN = green
• orange OR = orange
• rosa RS = pink
• violett VI = violet

As for the grounding wire, the closest would probably be G103 located just behind the RH shock tower on that plate behind your hand in your pic. No clue on what the other wire could be since the color isn't really clear, but if it is a grounding wire then it can also be placed in that same spot. Ultimately as long as they are connected to the big metal bit of the car they should be fine. Just make sure they have good contact with actual metal.

Cheers

[e30m20TurbO7]

Looks like the Data Link connector. This image from a '95 E34 ETM and German to English color translation may help you.

• rot RT = red
• gelb GE = yellow
• grau GR = gray
• schwarz SW = black
• weiss (weiß ) WS = white
• grun GN = green
• orange OR = orange
• rosa RS = pink
• violett VI = violet

As for the grounding wire, the closest would probably be G103 located just behind the RH shock tower on that plate behind your hand in your pic. No clue on what the other wire could be since the color isn't really clear, but if it is a grounding wire then it can also be placed in that same spot. Ultimately as long as they are connected to the big metal bit of the car they should be fine. Just make sure they have good contact with actual metal.

Cheers

One wire I believe the small one is brown and orange. When I tap the large wire to battery terminal in junction box ditch key off I hear a relay turn on.
I’ve got no CEL NO FUEL AT THIS POINT need help bad I’ve just never been so stuck usually got things figured out but my memory hasn’t been good since a recent seizure and I can’t remember what I did when undoing them and I can’t find any e34 harness properly hooked up I have. A spare ecu to see if I burned it up somehow I’ve never grounded out any cables that aren’t attached because I don’t remember undoing them. Please help will take more pics
3102996407 will pay whom ever helps me get it going 100$


Sent from my iPhone using Tapatalk

[e30m20TurbO7]

Looks like the Data Link connector. This image from a '95 E34 ETM and German to English color translation may help you.

• rot RT = red
• gelb GE = yellow
• grau GR = gray
• schwarz SW = black
• weiss (weiß ) WS = white
• grun GN = green
• orange OR = orange
• rosa RS = pink
• violett VI = violet

As for the grounding wire, the closest would probably be G103 located just behind the RH shock tower on that plate behind your hand in your pic. No clue on what the other wire could be since the color isn't really clear, but if it is a grounding wire then it can also be placed in that same spot. Ultimately as long as they are connected to the big metal bit of the car they should be fine. Just make sure they have good contact with actual metal.

Cheers

Grounding post that’s on junction box that’s the two post with 10mm nuts
The series g ground ??


Sent from my iPhone using Tapatalk

[e30m20TurbO7]

Does si reset have to be hooked up to run

[mjweimer]

Grounding post that’s on junction box that’s the two post with 10mm nuts
The series g ground ??


Sent from my iPhone using Tapatalk

There should be a ground point on the right side strut tower - towards the firewall battery tray. 13mm nut I believe with an 8mm threaded post. Might need to extend the wire to get there or find another suitable ground as erasui mentioned.

The wire in your hand on the right sure looks like a ground (brown wires), what are the colors of the wire(s) in the cable on the left side of the picture?

[erasui]

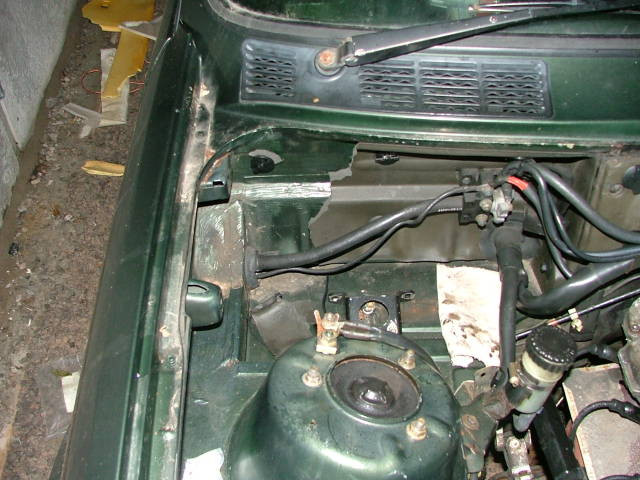

Looking further in the ETM, brown and orange wires should be grounded. The grounding terminal we are talking about is pictured below. It is on the upper right side of the strut tower in the image below and can be the point of grounding the wires.

The data link wire situation is most likely what is causing much of the problem.If you can provide a clearer picture of your current wires in the data link connector I may be able to help a tad bit more. From what I can tell, the brown and orange wire should be connected to pin 19, White and Green to Pin 7, and the other pin wire isn't too clear on what color it is completely.

Cheers

[e30m20TurbO7]

Here’s some different ones I didn’t see any change with ecu change.
I checked fusible link
I managed grounding eyelets
Still no change I didn’t hear ICV hum NO CEL
No fuel
No spark
I didn’t put the missing wires back in yet DONT know if that makes a difference


Sent from my iPhone using Tapatalk

[e30austin]

if the tach signal wire (schwarz) isn't connected at the C101, the DME will not turn on fuel or spark.
