    Mystery Bolt under Dash

    Yesterday I replaced the clutch slave cylinder. Afterward, I found this bolt lying on the driver's side floor. Other than pumping the clutch by foot, I didn't do any work inside. Can anyone ID it? It's M8-1.25 thread...appears to have a break-off head that is missing.
    2 Photos
    Tags: None
    • 82eye
      E30 Mastermind
      • Jan 2009
      • 1916
      #2
      it looks like a shear bolt. i think there are a couple that locate the steering column in the car.

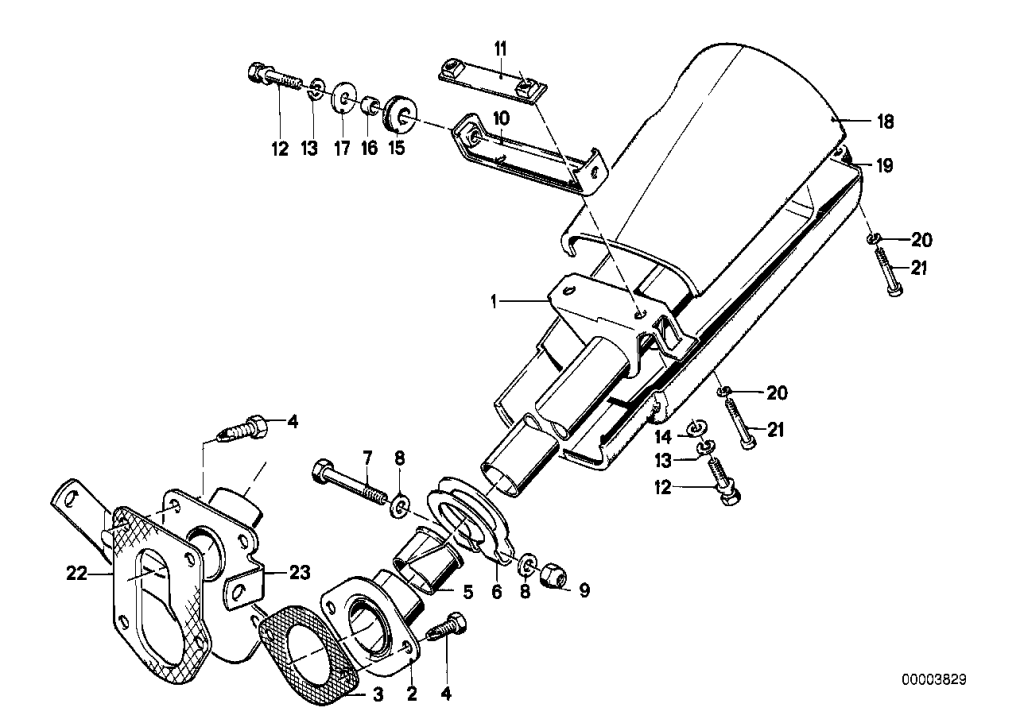

      edit : number 12 in the diagram

      Click image for larger version Name: diag_2yd.png Views: 85 Size: 196.8 KB ID: 10104903

        Comment

        • roguetoaster
          R3V OG
          • Jan 2012
          • 7773
          #3
          As another possibility, maybe you have no clutch stop and someone threaded that in place of the stock one.
