Announcement

Collapse
No announcement yet.

alternator bushings......

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    alternator bushings......

    Just a bit of a feeler here, I have access to a lathe, and am making a set of steel bushings for the alternator to replace the shitty rubber ones that disintigrated on me. Was wondering if there is much of a market out there for such a product, being as the original is shit, although most aftermarket alts come with such bushings already.

    what are the boards thoughts on these
    I saved 15% on my Bimmer parts by switching to ...




    #2
    Oh hell yes...price?

    Closing SOON!
    "LAST CHANCE FOR G.A.S." DEAL IS ON NOW

    Luke AT germanaudiospecialties DOT com or text 425-761-6450, or for quickest answers, call me at the shop 360-669-0398

    Thanks for 10 years of fun!

    Comment


      #3
      let me get the final engineering done first (sometime this week) and Ill get back to you on that, but most likely in the $20 region. Pics will follow when engineering is completed

      here is a preliminary of the outer diameters, I will be boring the hole tomorrow, its getting too late here, and I dont want to piss off the neighbors.....





      Once this one is done, I will be setting the lever action cross slide, and getting ready to crank these things out. as it is, this is about 20 minutes of trial and error with setting up the machining and transferring measurements in rubber to cold hard steel

      Only reason for using steel is that I have it on hand in an appropriate diameter (came with the machine). brass would be prohibitively expensive for this with no added benefit, I dont have aluminum, or delrin, or I would make them in that. perhaps in the future
      Last edited by scottinAZ; 11-13-2010, 10:36 PM. Reason: added information
      I saved 15% on my Bimmer parts by switching to ...



      Comment


        #4
        There's a bushing on the alternator?


        "Its preparations are concealed, not published. Its mistakes are buried not headlined. Its dissenters are silenced, not praised. No expenditure is questioned, no rumor is printed, no secret is revealed."

        John F. Kennedy

        Comment


          #5
          Originally posted by HarryPotter View Post
          There's a bushing on the alternator?
          yes, some have rubber bushings for the alternator mounts. when these wear out (or get oil soaked) the alt does not sit correctly and is a pain in the ass to get tensioned correctly. Most aftermarket alts have the bushings replaced with steel or other material so this isnt an issue, but there are enough rubber bushed alts out there that this may be a viable item.
          I saved 15% on my Bimmer parts by switching to ...



          Comment


            #6
            IE sells a kit too.

            Fuck IE.

            Closing SOON!
            "LAST CHANCE FOR G.A.S." DEAL IS ON NOW

            Luke AT germanaudiospecialties DOT com or text 425-761-6450, or for quickest answers, call me at the shop 360-669-0398

            Thanks for 10 years of fun!

            Comment


              #7
              Originally posted by StereoInstaller1 View Post
              IE sells a kit too.

              Fuck IE.

              did not know that, will have to check it out
              I saved 15% on my Bimmer parts by switching to ...



              Comment


                #8
                Also, I have seen rubber bushings bite people pretty hard relating to the grounding of the alternator.

                Esp. if, say your old solid mounted alt that had its ground strap removed/broken/lost craps out, and you replace it with a used rubber mounted alternator. The entire casing becomes +12v.
                -Dave
                2003 Lincoln Towncar | 1992 BMW 325iC | 1968 Cadillac Deville

                Need some help figuring out the ETM?

                Comment


                  #9
                  Does someone have a picture of where these bushings go? My alternator frame is metal, and that bolts directly to the mount. I've had it out a few times, and never saw any rubber on anything.

                  Ich gehöre nicht zur Baader-Meinhof Gruppe

                  Originally posted by Top Gear
                  Just imagine waking up and remembering you're Mexican.

                  Every time you buy a car with DSC/ESC, Jesus kills a baby seal. With a kitten.


                  Comment


                    #10
                    Originally posted by u3b3rg33k View Post
                    Does someone have a picture of where these bushings go? My alternator frame is metal, and that bolts directly to the mount. I've had it out a few times, and never saw any rubber on anything.

                    as requested:

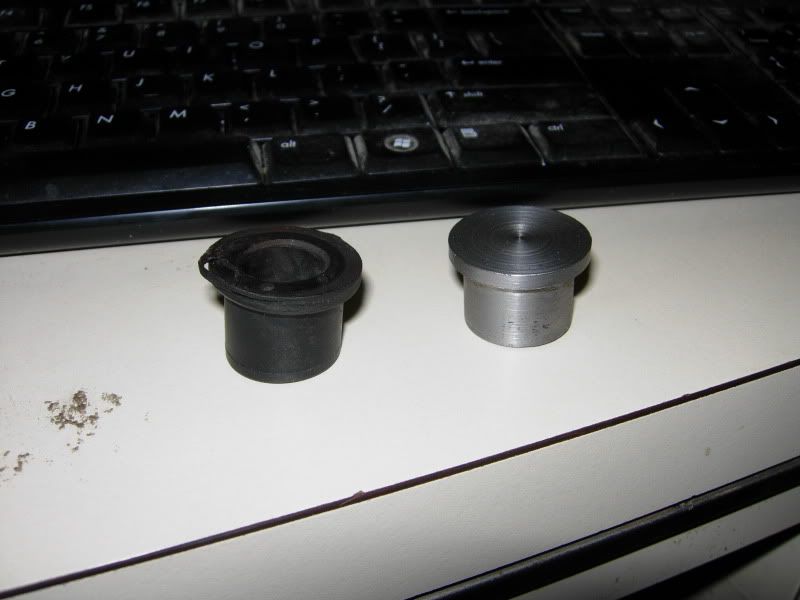

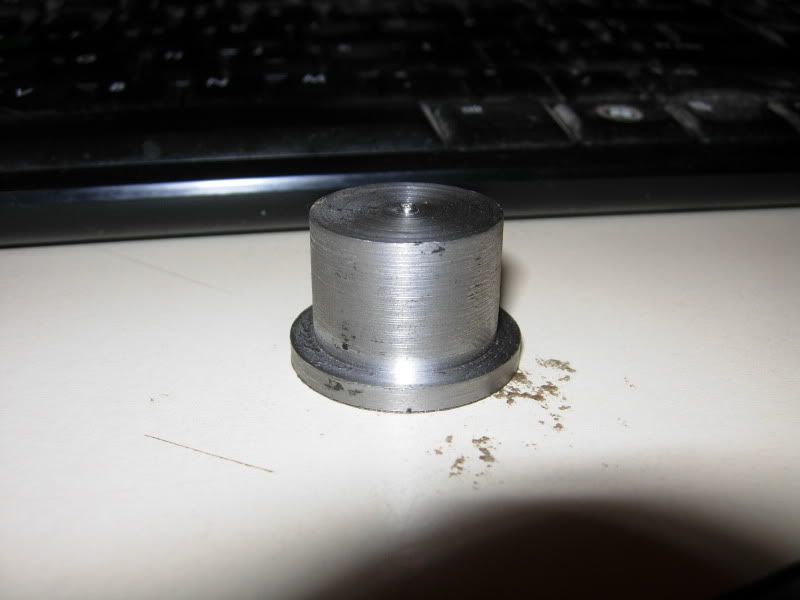

                    Pic of the old rubber bushing side by side with the steel replacement

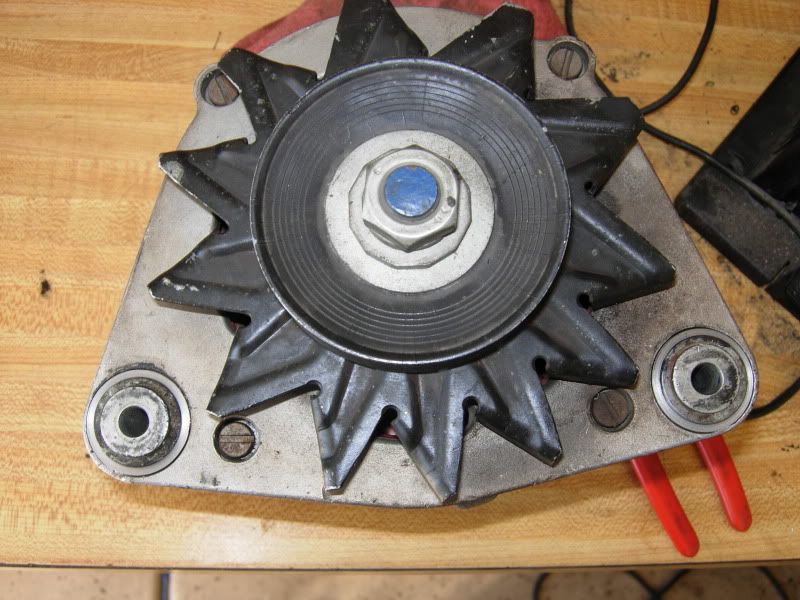

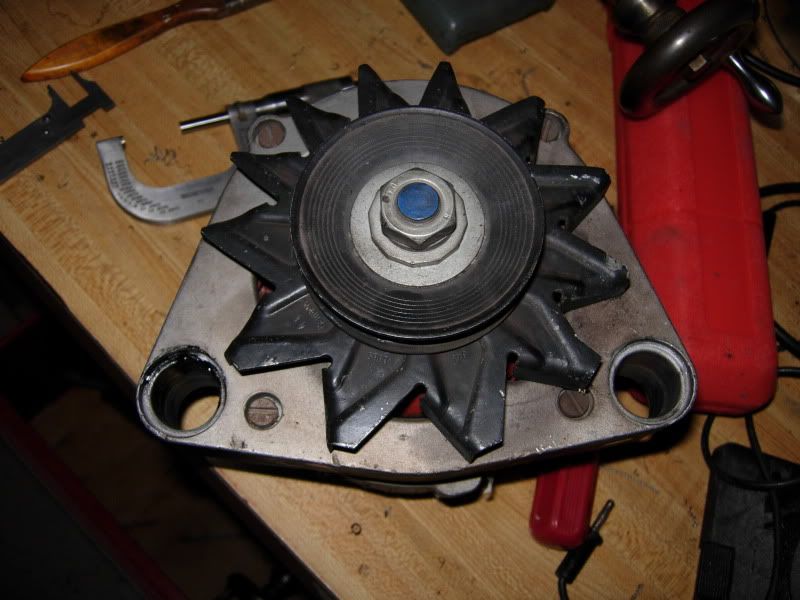

                    Large holes are where the bushings go, two per hole, one front one back. the shoulders on the bushings locate the alternator

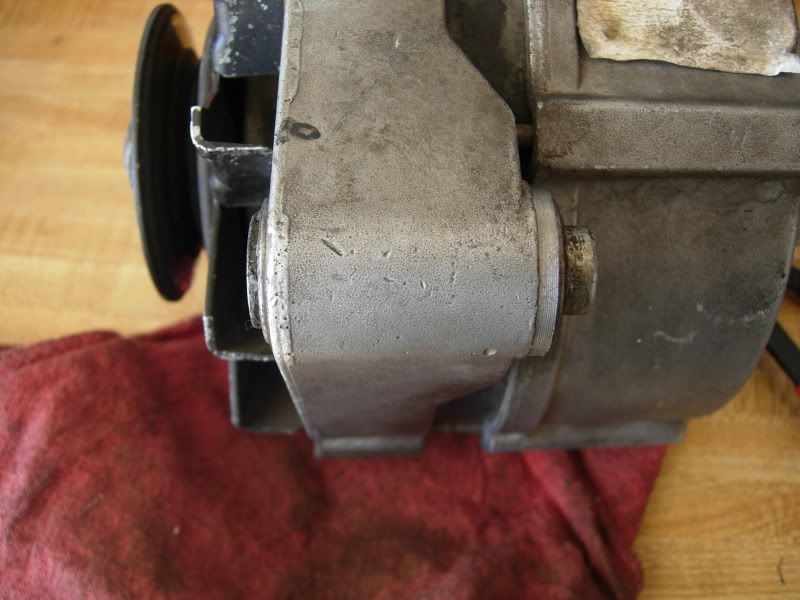

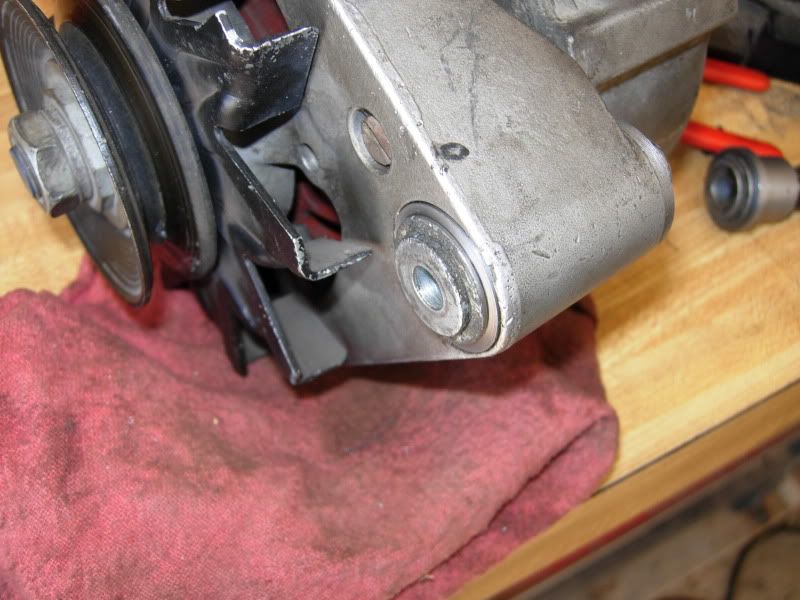

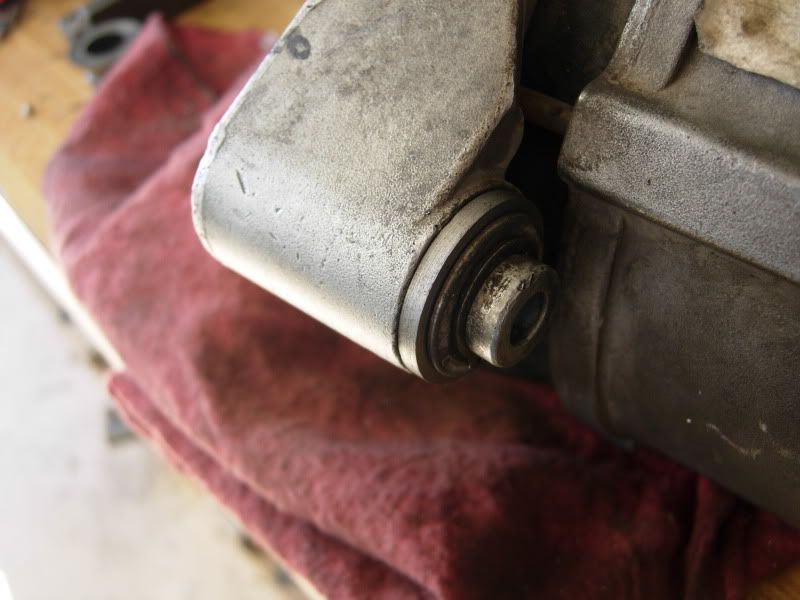

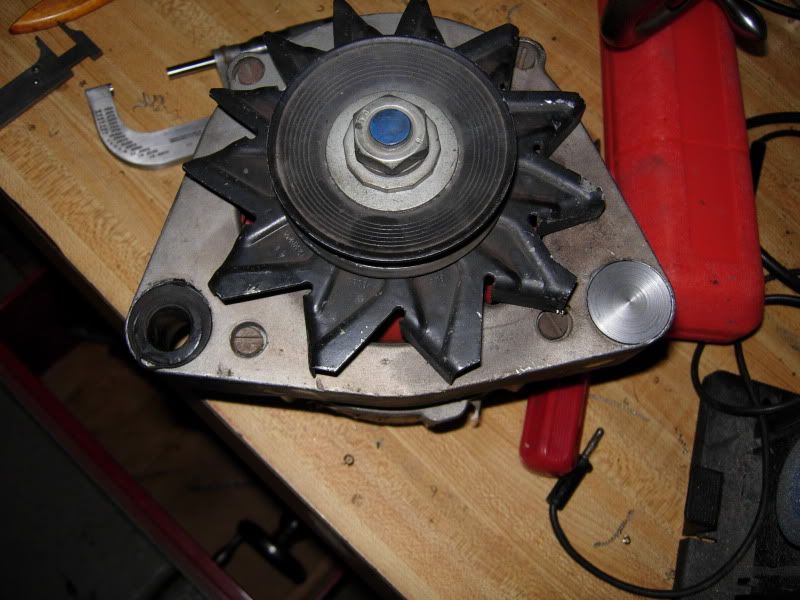

                    Bushings in the respective holes (waiting on a drill bit to bore the steel one...)

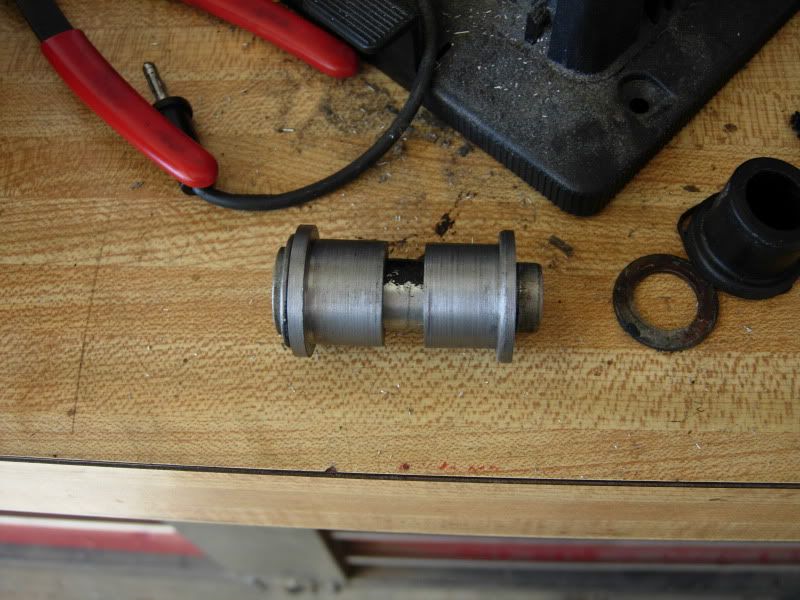

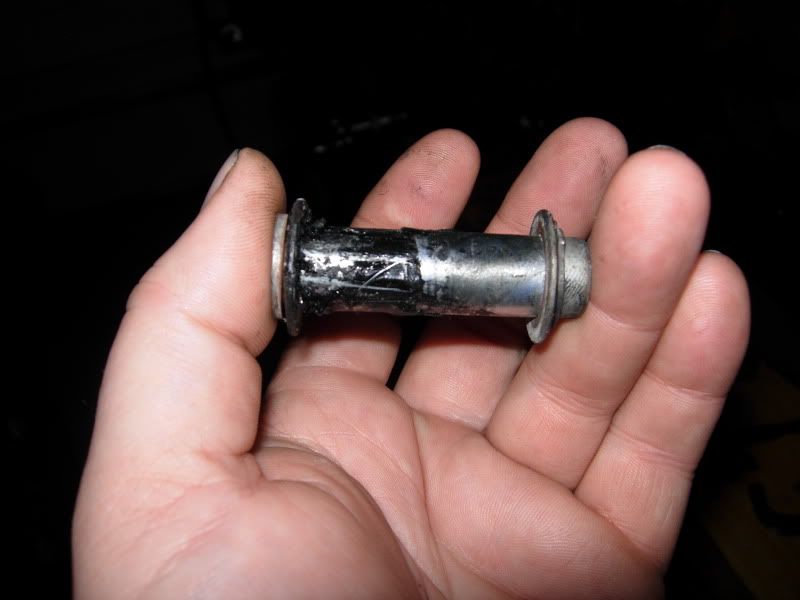

                    The sleeve that goes through the bushing and accepts the bolt to mount the alternator
                    Last edited by scottinAZ; 11-15-2010, 09:58 AM.
                    I saved 15% on my Bimmer parts by switching to ...



                    Comment


                      #11

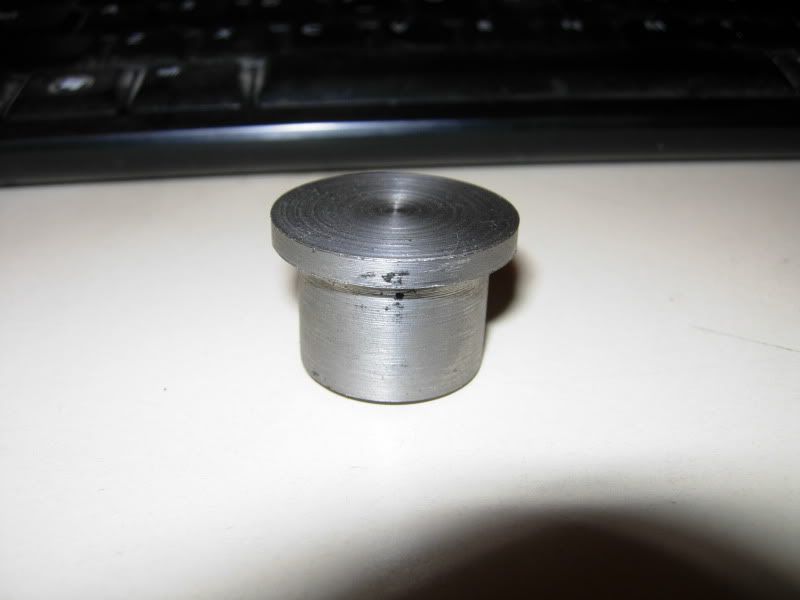

                      Finished Prototype

                      Here are some pics of the finished bushings.







                      I have some UHMW Polyethelyne on the way, and will make a set out of that material as well. I think that will allow for tolerance in the cast aluminum housing of the alternator better than a slip fit steel bushing will. Should also speed up the machining process. I did get it down to about 5 min per bushing in the end when I had the setup finalized, so that helps with production time. Having an appropriate sized drill bit will help as well, so I dont have to individually bore out the hole for the sleeve.

                      I retained the sleeve arrangement that the original rubber bushings used, as this allows for a slip fit on the bushings, and therefore the need to machine the housing to a tight press fit tolerance on the bushings.

                      Seems like this arrangement will work. I now have a useful spare alternator
                      I saved 15% on my Bimmer parts by switching to ...



                      Comment


                        #12
                        I'm quite certain that mine is just a drilled out flange. No bushing to speak of on either side.

                        Ich gehöre nicht zur Baader-Meinhof Gruppe

                        Originally posted by Top Gear
                        Just imagine waking up and remembering you're Mexican.

                        Every time you buy a car with DSC/ESC, Jesus kills a baby seal. With a kitten.


                        Comment


                          #13
                          Originally posted by u3b3rg33k View Post
                          Does someone have a picture of where these bushings go? My alternator frame is metal, and that bolts directly to the mount. I've had it out a few times, and never saw any rubber on anything.
                          not all E30 alternators use bushings.
                          Build thread

                          Bimmerlabs

                          Comment


                            #14
                            Lucky me I suppose. Carry on.

                            Ich gehöre nicht zur Baader-Meinhof Gruppe

                            Originally posted by Top Gear
                            Just imagine waking up and remembering you're Mexican.

                            Every time you buy a car with DSC/ESC, Jesus kills a baby seal. With a kitten.


                            Comment


                              #15
                              Akgmotorsport.com sells delrin ones also, Good idea though my alternator is fucked, No bushings though just worn metal fml



                              Comment

                              Working...
                              X
