    What is the block part?

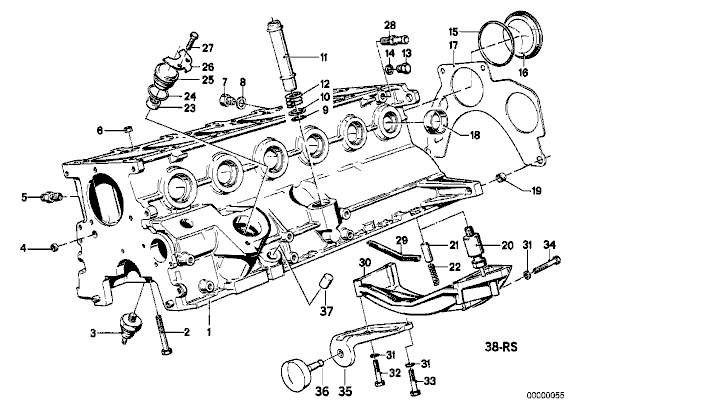

    What is the part numbered 30, it seems to be some sort of reinforcement? Does it go under the sump or over the top of it? I have never seen a pic of it before
    Attached Files
    89 E30 325is Lachs Silber - currently M20B31, M20B33 in the works, stroked to the hilt...

    new build thread http://www.r3vlimited.com/board/showthread.php?t=317505

    Tags: None
    • EtaSport
      R3VLimited
      • Oct 2003
      • 2853
      #2
      Thats the flywheel/belhousing cover. It bolts up after the oil pan actually. Its not 100 percent necessary but it keeps everything from getting inside the belhousing and gives some extra support.
      Old and improved:

        Comment

        • AndrewBird
          The Mad Scientist
          • Oct 2003
          • 11896
          #3
          Originally posted by EtaSport
          Thats the flywheel/belhousing cover. It bolts up after the oil pan actually. Its not 100 percent necessary but it keeps everything from getting inside the belhousing and gives some extra support.
          Correcto. Bolts to the block and to the bellhousing.

            Comment

            • Jand3rson
              Banned
              • Oct 2003
              • 37587
              #4
              Yeah, #34 is a real fun bolt to remove...

                Comment

                • ptownTSI
                  E30 Fanatic
                  • Jun 2005
                  • 1265
                  #5
                  my favorites are the starter bolts.
