    1990 325i M20B25 Not Charging...Help!

    Hey R3V,

    Have a track day on Sunday so I need to fix this bug asap! The car will not charge the battery. If I charge the battery overnight the battery light will not come on. After driving the car the voltage will drop until the car is inoperable. Starting Volts is about 13v and will drop to about 12.8 when running and gradually fall. The battery light is very dim and will gradually get brighter as the voltage drops from driving the car. What am I missing? Need some help with exactly where I should be checking for voltage. Thank you guys in advance.

    New:
    Battery
    Bosch Reman Alternator
    Alternator Belt (Tensioned Properly)
    Engine Ground (Oil Pan to Chassis)
    Battery Negative Ground (Battery - to Chassis in trunk)
    Fully Rebuilt Cluster from BavRestoration

    #2
    Make sure you connected the alternator wires/ fully tightened?


    1992 M tech 2 Convertible - S50 Swap
    1992 e34 Touring- S50 Swap
    1992 325i-S50 Swap (SOLD)

    1995 e36 M3 Mugello Red - S50 (SOLD)
    1991 325i Convertible Laguna Green (SOLD)
    1987 325i (SOLD);1992 M tech 2 Convertible (SOLD)
    1988 325i Convertible Alpine White (SOLD)
    1991
    Brilliantrot Convertible 80k Miles (SOLD)
    1992 325i Convertible Schwarz (SOLD)
    1992 318i Convertible Project-Finished (SOLD)

    Comment


      #3

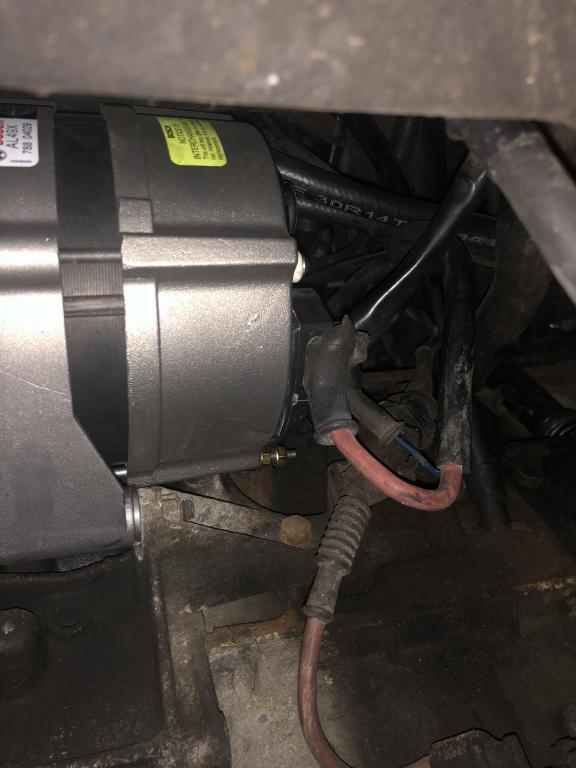

      Just double checked and the wires are fully tightened. Is there a wire that is supposed to be attached to the small gold nut on the alternator in the center of the picture? The alternator was shipped with this nut but my old one didn't have a wire attached to it.
      Attached Files

      Comment


        #4
        alternator is bad? wires are crossed? you bought cheap vodka? part out? sent from hell using tapatalk
        ~~~~~~~~~~~~~~~~~
        '90 325i sedan daily driven
        '85 325e coupe also a daily
