    Plastic connector - ABS?

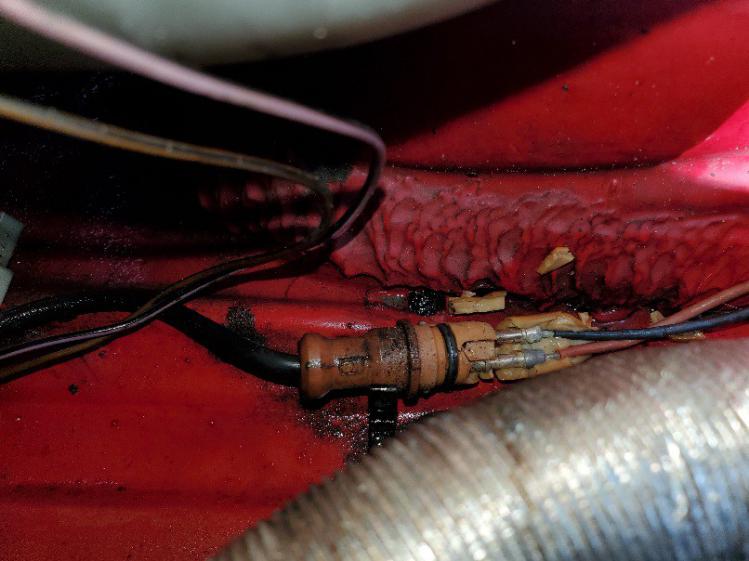

    These connectors (both sides) are desintegrating. I believe they are the ABS wiring. Is there a replacement available, so that I can remove the pins from them and reinsert into the new ones? What can I do to fix this properly?
    Attached Files
  • PieterVN
    Member
    • Nov 2020
    • 72

    #2
    Check out the following parts number: 61131390540
    This should be the wiring going to the ABS module. To get the other side of this connector you should get a new ABS sensor i think.

    I would try to cut the connector and solder or try some other some sort of more generic connector. Good luck!
    Belgian E30 Driver
    /
    //
    1990 - E30 - 318i Cabriolet Brilliantrot
    /// 1988 - E30 - 320i Touring Diamantschwarz (Sold)
    /// 1990 - E30 - 318IS Coupé Lazurblau

    Check out my Rare BMW Music Edition Cassettes Topic

    Comment

    • tomstin
      E30 Addict
      • Mar 2015
      • 548

      #3
      I've been using Delphi Weather Pack connectors when I've needed to replace connectors. I think we can expect a lot of the cable connectors to start falling apart. There are several brands available at your local auto parts store or on-line.
      2004 525i Manual - 1985 325E Coupe Manual
