    help identify this wire, owner purchased an e30 m3 and s14 seperate

    Hello guys,
    finally got the s14 back into this e30 m3
    hooking up the wiring right now and had this harness out, not sure where it goes. owner of the car bought the car with the engine out already.
    connector

    wire color
    yellow purple/solid brown

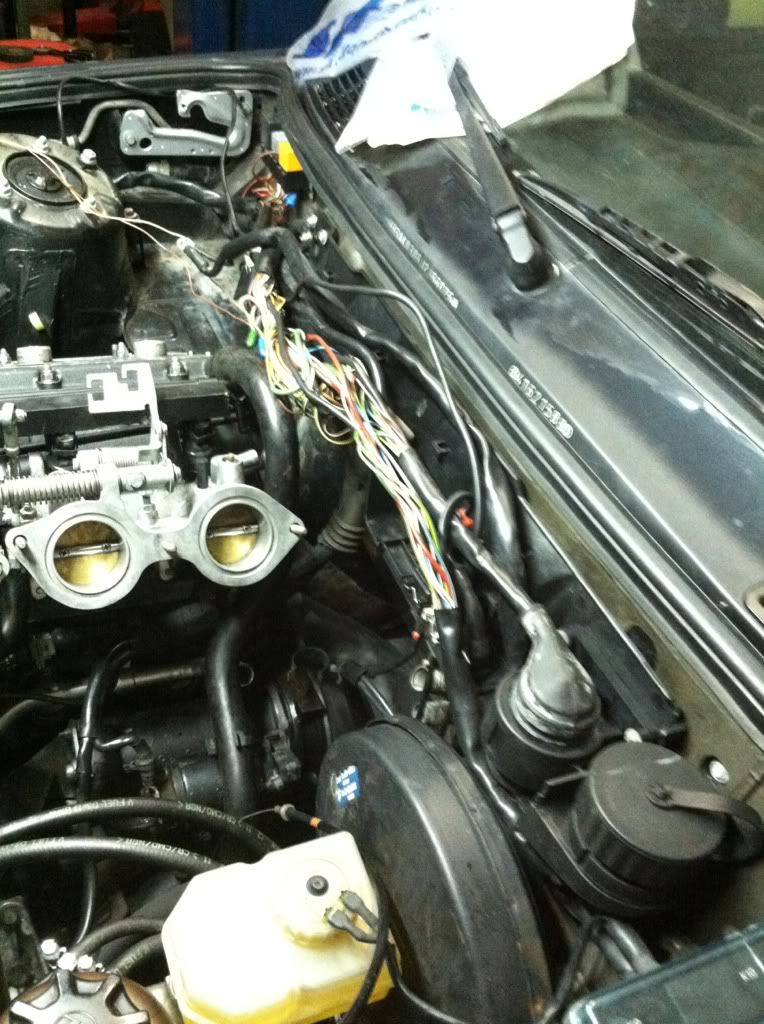

    before


    after


    since s14.net is still i posted here
    Last edited by iwantspeed; 05-10-2012, 12:19 AM.


    -
    Project
    Parts for Sale
    Feedback
    YouTube Channel

    #2
    Almost certain it's for the Evaporative Purge Valve.
    If you have the wiring diagrams downloaded it's
    shown on page 1364-6.

    Comment


      #3
      o2? or it may go on top of the coolant res.

      Comment


        #4
        The connector doesn't look familiar, but the wire colors makes me think it may be for the windshield washer fluid level indicator. Your best bet is to look at the wiring diagram on the side of the car where you think it goes and look for those two wire colors.

        Comment


          #5
          Thanks guys
          O2 sensor is plugged in I have already identified the coolant tank connector. I'll check the purge valve and the windshield washer tank.
          As well as that manual


          -
          Project
          Parts for Sale
          Feedback
          YouTube Channel

          Comment


            #6
            ^^.. is it on the passanger side of the engine,and is it a chassis connection? maybe AC related!
            NASA
            BMWCCA member
            PCA member 25yrs




            1991 318IS slick top
            1997 M3 sedan
            2001 325CI DD

            “whoever turns the wheel the least, wins"

            Comment


              #7
              I received the engine harness in a box and the engine was seperate
              The tape on the wiring loom had been partially removed so it's hard to to say it if went towards the driver side or passenger side.

              Yes It might be ac related
              Last edited by iwantspeed; 05-10-2012, 09:54 AM.


              -
