    #16
    Originally posted by Aptyp View Post
    Just to reinforce it:

    YOU MAY HAVE MADE A MISTAKE

    e30 insert is 17" long, while e36 incased insert is only 16". If you consider the way both mount, e36 strut still sits lower than the e30 one for a little extra shock travel.
    I just went and took a picture of an e30 strut next to an e36 strut, and posted it in the gallery thats in my sig.
    Last edited by Hellabad; 01-12-2011, 11:30 AM.
    Here is my photo gallery answering common questions about Ground Control Suspension, and e30 suspension problems in general.
    Ground Control Gallery

    The Ground Control facebook page: Dragged, kicking and screaming into social media to see what happens next.
    Ground Control facebook page

    Comment


      #17
      yes, you took a pic of the e36 housing... now take it apart. Take both inserts out and snap a pic.

      Also, and I'm sorry if you're not shamelessly plugging your product, but I don't know where your special efforts to correct geometry are. I aligned my front within specs and posted results for a reason.
      Last edited by Aptyp; 01-12-2011, 08:48 PM.
      sigpic
      E30 Chapter of BMW Car Club of America
      E30 Oktoberfest 2017

      Comment


        #18
        Another note to add, for $400 you do not get struts... So you'd have to modify e36 housing you got. So if you DO have e36m housings, you may as well get the e30 kit, because you won't need to mix and match sets. That's what I ran for 5 months without any issues.

        GC setup is amazing, but it's not that amazing at $400. You'll have to spend $1800-$2000 and piece together a kit then.

        For $400 however, you can't even buy sport billies, so right there, you'll be spending a pretty penny to run e36 GC "conversion" kit. You may as well buy ebay coilover kit. You'll have a ton of fun for a while, til they seize.
        sigpic
        E30 Chapter of BMW Car Club of America
        E30 Oktoberfest 2017

        Comment


          #19
          Originally posted by Aptyp View Post
          yes, you took a pic of the e36 housing... now take it apart. Take both inserts out and snap a pic.

          Also, and I'm sorry if you're not shamelessly plugging your product, but I don't know where your special efforts to correct geometry are. I aligned my front within specs and posted results for a reason.

          But where the bumpstop is, which could vary even inside the shock, is what really matters travel wise. Not to mention a really long housing, even if in theory the bumpstop was way down, would still cause travel issues because of the housings physical hieght..

          Comment


            #20
            I think my latest picture, and others in my gallery are helpful. Almost half of them have nothing to do with our company. (The washer that everybody leaves out but they don't know what to look for, how to tell when your Bilsteins are bottomed out, etc.)

            Originally posted by Aptyp View Post
            yes, you took a pic of the e36 housing...now take it apart.
            Um...all e36 housings are sealed, and cannot be taken apart except by cutting them, (and then you cant measure them anymore).

            Originally posted by Aptyp View Post
            Take both inserts out and snap a pic.
            e36 does not have an insert that can be photographed.

            Originally posted by Aptyp View Post

            Also, and I'm sorry if you're not shamelessly plugging your product,
            If I was, I would have put a picture of the GC parts next to the stock parts.

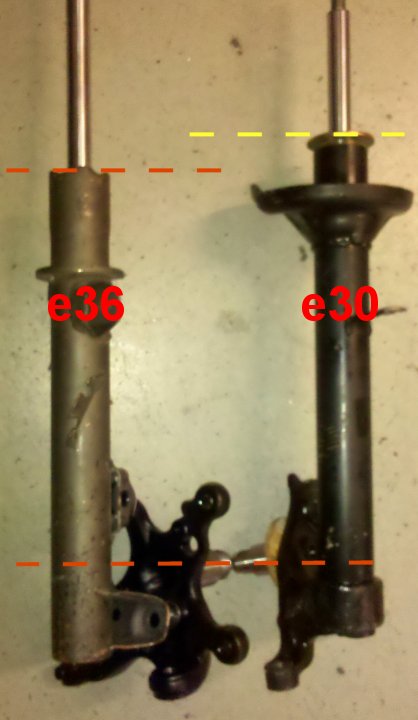

            But instead, I went and assembled a stock e30 strut (see the brand new oem gland nut in the pic?) and a stock e36 M3 strut, and took a picture of them next to each other.

            Originally posted by Aptyp View Post
            but I don't know where your special efforts to correct geometry are.
            Bumpsteer and King Pin Inclination are two of them.

            Originally posted by Aptyp View Post
            I aligned my front within specs and posted results for a reason.
            Thats been very helpful I'm sure, but bumpsteer is not part of a regular old alignment. Recording and correcting bumpsteer is perfected in the worlds of OE suspension design, and race car setup, which is a level above camber caster and toe.

            When you swap the e36 parts on, and then move the bottom forward, the e30 tie rod shifts to different angle. This inarguably promotes bumpsteer. Its actually pretty simple, you just have to pay attention to where (and how far) everything is moving to.

            Respectfully,
            Jay
            Attached Files
            Last edited by Hellabad; 01-13-2011, 03:34 PM.
            Here is my photo gallery answering common questions about Ground Control Suspension, and e30 suspension problems in general.
            Ground Control Gallery

            The Ground Control facebook page: Dragged, kicking and screaming into social media to see what happens next.
            Ground Control facebook page

            Comment


              #21
              Jay, can you get away with moving the rack forward to the other holes in the subframe or is it not that simple? (That's probably a stupid question that could be answered if I had a tape measure handy...)
              '89 325is S50 Track Montser
              '04 X5 Daily/Tow Vehicle

              http://www.avarestoration.com

              http://www.myspace.com/brendanfiddle


              Click here if you want to be my zombie slave...

              http://www.youtube.com/user/Fidhle007

              Comment


                #22
                Originally posted by Fidhle007 View Post
                Jay, can you get away with moving the rack forward to the other holes in the subframe or is it not that simple? (That's probably a stupid question that could be answered if I had a tape measure handy...)
                Actually you are better off not too.

                This would be in the "ackerman" chapter of Carroll Smiths second (?not sure) book.

                Only from memory, but the reason why is in there, not sure exactly which of his books, but the chapter is about ackerman in a Formula Atlantic car.
                Here is my photo gallery answering common questions about Ground Control Suspension, and e30 suspension problems in general.
                Ground Control Gallery

                The Ground Control facebook page: Dragged, kicking and screaming into social media to see what happens next.
                Ground Control facebook page

                Comment


                  #23
                  Originally posted by Hellabad View Post
                  Um...all e36 housings are sealed, and cannot be taken apart except by cutting them, (and then you cant measure them anymore).

                  e36 does not have an insert that can be photographed.
                  I cut off the top ring of the e36 strut housing. The squeezed part holds a spacer and a seal to hold the pressurized assembly in. Then I pull out the shock/strut-like insert out. That measures to be one inch shorter, than e30 insert.

                  I make a spacer for a short Bilstein and weld on the threaded part. This way I run e30 Springs on e36 spring perch, drops front end about 15mm.


                  Bumpsteer and King Pin Inclination are two of them.

                  Thats been very helpful I'm sure, but bumpsteer is not part of a regular old alignment. Recording and correcting bumpsteer is perfected in the worlds of OE suspension design, and race car setup, which is a level above camber caster and toe.

                  When you swap the e36 parts on, and then move the bottom forward, the e30 tie rod shifts to different angle. This inarguably promotes bumpsteer. Its actually pretty simple, you just have to pay attention to where (and how far) everything is moving to.
                  I am running e36 rack and e36 tie-rods. I ran e30 tie-rods for a while, but had a slight bumpsteer problem, and tie-rods were screwed in almost to the max to align. Now, it's not half as bad. Feels about the same as any other lowered e30.

                  When will someone make tie-rods to combat this issue? I was thinking of fabricating some brackets that would move the tie-rod back to original locations. What do you have cooking?


                  Respectfully,
                  Jay
                  and this is why I buy GC parts, when doing coilovers. You're so damn professional.
