Hot damn I'm done.
Attached Files
-
-

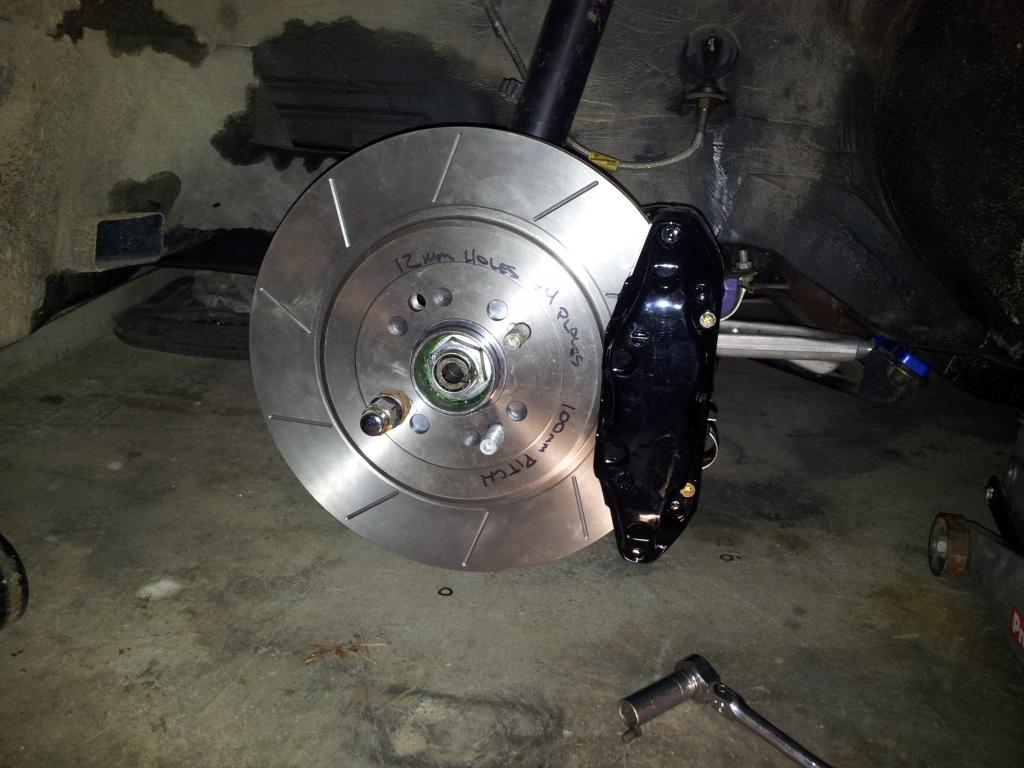

BBK done
Done!
Test drive this spring!
304mm rotors from 02 and newer MG TF coupe. Shipped from the U.K. "mintbitz" on Ebay is best.
24mm thick
4 piston aluminum Mitsubishi 3000gt VR4 1995 to 1999 or Dodge stealth R/T TT 1994 to1996.
Caliper bracket is from the RX7 caliper bracket guy, (thanks bro if your on here i cant give you the secret) slightly modified.
19mm master with massive booster delete.
550 bucks start to finish using New rotors, reman calipers and new master, and machine work. Your final cost may vary.

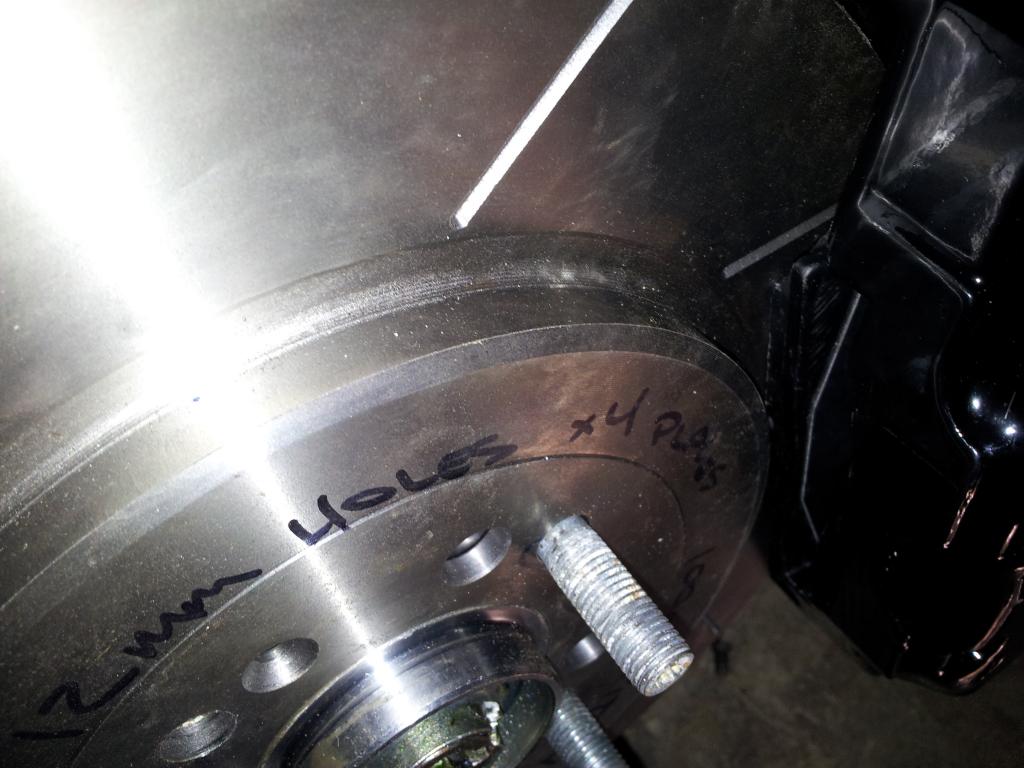

Hub bore was opened up to E30 diameter.pattern redrilled to 4x100.Attached Files -
-

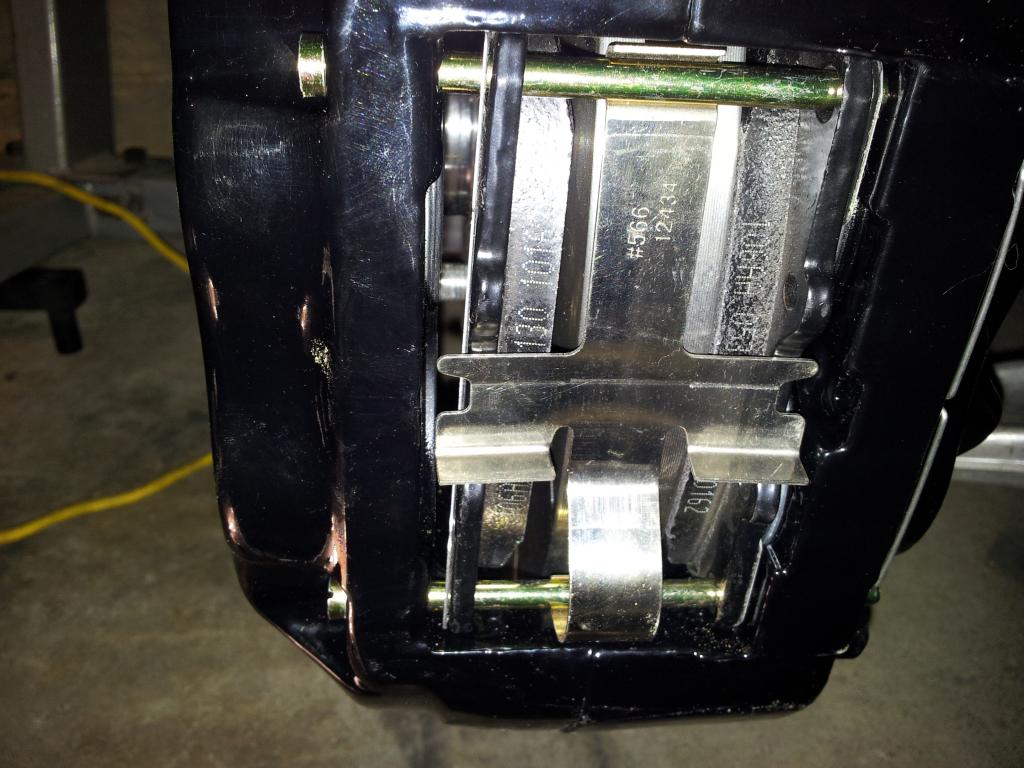

before shimming....dont freak outAttached FilesComment
-
-

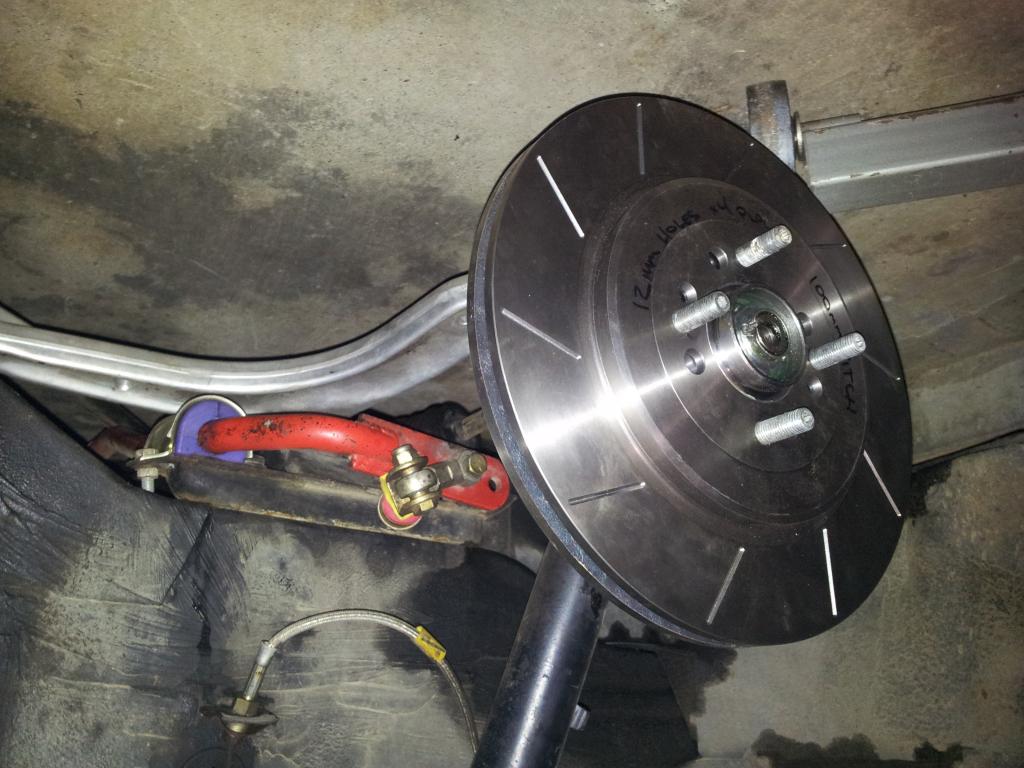

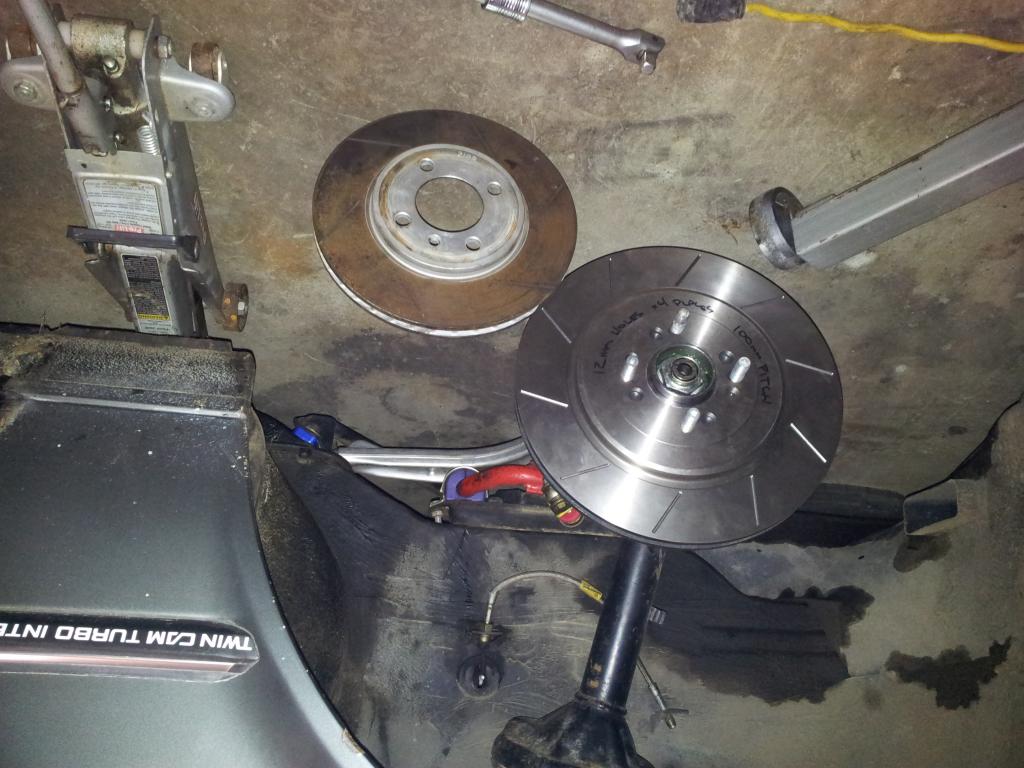

moarAttached FilesComment
-
-

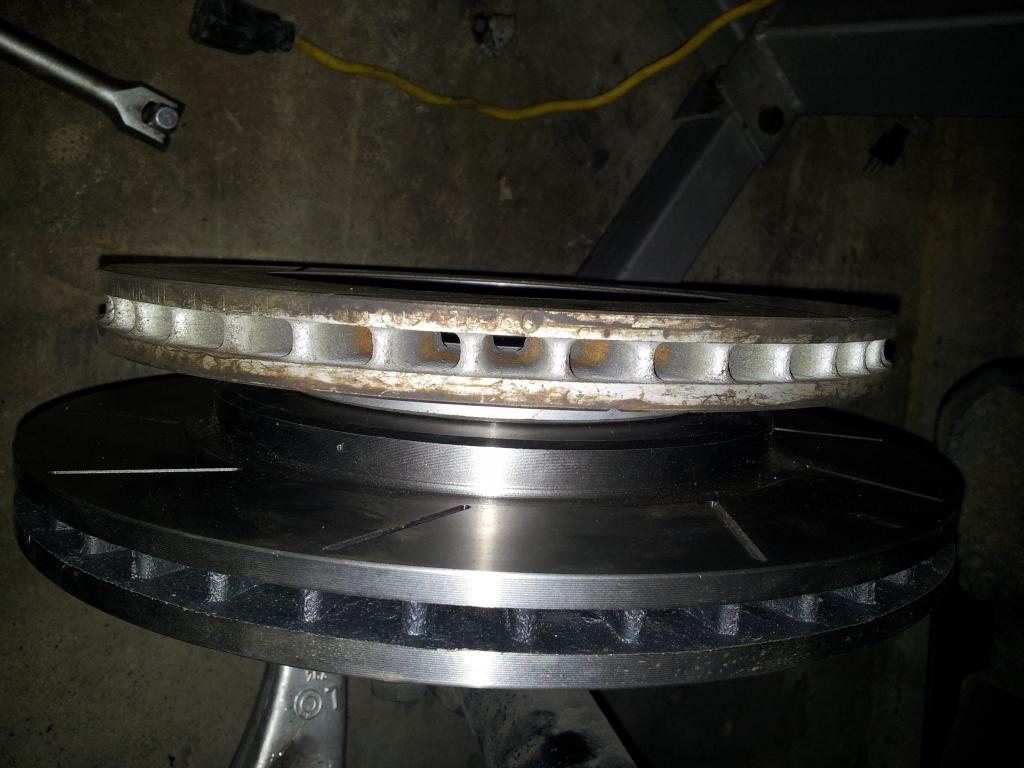

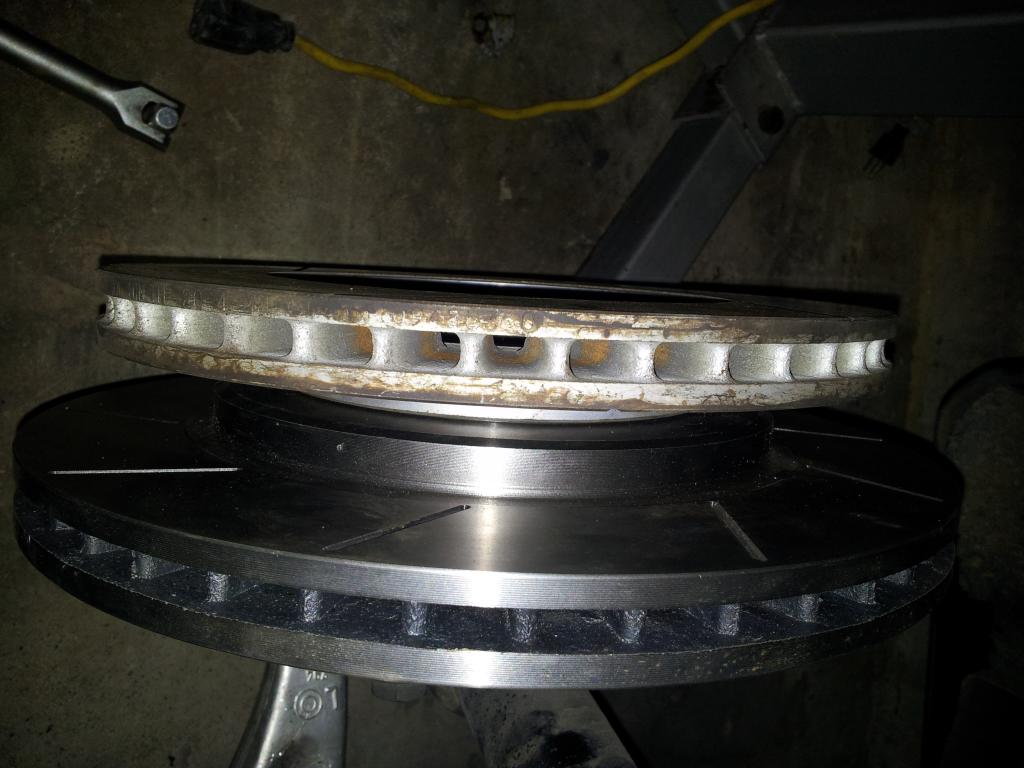

thicknessAttached FilesComment
-
-
Are you selling these or just a 1off deal?
What rotors are you using?
Do you think it will work with the rx-7 calipers and new rotors?seien Sie größer, als Sie erscheinen
Your signature picture has been removed since it contained the Photobucket "upgrade your account" image.Comment
-
No immediate plans to duplicate it for the masses.
But if that changes i will let you guys know.
BrianComment
-
A job well done sir! I'm looking at BBK's and the $$ on yours from start to finish can't be beat.Comment
-
Thanks fella. custom rear bbk is next.
i have a start already. it will be all over the counter stuff.Comment
-
Well if you are willing to sell or reproduce the bracket, lmk.
What rotor are you using? I can redrill the lug pattern myself. That is if you are willing to share that info.seien Sie größer, als Sie erscheinen
Your signature picture has been removed since it contained the Photobucket "upgrade your account" image.Comment
-
Which 3000 gto calipers are they. The short or tall versions? and info on the disc would be great too (mg or mini or?)
with regards to shimming are you going to make a plate for the back of the pads or something?Last edited by kameleon; 04-01-2012, 07:02 PM.Comment
-
that babys foot is deformed in your sig, probably buckled under the weight"I wanna see da boat movie"
"I got a tree on my house"Comment
-
That is not a baby, that is a 12 year oldOriginally posted by Thizzelle View Post
August R3VLimited Special: E3012 "V3" box: $225 shipped
Tutorials: Killer $500 Stereo | E30 Vert Dual 8'' Box Installation | E3010 Amp Rack Installation | Radio Wiring and Amp BypassComment
-
I've got it sorted as far as small details. If your thinkin of doin this swap p.m me and i can provide details or read first post.Last edited by E30RedtopSR; 04-20-2012, 11:48 AM.Comment
-
