    Hey IsItElectric?...my GC plates

    SpecE30 looks beefier...

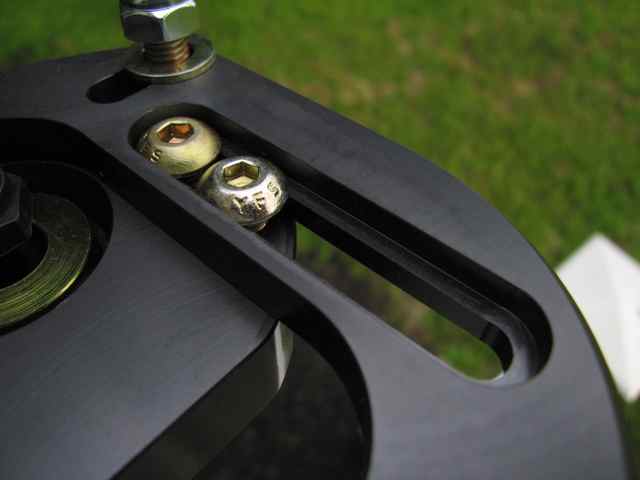

    Click image for larger version

Name:	GC_plate2.jpg
Views:	1
Size:	16.2 KB
ID:	7212807
    Last edited by bmwpower; 07-11-2009, 03:34 PM.
    89 325is track project / 05 x5 / 99 M3
    E30 stuff for sale | Parts I'm looking for

    #2
    Um, aren't these the same plates that Ground Control didn't post pictures of so that competitors could not copy the design??


    Description:
    Detailed pictures of the GC Spec-e30 camber/caster plates have been removed from our website to protect the unique features of our design, which allows maximum performance within the rules.
    I'm pretty sure that Jay and others at GC would appreciate you taking these down.

    Comment


      #3
      You mean the ones they can buy themselves? I'll take down the one not required.
      89 325is track project / 05 x5 / 99 M3
      E30 stuff for sale | Parts I'm looking for

      Comment


        #4
        Originally posted by bmwpower View Post
        SpecE30 looks beefier...

        [ATTACH]20859[/ATTACH]
        Eric,

        It depends. My camber plate LOOKS exactly like yours...but from a picture I cannot tell what the dimensions are.

        I took my dimensions. All dimensions I'm referencing refer to the top plate only....and do not refer to the plate holding the spherical bearing.

        Overall thickness = 0.28"
        Distance from top of plate to top surface of slot = 0.19"
        Therefore, the thickness of the aluminum holding onto the bolts shown in your picture is only 0.09". That's not much.

        Since mine are already buckling, I am just going to redesign them and have them built out of steel, then yellow zinc chromate plate them. They will be many times stronger....but only testing will tell.

        Are your aluminum also?
        John
        1990 BMW 325i

        Comment


          #5
          Oh, and the width of the slot on my camber plate is 0.56".

          Yours?
          John
          1990 BMW 325i

          Comment


            #6
            Mine are aluminum. Let me go grab my caliper and take a few measurements.

            One thing I notice is that these bolts do not have a washer under them. Not shown is the picture above is the bolts on the other side have washers under them. Seems like having a decent washer under the bolts would help reduce the galling.
            Last edited by bmwpower; 07-11-2009, 08:18 PM.
            89 325is track project / 05 x5 / 99 M3
            E30 stuff for sale | Parts I'm looking for

            Comment


              #7
              Overall thickness = 0.365"
              Distance from top of plate to top surface of slot = 0.180"

              Thickness under bolts = 0.185"
              Slot width is same as yours.

              Twice as thick as yours.
              89 325is track project / 05 x5 / 99 M3
              E30 stuff for sale | Parts I'm looking for

              Comment


                #8
                Interesting. I will be filing a complaint of some sort with Ground Control.

                Thanks for the comparison dimensions!
                John
                1990 BMW 325i

                Comment


                  #9
                  Originally posted by IsItElectric? View Post
                  Interesting. I will be filing a complaint of some sort with Ground Control.

                  Thanks for the comparison dimensions!
                  At the very least, they should give you new top plates. I think that is reasonable.
                  89 325is track project / 05 x5 / 99 M3
                  E30 stuff for sale | Parts I'm looking for

                  Comment


                    #10
                    Originally posted by rwh11385 View Post
                    Um, aren't these the same plates that Ground Control didn't post pictures of so that competitors could not copy the design??




                    I'm pretty sure that Jay and others at GC would appreciate you taking these down.

                    I don't care anymore. the cats out of the bag now, but I appreciate the thought.

                    The best we can do is to hope to slow down the guys copying our stuff, and we really slowed it down when we figured out which "shop" was buying our parts and forwarding them to the copycats.

                    Jay from GC
                    Here is my photo gallery answering common questions about Ground Control Suspension, and e30 suspension problems in general.
                    Ground Control Gallery

                    The Ground Control facebook page: Dragged, kicking and screaming into social media to see what happens next.
                    Ground Control facebook page

                    Comment


                      #11
                      Originally posted by IsItElectric? View Post
                      Interesting. I will be filing a complaint of some sort with Ground Control.

                      Thanks for the comparison dimensions!
                      My name is Jay from Ground Control. The number one reason for plates "bending or buckling" is bottomed out Bilsteins. I am guessing you have Bilsteins, and probably your sheetmetal is bent to.

                      Those plates are 7075 T6, but GC also has 4130 steel rally plates. All of our stuff is guaranteed, but there is a little bit of responsibility (for everyone) to be sure your car isnt beating the hell out of the strut towers.

                      Call and ask for Mark about warranty, but I am concerned that even with the steel plates, you will just be bending your strut towers until you fix whatever is causing the problem in the first place.

                      Also check for coilbind, but I really think you are riding on the bumpstops, its pretty common.

                      Jay from GC
                      Last edited by Hellabad; 07-13-2009, 08:11 AM.
                      Here is my photo gallery answering common questions about Ground Control Suspension, and e30 suspension problems in general.
                      Ground Control Gallery

                      The Ground Control facebook page: Dragged, kicking and screaming into social media to see what happens next.
                      Ground Control facebook page

                      Comment


                        #12
                        Originally posted by bmwpower View Post
                        Seems like having a decent washer under the bolts would help reduce the galling.
                        We couldnt do that, the assembly got too tall. The button heads actually have a nice surface underneath, the regular allens don't.

                        Jay from GC
                        Here is my photo gallery answering common questions about Ground Control Suspension, and e30 suspension problems in general.
                        Ground Control Gallery

                        The Ground Control facebook page: Dragged, kicking and screaming into social media to see what happens next.
                        Ground Control facebook page

                        Comment


                          #13
                          Originally posted by Hellabad View Post
                          We couldnt do that, the assembly got too tall. The button heads actually have a nice surface underneath, the regular allens don't.

                          Jay from GC
                          How come the other 2 on the other side (not shown) have washers under them? Judging from my picture, it looks like there would be enough room for a washer, no?
                          89 325is track project / 05 x5 / 99 M3
                          E30 stuff for sale | Parts I'm looking for

                          Comment


                            #14
                            Originally posted by bmwpower View Post
                            How come the other 2 on the other side (not shown) have washers under them? Judging from my picture, it looks like there would be enough room for a washer, no?
                            Thats what I meant to explain when I said the regular Allens need a washer underneath, but the buttonheads don't.

                            No there is not quite enough room for a washer because then that part of the plate would be too thin.

                            Jay
                            Here is my photo gallery answering common questions about Ground Control Suspension, and e30 suspension problems in general.
                            Ground Control Gallery

                            The Ground Control facebook page: Dragged, kicking and screaming into social media to see what happens next.
                            Ground Control facebook page

                            Comment


                              #15
                              Originally posted by Hellabad View Post
                              Thats what I meant to explain when I said the regular Allens need a washer underneath, but the buttonheads don't.

                              No there is not quite enough room for a washer because then that part of the plate would be too thin.

                              Jay
                              Dang. Now I wish I had left the other pict up. I could have sworn the style bolts were the same on both sides. Maybe you have a pict?

                              edit.

                              Actually I found one similar. Aren't those bolts the same on both sides?



                              I will get a better pict of mine tonight and see if I can get a measurement. My plates look like they have more thickness than the plates I just posted. Mine are SpecE30 .... if that makes a difference. And judging from John's measurements, the plate thicknesses ARE different. John's plates were all galled up under those bolt heads.
                              Last edited by bmwpower; 07-13-2009, 08:33 AM.
                              89 325is track project / 05 x5 / 99 M3
                              E30 stuff for sale | Parts I'm looking for

                              Comment
