whenever the car is raised the front springs get unseated. is this true for all those running j stock suspension? You need to make sure the springs are seated properly when lowering the car.
-
Are you running the turner valved bilsteins? They're a phyiscally shorter shock than the Bilstein sports from what I've notice, so with those torqued in, I'm not getting any shift with the front springs.Originally posted by bmws50b30
-CharlieSwing wild, brake later, don't apologize.
'89 324d, '76 02, '98 318ti, '03 Z4, '07 MCS, '07 F800s - Bonafide BMW elitist prick.FYYFF -
yes i'm running the revalved turner bilsteins. also the rear springs are almost binding in the middle when the car is at rest. besides those the ride is great and no problems at all.Originally posted by CharlieComment
-
I don't run j stocks but my springs have to be positionedOriginally posted by bmws50b30
before lowering the car back down, they are fine after you put
load back on them, normal for short springs.
Comment
-
-

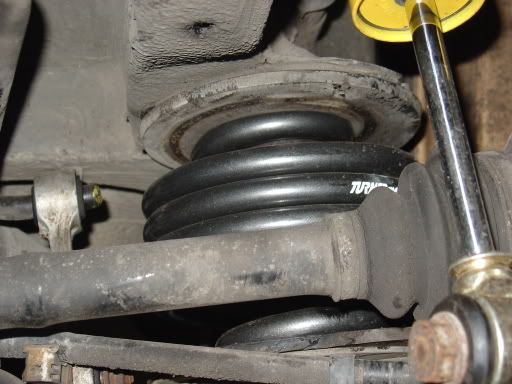

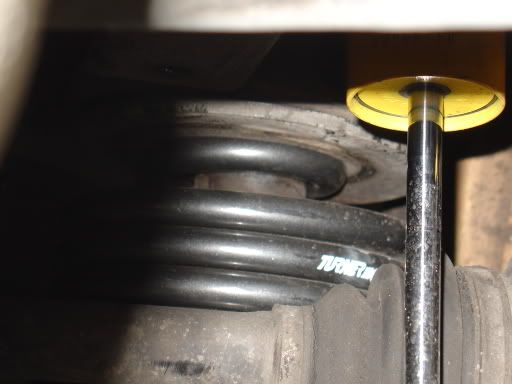

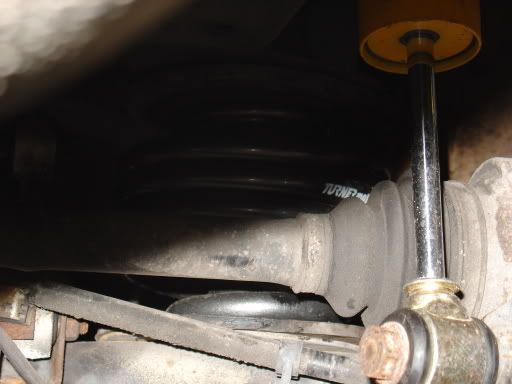

Those look coil bound? That can't be good.Comment
-
My IE3's look the same in the rear. I hear that they are designed to work this way...with the ends (top and bottom) of the spring compressing into the "barrel", giving it limited travel.
Although it seems to work, I am unimpressed by the design. In my world, coil bind can never be a good thing.
IE3's *were* the only spring that I have seen bind up like that. I guess J-stocks (and possibly H&R race) also bind.
Ed1988 E30/S50...now with S52; Track
1994 Miata R; ES Solo2
1998 Lexus LX470; Wife (Slee'd anyway)
2002 BMW 530i; A+ Commuter
2002 BMW 325iT; Sport/Premium 5-speed
2011 21' EconoTrailerComment
-
thats normal for jstocks. mine are exactly alike and operate fine.Comment
-
that's comforting to know.Originally posted by blunt
i called turner yesterday and talked to drew. he said it shouldn't be and asked me to send pics. let's see what they say.Comment
-
this is the response I got from Turner and they are normal.
100% normal, George.
These are called "Dead Coils" and are there only to take up space so the springs do not come out when the suspension is unloaded.
From H&R's website (www.hrsprings.com):
Dead or Inactive Coils: Coils, which are in contact with adjacent coils at loaded height. Inactive coils do nothing but give the spring enough free length to stay tight in the spring perches at full rebound.
-Doug
<>-<>-<>-<>-<>-<>-<>-<>-<>-<>-<>-<>
Comment
-
Thats good to know as mine are looking the same way.
yea, yea shitting pics, need a new camera, wanna donate?Comment
