Hey Guys,

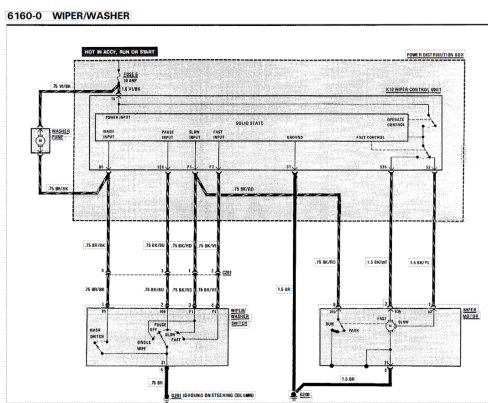

In turbo prep I ended up soldering in a long wire extension and installed a 325ix reservoir. That got removed for a smaller amazon job because I needed room for my new coilpack. I used high heat tape and a loom to make it clean and it took me quite a few hours to do this in a way that looked OEM. I do not want to undo all of that work when my question can be answered at a glance. There are two wires which connect to the windshield washer reservoir pump:
VIOLET/BLACK (VI/BK) +, and BROWN/BLACK (BR/BK) -. The two connectors are sized differently, one is larger than the other.
Could anyone please confirm that VI/BK is the wire which attaches to the smaller connector?

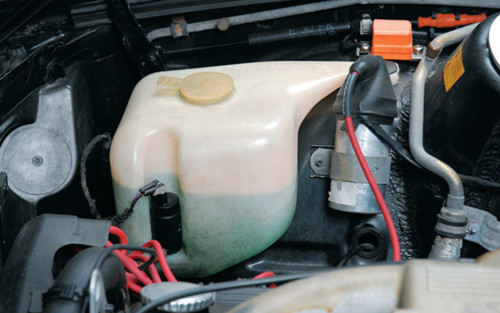

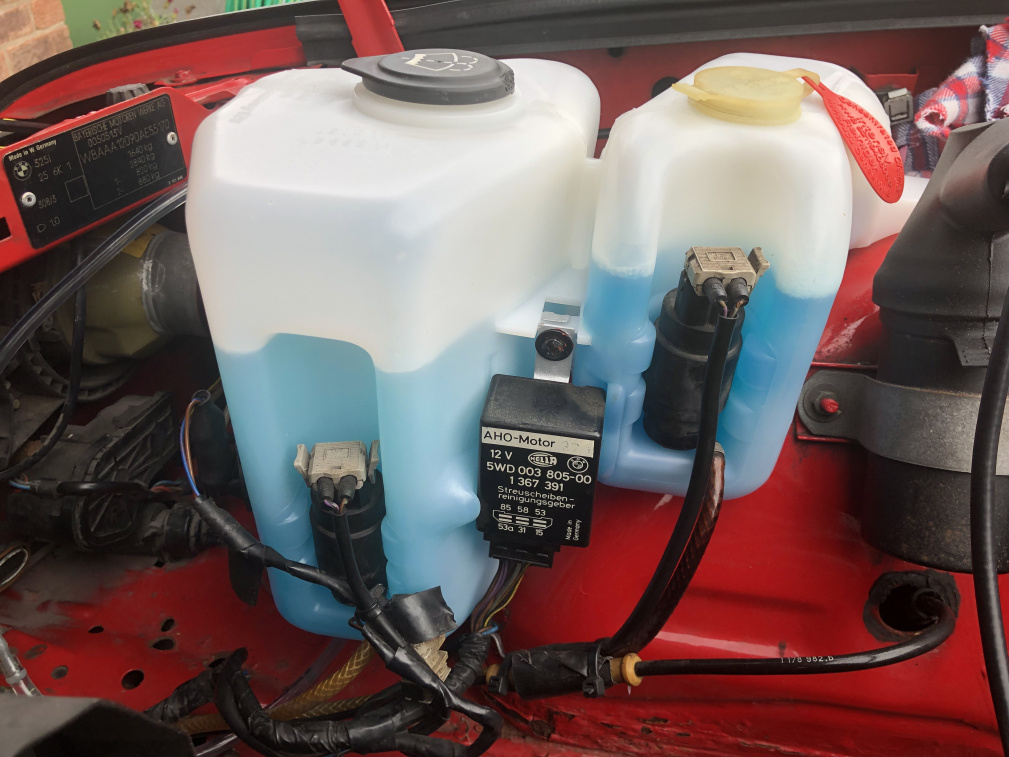

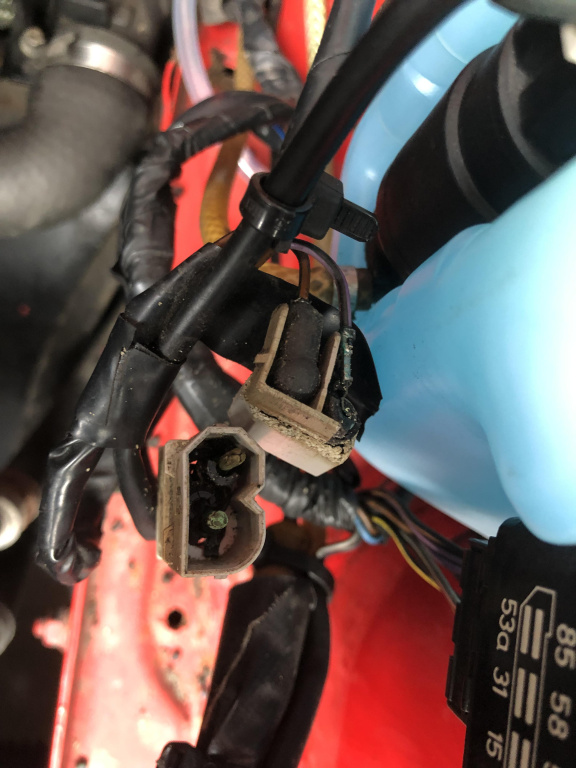

I did find one picture which confirms this online, but it was connected to a gigantic reservoir with two pumps on it. *edit - might be one of those euro 325i with the buttons on the dash one for front, one for rear window. Eitherway, vi/bk and br/bk are there. It **appears VI/BK is the smaller connector, but it's busted so I can't tell for sure.
In turbo prep I ended up soldering in a long wire extension and installed a 325ix reservoir. That got removed for a smaller amazon job because I needed room for my new coilpack. I used high heat tape and a loom to make it clean and it took me quite a few hours to do this in a way that looked OEM. I do not want to undo all of that work when my question can be answered at a glance. There are two wires which connect to the windshield washer reservoir pump:
VIOLET/BLACK (VI/BK) +, and BROWN/BLACK (BR/BK) -. The two connectors are sized differently, one is larger than the other.
Could anyone please confirm that VI/BK is the wire which attaches to the smaller connector?
I did find one picture which confirms this online, but it was connected to a gigantic reservoir with two pumps on it. *edit - might be one of those euro 325i with the buttons on the dash one for front, one for rear window. Eitherway, vi/bk and br/bk are there. It **appears VI/BK is the smaller connector, but it's busted so I can't tell for sure.
