    Map light wiring

    Hello all.

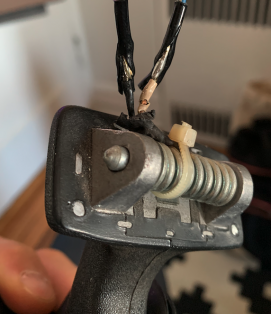

    I am looking to install the map light rear view mirror upgrade but wanted to make sure my wiring is correct. Can anyone verify the white and black wires connected to the mirror. Thanks in advance.
    Attached Files

    #2
    Electrical manuals:
    http://www.wedophones.com/BMWManualsLead.htm

    1989 325i:
    http://www.wedophones.com/Manuals/BM...g%20Manual.pdf

    Sheet 6000-1 indicates Violet/Green is power and Brown is ground, but since it's a regular lightbulb, current flow doesnt matter. You can make your white power and the black ground. You should be able to tap into the check panel power/ground as shown on Sheet 6216-0 & 6216-1 (this is actually where BMW got power, per Sheet 0670-6).
    sigpic
    1987 - 325i Convertible Delphin Auto [SOLD], 325i Convertible Delphin Manual [SOLD]
    1989 - 325i Convertible Bronzit m30b35 swapped [SCRAPPED], 325i Sedan Alpine Auto[DD]
    1991 - 325i Coupe Laguna Manual [Project], 535i Sedan Alpine [SCRAPPED]
