  • Regnar75
    E30 Addict
    • Sep 2011
    • 483

    #61
    A/F meter unfortunately doesn't look too stock and the boost gauge I got with the wide band, eventually I'd like to move to a vdo boost gauge. The wideband is the AEM wideband o2 sensor.

    Comment

    • Regnar75
      E30 Addict
      • Sep 2011
      • 483

      #62
      while waiting for my exhaust to cool off before working on the car I grabbed some supplies at the hardware store and made a catch can. not the greatest but it'll do for now haha

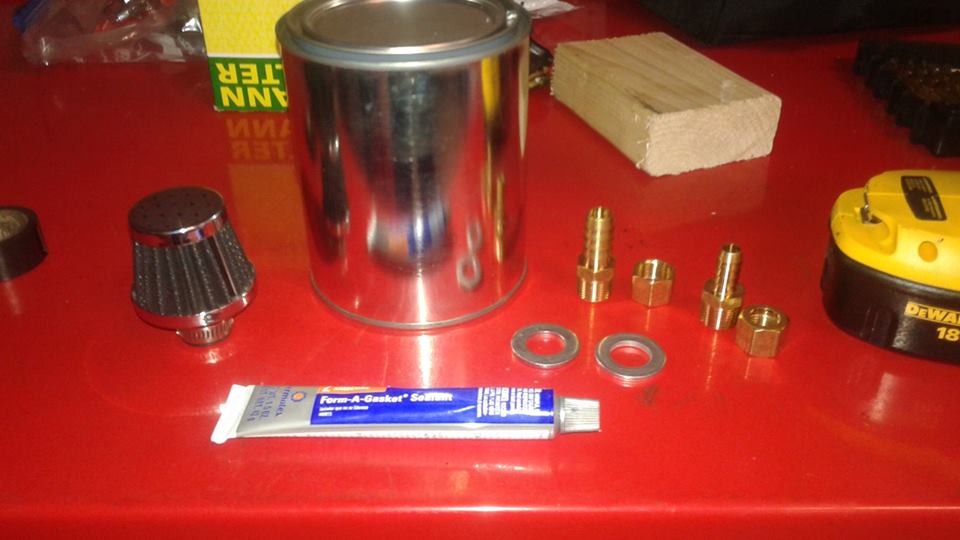

      just a new empty small paint can, two hose barb fittings, two locking nuts with holes for oil to go through, some washers and gasket maker and a cheap breather filter from autozone.
      Click image for larger version

Name:	12540515_10153391315703589_5535023518967913064_n.jpg
Views:	1
Size:	53.6 KB
ID:	7181951

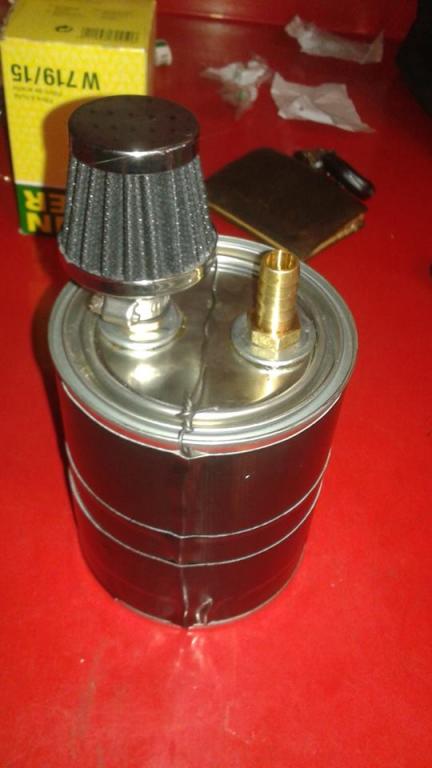

      hammered the lid down and decided to wrap some wire around the top to keep it tight, i figure ill just untwist and empty as needed.
      Click image for larger version

Name:	12592735_10153391315733589_8032257662917041637_n.jpg
Views:	1
Size:	36.1 KB
ID:	7181952

      total cost, around $15-$20 including breather filter, also better than the coca cola catch can I was using :P

      Comment

      • Regnar75
        E30 Addict
        • Sep 2011
        • 483

        #63
        Some updates with Videos:

        So I made a few changes to the car, first up was some ARP head studs. I got these from Ireland Engineering. I was a bit curious about their description which claimed they were not the normal kit from ARP, but were a "superior kit" this was explained to me in an email from Ireland saying they felt the ARP kit's studs were too short and had a different stud length included in their kit. Here it is.
        20160329_190904
        20160401_170751
        ^this is the length difference between stock and the IE ARP kit.

        Notice the little bit of extra threads on top
        20160401_173617

        While I was at it, I painted the valve cover a bit differently and really like the look of it.
        20160401_180532

        I finally got around to putting the "new" driveshaft in. the ujoints are perfect on this one.
        unspecified

        ....Though the old Center support bearing gave me a hard time. even separating the shafts was difficult to say the least. I ended up strapping one half to a telephone pole, and the other to a 1.5 ton come along hooked to my friends pickup and I pulled it apart with the come along.
        20160405_230604

        This was how the car was driving with 10 PSI (all i could build at the time) with the 3.73lsd. sure it felt quick but I was shifting too much and barely in boost.
        VIDEO
        20160327_160551_001

        So I found a 3.25lsd for $100 locally, it had upgraded clutch packs but currently whines, so anyone know how to resolve that? otherwise the ratio is great! It's much smoother, I can build a bit higher boost and I dont have to shift as often, its very quick. Though I still am having a hard time not losing traction in 2nd gear even with the 225/50's on 15x8 tires.
        VIDEO
        20160406_204026_001

        After doing a lot of messing around (hard not to) I did this....
        VIDEO
        VID_100831206_032707
        ....and im pretty sure I left a bunch of ball bearings on the side of the road, because there was only 1 bearing left inside...

        Here is a 100% accurate depiction of what happened.
        VIDEO
        video-1460305001

        So I replaced that side (I have another shaft to do driver side, just haven't gotten around to it yet.)

        and here is how she sits now.
        20160409_142134

        20160409_141924

        20160413_115101

        VIDEO
        VID_125400623_030336

        More updates to come.
        Last edited by Regnar75; 04-13-2016, 09:55 AM.

        Comment

        • KrautnotRice
          E30 Addict
          • Feb 2015
          • 406

          #64
          Looking very good!
          '93 300TE 24V Krautbomber
          '84 528e 5 speed Saphirblau Metallic [R.I.P.]

          I love all BMWs with round headlights!

          Comment

          • Regnar75
            E30 Addict
            • Sep 2011
            • 483

            #65
            thanks, not sure how to put flickr videos on here so it doesn't redirect you

            Comment

            • Cephas
              E30 Modder
              • Apr 2012
              • 878

              #66
              Cool build. Thanks for posting! How much has this all cost you?

              Comment

              • Regnar75
                E30 Addict
                • Sep 2011
                • 483

                #67
                umm with the ARP head studs and including the purchase of the motor...around $1400

                Comment

                • Regnar75
                  E30 Addict
                  • Sep 2011
                  • 483

                  #68
                  Heat blanket came in..

                  took some temperatures without the heat shield just to see a baseline. do with this information as you will, i drove it for about 30 minutes each time and just opened the hood and took temps after shutdown.

                  Without Heat Shield
                  20160413_153141
                  Turbine ^

                  20160413_153201
                  Compressor ^

                  20160413_153155
                  Valve Cover ^

                  20160413_153150
                  Spark plug Wire Cover ^

                  20160413_153214
                  Coil ^

                  20160413_153227
                  AFM ^

                  20160413_153254
                  Intake Manifold ^

                  20160413_153516
                  Intake Boot ^

                  20160413_153240
                  Hood Above Turbine ^

                  With the shield
                  20160413_155119

                  20160413_164047
                  Turbine ^

                  20160413_164103
                  Compressor ^

                  20160413_164203
                  Valve Cover ^

                  20160413_163819
                  Spark plug wire cover ^ (yea now looking back I realize I missed the wire coverr haha)

                  20160413_164226
                  Coil ^

                  20160413_163518
                  AFM ^

                  20160413_164216
                  Intake Manifold ^

                  20160413_164249
                  Intake Boot ^

                  20160413_163928
                  Hood Above Turbine ^

                  Summary

                  Turbine: W/o-324 W/148
                  Compressor: w/o-142 W/131
                  Spark plug wires: W/o-187 W/157(kinda)
                  Intake boot: W/o-119 W/94
                  Hood: W/o-104 W/99
                  Coil: W/o-145 W/124
                  Valve cover: W/o-161 W/145
                  Intake Manifold: W/o-120 w/114
                  AFM: W/o-104 W/88




                  Also my new setup for air filter.
                  20160413_155133

                  Comment

                  • Good & Tight
                    Forum Sponsor
                    • Apr 2004
                    • 2057

                    #69
                    Wrap the DP, that makes a big difference in temps also
                    Need a Turbo manifold? We have them in stock- Click here---> http://rapidspoolindustries.com/
                    ____________________________
                    E-mail Panayiotisx2@gmail.com
                    Dyno vid http://www.youtube.com/watch?v=C7aM7..._order&list=UL

                    Comment

                    • Regnar75
                      E30 Addict
                      • Sep 2011
                      • 483

                      #70
                      Yea I have the wrap to do it. I'll hopefully do it this weekend.

                      Comment

                      • Panici
                        Moderator
                        • Dec 2009
                        • 2312

                        #71
                        Looks great man!
                        I wasn't aware the stock ECM with a chip could work with boost. Cool stuff.

                        How much boost are you running now? How is the eBay turbo holding up?

                        '87 BMW E30 325is Turbo

                        '99 BMW E36 M3 - - - '98 BMW E36 328i

                        Comment

                        • Regnar75
                          E30 Addict
                          • Sep 2011
                          • 483

                          #72
                          Originally posted by Panici
                          Looks great man!
                          I wasn't aware the stock ECM with a chip could work with boost. Cool stuff.

                          How much boost are you running now? How is the eBay turbo holding up?
                          currently running 10 psi. I don't really have the clutch to really keep up with more than that I dont think (at least not for too long)

                          surprisingly the turbo is holding up well. I think I will keep a log on how it is doing, shaft play, oil leaking, etc and see how long it lasts. I am considering going with a smaller turbo just to try out.

                          Comment

                          • Reubenjd
                            Member
                            • Oct 2013
                            • 58

                            #73
                            Great build, and loved the amount of pictures, I'll be doing the same to my vert later this summer, but using megasquirt. I was thinking of doing my intercooler the same way as you, so the pictures of how you placed it behind the grills are going to be coming in handy. How did you like the fitment of the gauge panel in the vents? I'm thinking of going a similar route,but getting his panel that has slits for air to still vent through.

                            Comment

                            • matias9
                              Member
                              • Aug 2011
                              • 86

                              #74
                              nice videos , it got power!!! , damn that drive shaft :´(, when you got some time and energy you can make a part/component list . i studying the turbo build for mine and im following your project from the beginning and its like what i thinking for my build.

                              Comment

                              • Regnar75
                                E30 Addict
                                • Sep 2011
                                • 483

                                #75
                                Originally posted by Reubenjd
                                Great build, and loved the amount of pictures, I'll be doing the same to my vert later this summer, but using megasquirt. I was thinking of doing my intercooler the same way as you, so the pictures of how you placed it behind the grills are going to be coming in handy. How did you like the fitment of the gauge panel in the vents? I'm thinking of going a similar route,but getting his panel that has slits for air to still vent through.
                                I like the location for the gauges, it looks great and very easy to read. I will need to change the boost gauge to the proper style so it looks better but eh. I closed my vents and dont turn them on (obviously) but im sure that will work alright, its just the gauges are going to cover most of the vents and probably just cause hot air to get trapped under the dash.

                                Originally posted by matias9
                                nice videos , it got power!!! , damn that drive shaft :´(, when you got some time and energy you can make a part/component list . i studying the turbo build for mine and im following your project from the beginning and its like what i thinking for my build.
                                its okay, its been replaced and now that school is over I'll be putting a new clutch in. the 3.25lsd is great but a bit loud, I think a full rear subframe rebuild is needed (bushings) and while its out ill replace the differential pinion bearings.
                                yea I can make a component list sure. I had it up running and driving for pretty cheap but have since started putting more money into it. I'll get a list together.
