    World's First 2JZ with M4 DCT Swapped E30

    Whats up guys. I barely post on here anymore, but figured I could at least showcase what we've been working on for the past few years. I only get a few hours a week MAYBE to work on this car. I run 3 GMC dealership service departments during the week, and a dyno tuning/fabrication shop on the weekends, so my personal projects take the back seat most of the time. I'll try my best to describe the setup and reply to any questions with the limited time I have. Bare with me, this may be a rough post.

    The car started out its life as a stock 87 325is. Ended up making 522whp/500tq out of a stock 2.7 bottom end. Head had Bimmerheads 280/274 cam, and the associated HD valve springs and rockers. Car was fast, but the trans was terrible and felt like it was the biggest drawback. So I decided to go DCT swap. Well, in the midst of doing the DCT swap, I built a forged 2.9L bottom end with expectations of 700whp or more. Ran into some machine shop issues that just couldn't get my head right. Wasted 3 heads in the process due to lack of poor workmanship. So, I had this old stock unopened 2JZGTE VVTi lying around that I had planned on putting in something. Decided to just throw that in there and mate it to my DCT and do something that has not been done yet. Although we have already done a 2JZ E30 swap, and someone has done a DCT swap into an E30, they have never been combined before...and I can see why!

    Engine:
    Stock Bottom End 2JZGTE
    GSC S1 Billet Cams
    GSC Beehive Valve Springs
    GSC Titanium retainers
    Shimless Buckets
    ARP 625+ Headstuds
    ATI Dampener w/ Titan Crank Bolt
    ARP Cam Gear bolt
    Billet tensioner
    Gates Timing Belt
    PHR High Volume oil pump
    Radium 10AN Press Catch Can Fittings
    MS3 Pro EVO
    Radium Fuel Rail with Direct Mount Regulator
    ID1700x Injectors

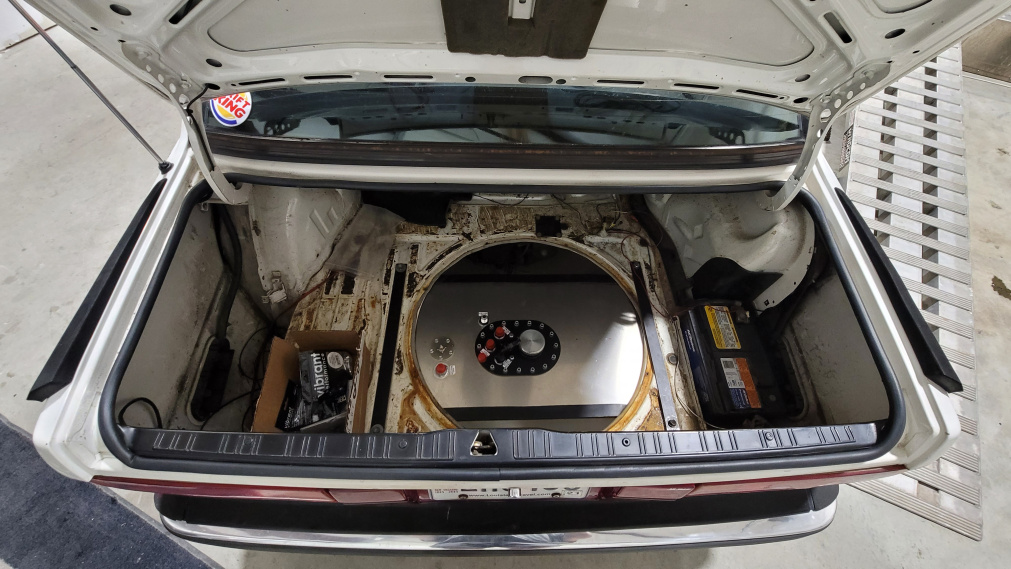

    Twin Walbro 525 Fuel Pumps in an RCI Fuel Cell
    8an feed, 6an return
    Aeromotive filter
    Flex Fuel Sensor
    ​LS Truck Coils
    Drewgo Exhaust Manifold
    Precision 6466 1.0AR
    Precision 46mm Wastegate
    3.5" Downpipe to 3.5" Oval Exhaust
    Custom Catch Can Setup with 10an hoses
    Chase Bays Power Steering Kit
    Griffen Aluminum Dual Pass Radiator
    SPAL Slim line 16" Fan
    Treadstone Intercooler
    5" Intake
    LS1 Throttle Body
    Custom LS Throttle Body Adapter to use on stock intake manifold

    Transmission:
    GS7 DCT from 2017 BMW M4 *Long Ratio*

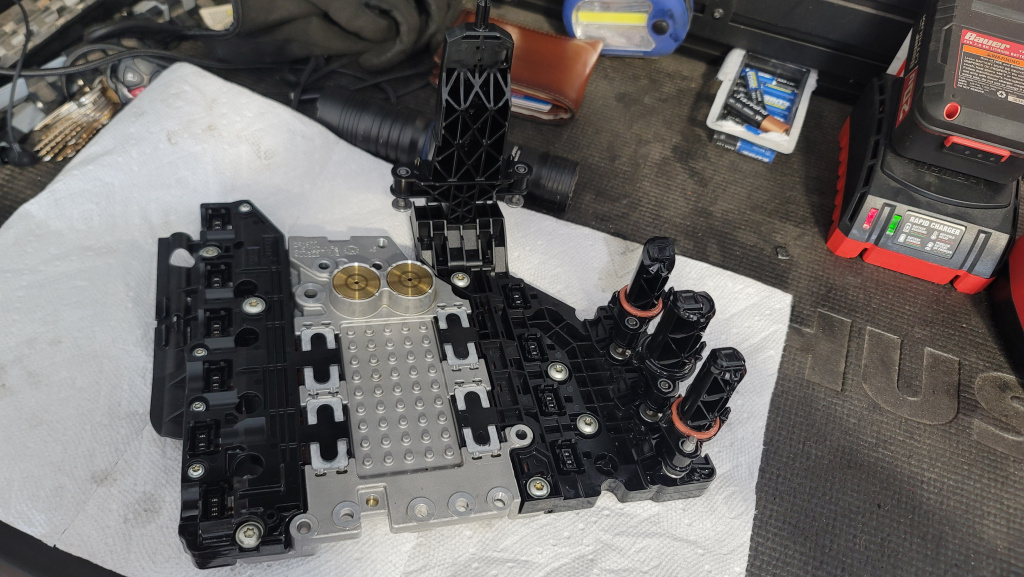

    Modified Mechatronics Unit wiring
    HTG GCU
    3D Printed mount for GCU

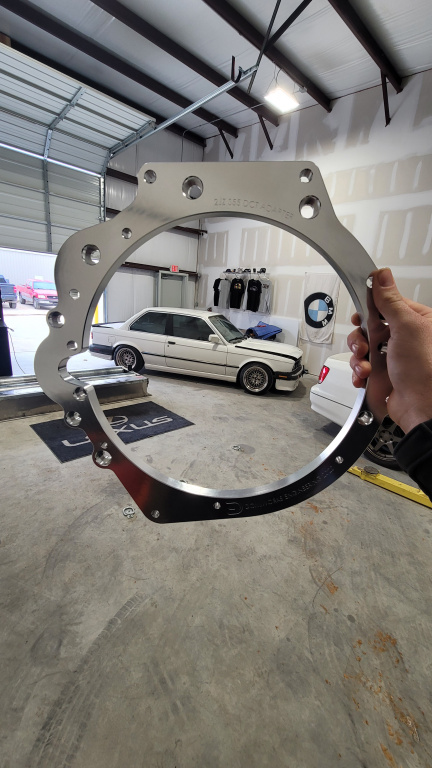

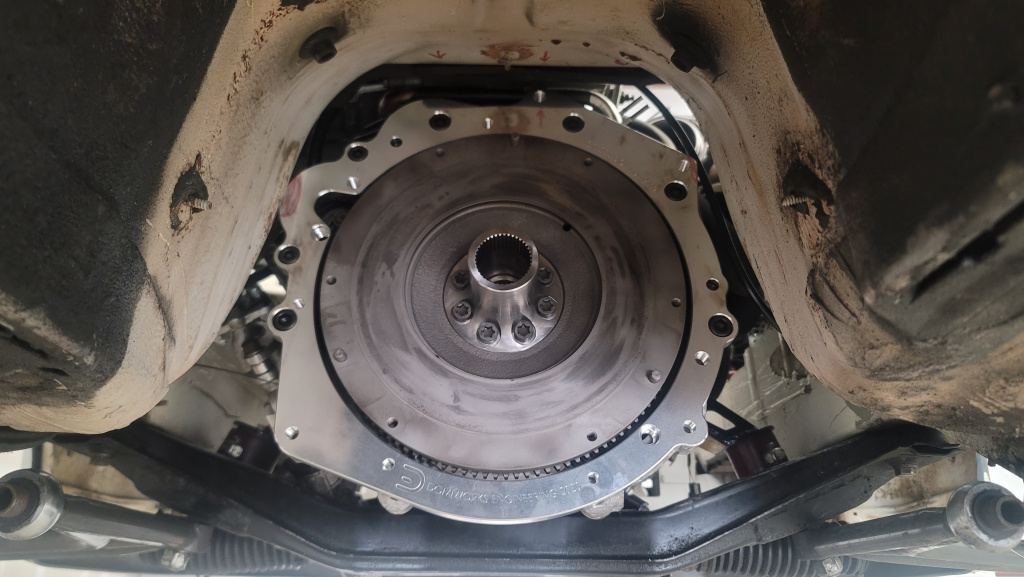

    Domi Works GS7 DCT to 2JZ adapter plate and hub
    Blink Marine CAN Key Pad
    DCT Shifter
    Seems Legit Garage Paddles
    Custom Mount for Paddles to mate to Nardi Wheel
    Custom one piece driveshaft
    Custom Transmission Tunnel
    Seems Legit Garage "mini" billet DCT oil pan
    Seems Legit oil cooler line adapter
    Oil cooler with lines and fan
    Seems Legit Garage Manual DCT Park lock cable
    Shock Travel Sensor for the Clutch Pedal (yes I can still use the clutch!)

    Brakes:
    RX7 Calipers
    Corrado Rotors
    Hawk Pads
    Chase Bays Brake Booster Delete
    Stainless Braided Lines
    Custom Hydro and Rear Willwood dedicated ebrake calipers

    Interior:
    Nardi Wheel
    NRD Prisma Seats
    DCT Shifter and Suede Boot
    Tablet for Cluster for MS Droid
    Blanks for HVAC Panel
    Customer Console Panel
    Fully functioning glove box!
    Red Carpet Swap
    Newly reupholstered rear seats
    Husco
    BOSS bluetooth receiver for stereo
    Pioneer sub and amp combo

    Suspension/Steering:
    BC Coilovers
    SLR Ultra Kit (Plus all the goodies associated with it)
    SLR Camber/Caster Plates, Adjustable Lollipops
    E36 Steering Rack
    Fully reinforced subframes/arms front and rear
    Camber and Toe correctors on rear
    Condor diff and subframe risers Delrin
    Extra Ear mount for Diff

    Exterior:
    Formuling Wind Splitters
    Cow Catcher
    Ellipsods
    Push In Diving Boards
    Ford Taurus Side Skirts (soon to replace with Kamei)
    Kamei or Zender rear wing setup, cant remember
    Zender rear apron? I Think?
    Airpress License plate panel
    Red Tinted Tails
    ESR 16x9 Mesh Wheels (Soon to be 16x9.5 -20et Work VSKF)
    225/45/16 R888R (probably going to 245 soon)


    Here are the youtube videos of the project. Should give a good run down as to what we had to do, and the history of the car.
    It is currently running and driving, im a few videos behind, but were almost completely done, and should be getting it on my dyno here in the next few weeks.

    Part 1
    ​https://youtu.be/vrR6DQQCmDQ

    Part 2


    Part 3


    Part 4


    Part 5


    Part 6


    Part 7


    Part 8


    Part 9


    Part 10


    Part 11


    Part 12


    Part 13


    Part 14


    Part 15

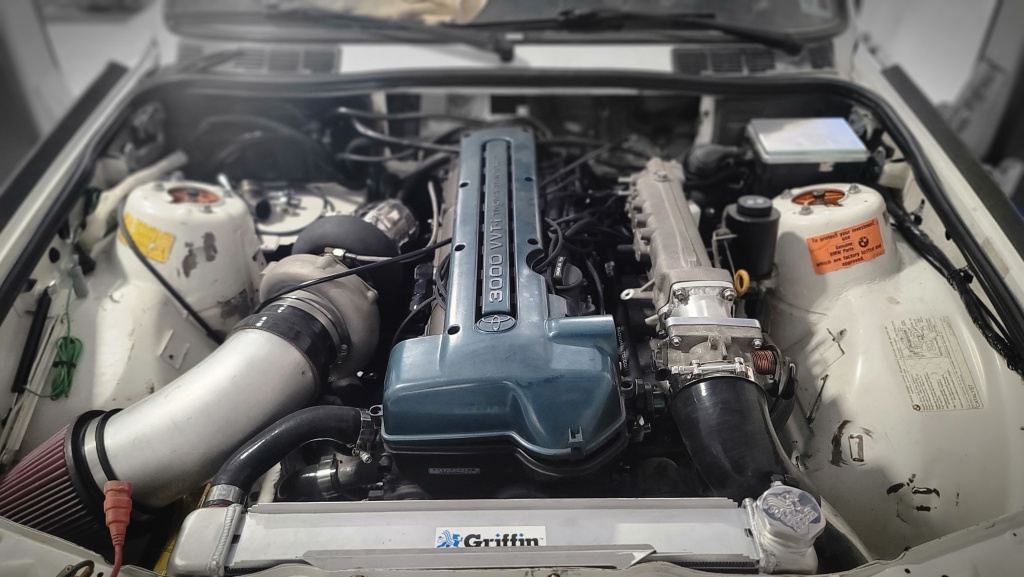

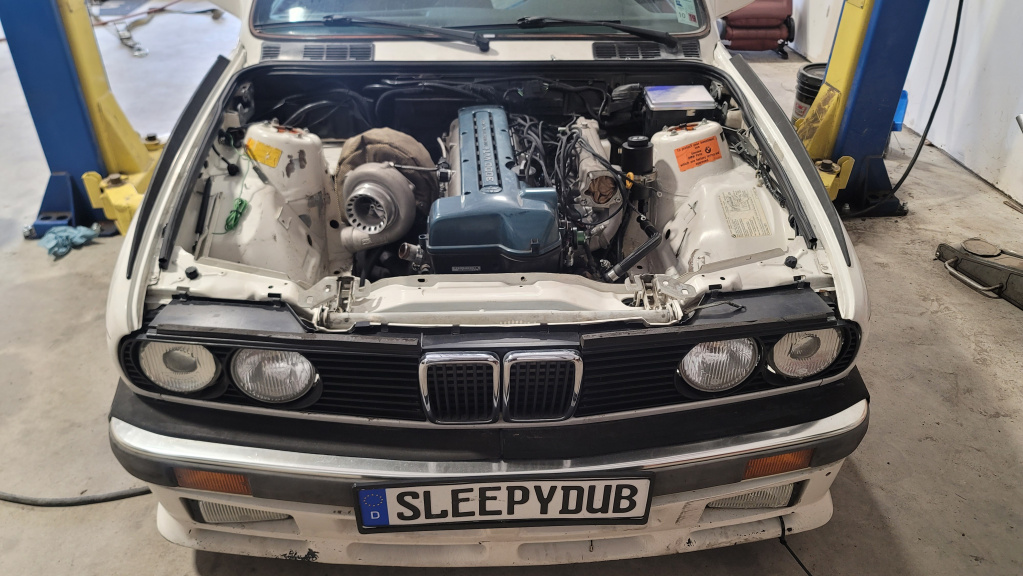

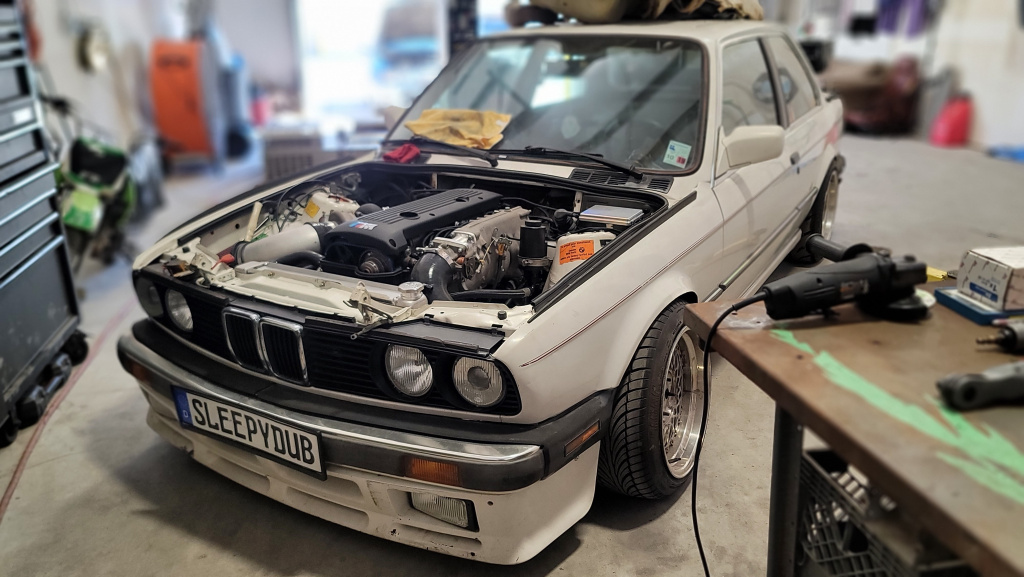

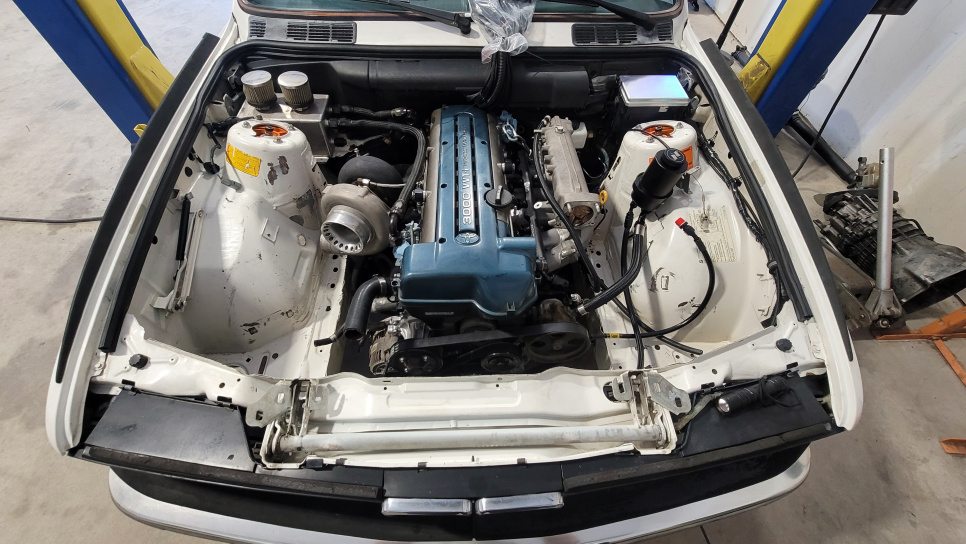

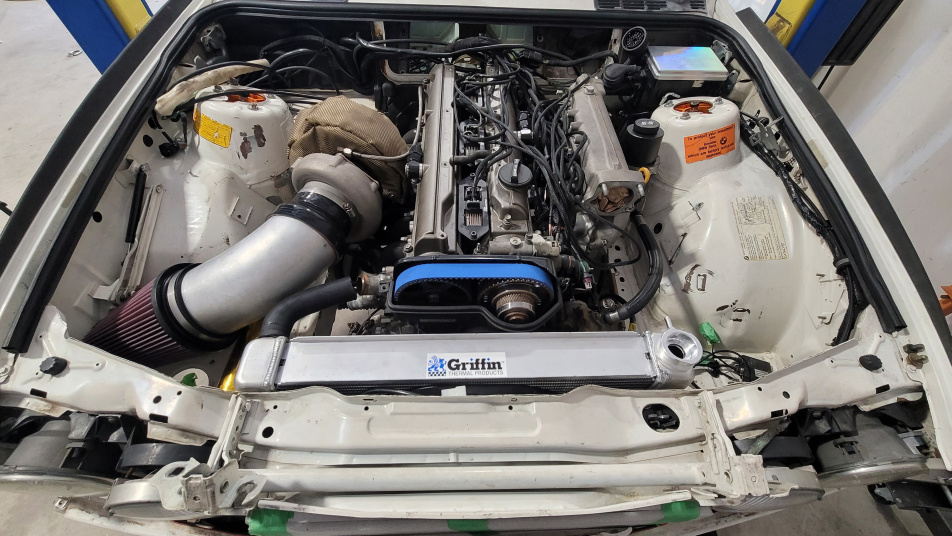

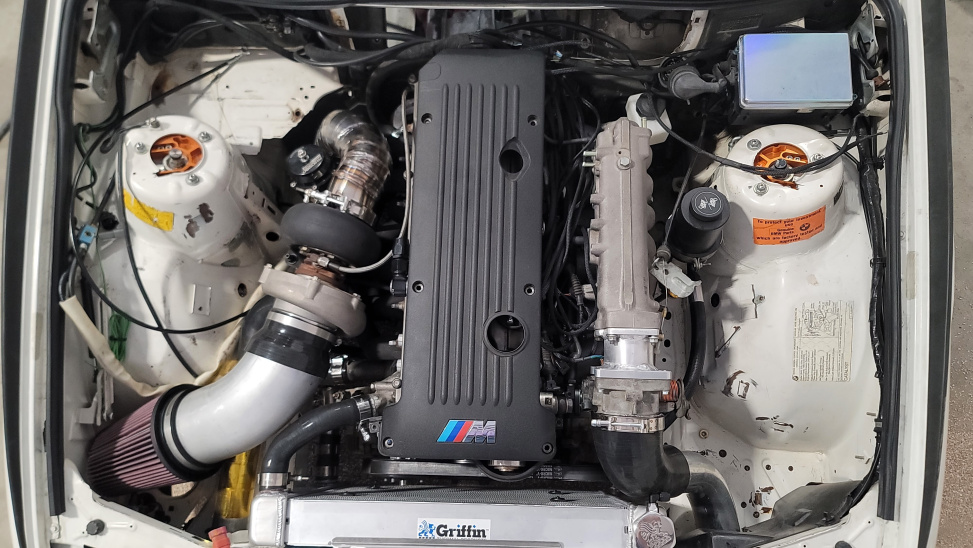

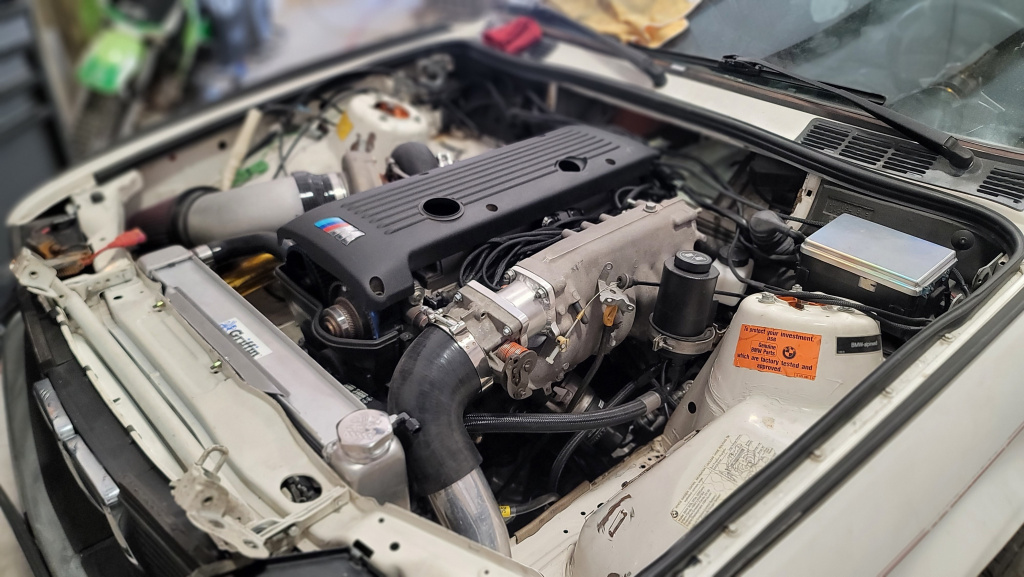

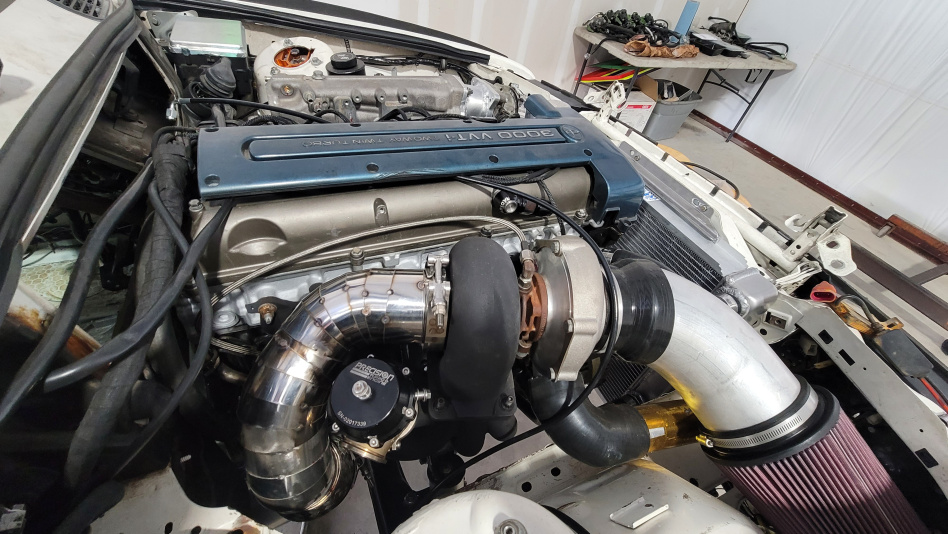

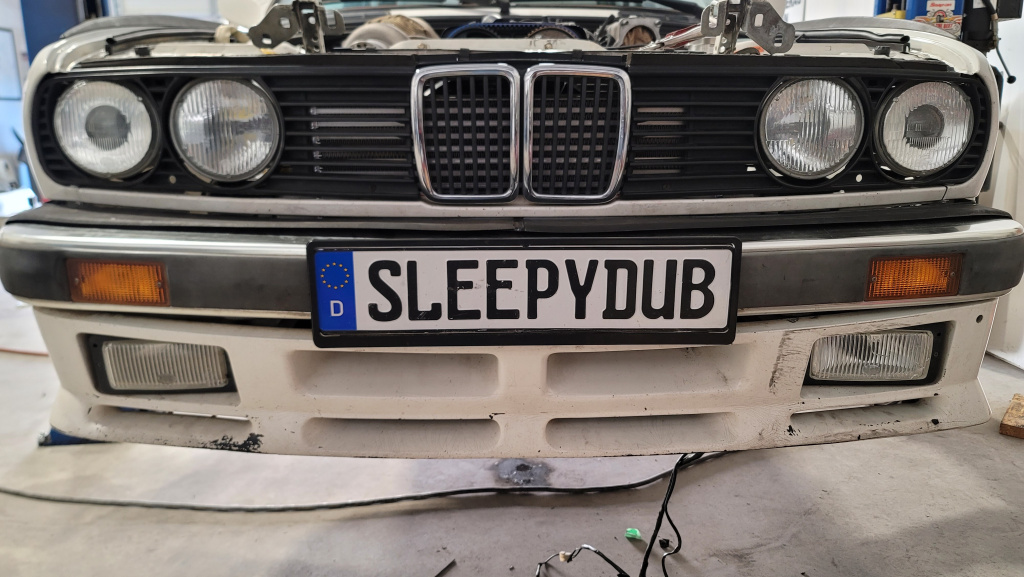

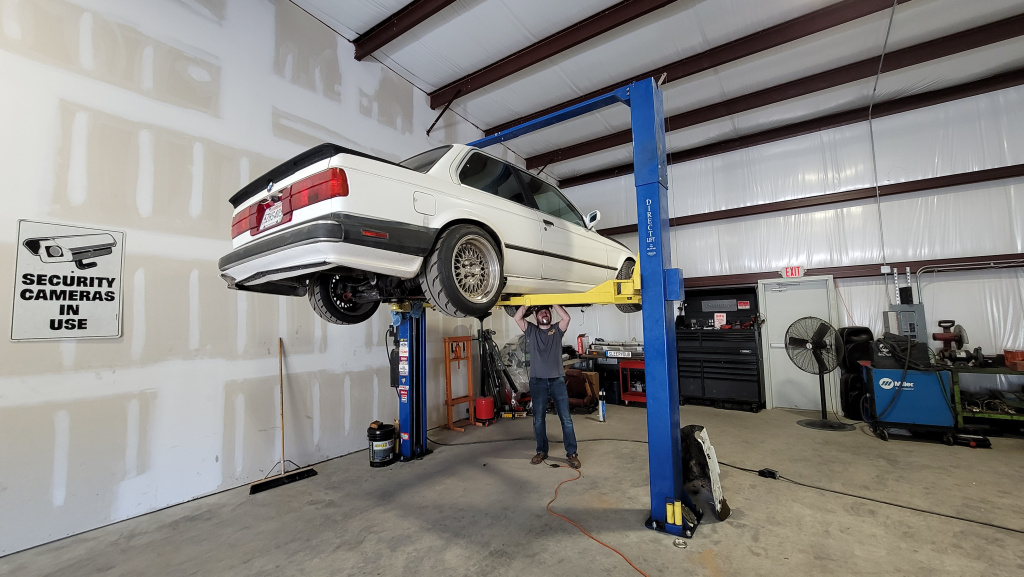

    Some pics of the car
    Click image for larger version  Name:	FOTAC80.jpg Views:	0 Size:	0 ID:	10080134 Click image for larger version  Name:	20191024_134742_resized.jpg Views:	91 Size:	206.5 KB ID:	10080137 Click image for larger version  Name:	IMG_20190527_071126_703.jpg Views:	187 Size:	186.3 KB ID:	10080135 Click image for larger version  Name:	received_10160543500235442_resized.png Views:	93 Size:	144.9 KB ID:	10080136 Click image for larger version  Name:	whitebmw2 (1 of 1).jpg Views:	90 Size:	149.3 KB ID:	10080138
    Last edited by SLEEPYDUB; 03-31-2023, 08:43 AM.
    - AXIS POWERS - 2JZ E30 Build
    Current Project - 87 325is 2JZ Swapped with M4 DCT

    #3

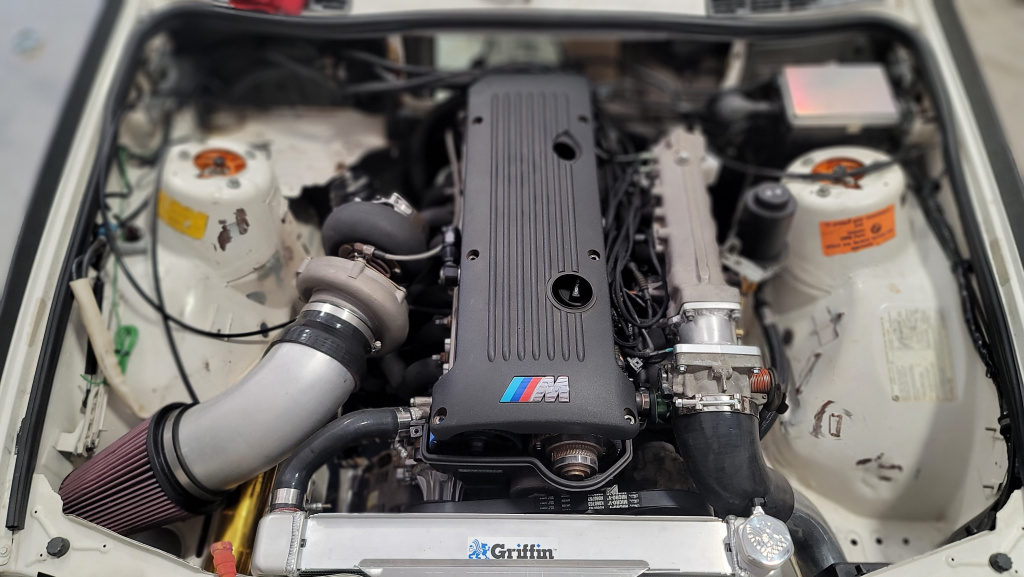

    Old setup with stock bottom m20
    - AXIS POWERS - 2JZ E30 Build
    Current Project - 87 325is 2JZ Swapped with M4 DCT

    Comment


      #4

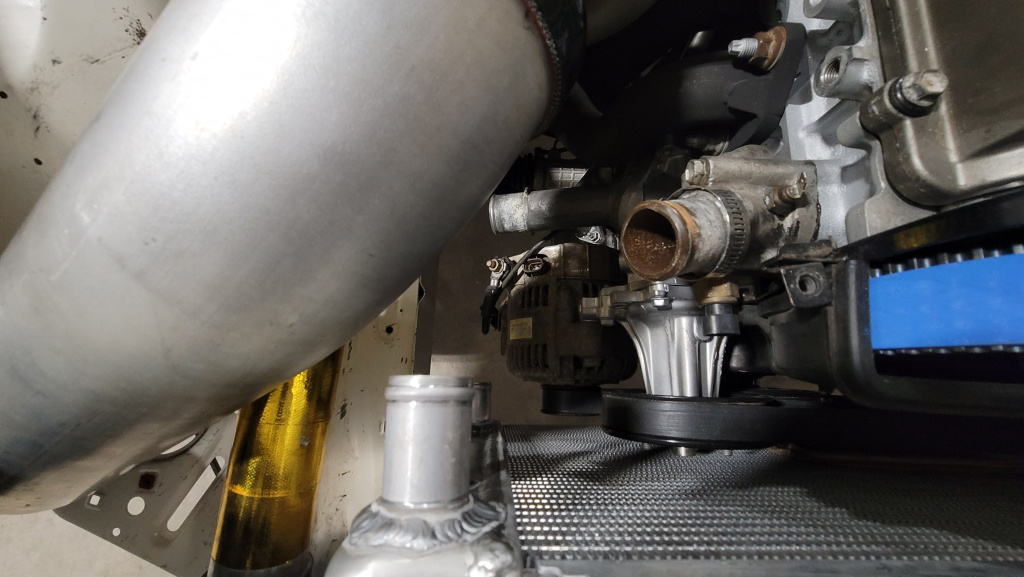

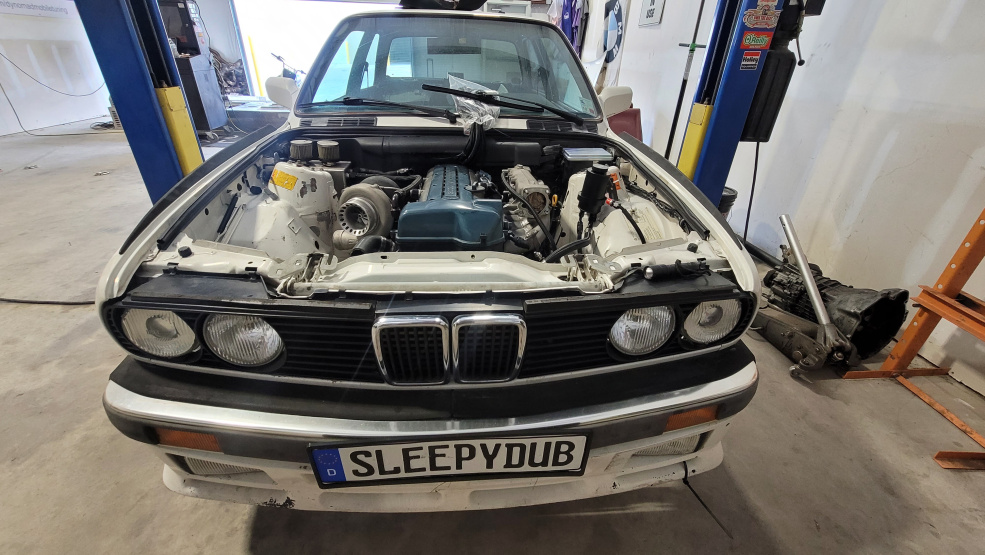

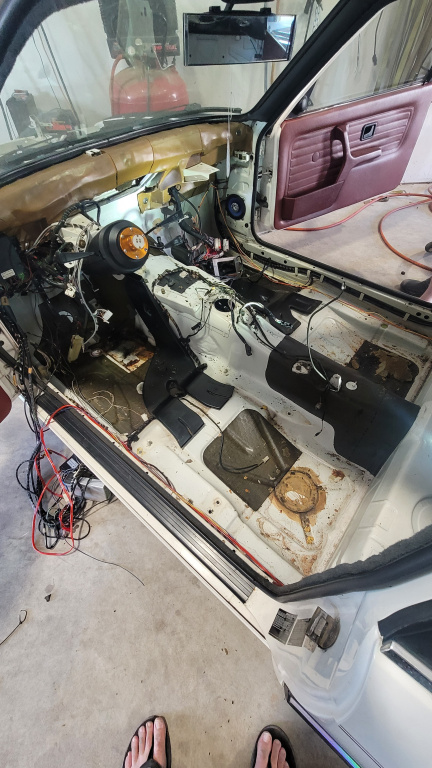

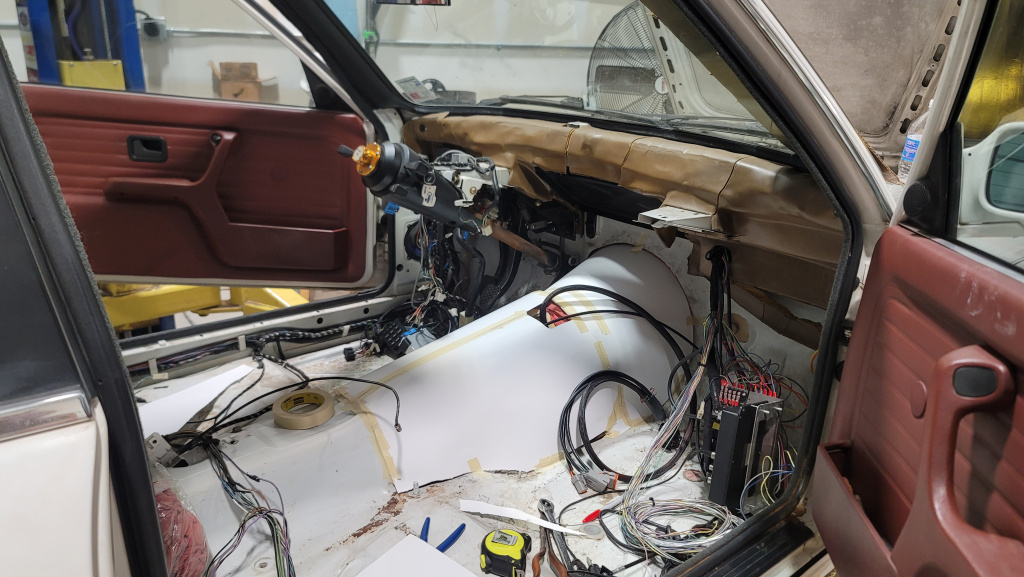

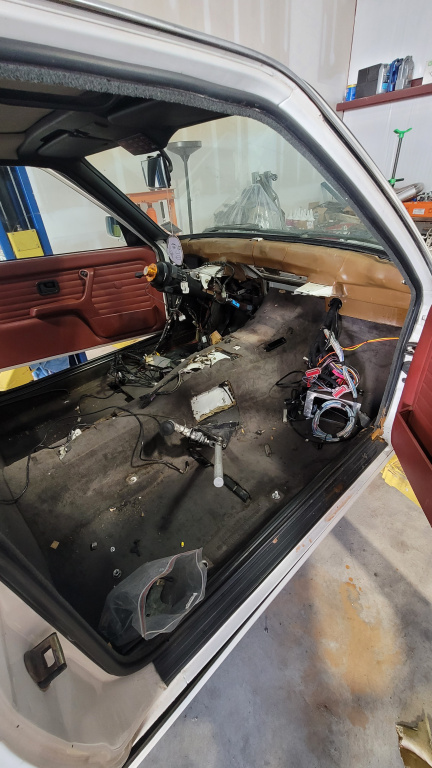

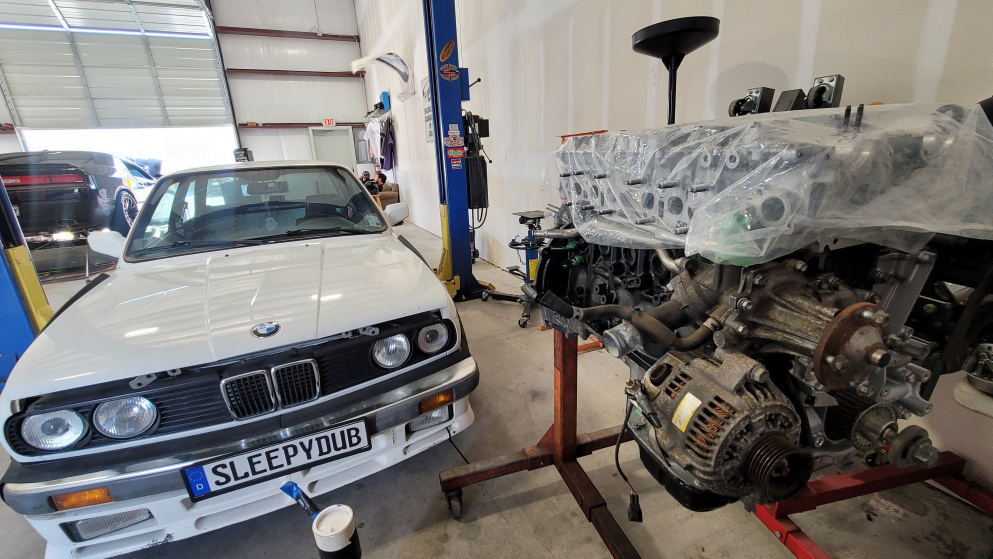

      Some progress pics
      Attached Files
      - AXIS POWERS - 2JZ E30 Build
      Current Project - 87 325is 2JZ Swapped with M4 DCT

      Comment


        #5

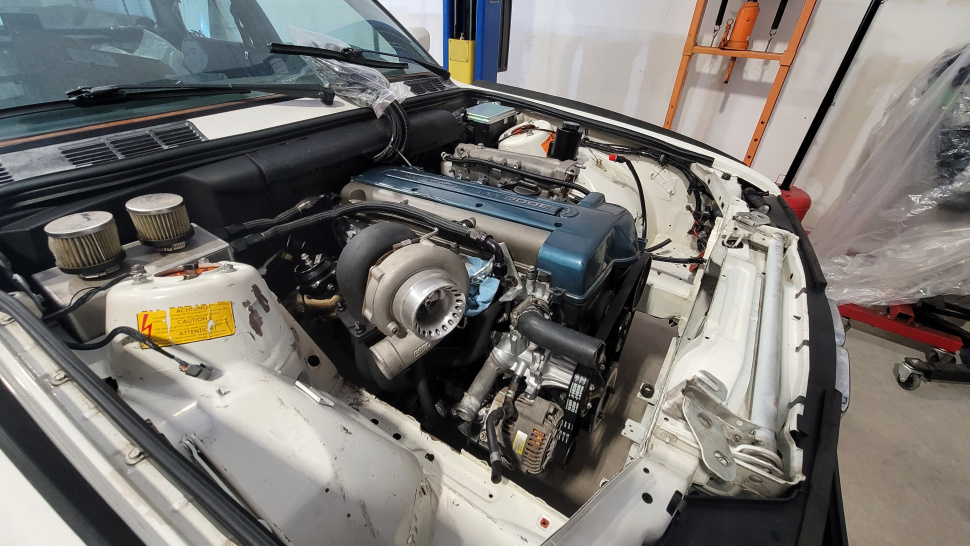

        More progress
        Attached Files
        - AXIS POWERS - 2JZ E30 Build
        Current Project - 87 325is 2JZ Swapped with M4 DCT

        Comment


          #6

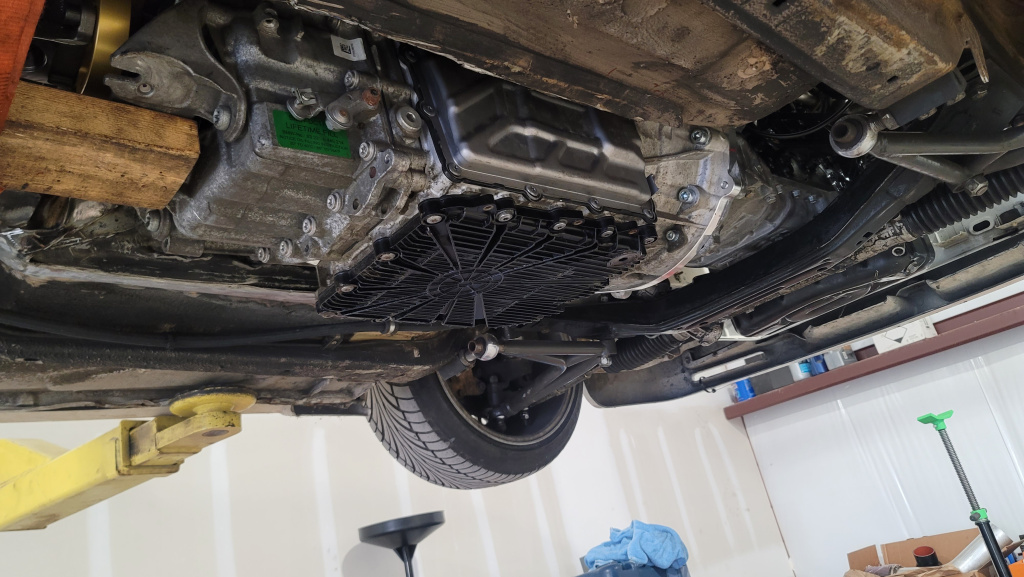

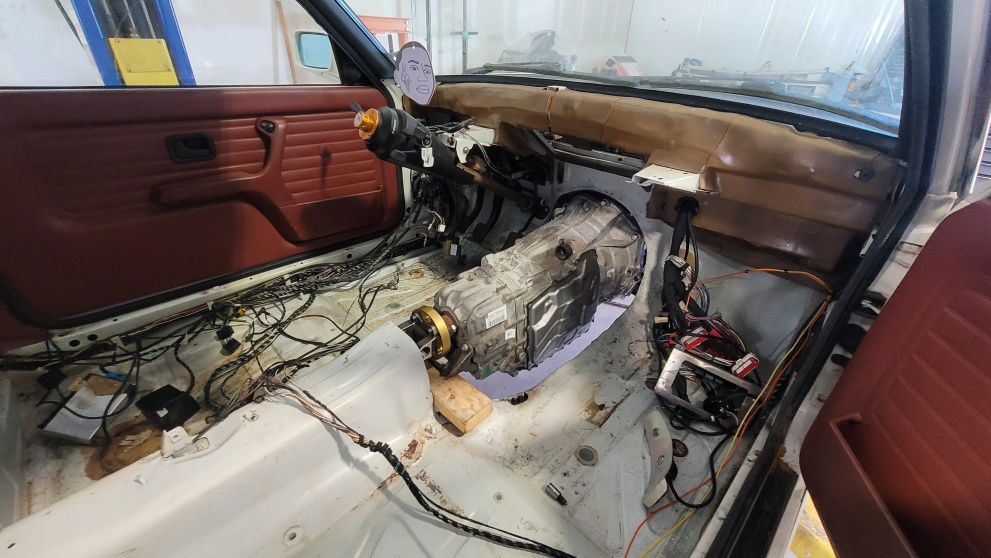

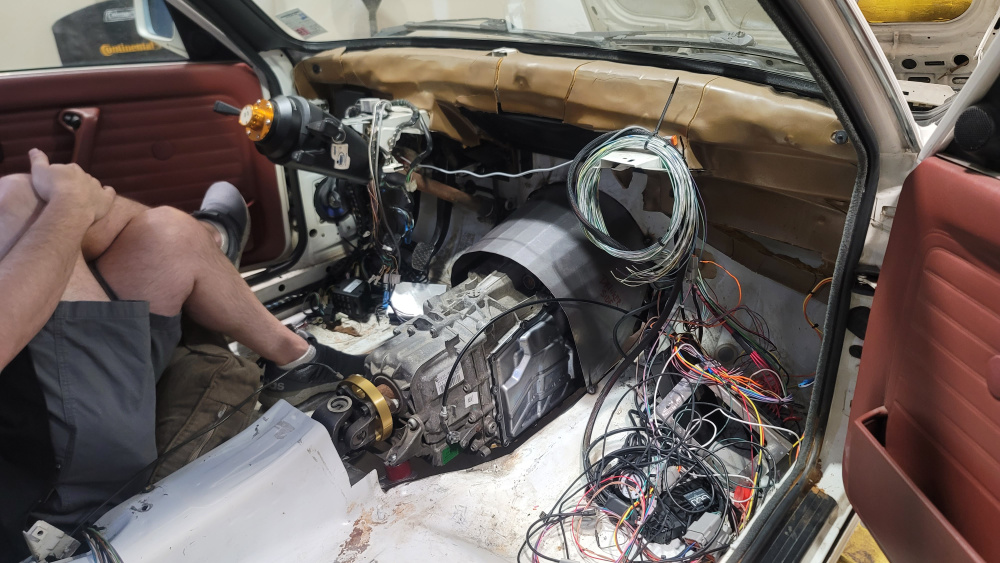

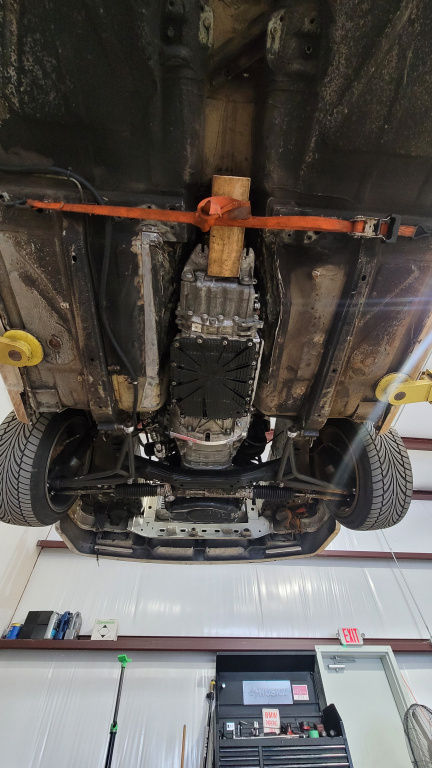

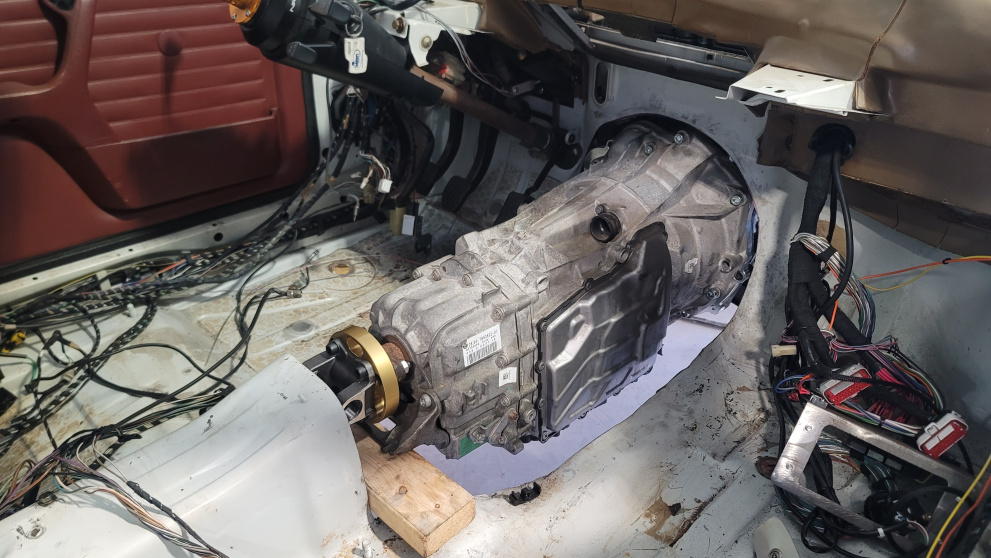

          Trans is so big
          Attached Files
          - AXIS POWERS - 2JZ E30 Build
          Current Project - 87 325is 2JZ Swapped with M4 DCT

          Comment


            #7
            A little too big if you want any reasonable amount of ground clearance
            Attached Files
            - AXIS POWERS - 2JZ E30 Build
            Current Project - 87 325is 2JZ Swapped with M4 DCT

            Comment


              #8

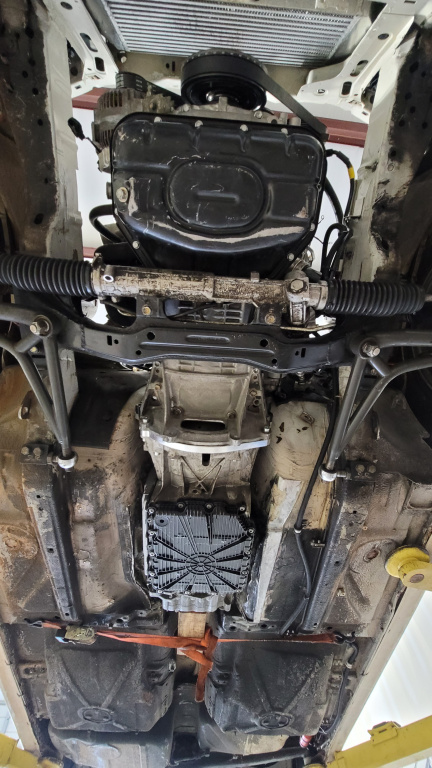

              Just so big
              Attached Files
              - AXIS POWERS - 2JZ E30 Build
              Current Project - 87 325is 2JZ Swapped with M4 DCT

              Comment


                #9

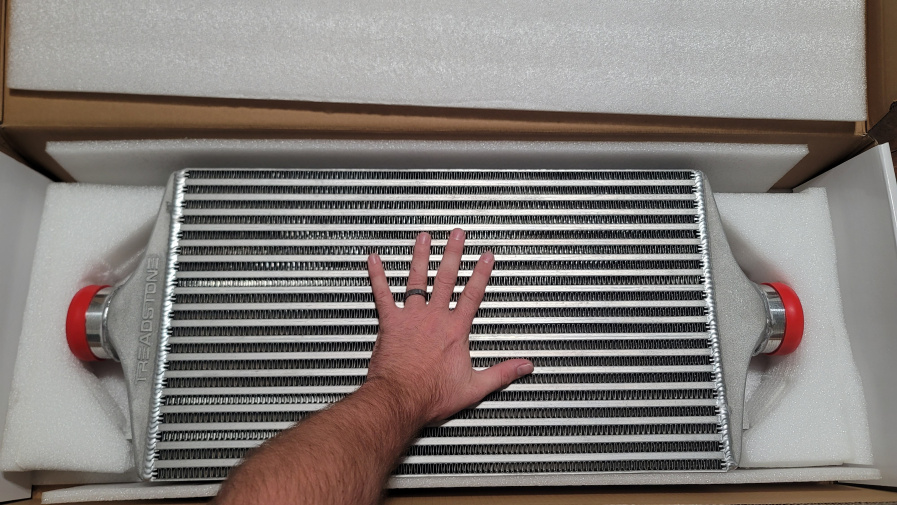

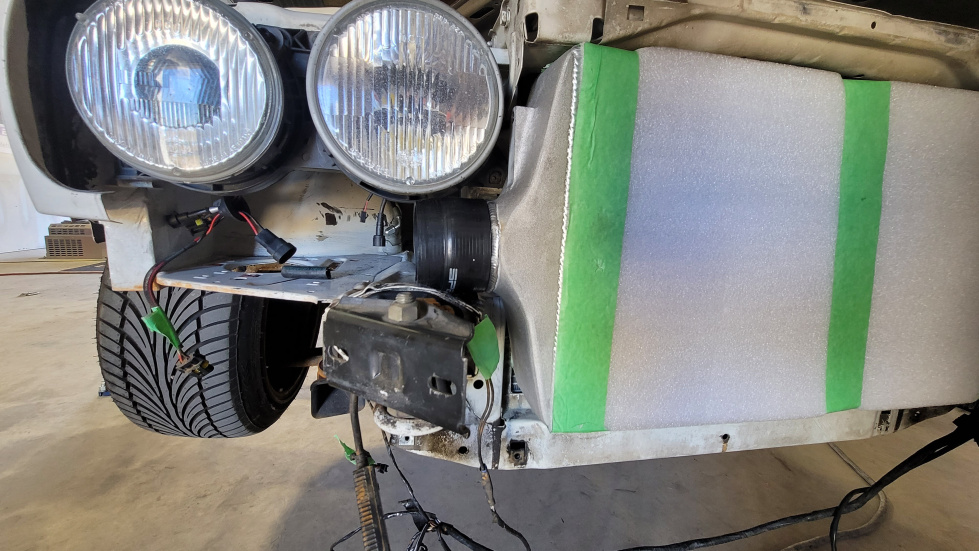

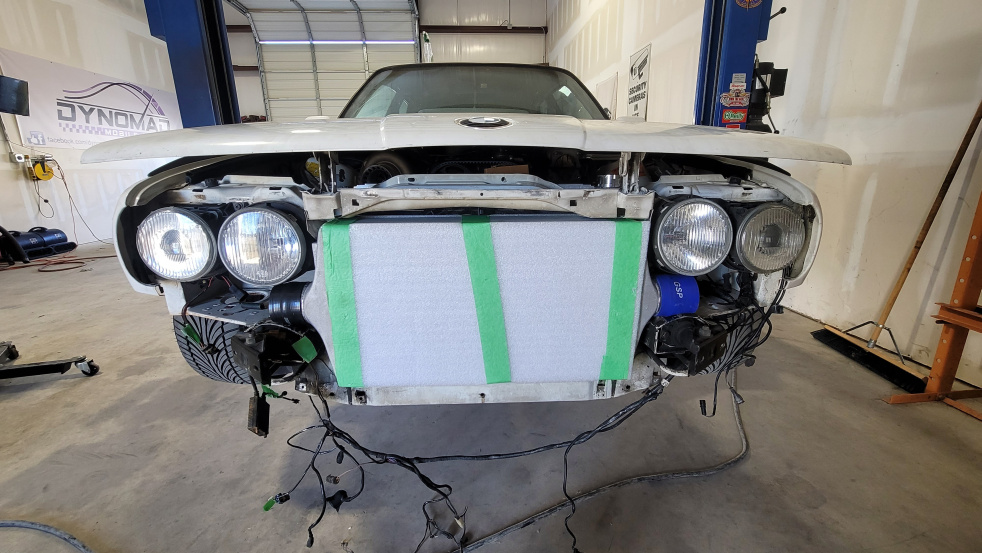

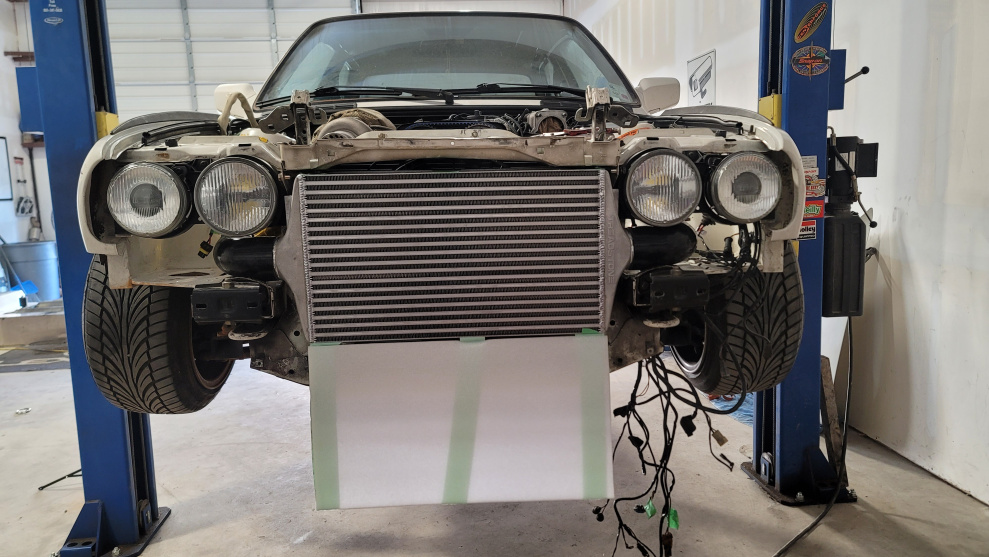

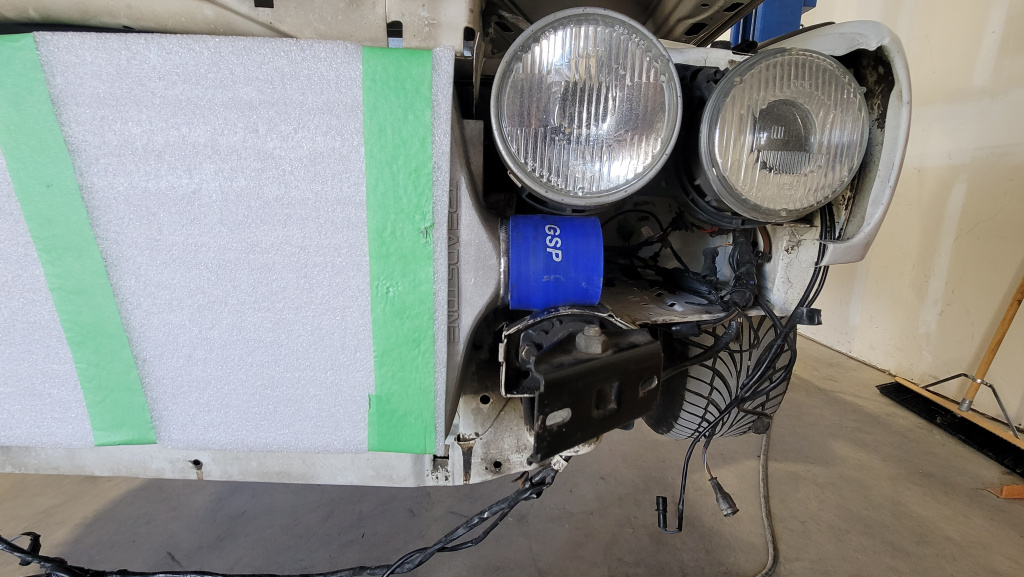

                Biggest intercooler I could find that would fit well
                Attached Files
                - AXIS POWERS - 2JZ E30 Build
                Current Project - 87 325is 2JZ Swapped with M4 DCT

                Comment


                  #10

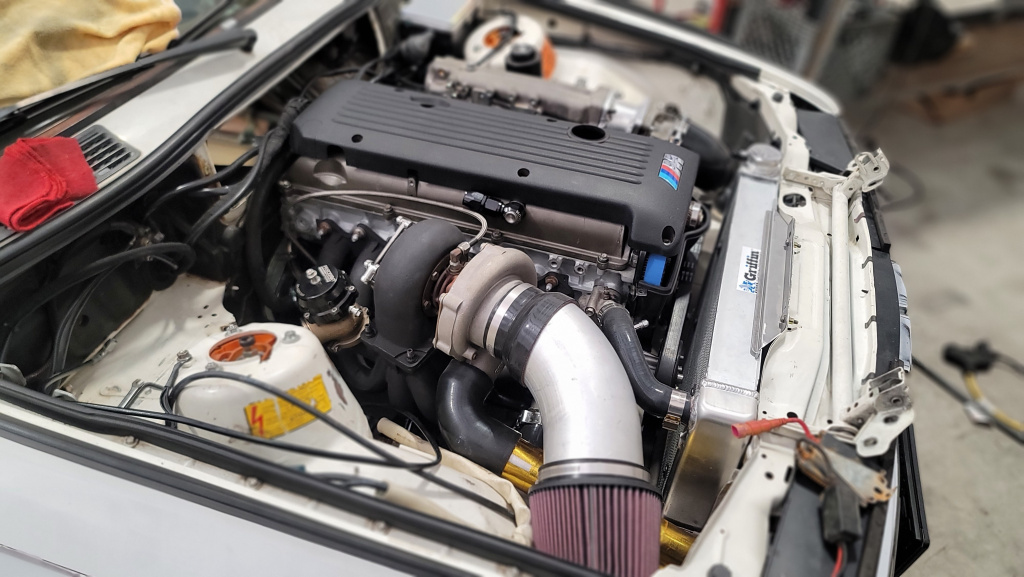

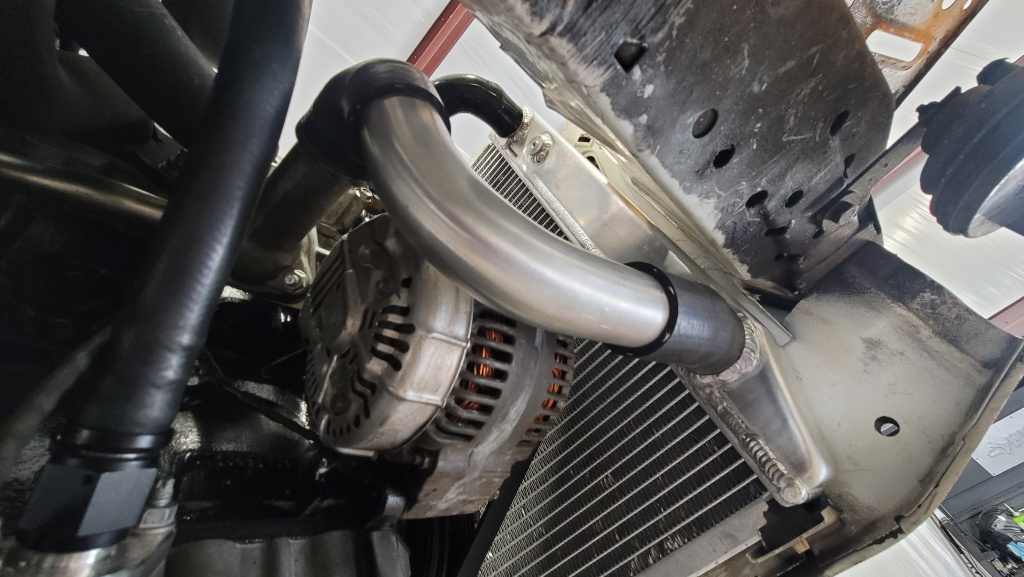

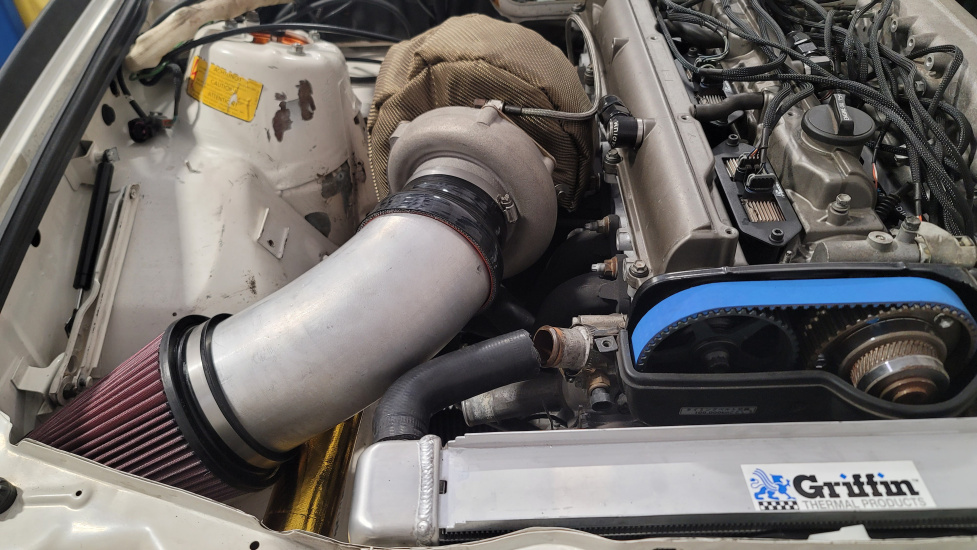

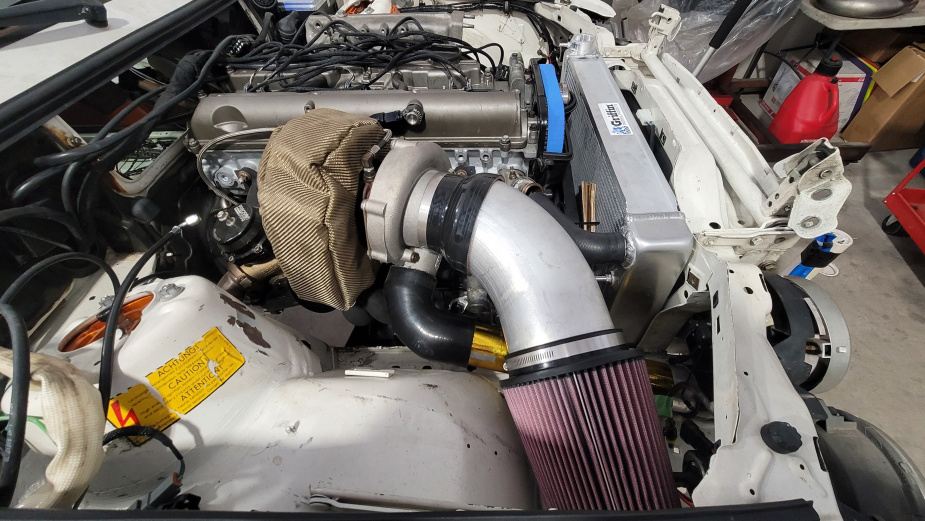

                  Thicc ass intake
                  Attached Files
                  - AXIS POWERS - 2JZ E30 Build
                  Current Project - 87 325is 2JZ Swapped with M4 DCT

                  Comment


                    #11

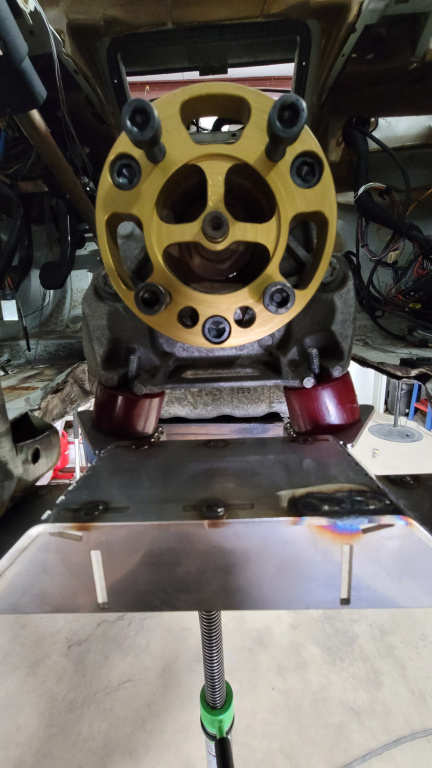

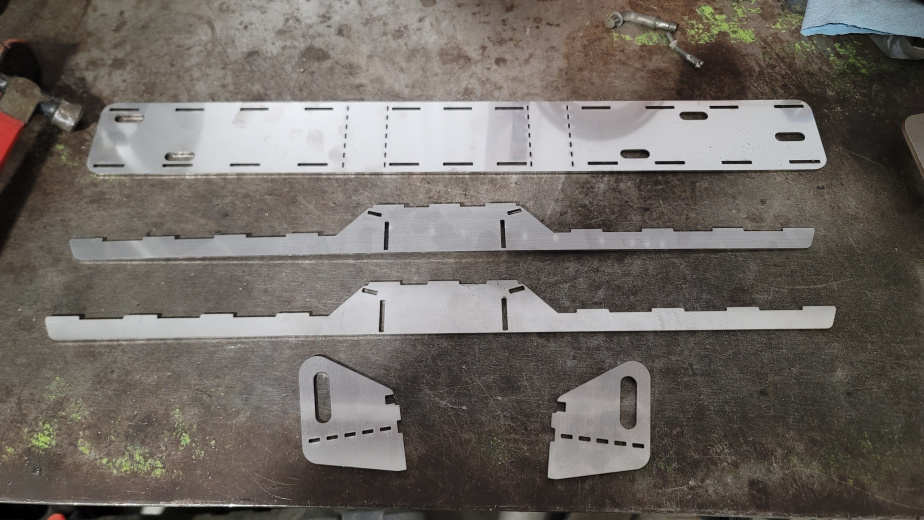

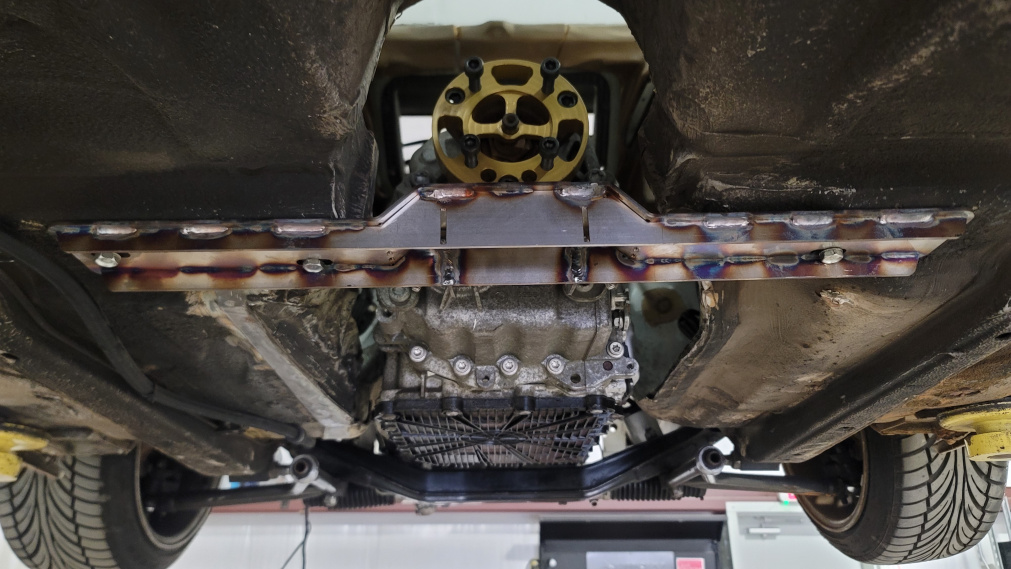

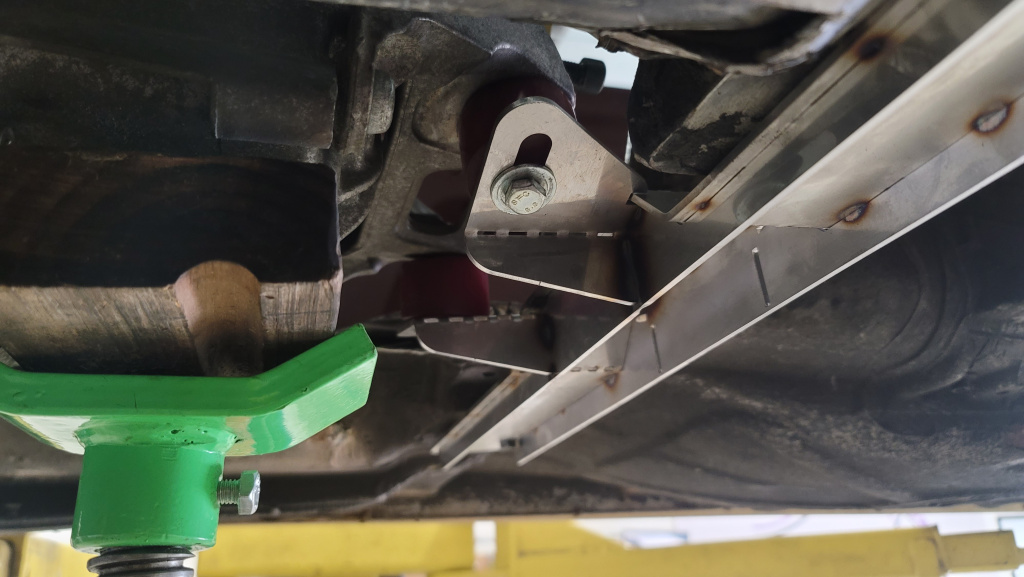

                    Trans mount done
                    Attached Files
                    - AXIS POWERS - 2JZ E30 Build
                    Current Project - 87 325is 2JZ Swapped with M4 DCT

                    Comment


                      #12

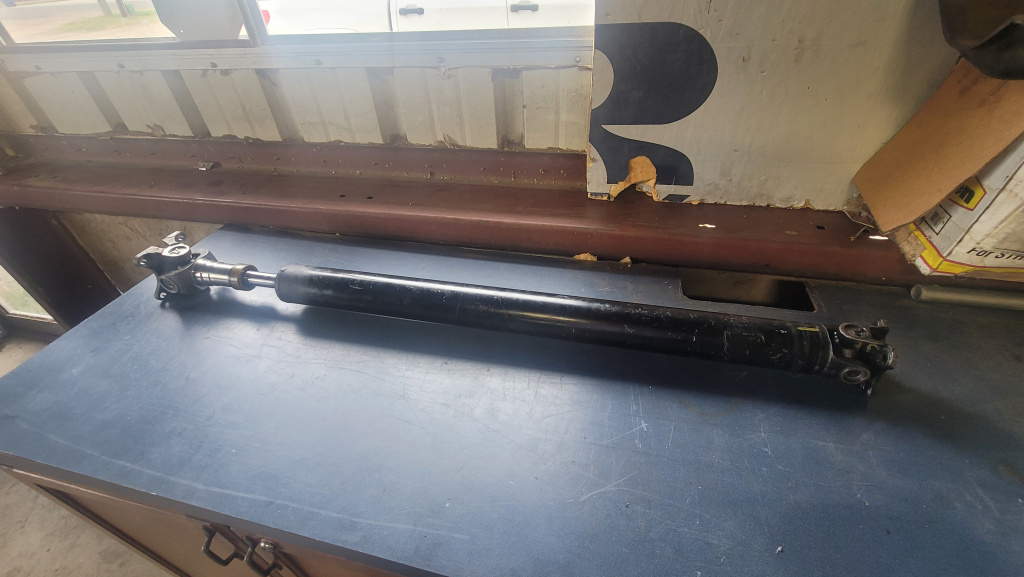

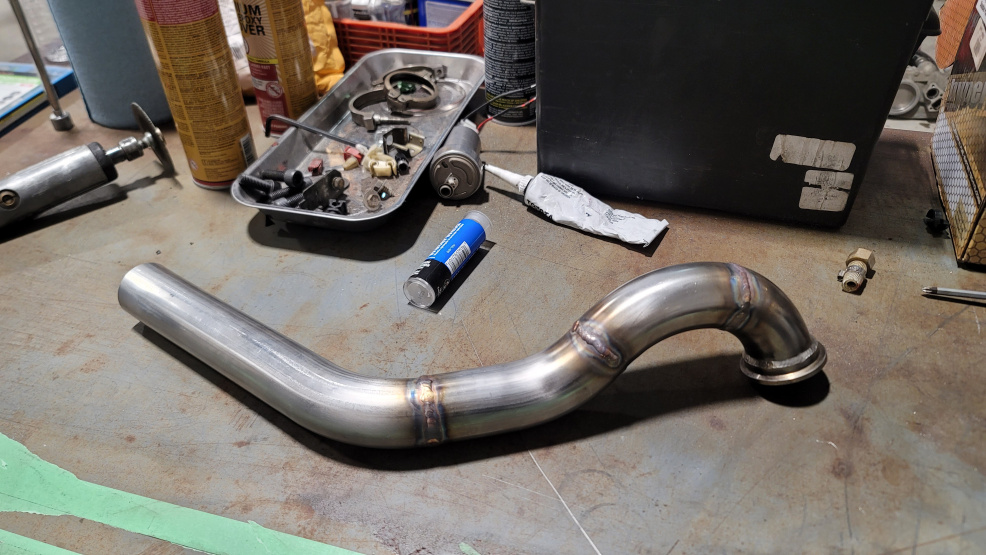

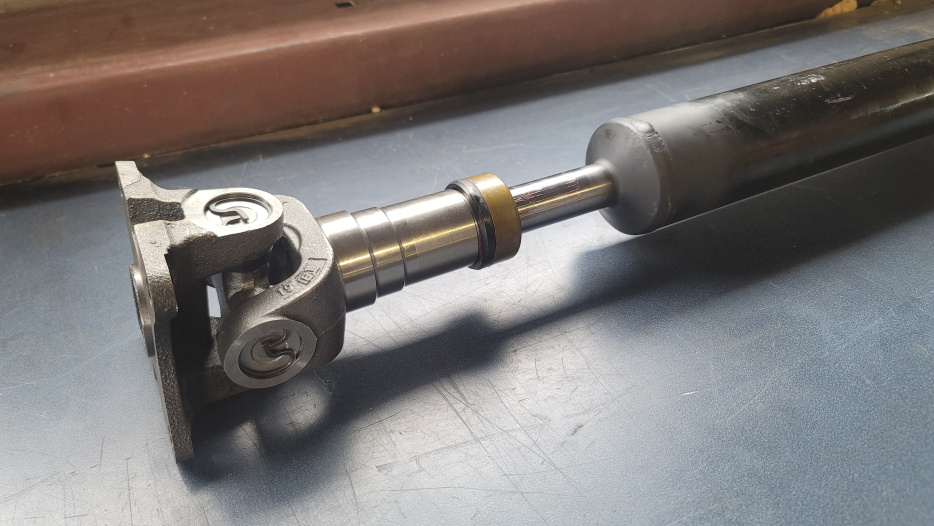

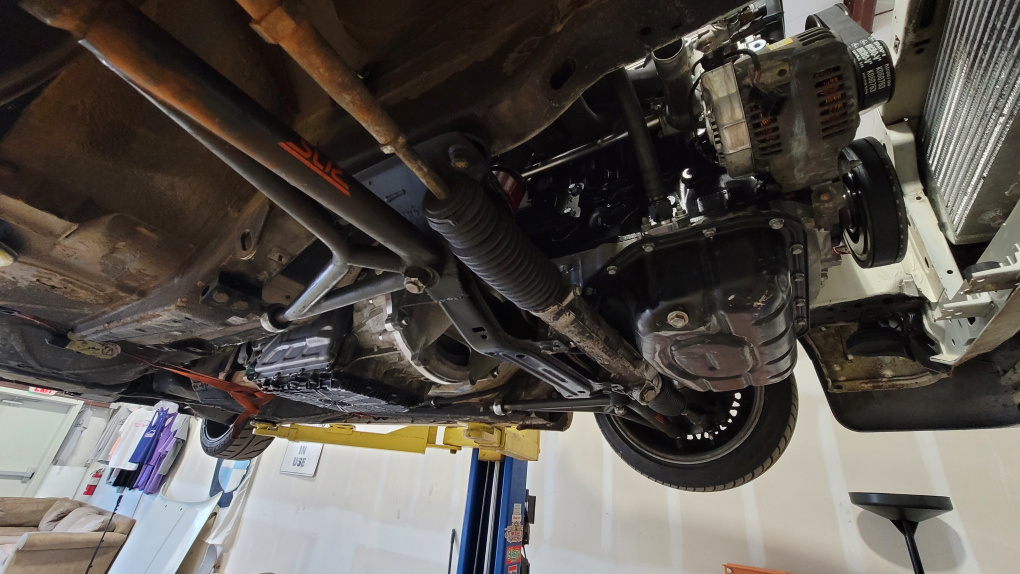

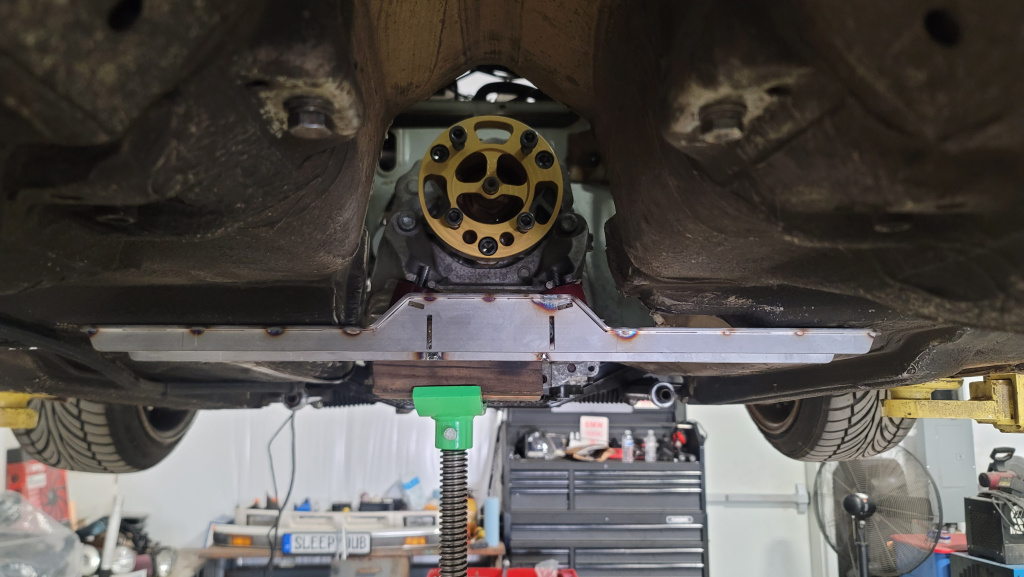

                      Some fab work, driveshaft
                      Attached Files
                      - AXIS POWERS - 2JZ E30 Build
                      Current Project - 87 325is 2JZ Swapped with M4 DCT

                      Comment


                        #13

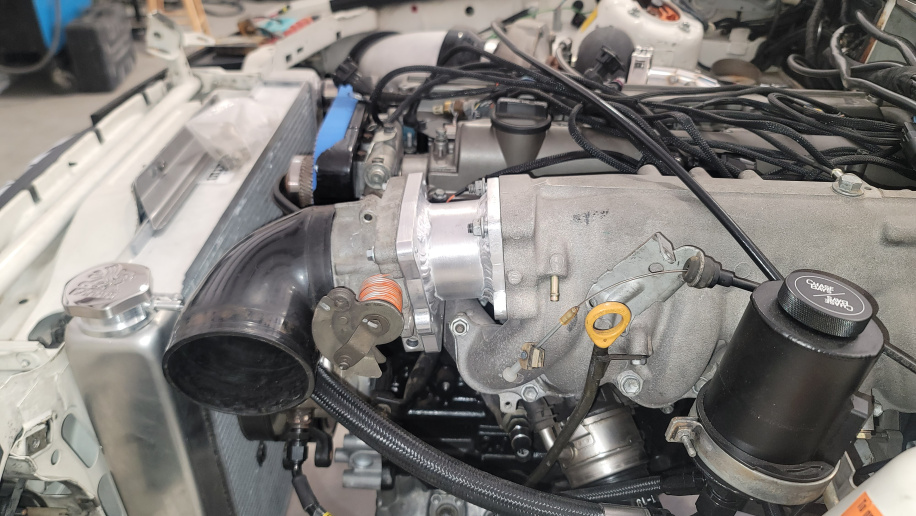

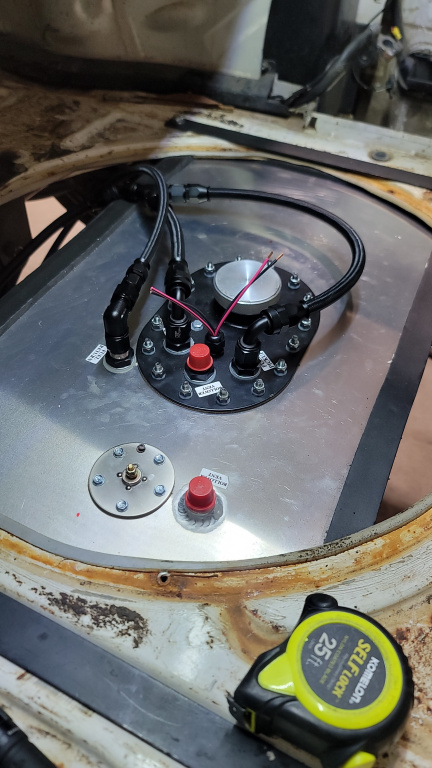

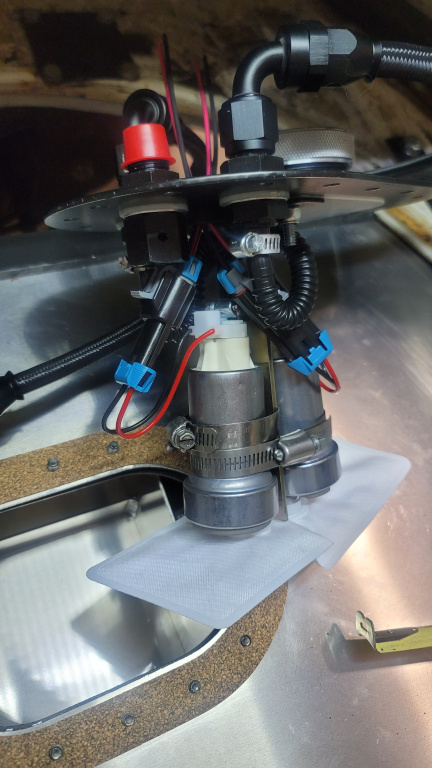

                        LS1 throttle body fab. Fuel setup
                        Attached Files
                        - AXIS POWERS - 2JZ E30 Build
                        Current Project - 87 325is 2JZ Swapped with M4 DCT

                        Comment


                          #14

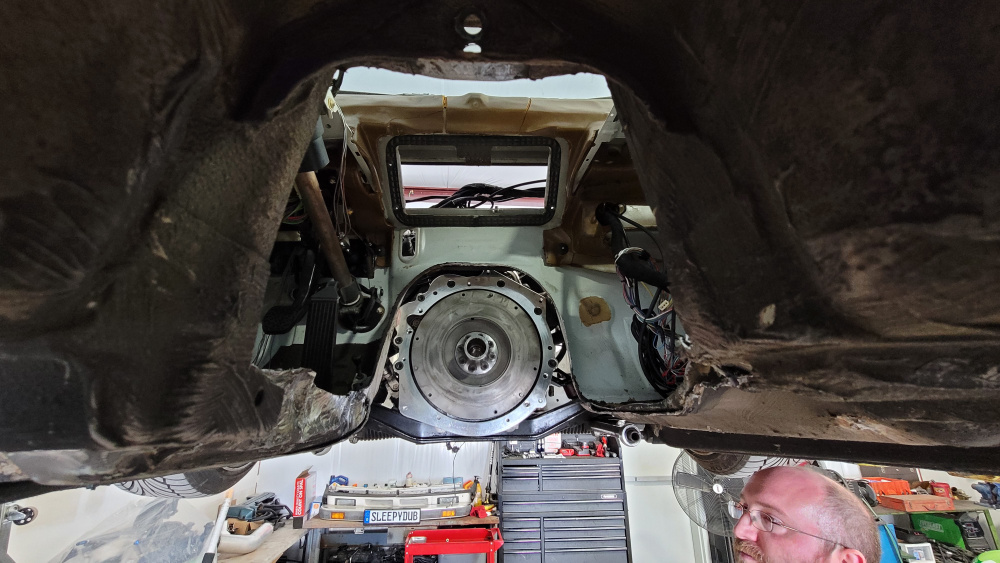

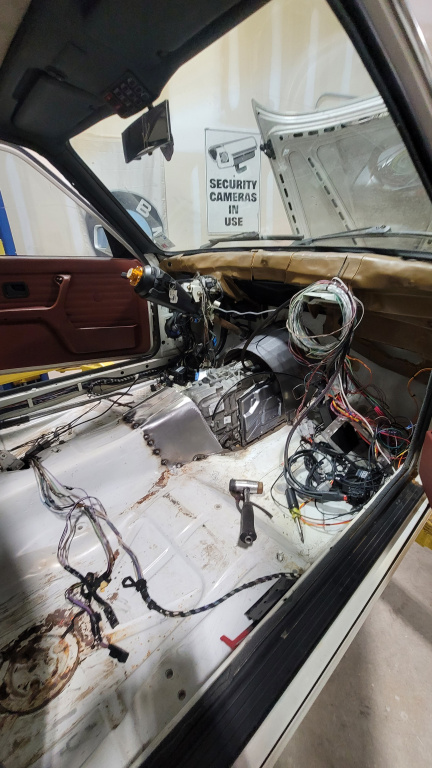

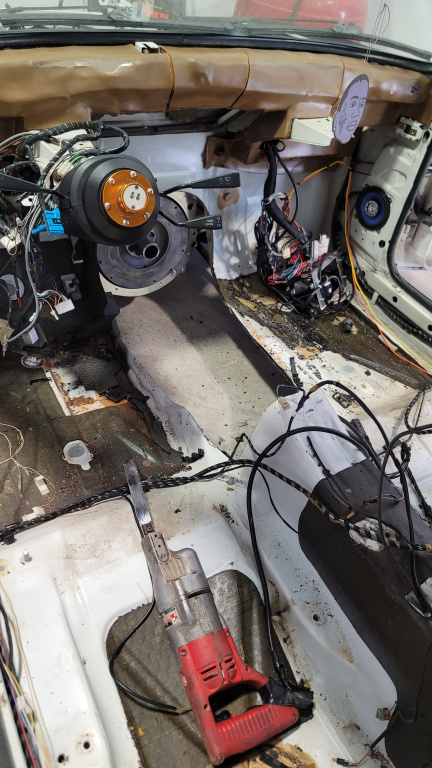

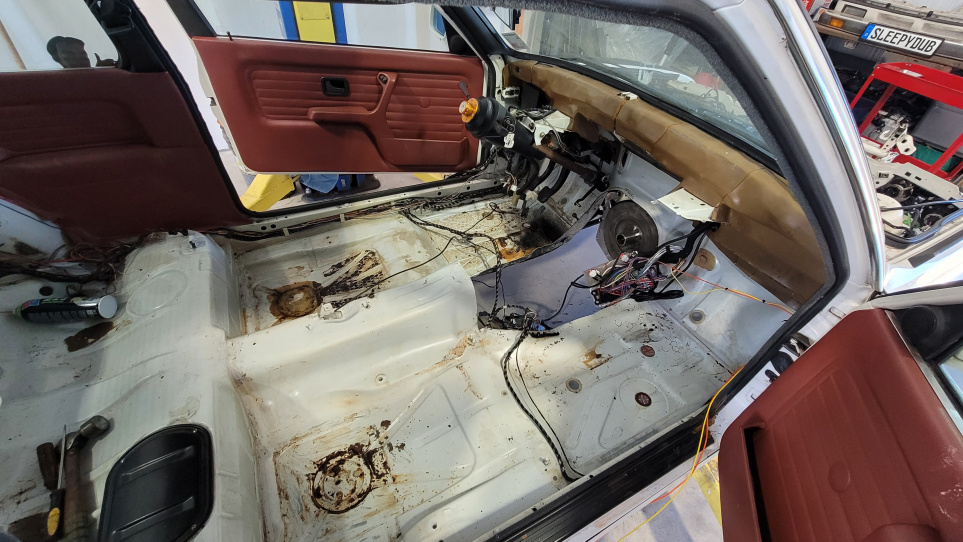

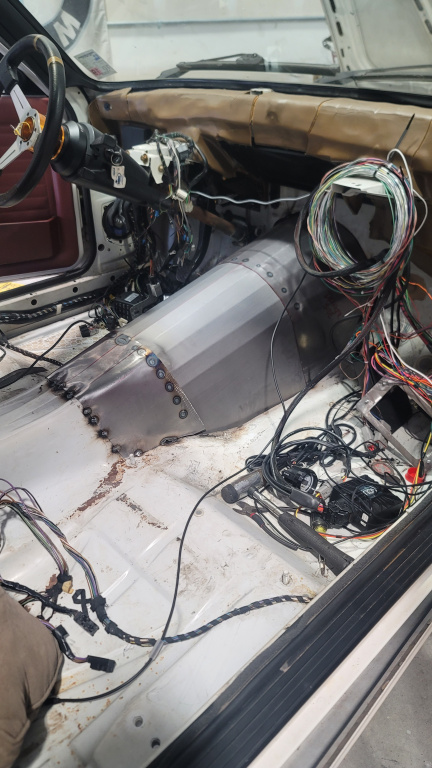

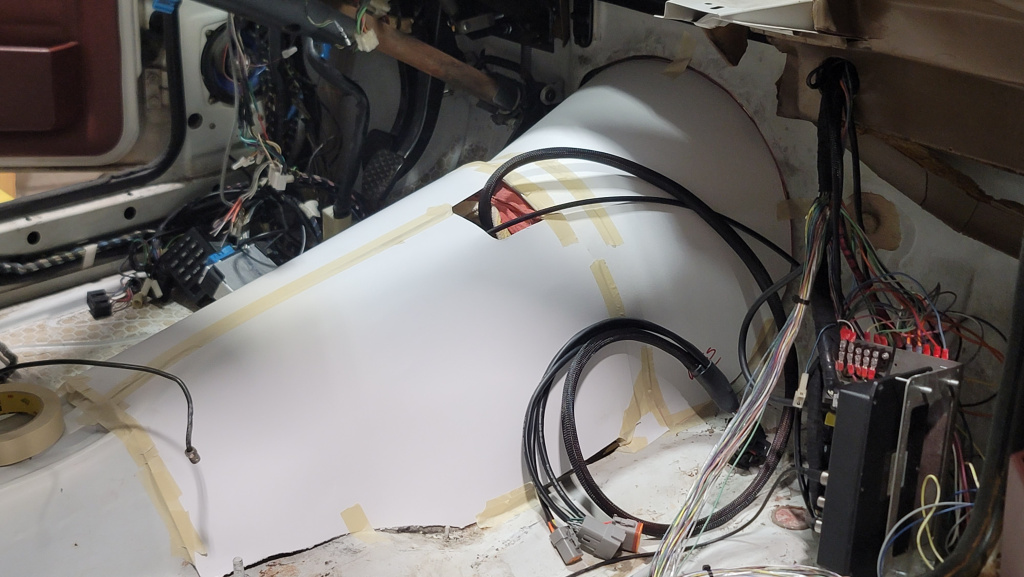

                          Trans tunnel
                          Attached Files
                          - AXIS POWERS - 2JZ E30 Build
                          Current Project - 87 325is 2JZ Swapped with M4 DCT

                          Comment


                            #15
                            This should make them mad
