Got bit by the turbo bug.

[einstein57]

Well, 10 lug but i'll get in to that later. I'm going to use stock e30 M3 rear for now until I get a BBK for the rear. Front will be regular e30 strut tubes, e28 hubs with spindle adapters and a wilwood 6 piston BBK. In the end i'll pay about what people are asking for their 25 year old setups but with all new parts and better brakes.

[Roysneon]

10 lug? You gotta explain that.

[ST1G]

Now that's a build. That looks like a great time. I love those meaty tires.

[einstein57]

Well wilwood offers center hats with dual bolt pattern holes to reduce the number of variations they need to keep in stock and it got me thinking, why not drill and tap the hubs to also accommodate the additional set of holes. I was thinking a 5x114 bolt pattern would open up a ton of options. There are so many wheels available and cheap second hand BBS and Work wheels from Japan. Although i have decided against it as it will be cost prohibited for all the welding and machining work required for the material required to have enough threads to be safe in the rears. The back of the hubs are thickest in the are immediately surrounding the lug holes. I decided the money would be better off spent on a rebuilt SETA bottom end and cam regrind. I already have the block so its just bearings, rings, seals, and hardware. Castros will hone and o-ring the block as well as final assembly. It will give me a chance to paint the engine bay for the impending color change. This will be temporary until i can build the forged 2.9-3.1L bottom end i really want. Also the head i want will cost me another $2k to build. On top of which i want to upgrade to a ball bearing turbo. So we are talking 5-7k on my next motor.

[einstein57]

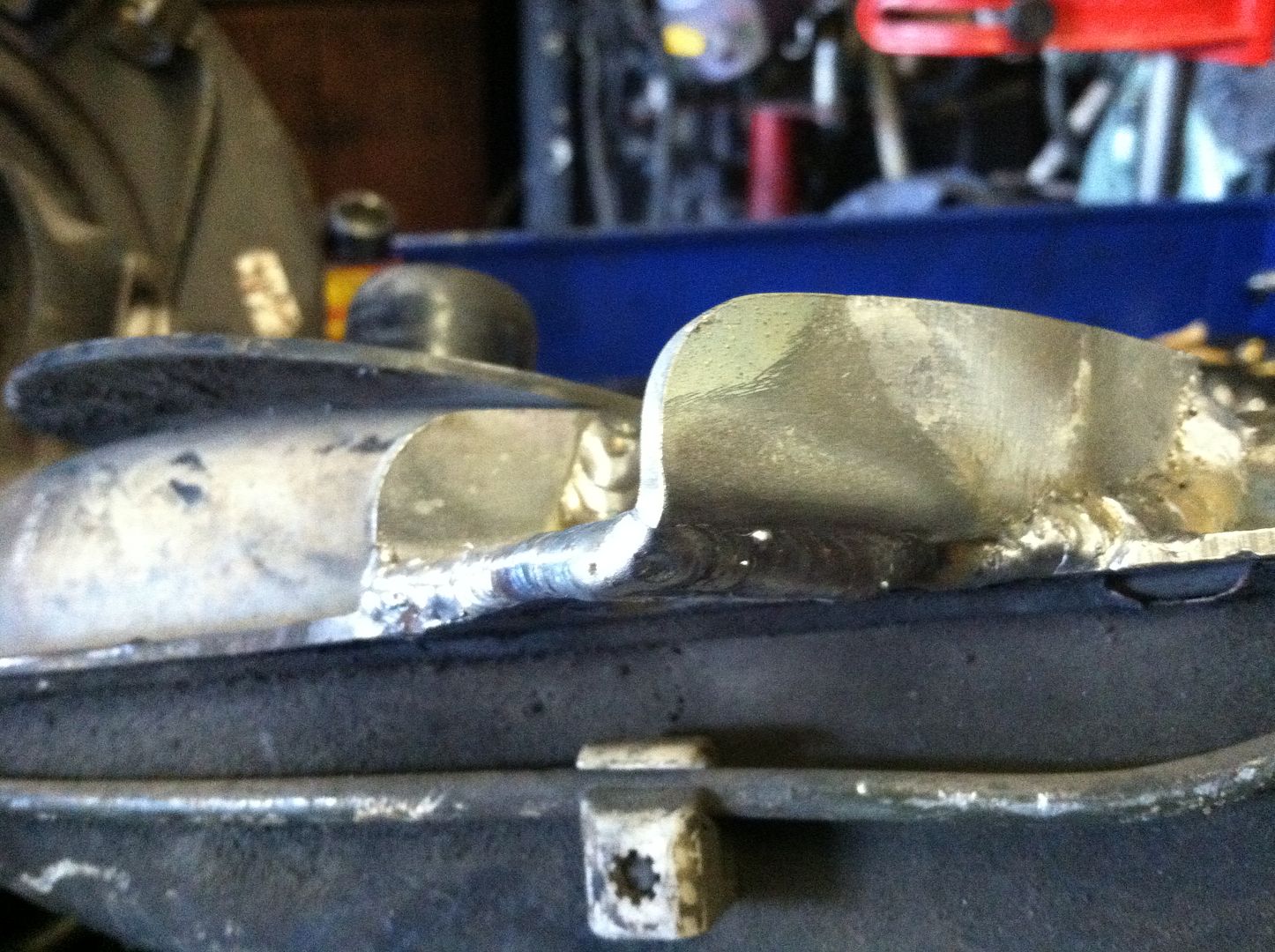

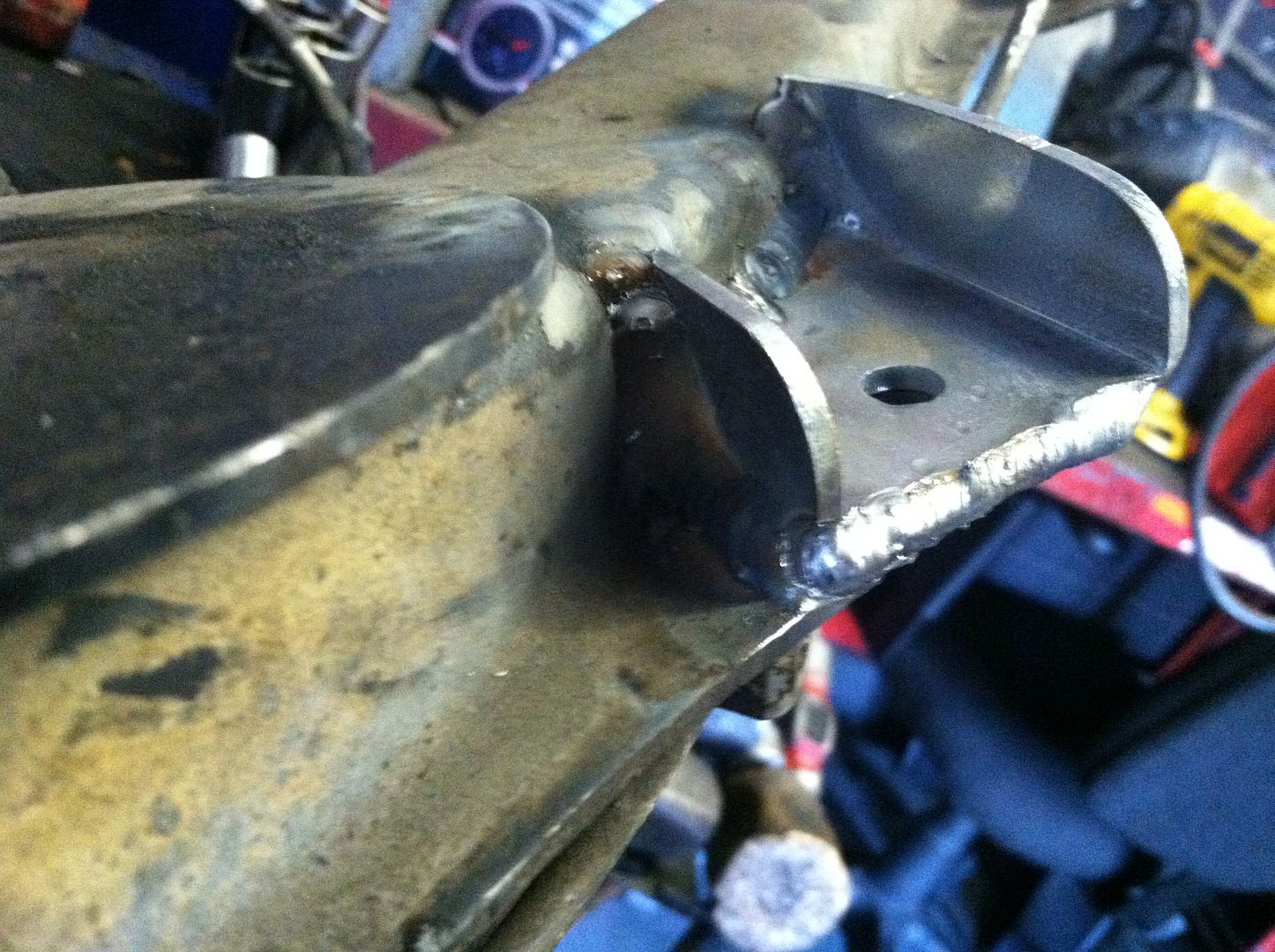

I suspect one of my trailing arms is bent since one side has always had more camber then the other even before i installed my nightmare bavauto camber/caster rear bushing kit. So i picked up a subframe and trailing arm setup and started predding it for the new 5 lug setup. It will be receiving all new IE bushing and AKG reinforcement tabs. Having a good Miller welder makes even a hack like me look like i know what i'm doing.

[einstein57]

Finally got everything bolted up. At the last minute i decided not to add the IE camber/toe kit and instead splurged on a z3m complete diff. No i cruise at 2000rpm doing 65. That should put me back to 20+ mpg

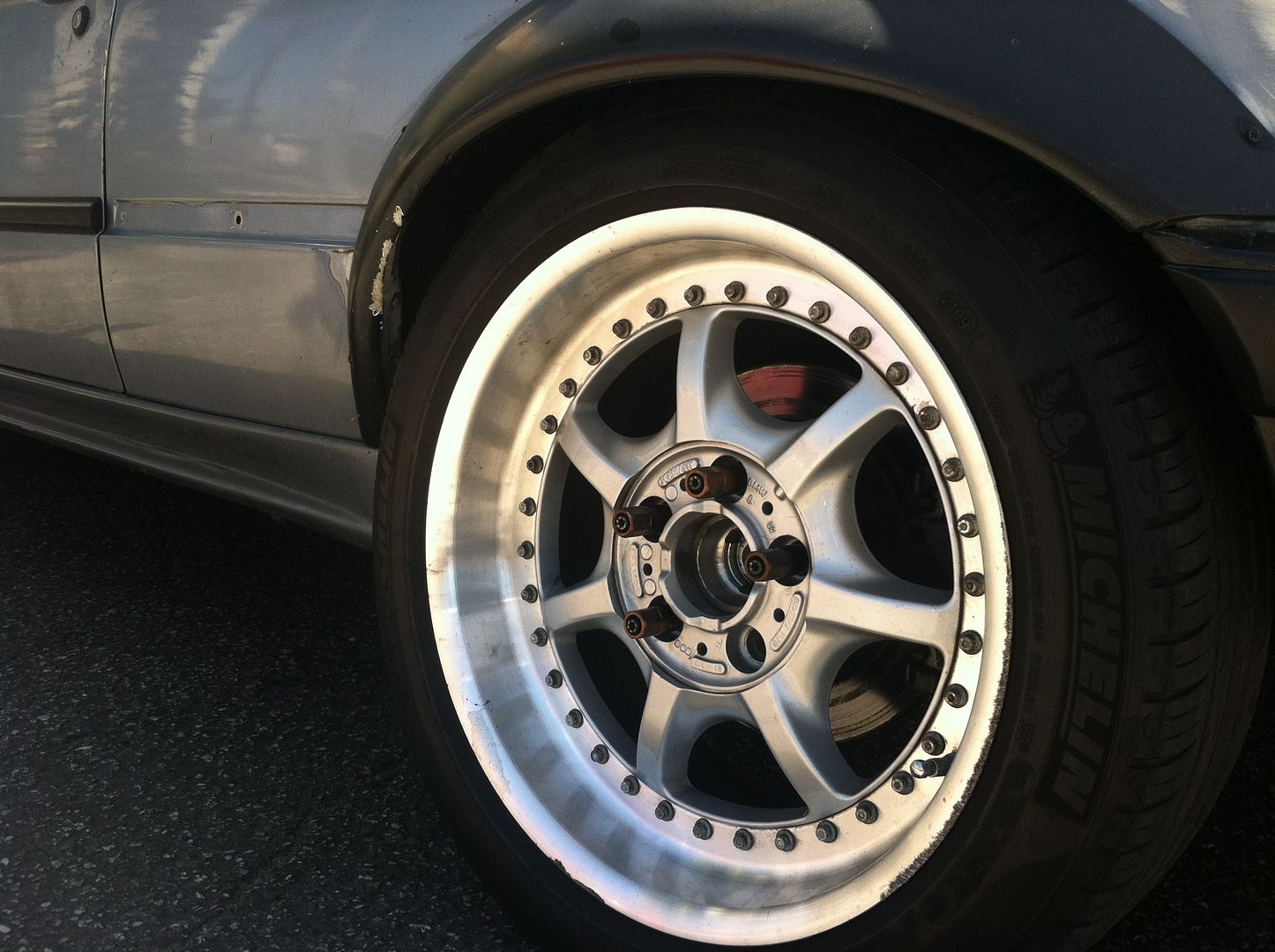

I have not gotten around to getting new tires, wheels, centers, studs, etc so i just installed what i had laying around. Need to get more studs.

[einstein57]

So I'm a firm believer that's 3.23 diff is the way to go. I can boost harder in 1st gear, hit 65 at 7000rpm in second, third gear is more fun and fourth gear is now pretty much what 5th used to be. That means 5th is now an overdrive gear which is what I've always wanted.

[einstein57]

Replaced my bent strut tube. The replacement strut looks different then anyone i've ever cut up before.





After cutting off the dust shield i ground down the factory weld and cut the tube 2" below that.





Then i used the tool i made to perfectly weld the two pieces together straight as an arrow.

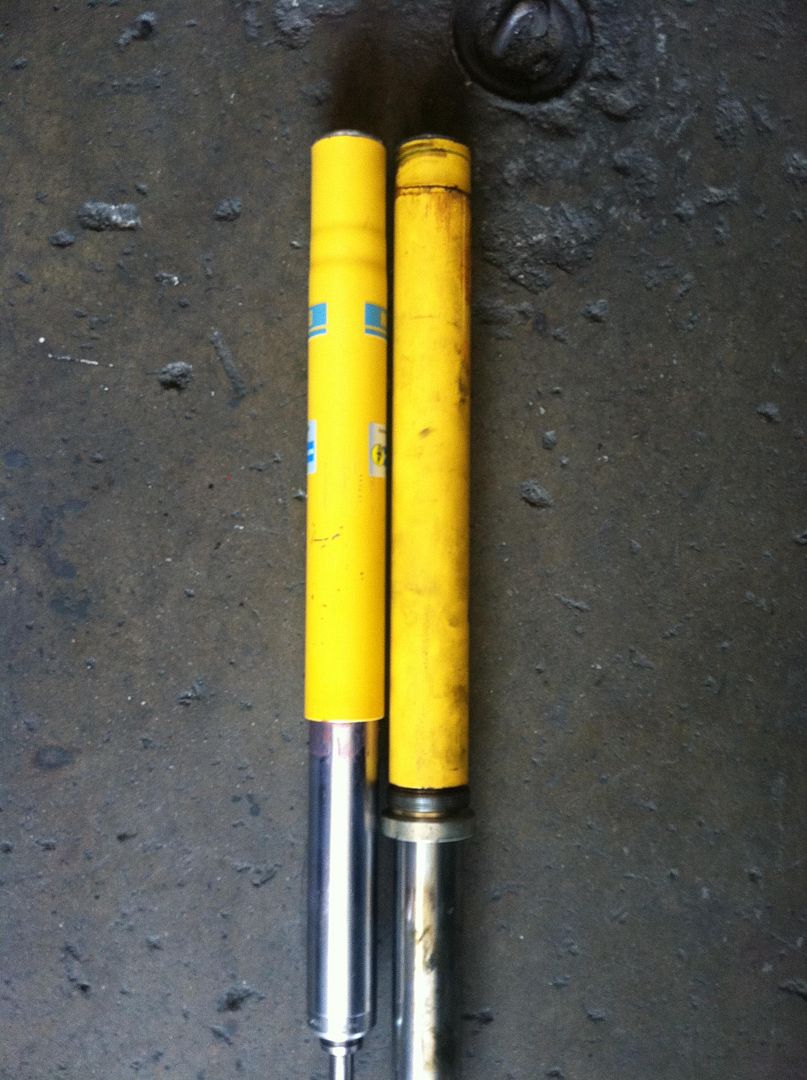

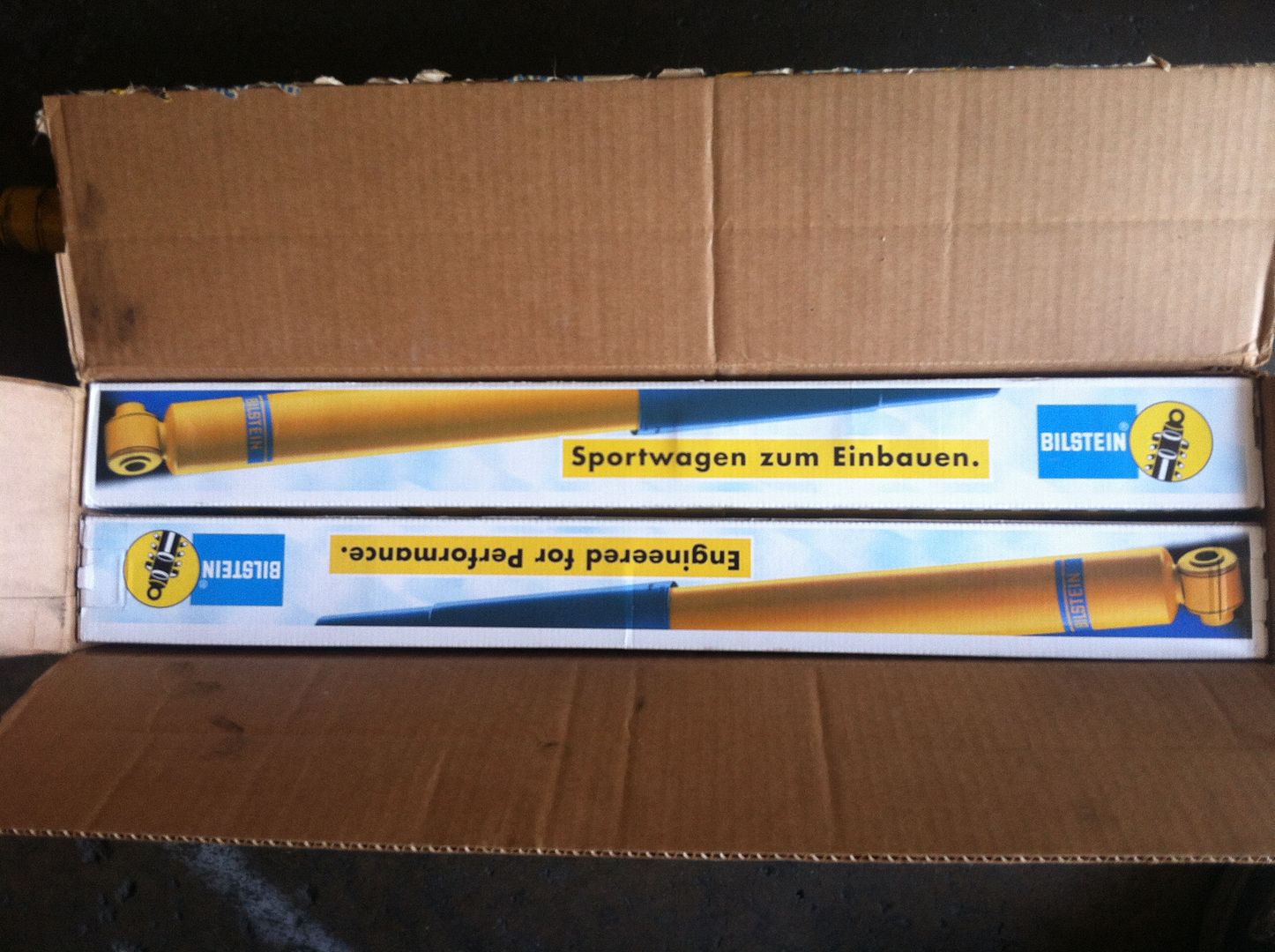

Finally busted out the ix inserts i had re-valved a year ago. I used stock i insert sleeves and shortened them 2 inches. That way i get maximum travel and no spacers. With a 6" spring it sits perfectly on the adjuster with out play when its at the maximum height. The car tucks 235/45/17s tires at the highest setting.

[MR 325]

Sweet! Nice work as usual my friend.

[JCarp90]

I approve of this thread.

[einstein57]

Time to start sprucing up the interior. I've been holding on to pristine m3 interior parts for the last year or two and i need to start clearing out my office space. But i don't want awesome seats and a cracked dash so its time to do something about it. Well first off i have an almost crack free dash but almost ain't gonnah cut it. So i've decided to wrap it. I was considering leather for the longest but decided against it since my car is always outside in the sun and i'm not trying to build a show car. Just trying to create a nice environment to relax in. So i took a silver permanent marker and started drawing where and how i want the separations.



The centerconsole will be identical to the the mtech 2 leather interiors. I took some pics of kartoyz interior for reference.



Here is a teaser pic of a leather one that was done for a soon to be well known right hand drive, supercharged s54, mtech sedan.




I looked at a couple options and settled on this pattern. Its Mercedes factory material.




They have one that is almost identical to the e30 factory grain for those who don't want to do their center console, glove box, a pillars, etc.

[einstein57]

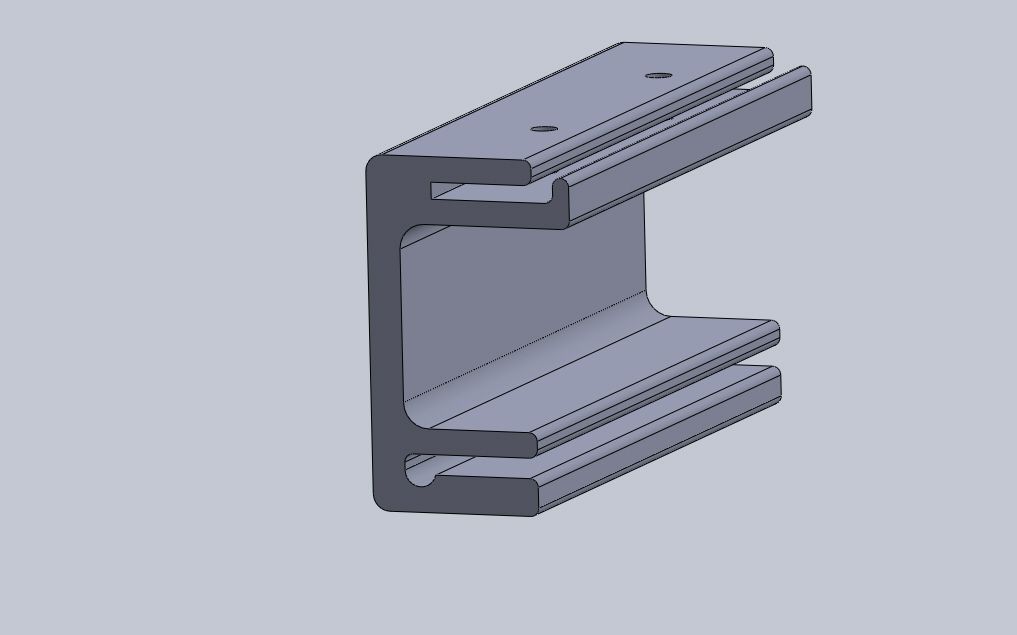

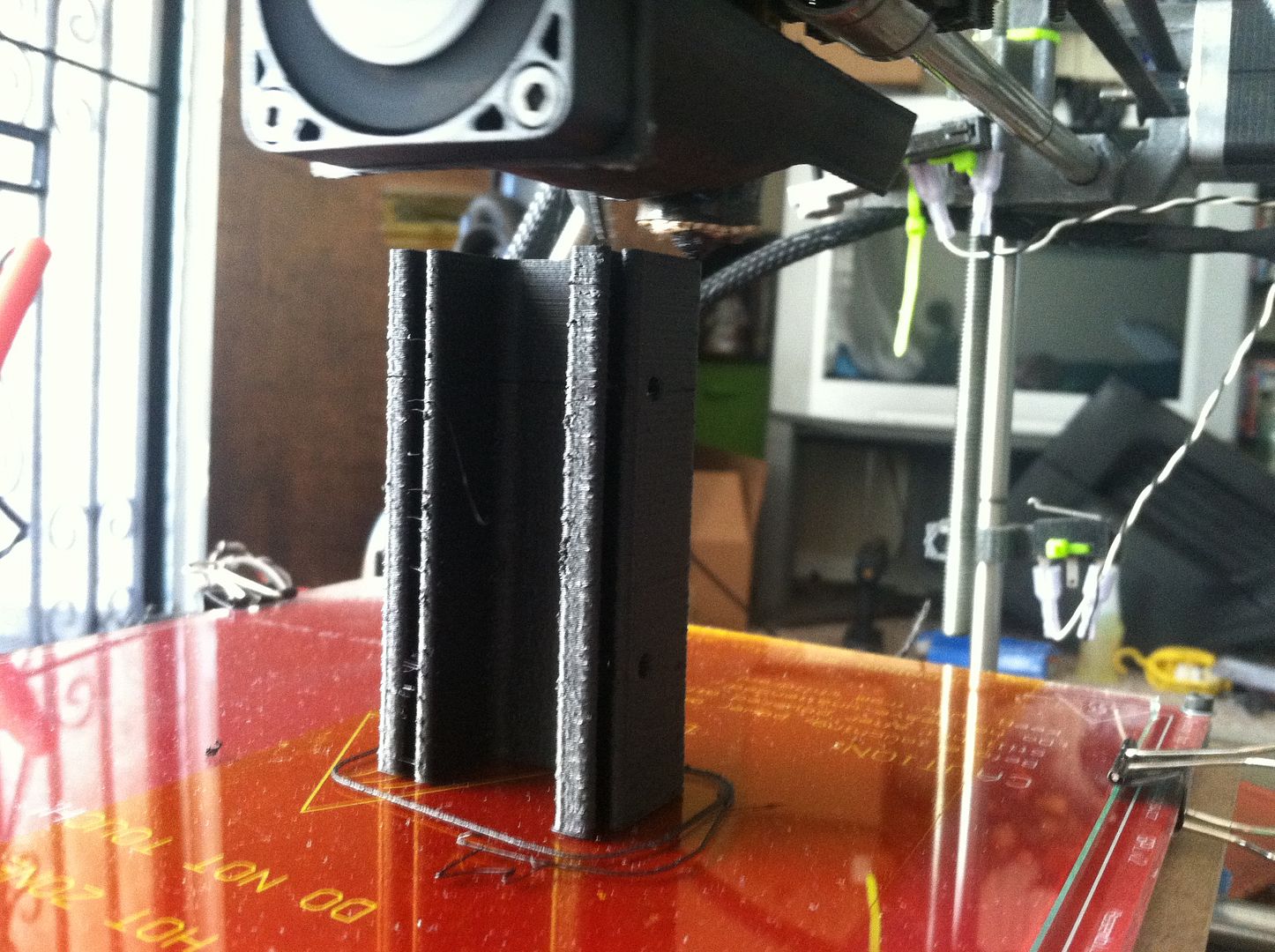

Well i have been avoiding finalizing the setup for my megasquirt because i've been meaning to go wasted spark. But my glen board has been dangling around for the last year and it broke off one of the soldered connections this week so i figured i needed to do something about it before i got stranded somewhere. Here is what i came up with. Just clips in to place.

[IronmanE30]

Nice work! It's all about the details.

Cheers,

Jim

[Magyar_steve]

Great build thread Nigel it's gonna be proper! Also I still have that catch can haha, still haven't measured it though.

[shimms]

This is such a great thread! Really good work man, love everything about this.
