Bringing an E53 back from the dead

[redsubdivisions]

(Cross posted to Xoutpost)

Back in December I picked up an X5 for $500. It had a blown motor and the PO let it sit for a while. I picked it up from her with the intention of putting a new engine in and using it as a daily driver while I FINALLY decided to get my E30 a stroker + turbo upgrade. Not to mention it would be more comfortable for me to drive as well as my daughter. According to the service advisor who had been dealing with her for 10+ years (she is the original owner and did most, if not all the maintenance at the dealer), it needed a window regulator and an engine. I called her up, offered her $500 as long as she had the title in hand. She accepted and that is what started the madness. lol

Here is the way she sat when I got her (nothing special, plus I only took one shot with my phone):


Before I was using the dealer shop, I had it towed home and thought that I could do the whole process at home. I was wrong from the start, but the X5 didn't just sit. I ordered the window regulators and installed them at home and kept it in the garage until it was time for me to make the decision for it to go back to the dealer to do the engine swap.

I went in one Saturday and managed to get her on the lift:


That engine bay was a mess. For starters, it had a missing cover for the spark plugs, the wiring harness was halfway unplugged (that made for a nice amount of frustration later on), nothing was capped off to shield itself from weather elements, and various other things that would piss a normal person off.

Dropped the engine, transmission, and transfer case with the subframe:


See that table? That's probably the best thing BMW has offered a dealership. I am still wondering how far my head was up my ass when I thought I could do all this at home in a single car garage.

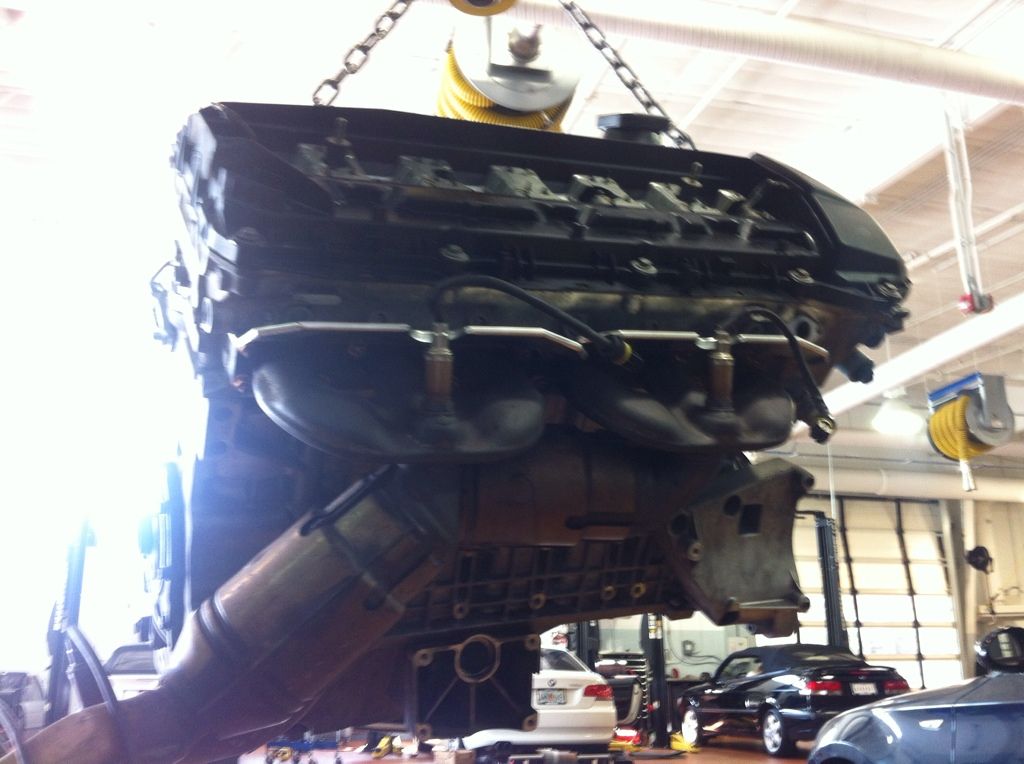

Removed the engine, trans, and TC from the subframe:


The cut exhaust was a result of the tech that was helping me trying to cut corners. It would make for a nice fabrication later on that involved two trips to the auto parts store and a grinder wheel.

From there I separated the transmission from the engine and put both into our tire/storage room and would periodically finish the engine as a few weeks went by.

Here is the "new" engine:


Coolant passages were nice and clean. I was pretty impressed and also relieved that this was a motor that was taken care of for the most part:




Before I removed the engine, I drained the oil....well, I guess you could say PART oil. Water and sludge came out of the crankcase. This is what it looks like when you decide to keep driving with a blown headgasket:


Pretty gross, eh?

I'll continue with more pics on my next post.
