Now the weekend progress.

First off I want to state very clearly that as much of an accomplishment as getting this car on the road was, it was only the 5th best thing that happened Friday. I built this car to be able to drive around with family and to enjoy our time with the top down and the personal accomplishment of getting a car on the road pales in comparison to other family events from Friday. The only (other) one of those five things was our first drive together as a family. My children and my wife all had monumental days, making this car getting inspected an "also-ran" level accomplishment. Life is a lot more than the wrenches that I turned to get here.

Soapbox aside, the final push was a bit frustrating. I was off work Friday (for those family things) but knew that I'd have some downtime and a rare opportunity to get the car inspected so I geared up for it Thursday night. If you are on the R3vlimited FB group you may have seen my frantic post about the process to get the turn signals working.

I temporarily wired up signals in the front bumper after a few minutes checking wire codes. I could get the running lights to work but the blinkers were a failure. The Hazard light would illuminate but not blink. Google (and R3V) to the rescue- likely culprit was the hazard relay. I attempted to open up the steering column but the steering wheel would not come off. After yanking on it for about 10 minutes I took a break for dinner and thought that pushing on the wheel might help release the lock. Presto- it worked, the wheel came off, I accessed the relay and after some cleaning of the contacts and adding a ziptie to hold it in place the hazards were working.

That done, I went to work on ensuring that the turn signals actually worked. I got them all working with some new bulbs and was good to go.

Some wiring photos:

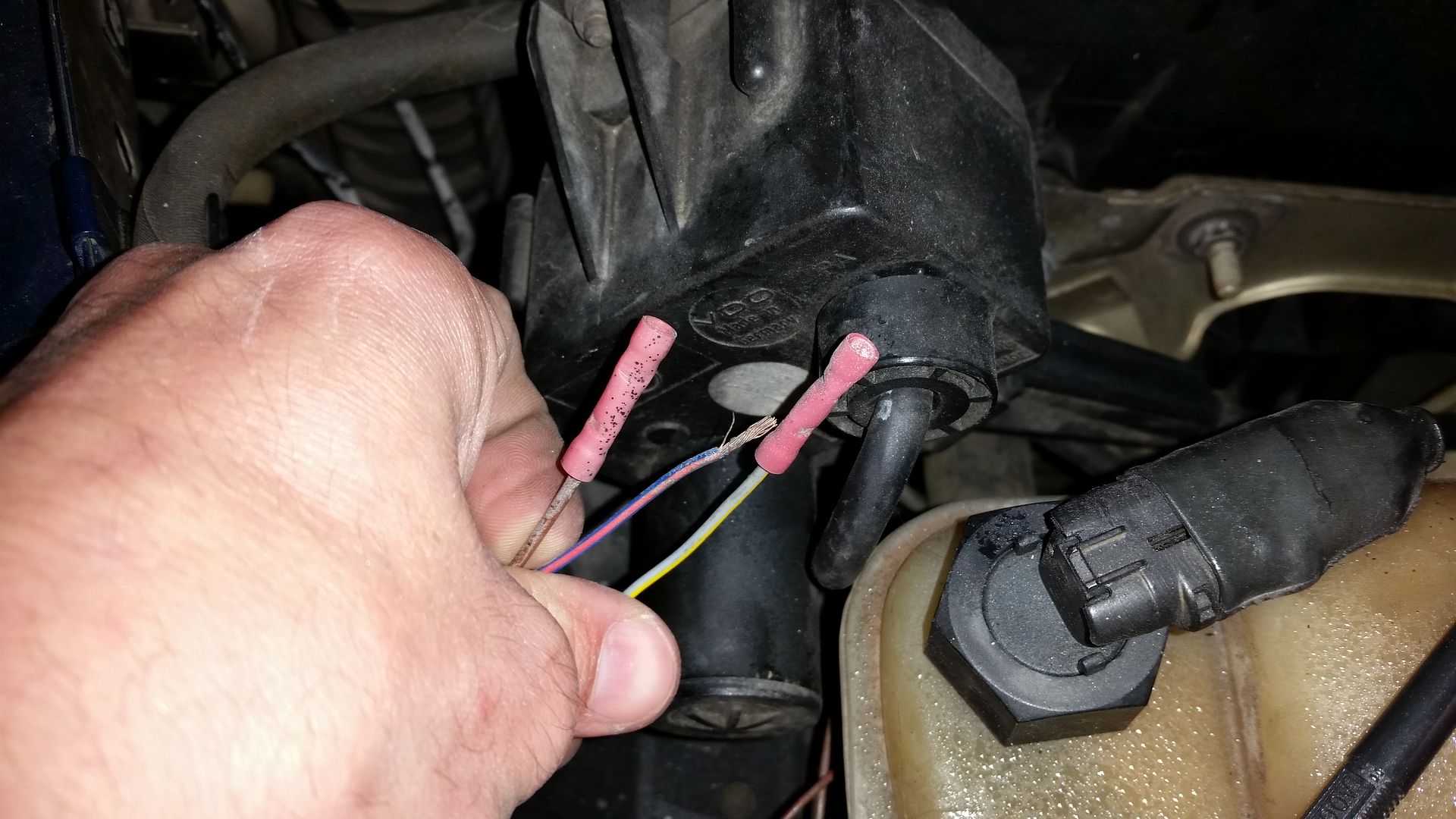

Leads, as they existed when I got the car:



Testing the Depo lights:

http://s90.photobucket.com/user/phenryiv1/media/89%20325iC/20150521_203308.jpg.html?sort=3&o=24

Once I had them working I called it a night.

Friday AM I got up, handled some family stuff, and then in my lull between "stuff" I went to work on the bumper.

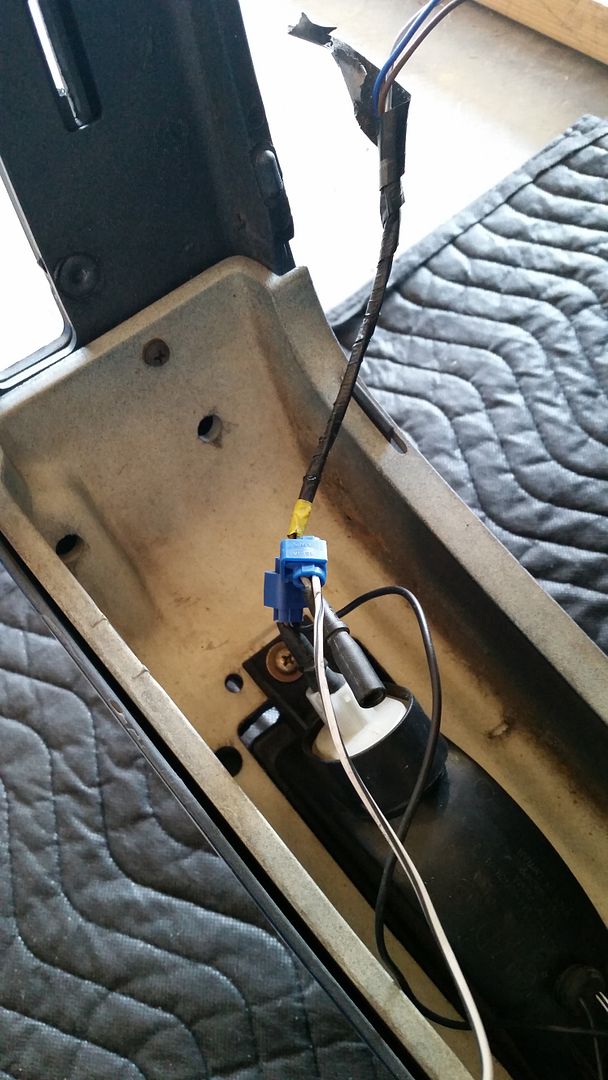

I used a moving blanket to protect the paint and got things wired up and ready to install:



I will admit- I used T-taps for the running lights. Shameful, I know. But It was the most straightforward way to use the common ground and to wire up 2 independent positive wires for the running lights and the turn/hazard indicators.



Independently taped, ziptied to secure them, and ready to install:

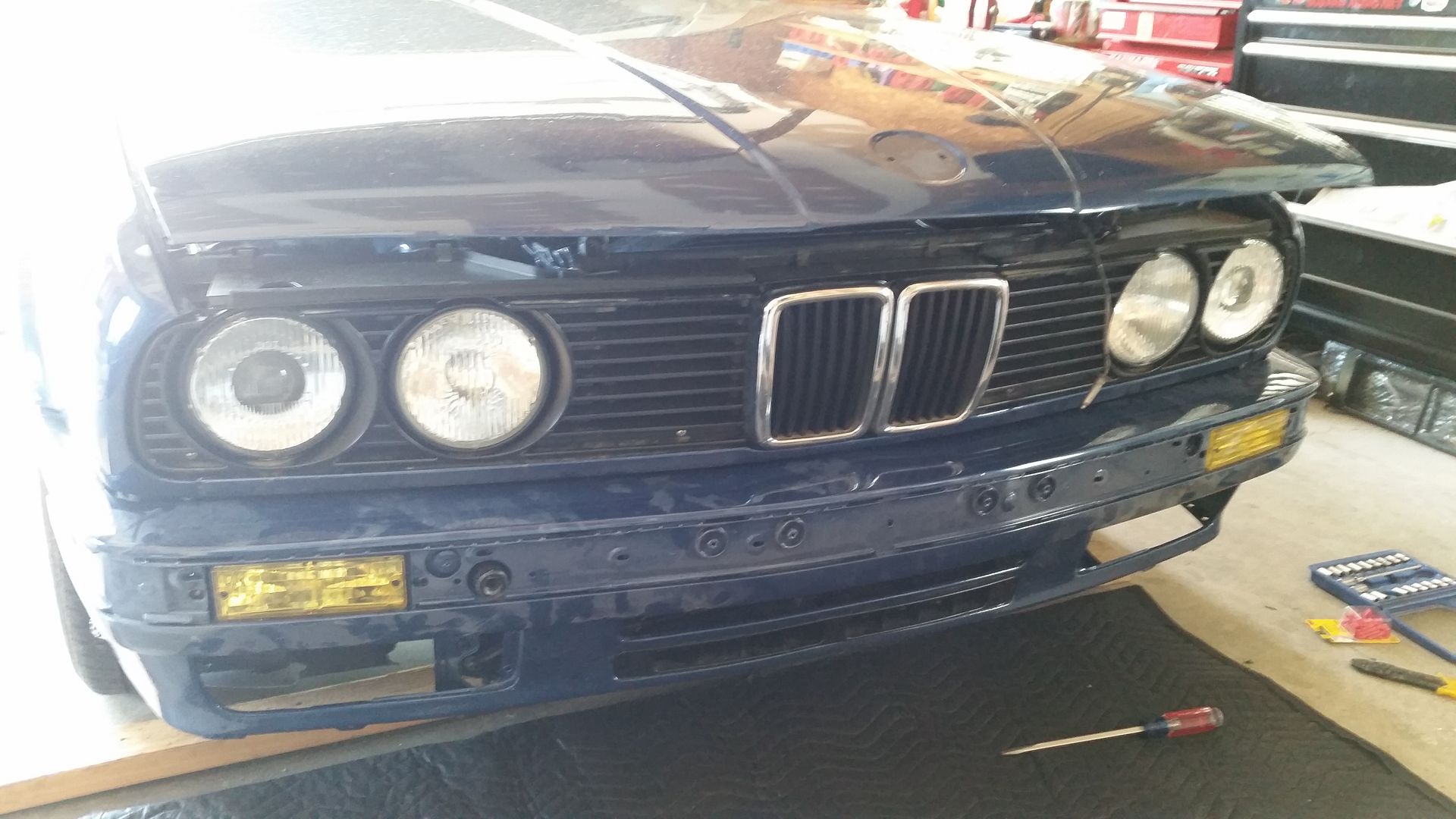

Lifted into place:

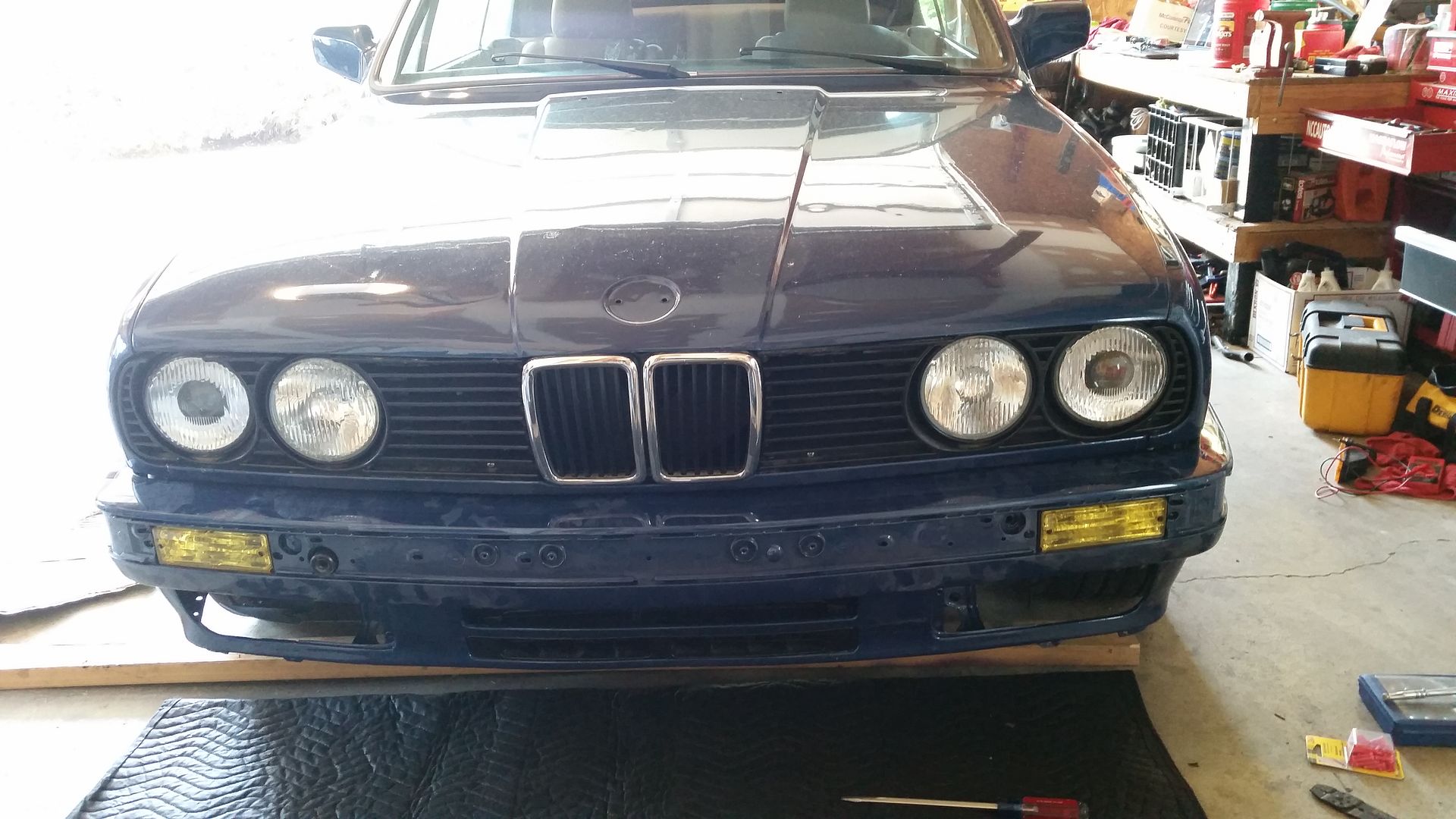

Backed out into the light:



Here is an example of the stupidity of my painter.



They failed to paint all the way down the fenders (on both sides of the car). The car was painted with the bumpers & valance off, yet they (inexplicably) taped off the lower fender where it meets the valance. Now it has to go back to the painter for correction. The only reason that I went to the trouble of re-assembly is that to legally drive it to the painter I needed to get it inspected, and to do that the lights had to work and it requires bumpers. Lots of work to correct the stupidity of someone else.

I still need to install the trim, lip, fogs, ducts, and a few other things but that will be done once all of the paint is done- I don't want to have to remove the bumper trim once it is installed. I also need the passenger side bumper bracket but for now the car looks okay with the passenger end free-hanging.

[phenryiv1]

HUGE (long) weekend. I'll start with the results:



Inspected...which means it was also driven. I finally got the car out on public roads and drove it at speed. After 16 months of waiting, buying, building, assembling, and otherwise obsessing over the car it finally rewarded me with the driving experience.

I rewarded her with a fresh tank of 92:





(Fill-up photos are obligatory, right?)

Some parking lot photos:





Obviously there is still a lot of work to be done but it will be alot easier to make future investments knowing that the car can be driven.

[phenryiv1]

HUGE (long) weekend. I'll start with the results:



Inspected...which means it was also driven. I finally got the car out on public roads and drove it at speed. After 16 months of waiting, buying, building, assembling, and otherwise obsessing over the car it finally rewarded me with the driving experience.

I rewarded her with a fresh tank of 92:





(Fill-up photos are obligatory, right?)

Some parking lot photos:

[irish44j]

lookin good!

[phenryiv1]

I assume that the bracket is not vert specific... I don't recall any plastic bumper cars at the yard I go to, but I am trying to run back there for a white hood for my car. I will look around while I am there, maybe Ill score some, hahah.

Brackets are universal for all plastic bumper cars. I can actually install the bumper and turn signals without it for the inspection (when I got the car the bumper was only attached by the front bumper shocks) but I want it on there for the long run. Every time I install/remove a part is a risk of scratching things so I was hoping to do it all at once but I want to try to do the inspection this weekend if possible.

If you find one let me know.

[rcsoundn1]

I assume that the bracket is not vert specific... I don't recall any plastic bumper cars at the yard I go to, but I am trying to run back there for a white hood for my car. I will look around while I am there, maybe Ill score some, hahah.

[phenryiv1]

BIG news:

The e30 is now insured, registered, and tagged!

My daughter was so excited that she insisted on installing the plate.



True 1989 vintage plate, no usage restrictions.



In not so happy news I discovered that a mouse had made a nest in the glovebox over the winter and ate some of the original documentation. I also went to bolt up the front plastic bumper sliders to allow for the install of the front bumper (and turn signals) so that I can get the car inspected and I discovered that instead of a left and right slider bracket, the person from whom I bought them actually sent me 2 left brackets.



Now I need a passenger / right side bracket. I am not amused.

Part # 51111953098

#2 in this picture:

[phenryiv1]

So the Garagistic front strut tower brace arrived (9 days in transit!!!) and it fit as expected.

Nice quality piece but their idea of "grey" and mine are a bit different. This is silver- not grey. Given that I just painted my IM (not the one in the picture below) grey in anticipation of the bar arriving I am a bit disappointed.





Still, the fit was good and the quality/finish is solid.

[phenryiv1]

A little more progress.

So in an odd twist, my horn started working, out of the blue. I had installed my MTech II wheel a while back and the horn never worked. All weekend it worked. Weird.

Next up, I finally installed the other convertible top frame shock. The passenger side took longer than the driver's side due to the issues with properly locating the pin that holds it in place. For those who have never done it, none of this will make sense. For anyone who is reading this and has done it or is looking to do it, it should help.

Initially I tried to position the shock then to use needlenose pliers to install the pin but that was a no-go. I finally nested the pin with the tip barely in the alignment hole, "closed" it around the base of the shock (where the ball is installed when it is on the car) and popped the ball in place, then I used a screwdriver to push the pin straight down, where it locked into the locating groove. Doing it this way had the pin in a solid spot during install but it was not engaged until I pushed it down with the screwdriver- no need to rotate it at all.

I also adjusted the toe a bit. I did it by eye (still need to set up a square rig to check it for real) but I calculated my camber angle while I was at it.

1.90* on the passenger side and 2.28* on the driver's side. Bringing the toe in helped with the appearance of the crazy camber. Now it looks like this:







I also painted the IM for when I do my head swap later this summer. Nothing drastic- I just cleaned it up with a wire wheel and hit it with a few coats of grey Rustoleum.

I ran the wire wheel into the IM ports and a ton of dirty soot came out. I used copious amounts of brake cleaner and it seems to be a lot cleaner now. You can see the soot outside of the ports in the pictures.





Since my strut tower bar is grey I thought it would be a good color for the IM. I was not interested in paying for it to be powdercoated.

In other news I drove the car to the end of the road and back again. No funny noises (except the tires rubbing on the fender liners) and no evidence of leaking, save for a slow weeping leak at the oil drain bolt.

I am still seeing an "oil" light in the overhead check panel but I am pretty sure that the level sensor is screwed up. I checked the level by the dipsitck and I am good so my guess is that the ball is stuck in the sensor. I have a spare so I'll clean it up and swap it out at the next oil change.

[phenryiv1]

New toys!



Momo 2006 hub and the Sparco horn button. I just could not find a Momo horn that I liked as well as the basic Sparco one. Hopefully I can get these installed this weekend and get to work on a DIY tie adjustment.

[phenryiv1]

Sooooo...

I got the car back on the ground last night and drove it (briefly) to check function.

We'll start with pictures. Looks like toe and camber may be a mess. I did the best that I could by eye/tape when the steering rack was out of the car but apparently I was not so good with the toe. I can understand that the rack moves when it is re-installed so I am not too worried about toe, since it is easily adjusted.

Center:



Side v. side:





The camber on the driver's side concerns me.

The driver's side has been a source of anxiety for a while now, but I moved forward with the car after assurances from the body shop that the frame was within spec.

When I was prepping the car for paint I noticed that there was concealed damage behind the fender:







This was the frame after the repair:



Ugly, but supposedly straight.

If you look back to the pre-paint/post-paint pictures, camber was aggressive, even after removing the coilovers and camber plates.





Not horrible in those pictures before the rack swap so maybe the toe is making it look worse.

Since I ordered the Garagistic front strut bar ( http://www.r3vlimited.com/board/showthread.php?t=351946 ) I will have an opportunity to check the locations of the strut towers. The strut bars apparently fit perfectly on unmolested strut towers. If mine does not fit then I will be on the warpath with the body shop, as I specifically told them NOT to paint the car if that tower was not 100% within spec. The bar shipped last week so hopefully it arrives soon.

In other news, I ordered the Momo hub (2006) and a Sparco horn button from OG Racing. I bought an MTech II (I think it is a II) wheel a while back and just don't like it as much as the Monte Carlo wheel that I got a while back. The hub and horn will let me install the Monte Carlo and get rid of the MTech wheel.

I have so many parts that I need to start getting rid of anything that is not needed for the build. I bought a lot of parts along the way- many of them applicative of other similar parts.

On a very positive note, the brakes feel awesome. I am very happy with the pedal feel after replacing the pads and rotors and completely flushing the lines. The whole flush/bleed process will be repeated when I do the rear subframe but for now the improvement is awesome.

Assuming my plates arrive this week I might get her on the road next week. I will be taking it for an alignment right away, followed by a trip back to the body/paint shop for some punch list work.

[95maxrider]

Jeebus....

[phenryiv1]

Got the chance to bleed the brakes last night, but not without drama.



I broke out my new Motive bleeder (I got the black label version with the metal cap) and some fresh ATE 200 fluid, checked the connections and did a pressure test, as called for in the Motive directions. I aired up to 10 PSI and it held pressure so I opened it up, added the fluid to the Motive, aired up to 15 PSI and...fluid everywhere. Floor, tubing, motive...everywhere.

Next step, de-pressurize, re-tape (with teflon tape) the connection between the bleeder and the adapter hose, re-test for pressure. Still held pressure so I added fluid again and pumped up to 15 PSI. Went to the right rear bleed screw and opened it up...nothing. Aired up to 18 PSI, checked the bleed screw...nothing.

W...T...(actual)...F?

Got frustrated and kept loosening the bleed screw...nothing- right up until the bleed screw fell out and fluid flowed forth everywhere. I had the Motive pretty full so I was not worried about running into air but I had to diagnose it in a hurry. I took one look at the bleed screw and could tell that it was clogged. I had my old front calipers nearby so I pulled the screw off of there in a hurry and installed it in place of the original rear screw. With the bleed screw back in place I went to work on the original rear bleed screw and ran some bailing wire into the hole to clear gunk and debris that were in there from negligence by the PO. Fortunately the thin wire cleared it and I re-installed it, allowing the line and caliper to bleed properly.

I used the front caliper screw and repeated the process on the left rear. No pictures as I was in a hurry and my hands were coated with brake fluid but this is the 4th time in 2 weeks that my garage floor has met kitty litter.

Up front there was no drama- new calipers make for easy bleeding, and at least with the volume of fluid that pumped through I know that the lines are clear of old fluid.

I was too dirty to try to drive the car last night (plus my wife was short on patience since I was supposed to be bathing the kids) so the test drive will have to wait.

[phenryiv1]

Not much more progress due to yard work and Mothers' Day but I did finish bolting up the rear brakes. Now I need to try my new Motive bleeder and do final grinding on the steering knuckle.







I also ordered a 1989 license plate for the E30. WV has some weird law pertaining to antique or vintage plates that allows me to run an original license plate and registration sticker on the car- meaning one that was originally issued in 1989- in place of a regular plate or an antique plate.

http://www.legis.state.wv.us/wvcode/ChapterEntire.cfm?chap=17a&art=10&section=3A

Regular plates are charged regular annual fees and "Antique" plates (while only costing $2 per year to register) have restrictions on usage that limit them to weekend and "club" use. The use of an original 1989-issued plate allows me to pay the $2 per year but run it any time. Plus the vintage plate looks cooler than the new ones.

I also got an insurance quote for the car at an agreed value and found it to be pretty cheap for a $10K agreed value ($38/month) for full collision/liability/comprehensive/towing/glass coverage.

As soon as the plates come in I will be getting this thing on the road for a visit to the alignment shop, a trip back to the paint shop for some punch list items, and then on the road she goes!

[phenryiv1]

Another small update:

Last night I had some time to kill before my wife got home with the kids so I started on the rear brakes. As with the fornt, one of the set screws was stuck in the hub so I went through the progression: Allen, Torx, EZout...all failed. Finally I drilled out the head and gave it a nice whack with a hammer and the rotor came off. Fortunately this time (unlike the front driver's side) the remaining portion of the screw came out so I can replace the screw when I get a fresh set.



On with the new stuff- pads, rotors, sensor, and the rear outer SS line. I also lubricated the caliper and inspected the pins. I admit- I was too lazy to fight with the inner SS lines but I can tell that the RTABs and subframe bushings will need to come out sooner as opposed to later so I will do it then. I know that they are the weak link for now but they seem to be in fairly good shape based on a visual inspection.



I will probably do the e-brake cables at the same time as the RTABs/subframe bushings. For now I lubed the moving parts of the e-brake and will be satisfied with the improvements.

I still need to do the driver's side but it is all apart- I just need to swap the SS line and install the pads.

Last update for now was one of those little things that was bugging me- the passenger side sun visor was not staying in place. I bought one off of here in the matching color and tossed it in a parts box. This weekend I stumbled across it and noticed 2 issues: 1., it is from an airbag car so it has the airbag info on it, and 2., it has a 3-hole mounting system as opposed to the 2-hole configuration on mine. This one was originally for a car with a light in the ceiling so I don't know if the 3-hole design is specific to that, whether it changed with airbag models, or whether convertibles are the only 2-hole version. At any rate, it was wrong.

I took both apart and removed the 2-hole mount from the original visor, trimmed some plastic on the new one, and replaced the spring and mounting portions on my new visor. I used a push nut from a bubble pack form Advanced Auto and locked it all down.





Hint: Don't do it like this. This is backwards:
