2012 concept bike build, my Honours year Industrial Design project!

[JamesE30]

ok another update to show some of the final stages of fiberglass..

I'll try skip through this bit quickly since the bike is finished, and I know you will want to see the result!

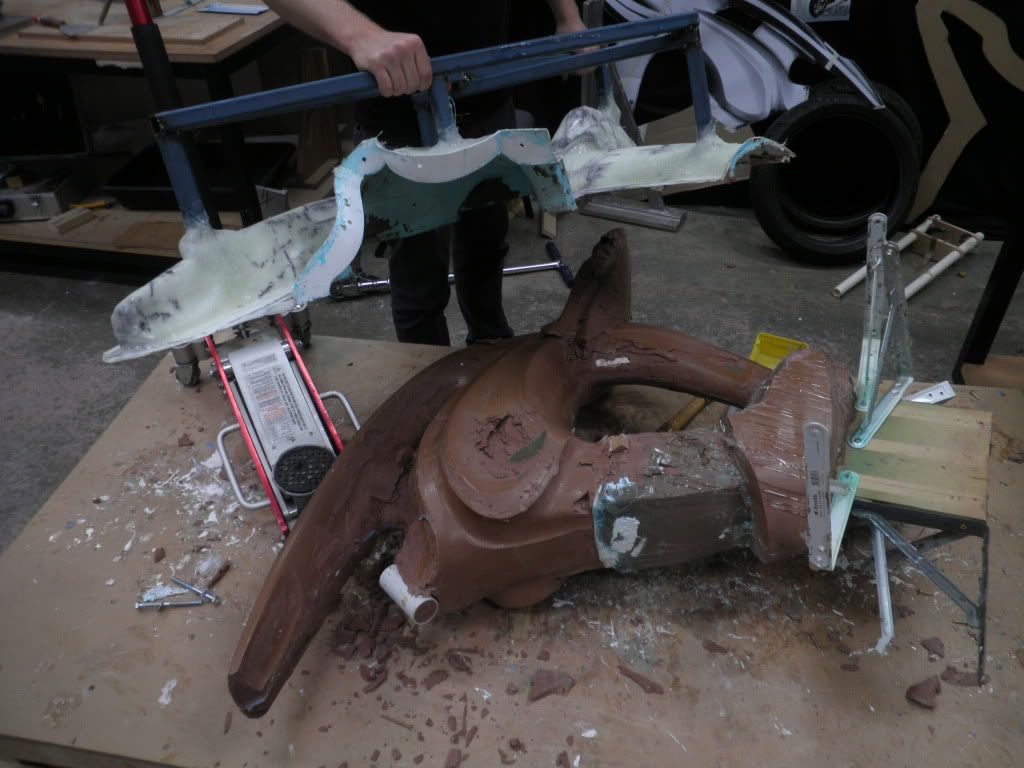

Prying the moulds apart was a 2 day job!

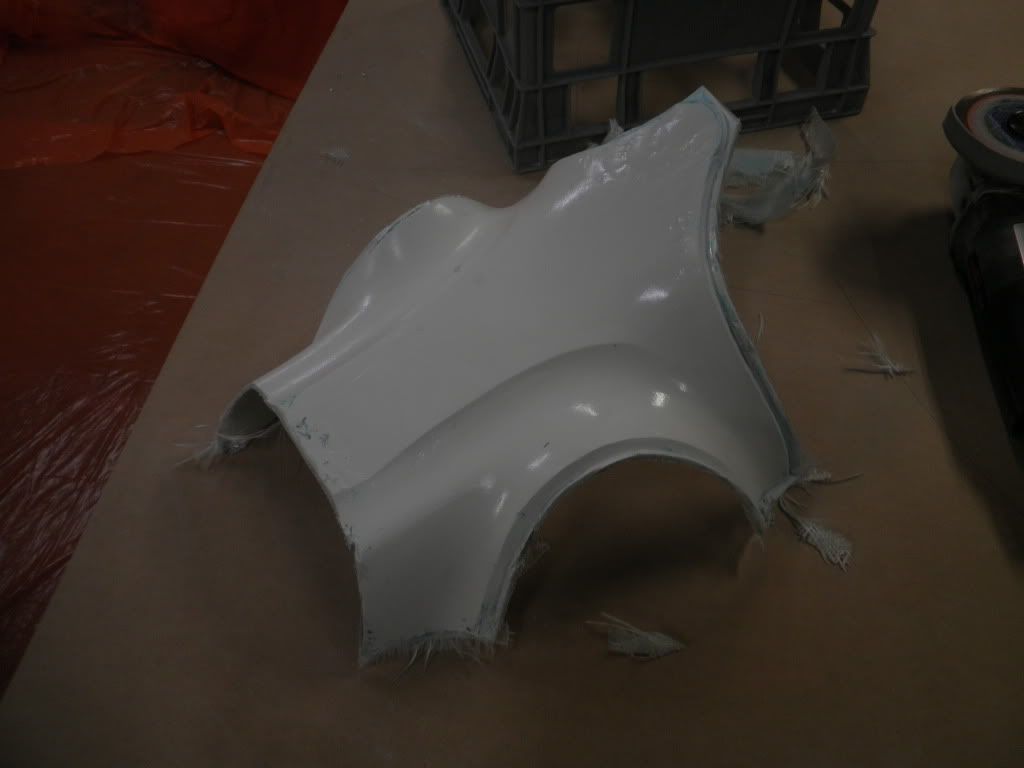

After moulds are prepped and laid up with the fibreglass parts:

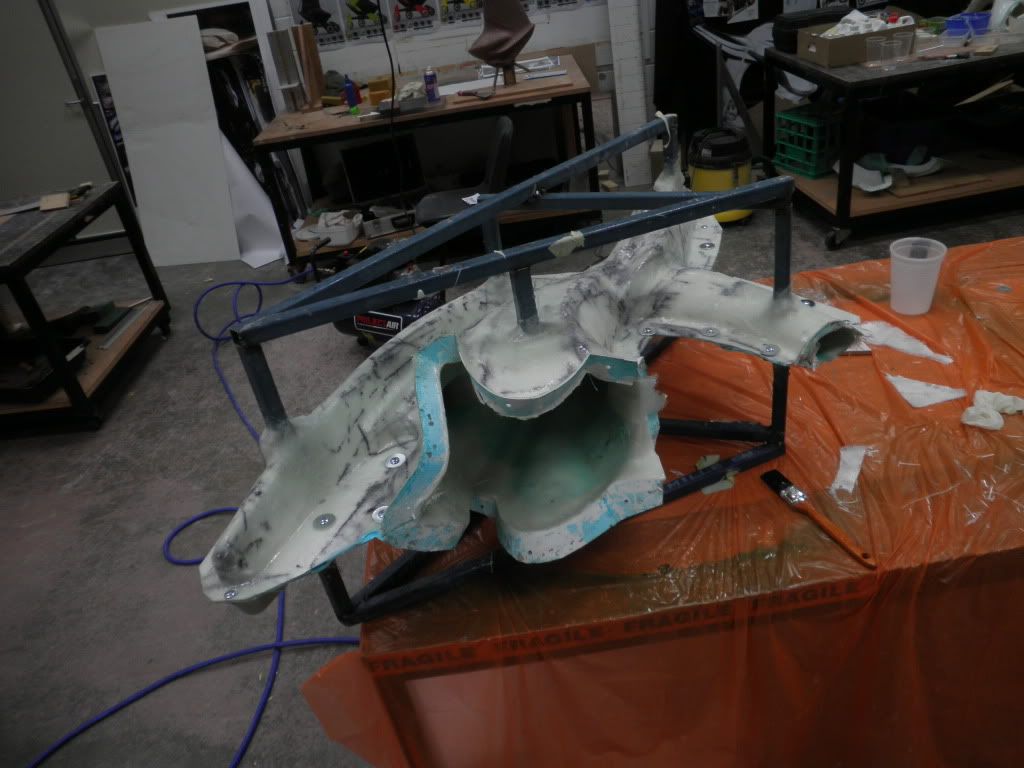

I decided to bond the parts together inside the moulds to keep everything alighned.. was just hoping the moulds would come off without destroying anything... :/

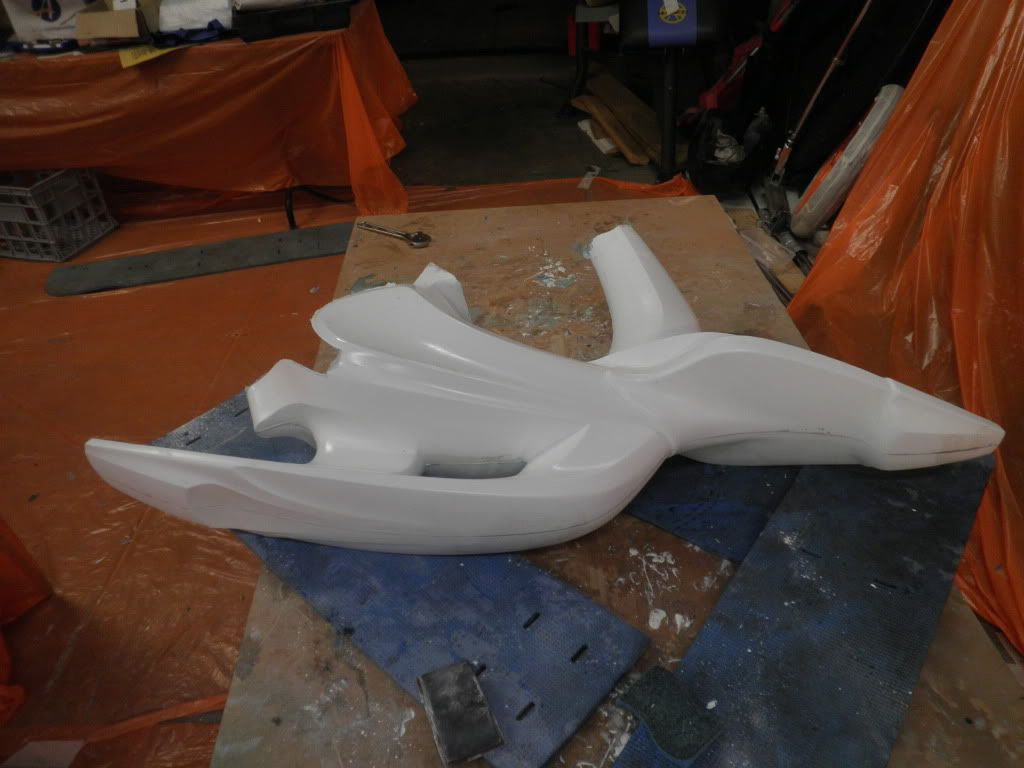

Bonded together with epoxy resin:

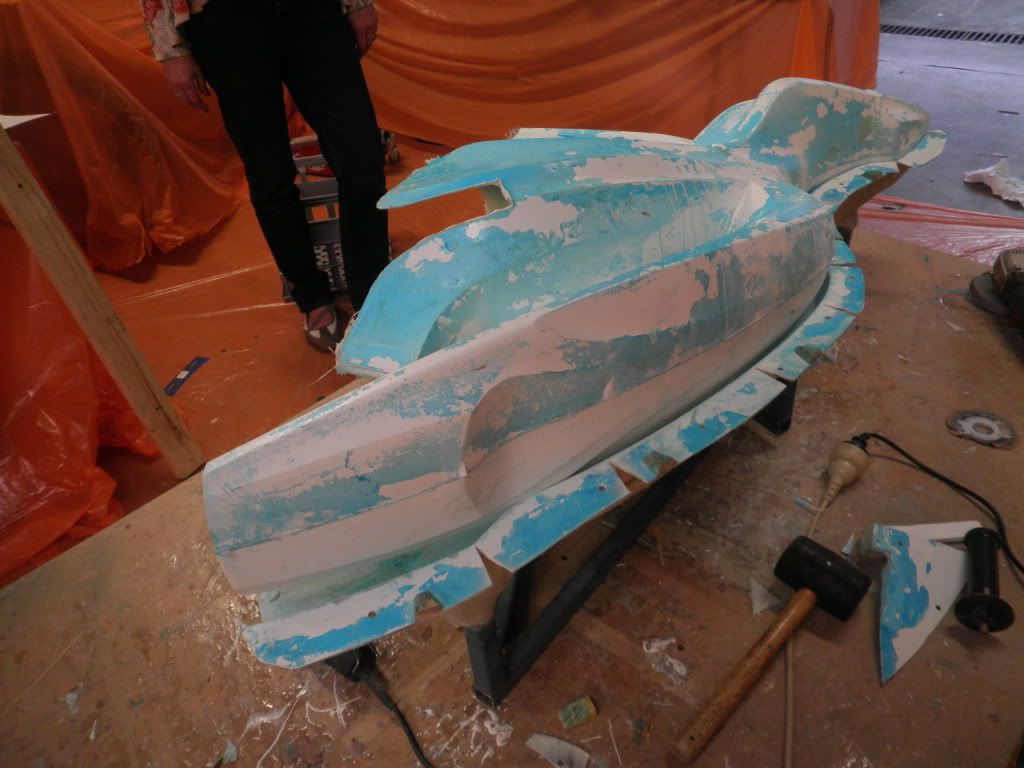

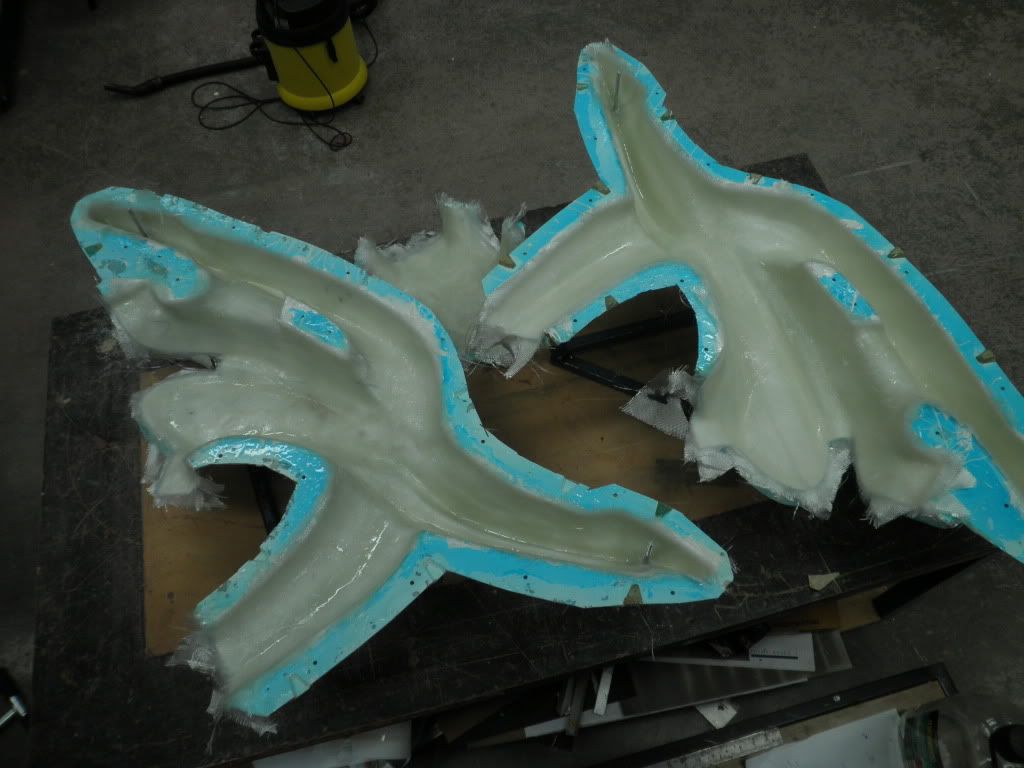

Moulds apart eventually! (don't underestimate how difficult this was, advice to anyone making moulds is use a fuck load of draft angle, you can never have too much...)

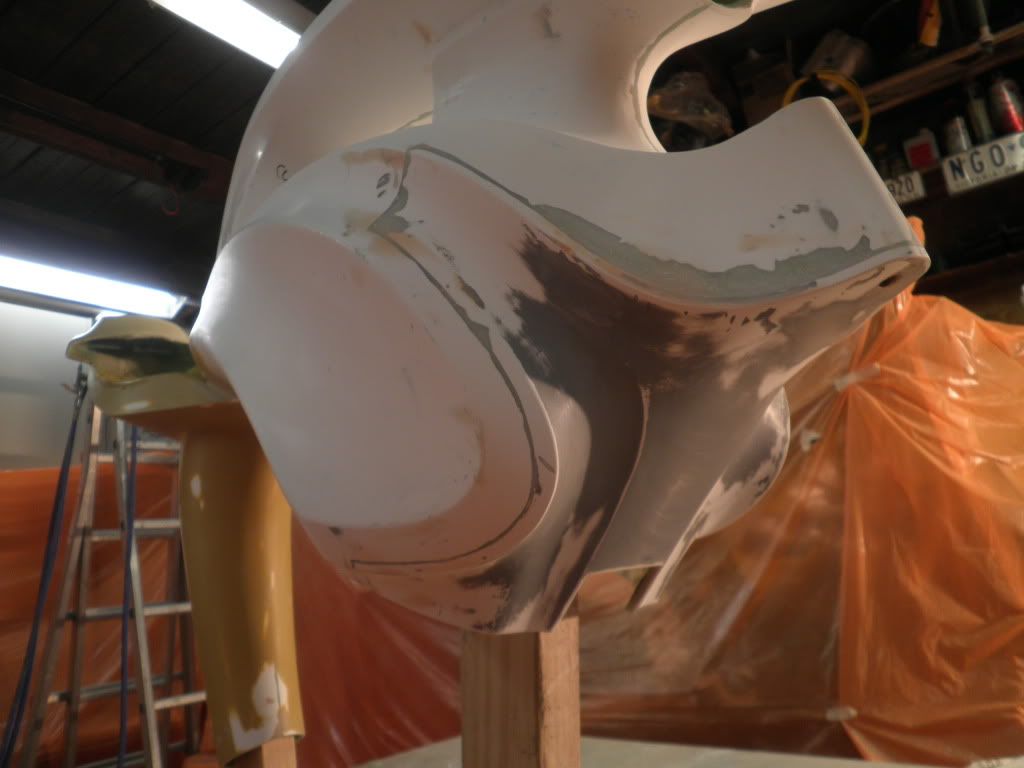

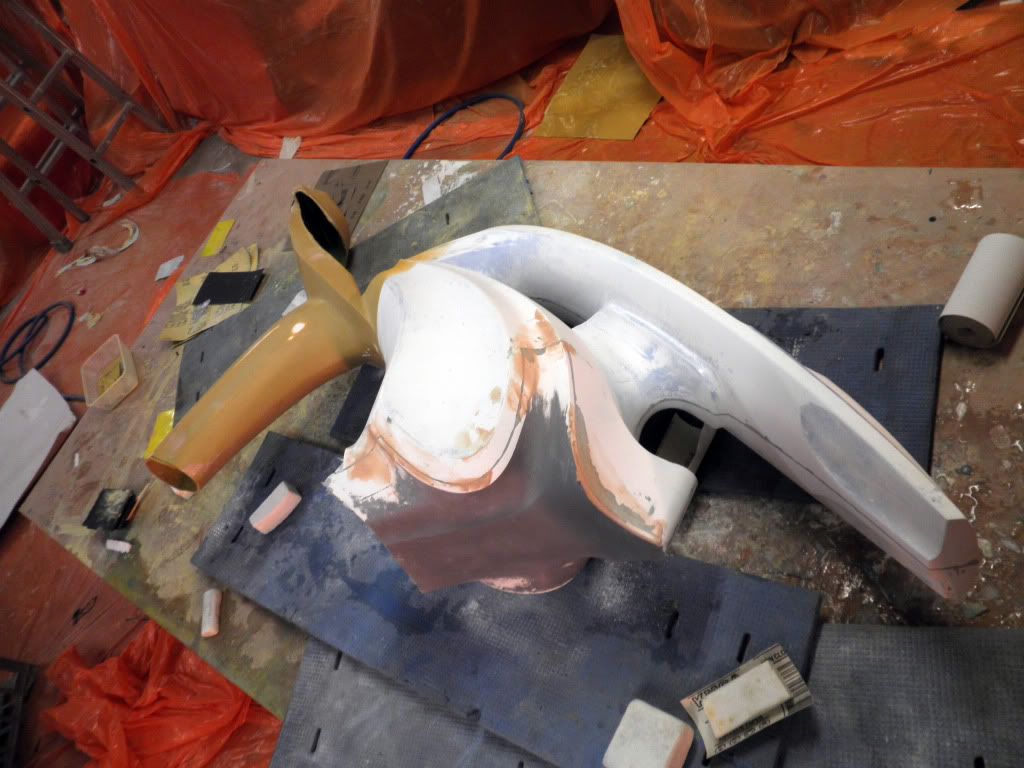

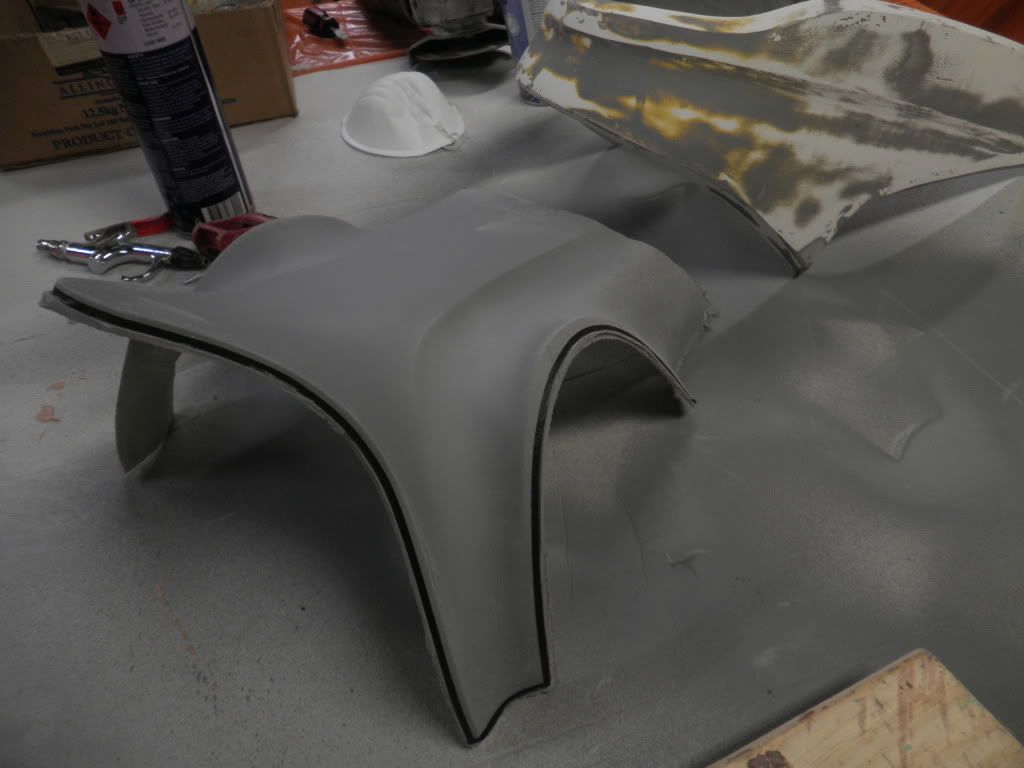

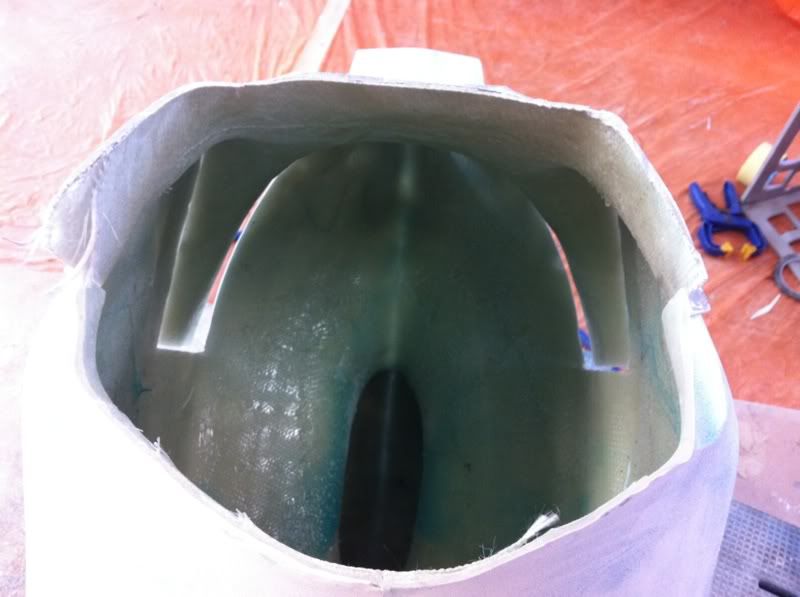

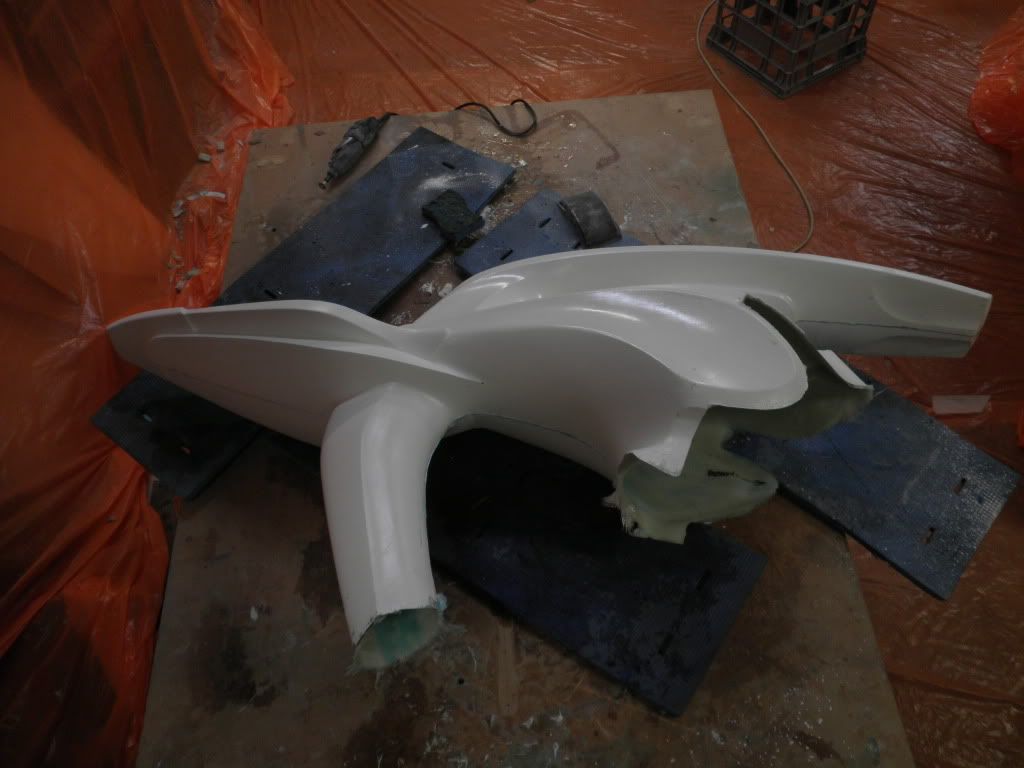

This bitch of a piece took a lot of work to fit but, got there in the end, you can see below how far off it was..

[JamesE30]

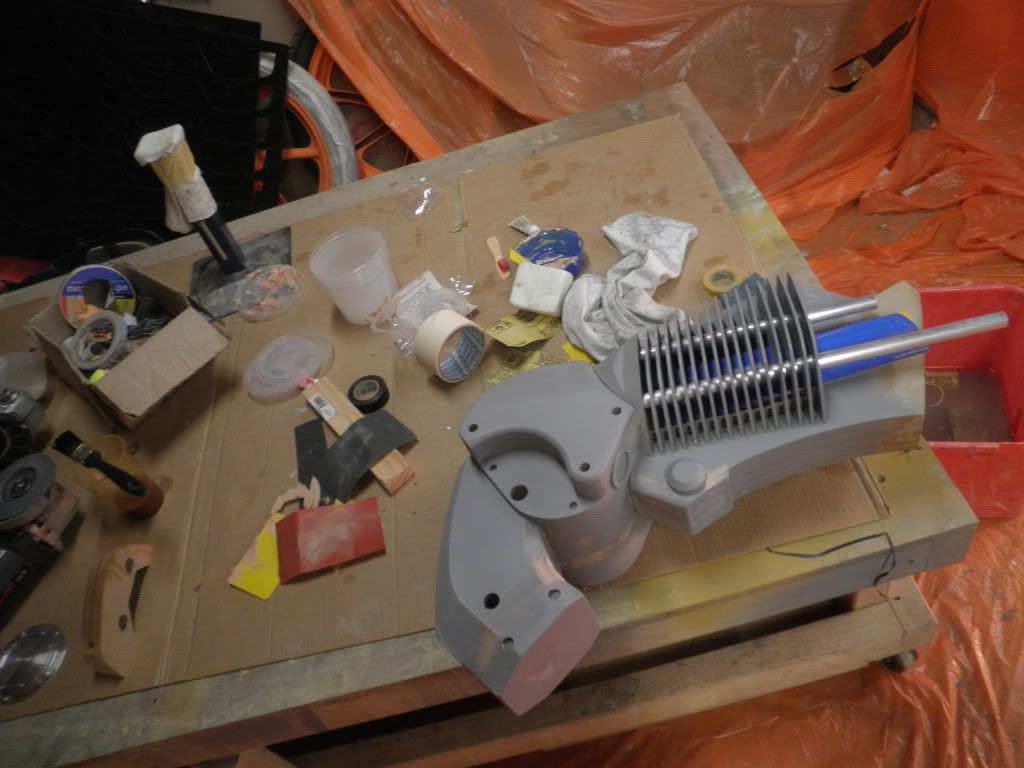

Test fitting the "engine:

[JamesE30]

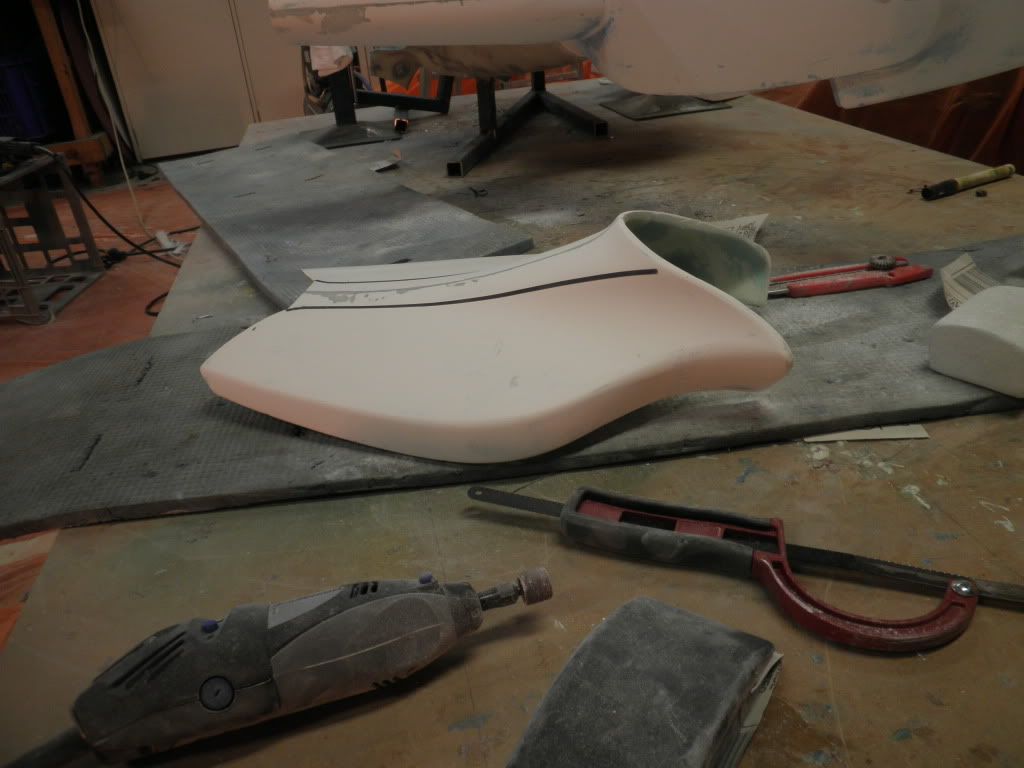

work on the engine and other little bits:






That preetttyyy much brings us up to the point where I had to send my journal off,so it could be printed in time.. This was about 6-10 days before deadline.. and I still had a lot to make.. so there were not too many photos taken after this

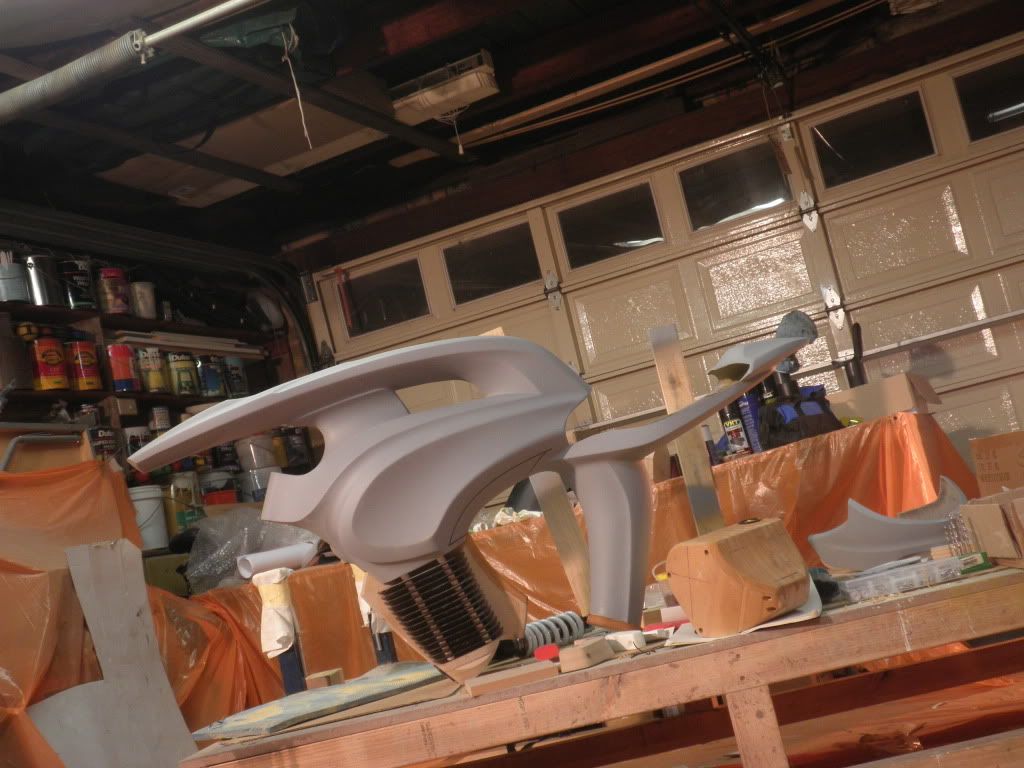

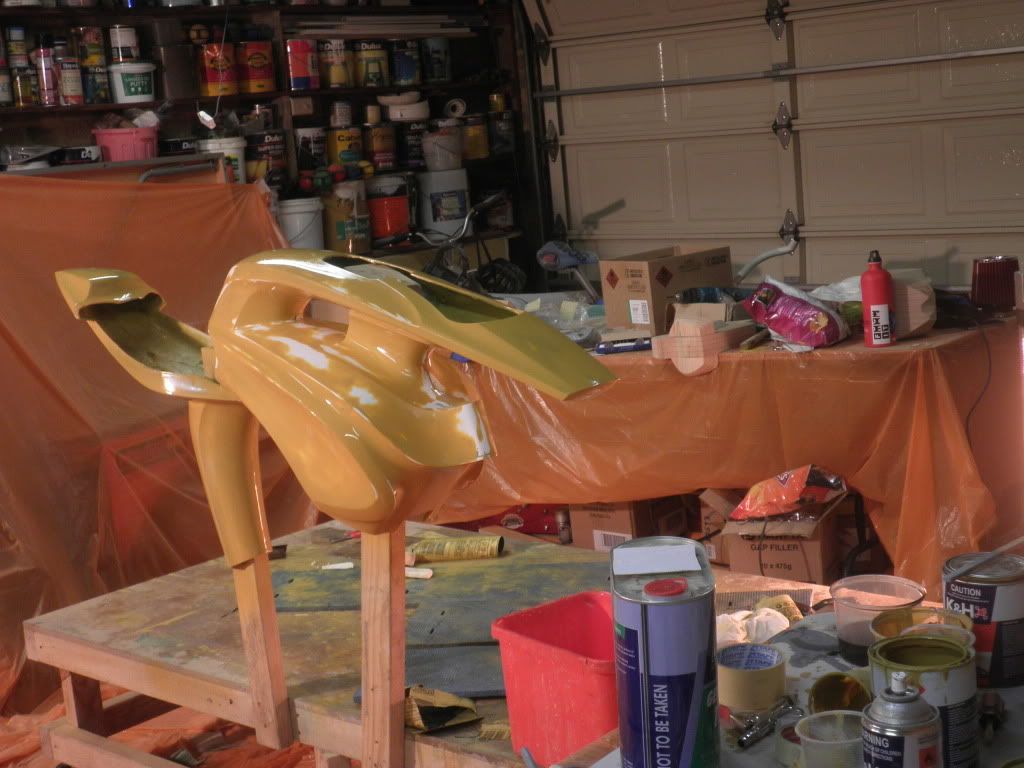

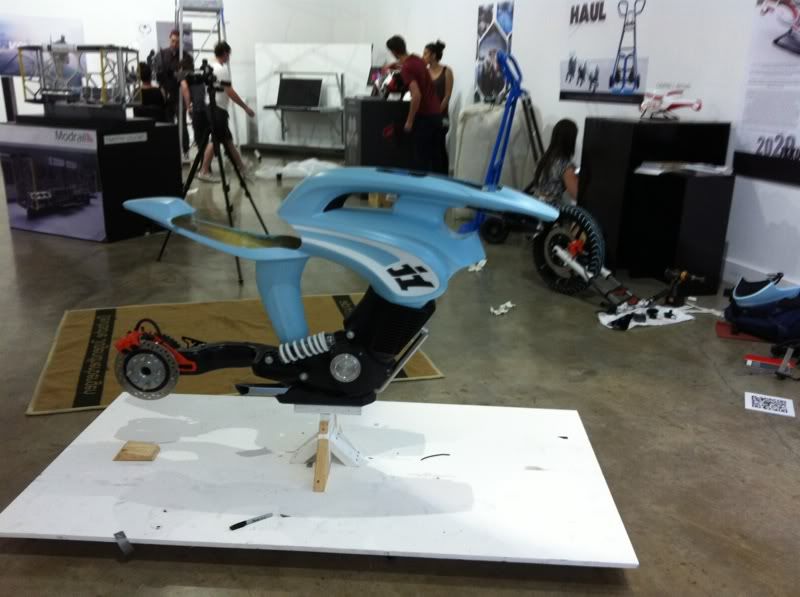

So I'll cut forward a bit, and here's a little teaser of the final assembly..

High res shots coming soon!

[Fusion]

Impressive! I would love to create stuff like this.

[5spoke]

Awesome, is there any major frame support? Will it be strong enough to sit on?

[masduro]

Good work. My work:: http://anthonycioffidesign.com/PROJECTS_updated.html

[N2MYE30]

Looking good!!! :up:

[JamesE30]

Thanks again guys

Good work. My work:: http://anthonycioffidesign.com/PROJECTS_updated.html

NICE! steam moto1928 is awesome, some great style an themes in your sketches.

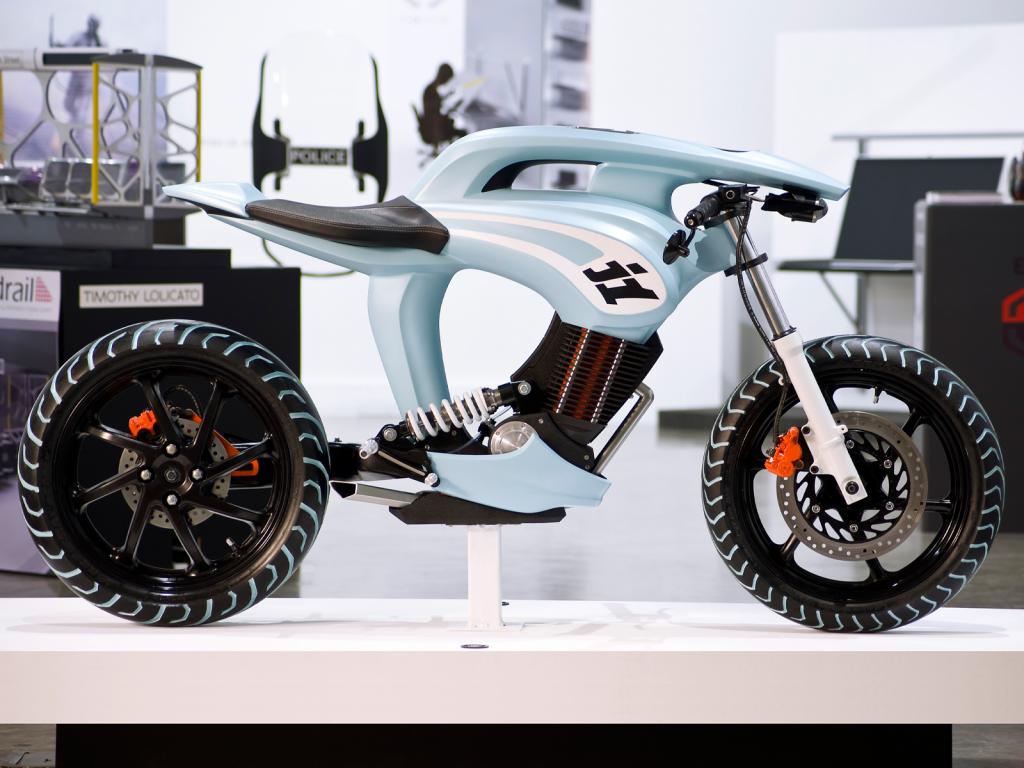

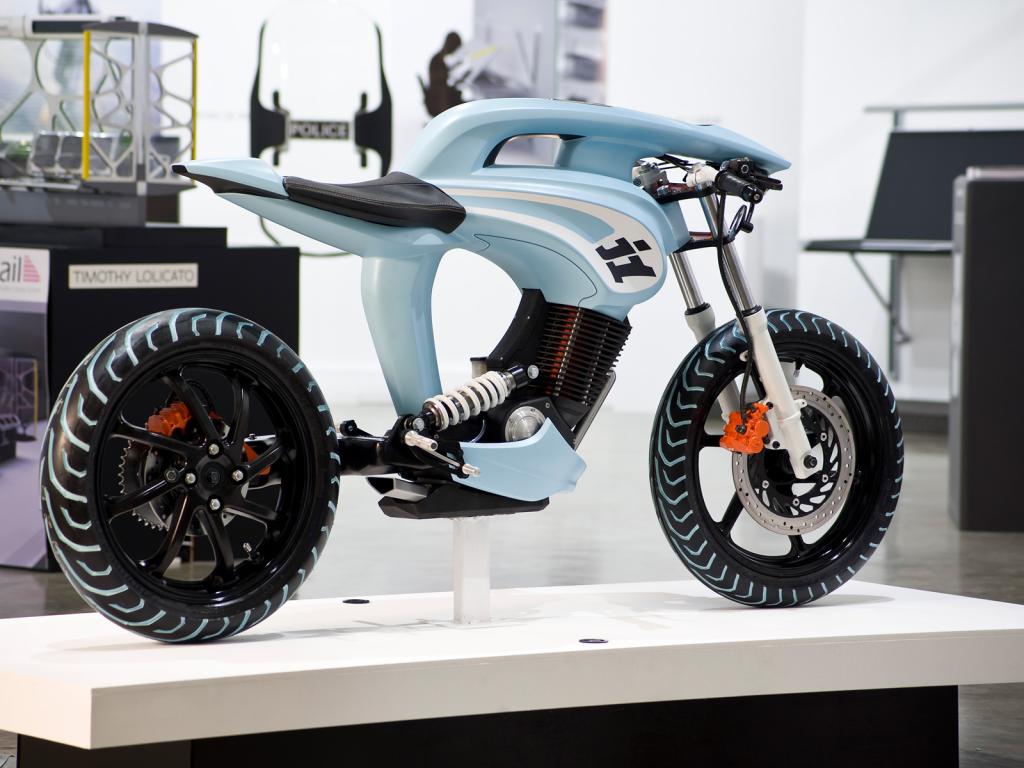

Sorry I kind of forgot to update this thread and kind of conclude it but here are some final shots of the model..
