    Latest welding project -- sheet metal organizer

    At work we do sublimation (prints on metal). It just recently got very busy and we needed some better organization for the various sheet metal we stock. Gloss aluminum, matte aluminum, clear aluminum and gloss steel. The casters I used are from Northern Tool (great pricing).

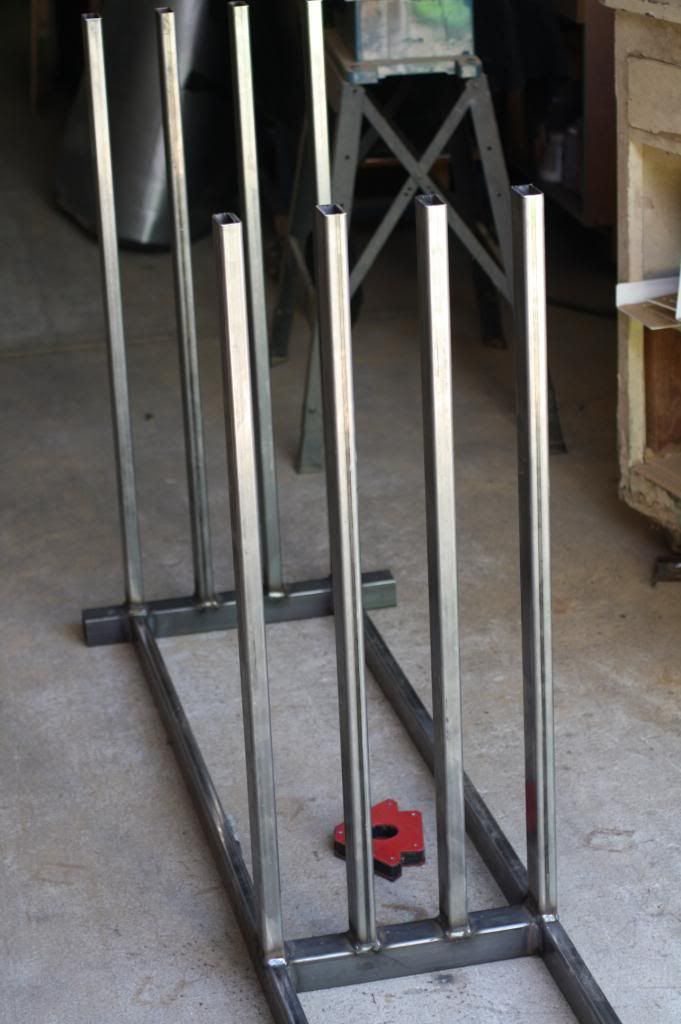

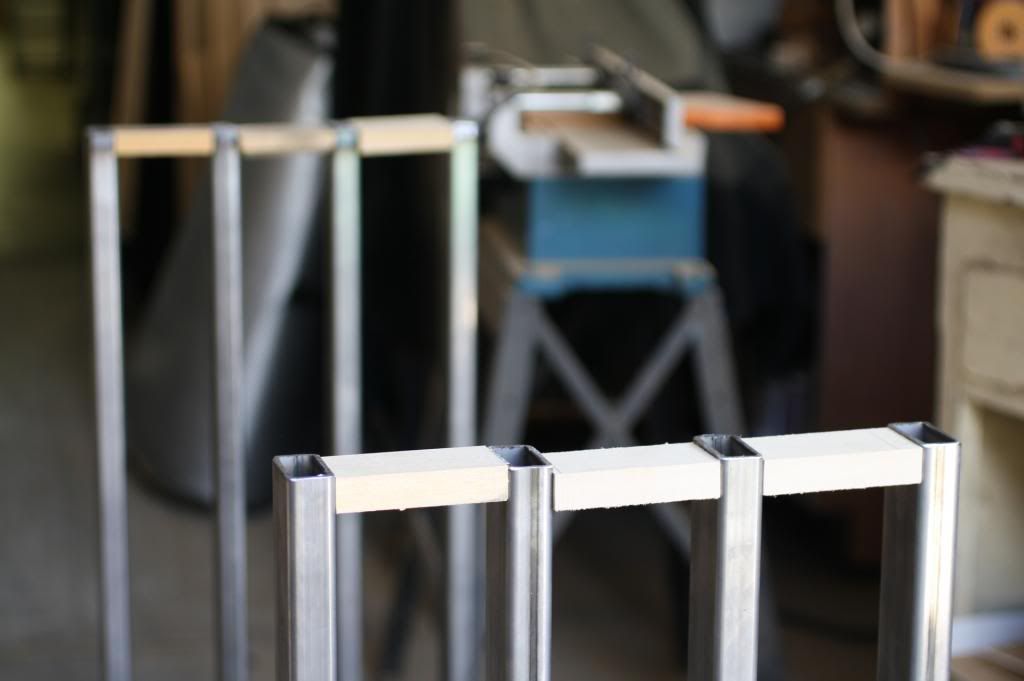

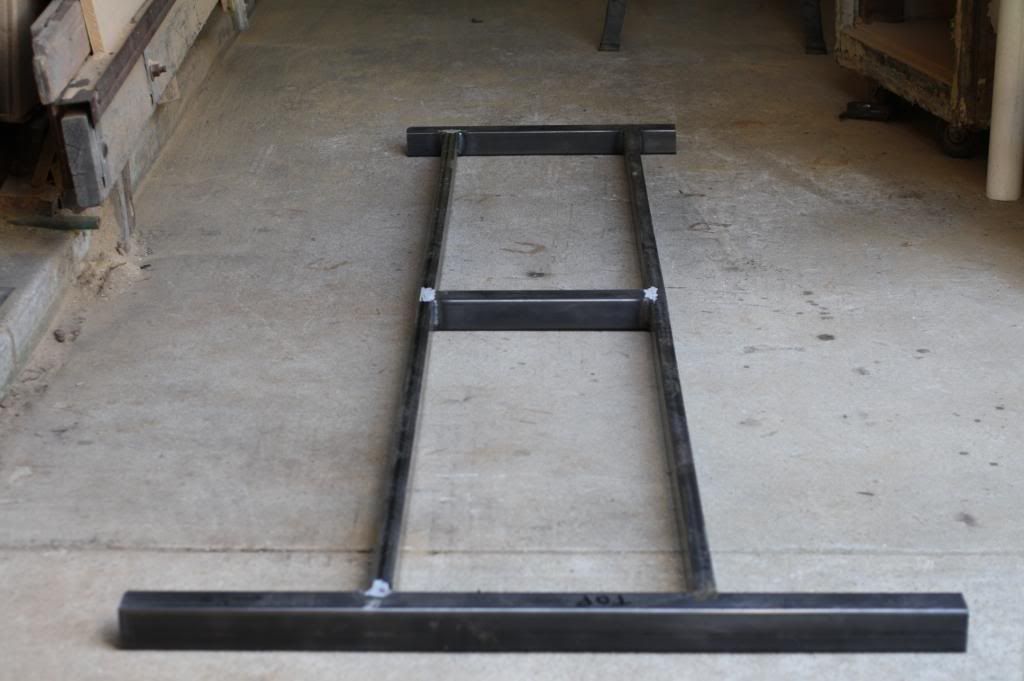

    Front supports

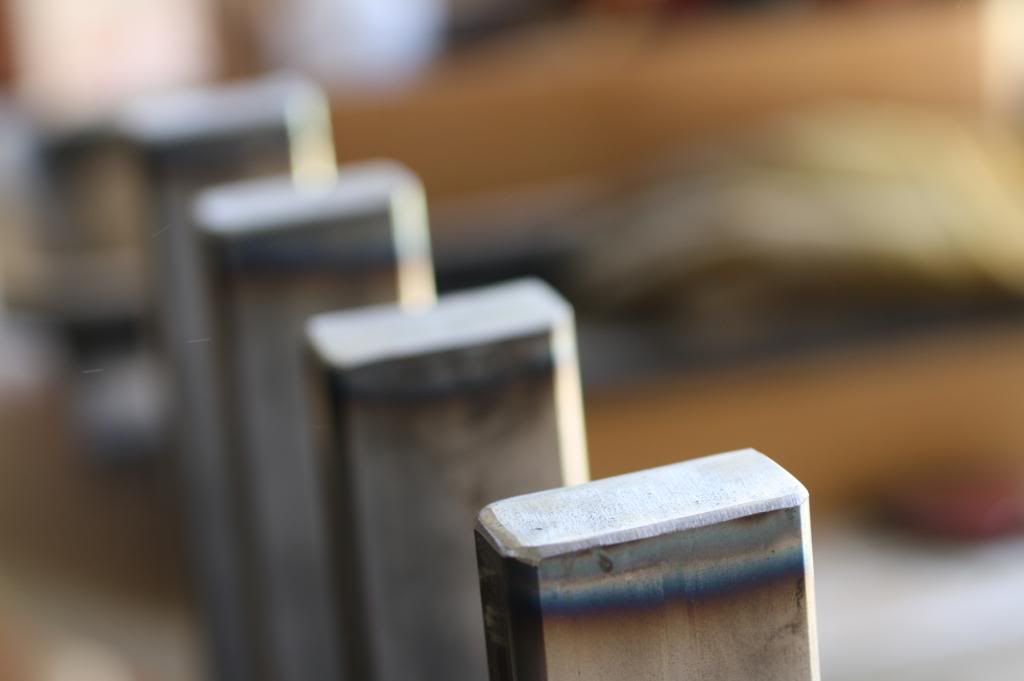

    Capped

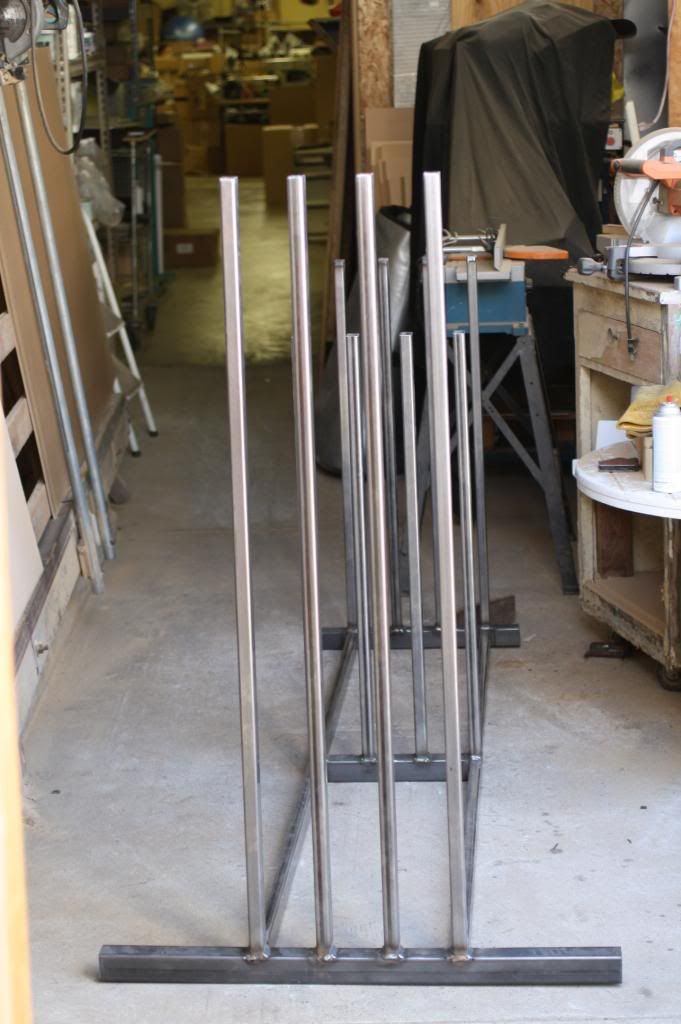

    Middle supports



    Tall supports

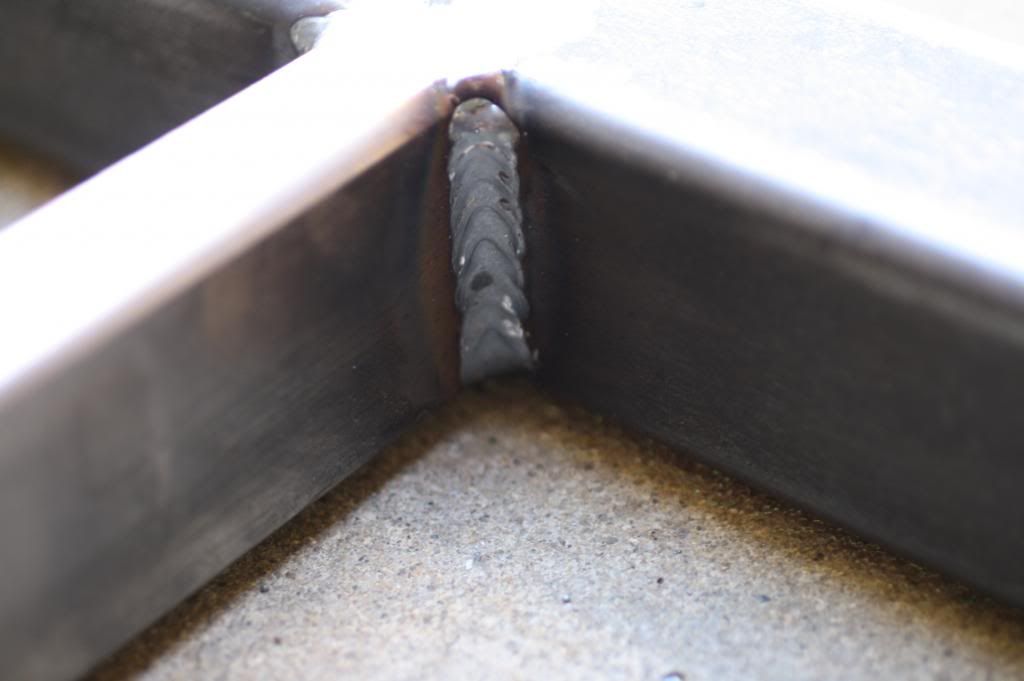

    Obligatory pic of welds

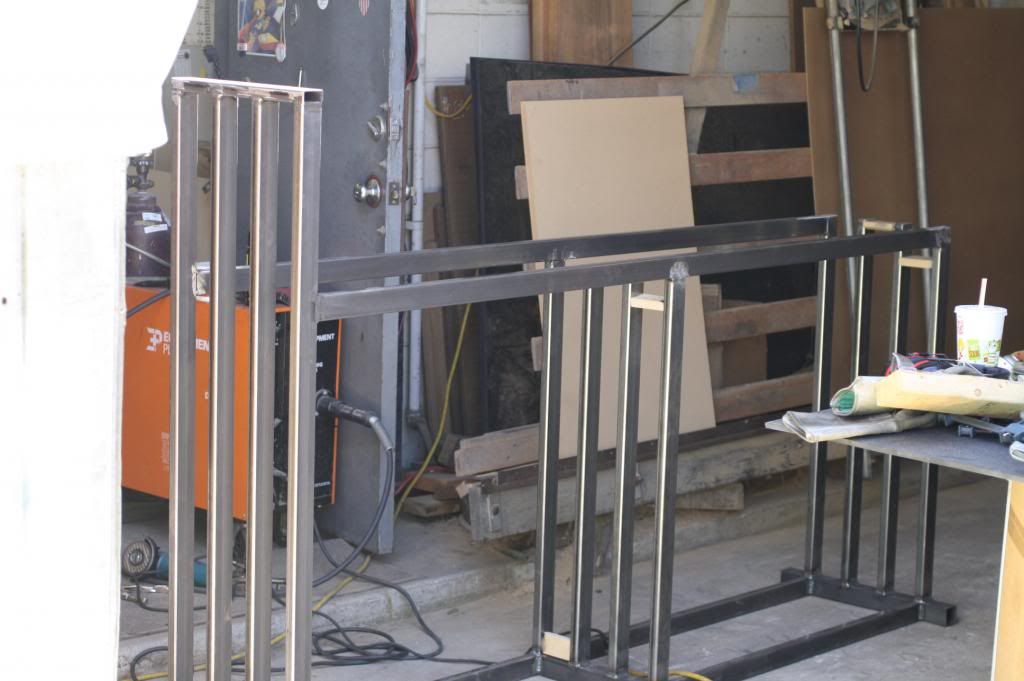

    Made some spacers to keep everything spread out evenly while I welded the top slats together



    [/QUOTE]

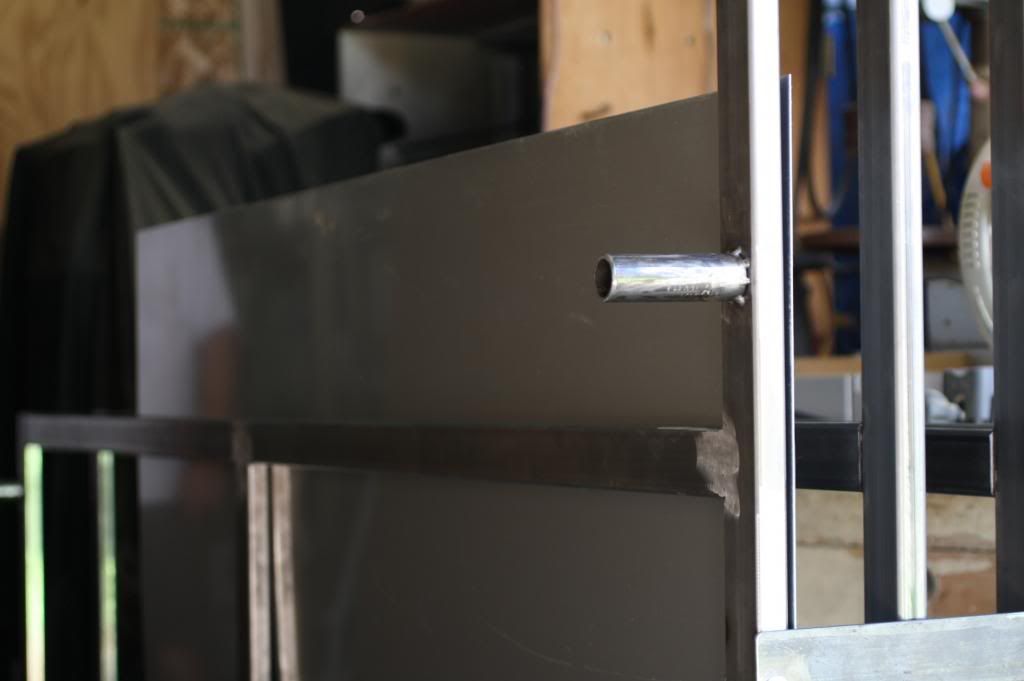

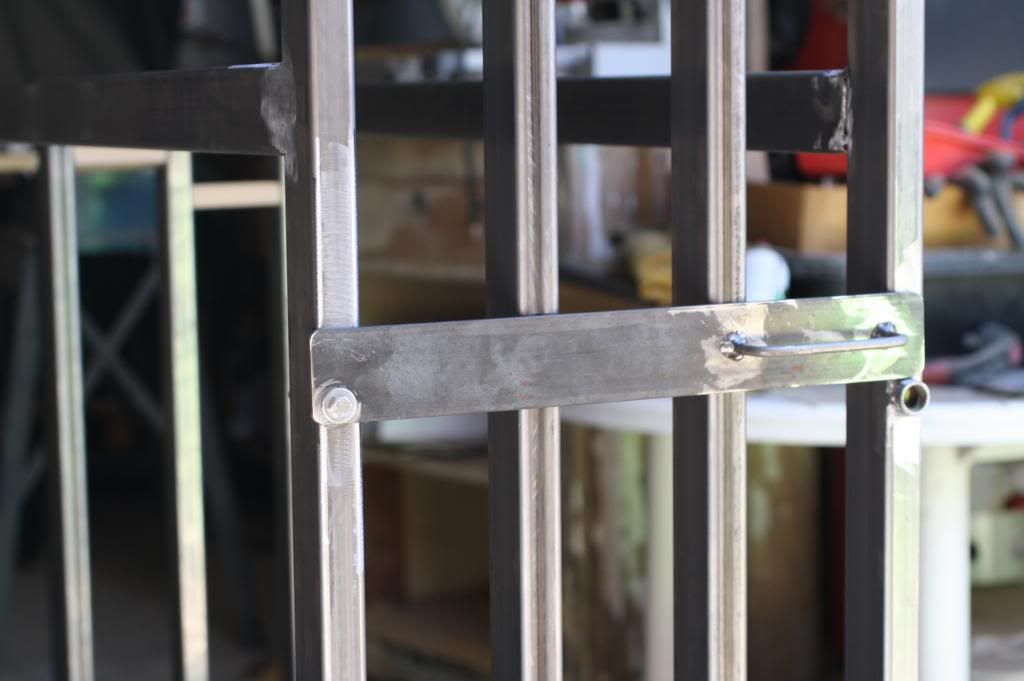

    We are going to be loading/unloading the sheet steel in from the skinnier end (see first pic) but we also want to be able to unload it from the fatter end so I made this stopper

    Down



    Up

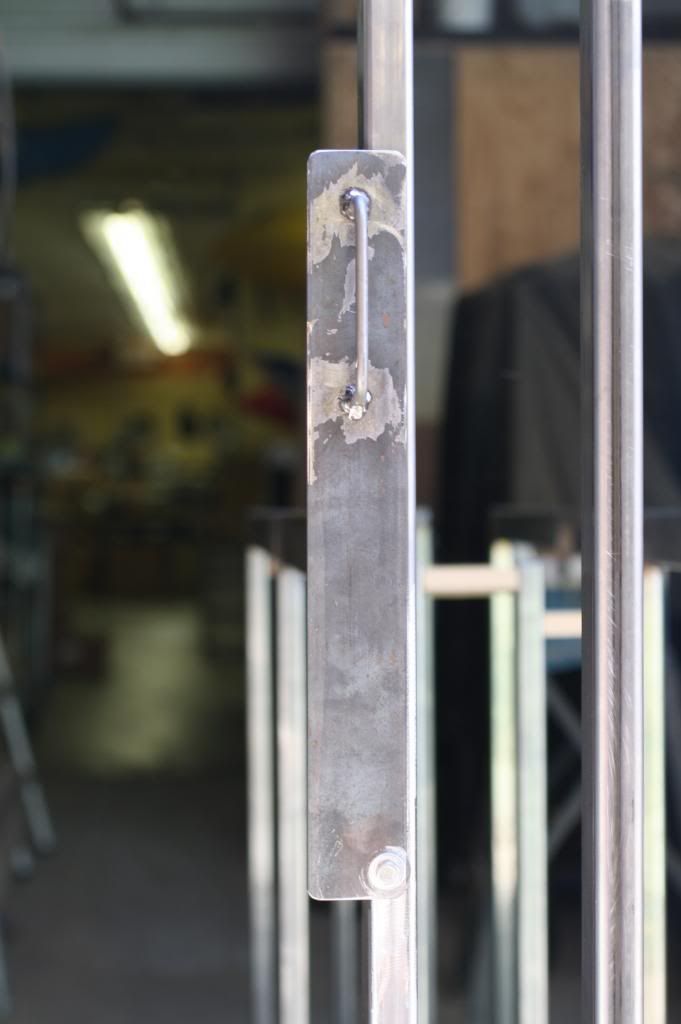

    Put on the handles (front & rear) You can also see that the other 2 top slats are now welded on




    IMG_7519 by Jeff States, on Flickr


    IMG_7518 by Jeff States, on Flickr


    IMG_7517 by Jeff States, on Flickr


    IMG_7516 by Jeff States, on Flickr

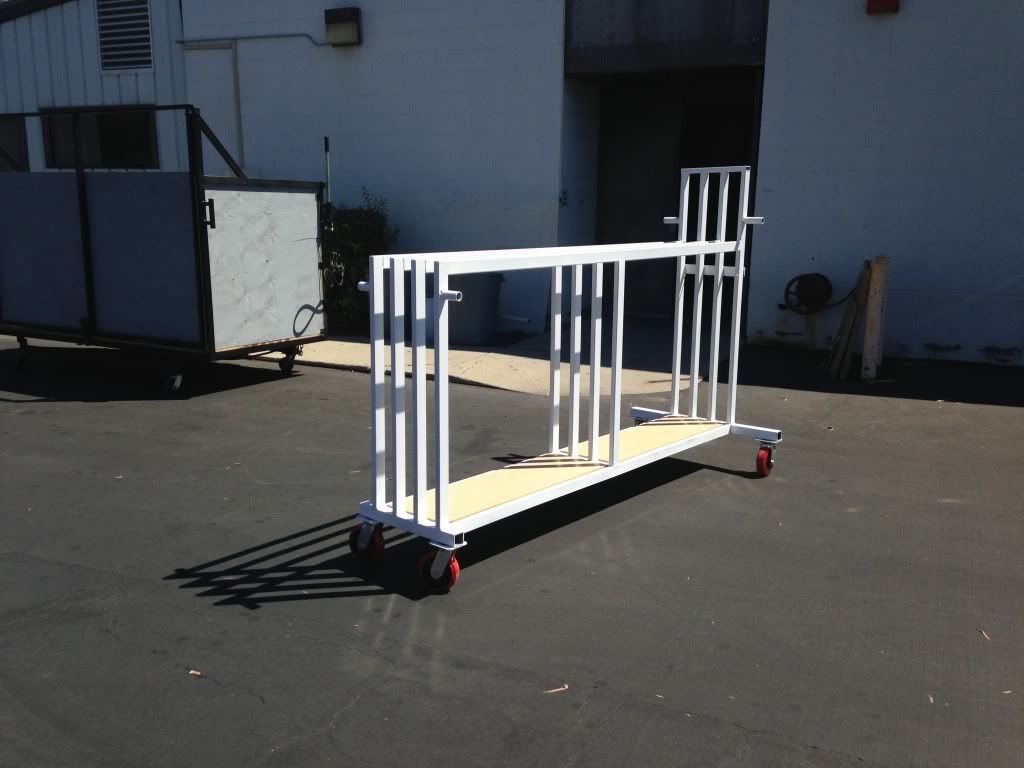

    Here's the organizer w/ nothing in it



    Here's what we do with the sheet aluminum/metal. It's called sublimation

    These are prints we did for Cal-Poly and National Geographic. All of these prints are going to be framed in an anodized black aluminum frame. You can see the frame in the last 2 pics
