89 325 turbo e85 tuned

[Devin1205]

asking $7k - we have many dyno sheets for this car, it makes around 550hp at the wheels and over 600lbs.

1989 325 with M50NV 3.0liter 11:1 turbo - plastic bumper conversion - VEMS 3.6
car has anti lag, boost by gear, and ignition shift cut.


replaced this stuff 2 years ago:
tension straps
resealed heater box
blower motor
blower resistor
heater core
si board
odometer gears
convertible top
boost gauge replaced econo gauge
pioneer radio with Iphone interface (very important for the wife)
fog lights
front turn signal indicators
left and right grilles
kidney grille
lip spoiler - with clips
Front turn signal lenses
Rear view mirror from 03 325 - this has a garage door opener built in to it. It also auto dims which is really nice when the top is down at night
E36 m3 light up shift knob - this lights up in a red that matches the interior
New shift boot

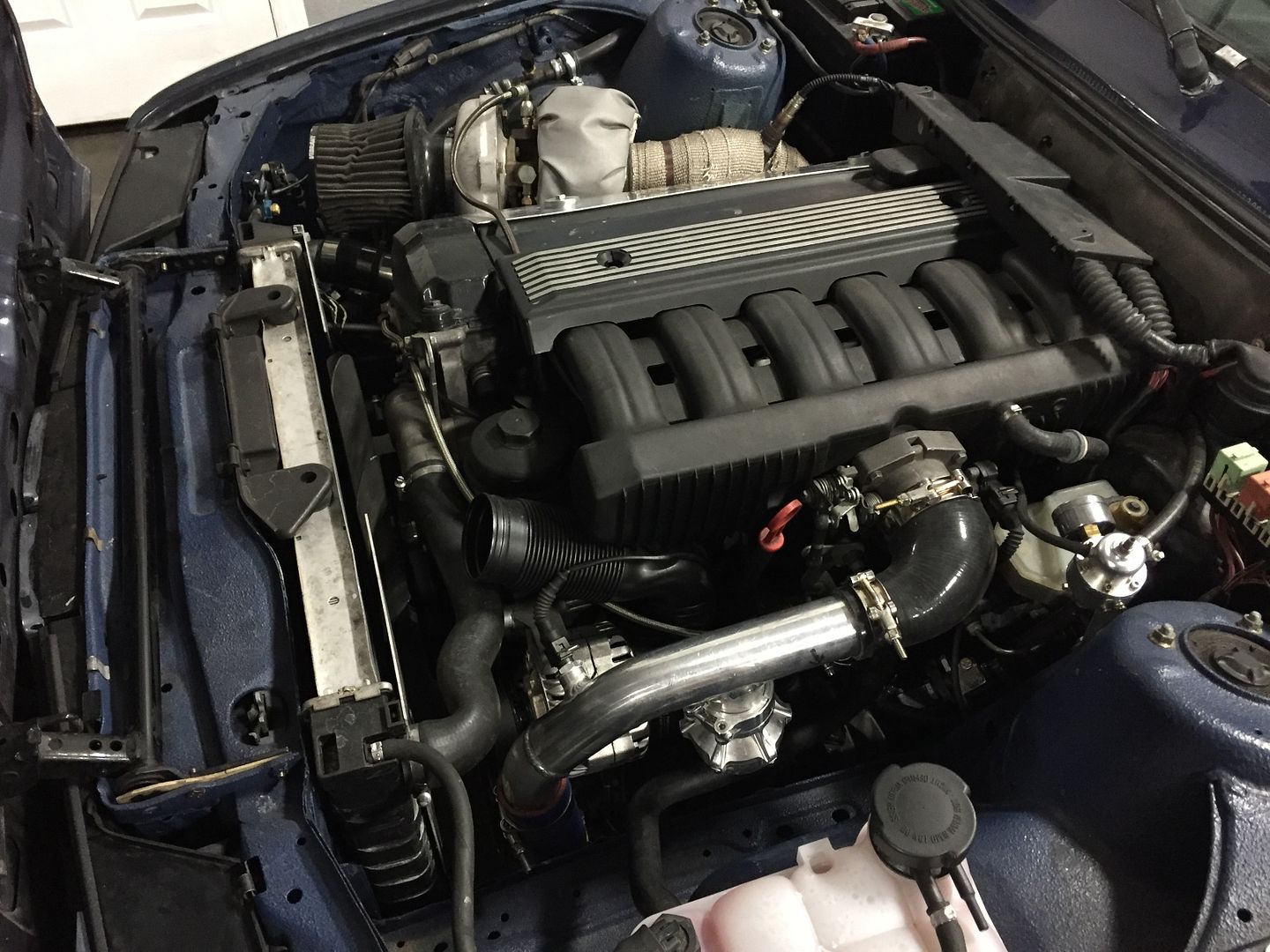

engine

VEMS 3.6 - e92 335 coils
m54 3.0 crank
arp - main studs - headstuds
bearings and rings have been replaced
new chains
new guides
new oil pump
new water pump - metal impeller
oil filter housing off of a m54b30
updated power steering pump from a late e46 to increase steering assist
stock mechanical fan - stock radiator
new belts
new belt tensioners
New fuel lines - including the ones around the fuel tank
New breather hoses
Vibrant air filter
Belts
Fan clutch
Drained and cleaned the inside of the fuel tank


Fuel system

450 walboro fuel pump
some kind of external fuel pressure regulator
80lbs injectors
new fuel filter


suspension

rebuilt power steering rack and tierods last week.
Eibach sport springs
upper front strut mounts
spring pads
KYB shocks
control arm bushings
motor mounts - green 535
transmission mounts
rear subframe and trailing arm bushings
differential bushing
rear shocks
upper rear shock mounts with reinforcement plates

Driveline

92 525 zf transmission
throw out bearing
pilot bearing
slave cylinder
master cylinder
clutch hose
z4 2.5 shifter
shifter bushings
guibo
e83 front driveshaft section - this is needed because the 525 transmission has a large guibo and the stock 93 325 driveshaft has a small front section
e36 rear driveshaft section
center support bearing



The bad - could use new seats - The seat frames and foam are in great shape but the leather covers should be replaced

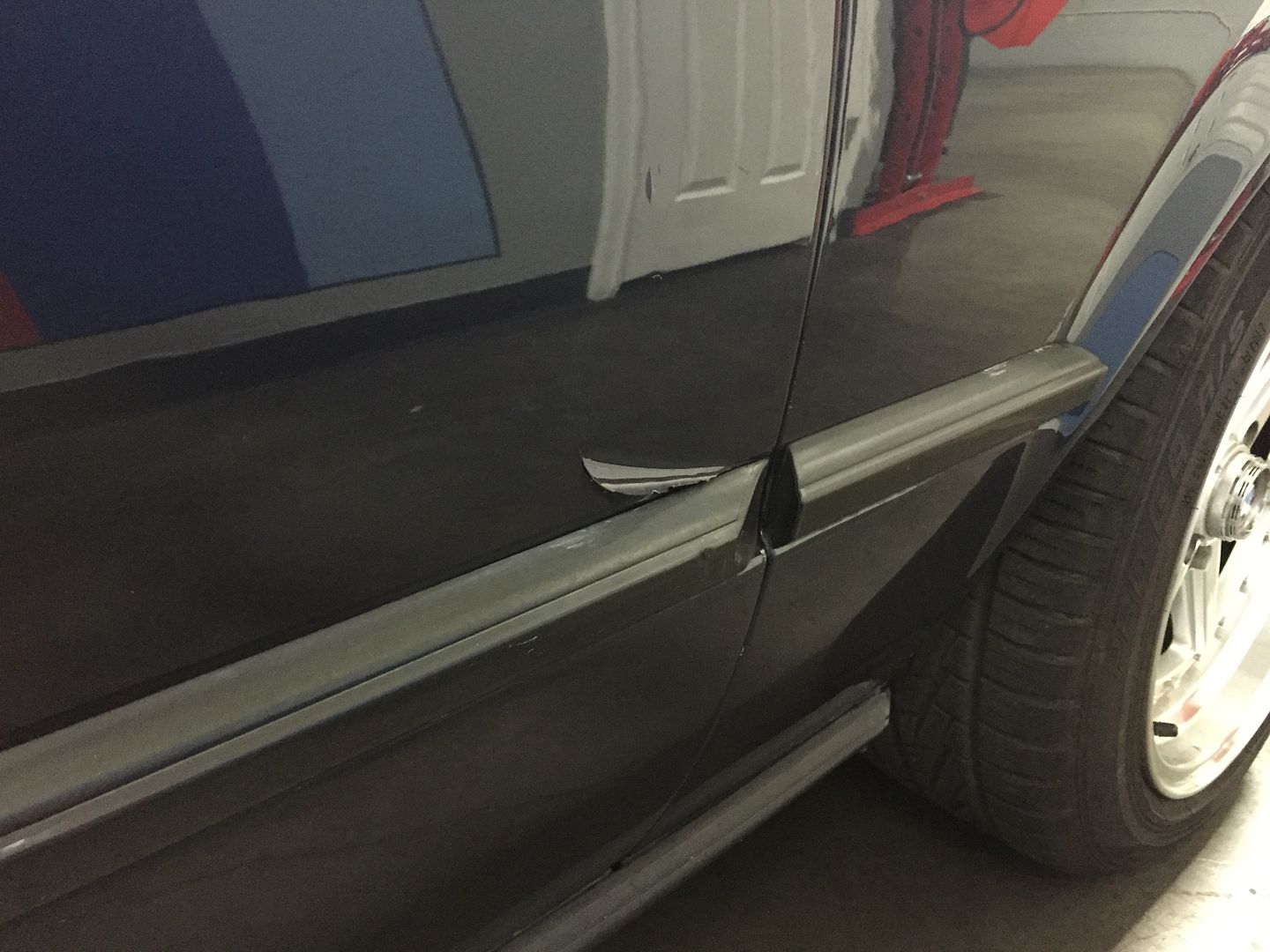

The paint isn't in great shape - someone did a quick spray on it and didn't prep it correctly.
only the seat heater on the driver seat works. I would fix the passenger but I don't have any extra heating elements to install.

This is a shop car and we have had a lot of fun with it doing autox and drag racing. Last week the car ran a 12.2 at 120MPH with 205 all season tires :-)

we have a dyno on site if anyone would like to see power level to verify.








email - devin1205@gmail.com 480-353-7202

Devin

[Mr. Burns]

. NM I'm blind

[Devin1205]

bump - changed the price with a few other things.

[CorvallisBMW]

Damn, that's a lot of car (and a lot of power) for the money! GLWS

[Best_name_available]

if this was a coupe i would have been outside your shop before you we done writing up that ad.

glws

[nomansland92]

Kinda off topic but was it difficult putting the walbolo 450 in the stock tankabs what size fuel line did you run.

Anyway looks like a awesome deal!
Glws

[Devin1205]

Damn, that's a lot of car (and a lot of power) for the money! GLWS

thank you. if you want to go for a ride, come to vegas before its gone.

[Devin1205]

if this was a coupe i would have been outside your shop before you we done writing up that ad.

glws

thanks!

Nomansland92 - yes the 450 was a pain but it was needed. I've run multiple pumps in this thing and the 450 was the only one that would keep up. I don't have any pictures but I can explain how I did it if that would help!

the physical mounting is the same as a 255 or any other pump but the difference is running another tank return line. If you install this pump without an extra return it will over run your suction jet pump. I put a brass T in right next to the fuel filter on the return line going into the tank. There is no room to get a hose through to the top of the tank so I removed the purge valve plastic line and drilled the hole out larger. I connected this hose right next to the fuel pump outlet with a bulkhead fitting. The factory wiring also wasn't up to the task and started to make the factory connector hot when I started to test it. I installed another fuel pump relay in the glove box and ran its own wires to the pump.

The car is using new factory bmw hose for the last few years and it has been holding up great to the e85. If people need more info just call or email me, i'm on the boards very little but we do a ton of these kind of projects.

Devin - devin1205@gmail.com

[Bay_bmw]

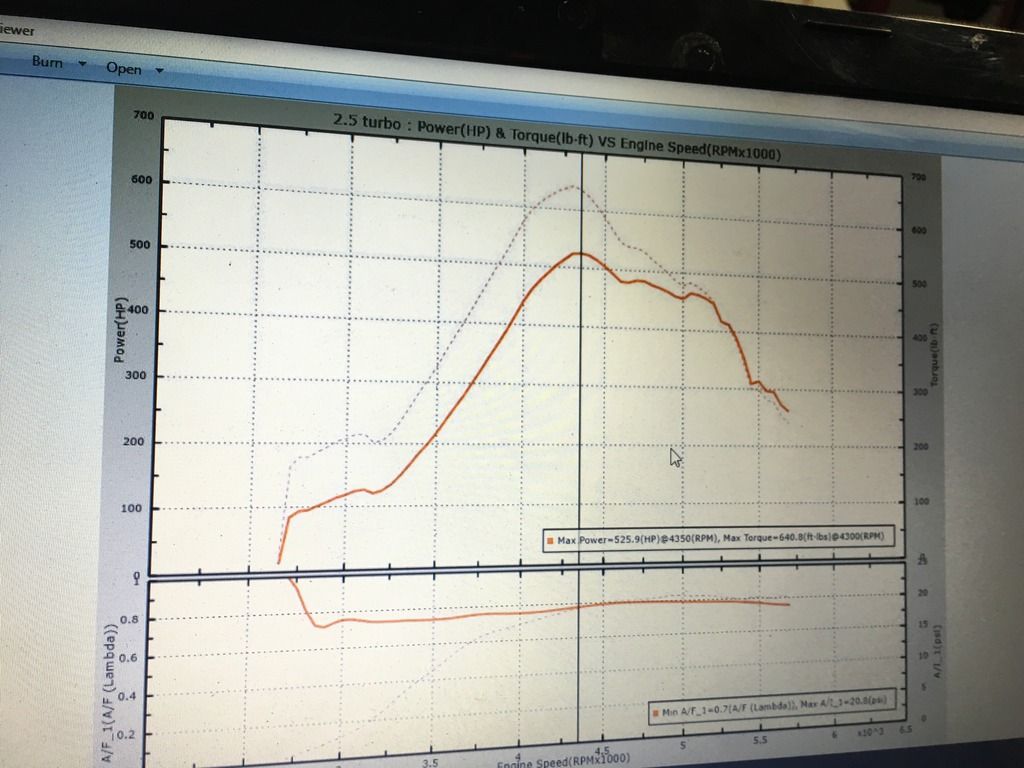

heres the dyno graph for the car.

[s14brent]

man this is nice! glws! I'm local, I gotta stop by the shop one day when my e30's on the road.

[nikanon]

What type of connecting rod and bearings were used in the build? How many miles on the car after 550 hp?

[Devin1205]

What type of connecting rod and bearings were used in the build? How many miles on the car after 550 hp?

Stock rods and stock bearings. I don't know how many miles, we don't daily this car. We only use it for drag racing and autox events. If someone was trying to daily this or make the motor last for a long time you would probably not want to keep it at this power level. 400hp in this kind of car would be more than most people would need.

To turn the power level up or down on this car:

plug in to the VEMS, go to the boost controller settings and lower the target boost.

We are restricted to 5000 miles a year on the street because of the way it is registered. We probably put 3000 miles a year on it.

Devin

[Devin1205]

man this is nice! glws! I'm local, I gotta stop by the shop one day when my e30's on the road.

sounds good, we will be here!

[budshaws]

thank you. if you want to go for a ride, come to vegas before its gone.

I live in Vegas and want to for a ride lol.

[mrfeel1933]

When you say; stock rods and pistons. Are the pistons and rods from a m50nv or is all internals from a m54 like the crankshaft? ?
