  • 8380 Labs
    Forum Sponsor
    • Oct 2006
    • 2990

    #46
    18mm is more than enough thread to hold the wheel onto the adapters, i'm going to be running a set of the design 2s in 18mm in my own car this year, and i'm aware of several other people with the same setup who haven't encountered any problems.

    id start worrying at less than 10mm of thread, but anything more than that and you're totally fine.
    8380 Laboratories
    M3 Champs Poster

    Comment

    • DrFraserCrane
      Mod Crazy
      • Oct 2010
      • 605

      #47
      it is also 18mm of pure threads for the lug bolt to thread into - you are not passing through a brake rotor before you reach the threads - fairly certain most wheel hubs offer less than 18mm of actual thread to bite into on most cars stock.

      Comment

      • Invisible Saddle
        Member
        • Jun 2008
        • 88

        #48
        could you guys do a complete set (4) of straight 4x100 in 25mm width that are hubcentric? I have 90mm studs already and waiting on wheels and tires to ship.

        Comment

        • 8380 Labs
          Forum Sponsor
          • Oct 2006
          • 2990

          #49
          yup, absolutely.

          send me an email at labs_8380@yahoo.com if you are interested in ordering, thanks.

          -ethan
          8380 Laboratories
          M3 Champs Poster

          Comment

          • robsgotit
            E30 Addict
            • May 2006
            • 550

            #50
            Doubt this will work but 4x100 to 5x120 with a 15x7 et 11 wheel??
            Delrin shift knobs for sale and trade

            http://www.r3vlimited.com/board/showthread.php?t=196156

            Comment

            • george graves
              I waste 90% of my day here and all I got was this stupid title
              • Oct 2003
              • 19986

              #51
              Originally posted by LedJetta
              i'm assuming we're talking about 16x8 et23. if that's the case, you'd need the design type 2 adapters (4x100 > 5x120). the thinnest we can do is 18mm, which would put you at et5. if you run 205/45s and roll your fenders that will work fine, it will be right around flush. i'd bump the rears out another 5-7mm, as noted above.
              Thanks for the detailed run down. Do you have anyone running this set up yet? Seems like it would be a slam dunk? I'm interested.
              Originally posted by Matt-B
              hey does anyone know anyone who gets upset and makes electronics?

              Comment

              • 8380 Labs
                Forum Sponsor
                • Oct 2006
                • 2990

                #52
                Originally posted by robsgotit
                Doubt this will work but 4x100 to 5x120 with a 15x7 et 11 wheel??
                wouldn't work very easily or look very good, unfortunately.

                Originally posted by george graves
                Thanks for the detailed run down. Do you have anyone running this set up yet? Seems like it would be a slam dunk? I'm interested.
                i've seen people run that exact setup on vws, but no e30s come to mind. it's only a slam dunk for people who want to run smaller tires, which is a can of worms around here. :p

                i'm planning on using them to mount my m-system 1s this year, which have identical widths and very similar offsets up front.
                8380 Laboratories
                M3 Champs Poster

                Comment

                • 8380 Labs
                  Forum Sponsor
                  • Oct 2006
                  • 2990

                  #53
                  wheels season!
                  8380 Laboratories
                  M3 Champs Poster

                  Comment

                  • Gadea
                    E30 Addict
                    • Jun 2009
                    • 454

                    #54
                    can your adapters make this happen?:
                    17" style 32's from E39 (74.1 hub?)
                    on stock suspension (for now)
                    would like to achieve a tiny bit of poke-out with somewhat meaty tires.
                    fender rolling will most likely happen anyway.
                    thanks
                    1998 528i auto on staggered DSII

                    Comment

                    • 8380 Labs
                      Forum Sponsor
                      • Oct 2006
                      • 2990

                      #55
                      if you can let me know what the widths and offsets are, i can figure that out for you, thanks!
                      Last edited by 8380 Labs; 03-24-2011, 05:04 AM.
                      8380 Laboratories
                      M3 Champs Poster

                      Comment

                      • Gadea
                        E30 Addict
                        • Jun 2009
                        • 454

                        #56
                        I changed my mind and bought style 32 wheels but in 15" x 7 (got a good deal on CL). Offset is 46 if I´m not wrong. Hub bore is 72.1 ? I think? they´re e36 specific. They have 205/60/15 now, but that will change to 225/50/15. I know I´ll need 2 sets of your design two, but what width? I´m guessing your adapters are hubcentric for both the wheel and the hub?
                        1998 528i auto on staggered DSII

                        Comment

                        • 8380 Labs
                          Forum Sponsor
                          • Oct 2006
                          • 2990

                          #57
                          they are fully hubcentric, and come with all the hardware you'll need.

                          send me an email at info@8380labs.com and i'll get you sorted out, thanks!
                          8380 Laboratories
                          M3 Champs Poster

                          Comment

                          • 8380 Labs
                            Forum Sponsor
                            • Oct 2006
                            • 2990

                            #58

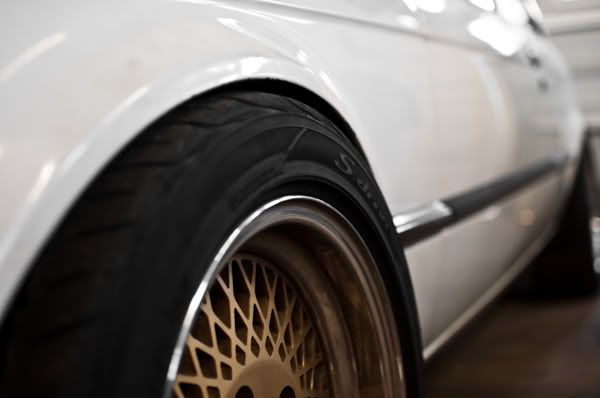

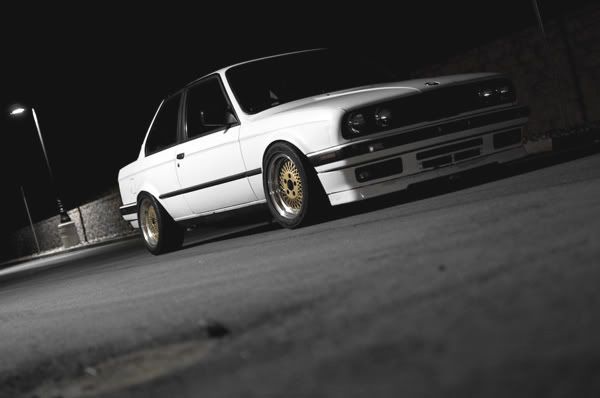

                            a quick offset lesson to back up my "adapters for style 5s" claim: here's a car using full e36 (325is/318ti) 5-lug suspension and ground controls running 15x7 et20 wheels with 205/50s.





                            the front wheels poke out of the fenders, and the fender is sitting down on the tread block. if you were to run 18mm design 2 4x100 > 5x120 adapters on these wheels you'd be at 7 et2, which on an e30 with stock 4-lug would be around 10-15mm further in than this.

                            on top of the fact you spent way less money and time getting the wheels on there...they fit way better, you're way less committed to the wheels should you decide to change, and you've still got the freedom of choosing from both 4 AND 5-lug wheels in the future.

                            ;)
                            8380 Laboratories
                            M3 Champs Poster

                            Comment

                            • mr.vang
                              R3V Elite
                              • May 2010
                              • 4371

                              #59
                              i'm going to get style 5 16x8 and i'm looking into yours 4x100 to 5x120 adapter but i have some questions. can i custom the center bore to fit the style 5? what size mm should i get for front and rear so it would sit flush with the fender?
                              Bought parts from me before? leave your feedback here

                              Comment

                              • 8380 Labs
                                Forum Sponsor
                                • Oct 2006
                                • 2990

                                #60
                                Send me an email at labs_8380@yahoo.com and I'll get sorted out.
                                8380 Laboratories
                                M3 Champs Poster

                                Comment
