Wiring VSS

[driftingminor913]

would not wiring the VSS to the back of the cluster throw a check engine light?
if so how do you go about wiring it in...through the connectors to the back of the cluster?

[Beej '86 325es]

No. I just hooked mine up a couple of months ago...no codes.

It depends on what engine/chassis you have if you have to tie into the cluster. Late model 325i's are wired in through the C101.

[driftingminor913]

I have a 90 325i with a 94 m50Tu

[trackjunkie21]

connect pin 14 on the c101 to pin 14 on the x20.

[driftingminor913]

Cant figure out how to wire up the wire from the back of my cluster to the the connector? i took apart my cluster and i have no idea about what wire to splice off of or anything. can anyone provide me pictures or detailed description,

My VSS is killing me with this 3500 rev limiter

[Beej '86 325es]

With your chassis, you shouldn't even be touching the back of your cluster.

[nando]

connect pin 14 on the c101 to pin 14 on the x20.

it's so easy it hurts..

[trackjunkie21]

it's so easy it hurts..

I know right, even though I made you fix my adapter

[nando]

what, you don't like shorting 12v to ground? :p

[trackjunkie21]

what, you don't like shorting 12v to ground? :p

I think I'm confused now

[nando]

that's how your adapter was originally wired. pin 20 is 12v on many E30s, and it was wired to ground on the oil level sensor.

[SkorcherX]

No VSS should throw code 73 (on a M50NV 402 DME). Not sure if this will trip the CEL though.

[driftingminor913]

So basically just pull the pins out all together and spike them into each other and that's it? Or you run a wire....to... Them? Sorry I'm a true dipshit when it comes to wiring

[nando]

there are pins that connect together. you need a male pin to wire on your E36 harness to plug into the E30's C101 connector.

[driftingminor913]

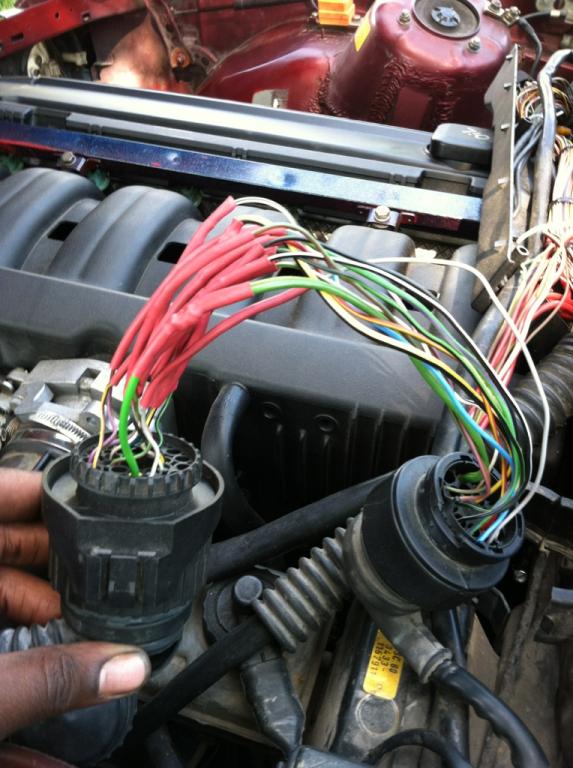

this what im looking at, so do i need to remove a pin out of the connector and put different conectors on em? (female&male)?
