OBD2 S50 up and running!

[328ijunkie]

Snap a pictar for me of the pass strut tower with the mount, pretty please?

[rightcoastbias]

pictar

Oh gosh I love this. My diagnostic port looks like shit zip tired to the harness.

[328ijunkie]

lol

[Roysneon]

I put my OBDI diag. port in the holder on the 318 harness cover. May be harder to do with a 'real' diagnostic port though haha.

[328ijunkie]

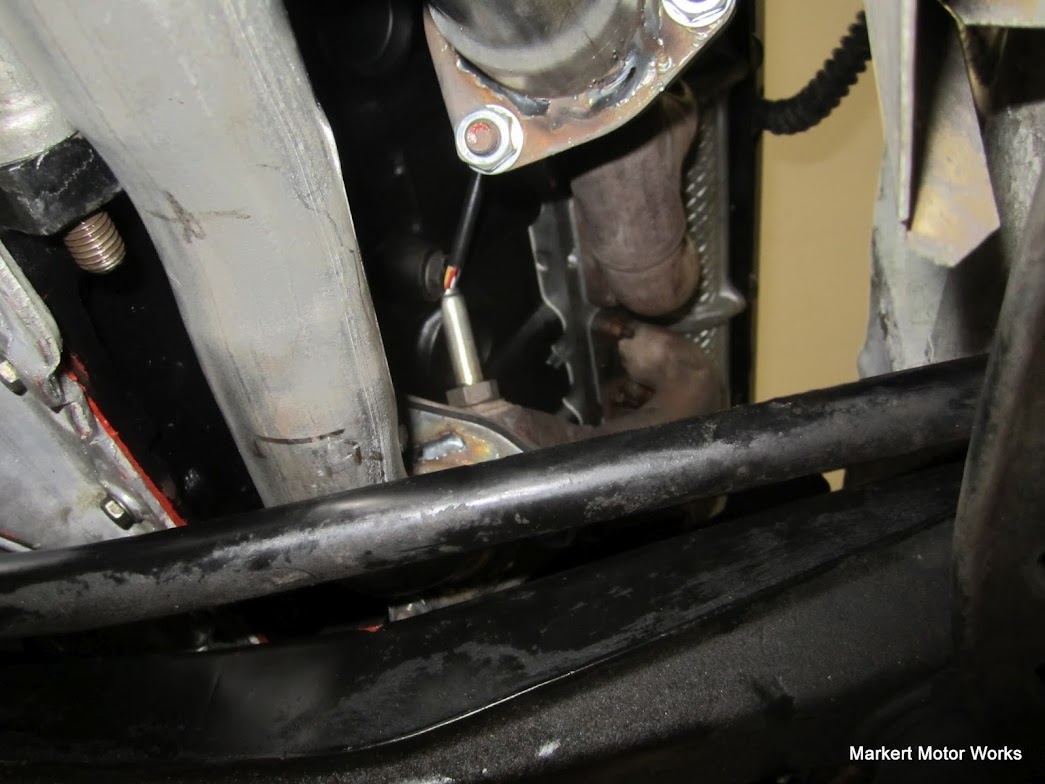

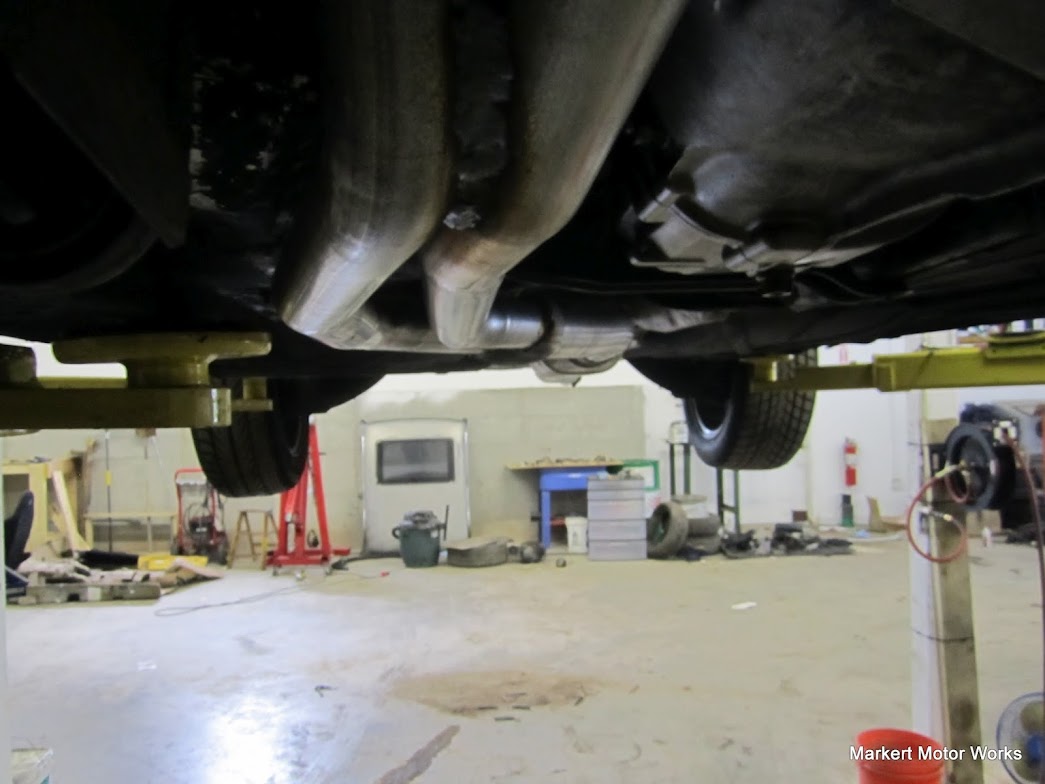

Oh and exhaust pictars:

[Gooch]

Oh gosh I love this. My diagnostic port looks like shit zip tired to the harness.

Indeed, thanks, Dave!

[e30shmobberr]

so the advantage is better mpg, better torque?

what exactly is the advantage?

[EtaSport]

I'm lazy and just skimmed this cause I wanted to comment...

I've been thinking of putting the s50 from my e30 into my e36 but realized that the crank and block don't have the same pick-up and trigger as the OBD2. I see your trigger wheel is exactly the same as OBD1. Anything special to do there?

I do agree that the Siemens engine management is light years beyond early Bosch. It's just a little easier for some.

[328ijunkie]

so the advantage is better mpg, better torque?

what exactly is the advantage?

See the threads on this.

I'm lazy and just skimmed this cause I wanted to comment...

I've been thinking of putting the s50 from my e30 into my e36 but realized that the crank and block don't have the same pick-up and trigger as the OBD2. I see your trigger wheel is exactly the same as OBD1. Anything special to do there?

I do agree that the Siemens engine management is light years beyond early Bosch. It's just a little easier for some.

The Key is the Super Secret OBD2 Euro Crank Sensor :D
PN: 12 14 1 703 277

Its designed to run of the front crank pulley just like the OBD1 one (although its a completely different sensor) because as you mentioned, no hole in the block for the regular OBD2 one!

[nrubenstein]

So, my question is very simple:

When will there be a good OBD II S50 tune? Running on an M52 tune doesn't *really* count.

[evandael]

so the advantage is better mpg, better torque?

what exactly is the advantage?

Mostly diagnostics. No 'guessing' when driveability issues crop up; the DME tells you what is out of spec and you replace it.

[328ijunkie]

So, my question is very simple:

When will there be a good OBD II S50 tune? Running on an M52 tune doesn't *really* count.

My customers S50 is running on a specific 3L tune on the S52 ECU.

Mostly diagnostics. No 'guessing' when driveability issues crop up; the DME tells you what is out of spec and you replace it.

+ Better fine tuning, real LTFT's, smarter knock detection, etc.

[328ijunkie]

Customer is bringing car off to paint! Very happy with it!

[greyis89]

Very helpful! Is there a complete part list to doing this OBD1 to OBD2 conversion? I see the crank sensor number, anything super secret on any of the other sensors like knock etc. ? Planing to do this on my turbo m50.

I'll be in the office Dave...

[328ijunkie]

Give me/US a shout we can help with a list
