m50 swap not firing

[erb326]

Has the fuel feed line going to the fpr like an idiot switched it now the fpr is to the return line. But still just endlessly cranks and doesnt start

[erb326]

Dont know if it helps. But the cam position sensor is 1.347 k ohms and the crank position sensor is .541 k ohms shouldn't they be the same?

[goarmy]

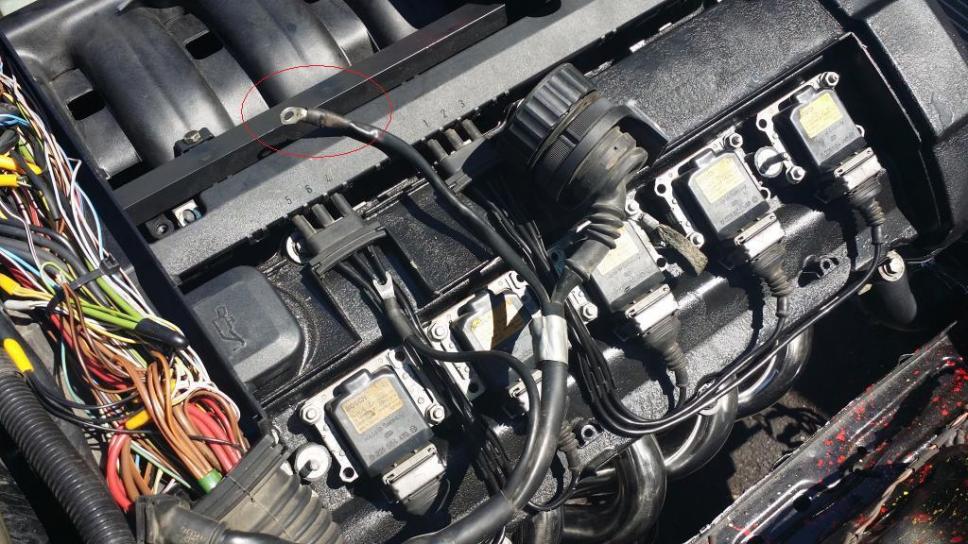

you need to ground the highlighted wire to the passenger side strut tower. Is your fuel rail harness small brown wire grounded in front of the engine?

[erb326]

you need to ground the highlighted wire to the passenger side strut tower. Is your fuel rail harness small brown wire grounded in front of the engine?

Yeah I left that circle wire connected the second wire I put to the power terminal. Yes the ground wire is solid I even took it off to clean the connection just to make sure the bolt wasnt corroded or anything.

[erb326]

Replaced the cam sensor and the crank sensor, when cranking the pump is trying but ignition cuts. Yesterday I was able to endlessly crank the motor, today it tries but immediately stops

[goarmy]

engine ground strap on?

[erb326]

engine ground strap on?

yeah i copied this, went on the driver side frame rail and connected to the mount bolt of the alternator

[sweet3]

Not so sure if that is the best grounding point. There is another ground point on the opposite side of the car. I put my grounding point going from the passenger side engine mount to the grounding point e30 chassis. Probably doesnt make much of a difference though

[e30rapidic]

swap where the cam sensor and crank sensor plug in, they look similar.

[erb326]

Finally got fed up and ripped out everything related to the auto harness from the x20 looking connection all the way to the computer (which I didnt have). Cranked the engine, took about 20 second before it kicked and ran. Only problem is the revs were running away, youd start the engine and it would shoot to the redline. Turns out the throttle linkage was screwed in all the way making the throttle plate like 1/3 open. Fixed the plate to be where it should, cranks and idles great now. Thanks for everyones help!
