    C101 square plug with M52 swap... will M50 adapter work?

    So I have a 84 325e that I am doing an M52 swap with.
    I have the M52 harness and ECU.
    The E30 has a square C101 plug.
    Somebody is selling a square C101 to M50 harness adapter.
    Will this work with my M52 harness?
    Tags: None
    • Northern
      R3V Elite
      • Nov 2010
      • 5046
      #2
      X20 pinouts are different between M50 and M52
      Originally posted by priapism
      My girl don't know shit, but she bakes a mean cupcake.
      Originally posted by shameson
      Usually it's best not to know how much money you have into your e30

        Comment

        • Northern
          R3V Elite
          • Nov 2010
          • 5046
          #3

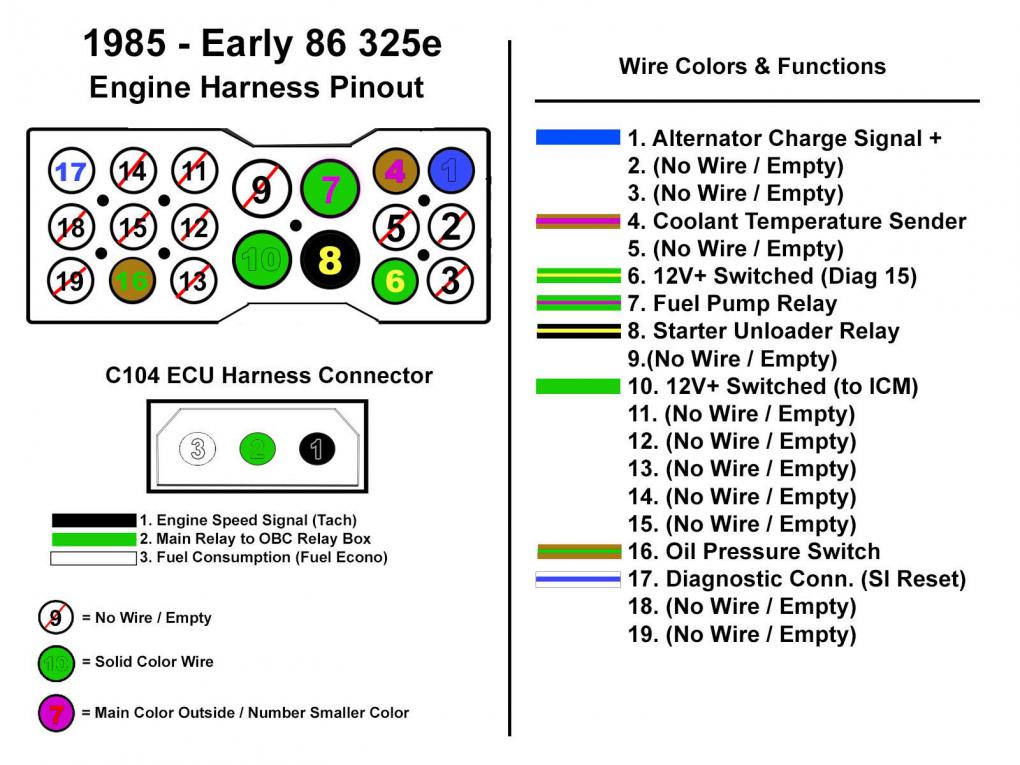

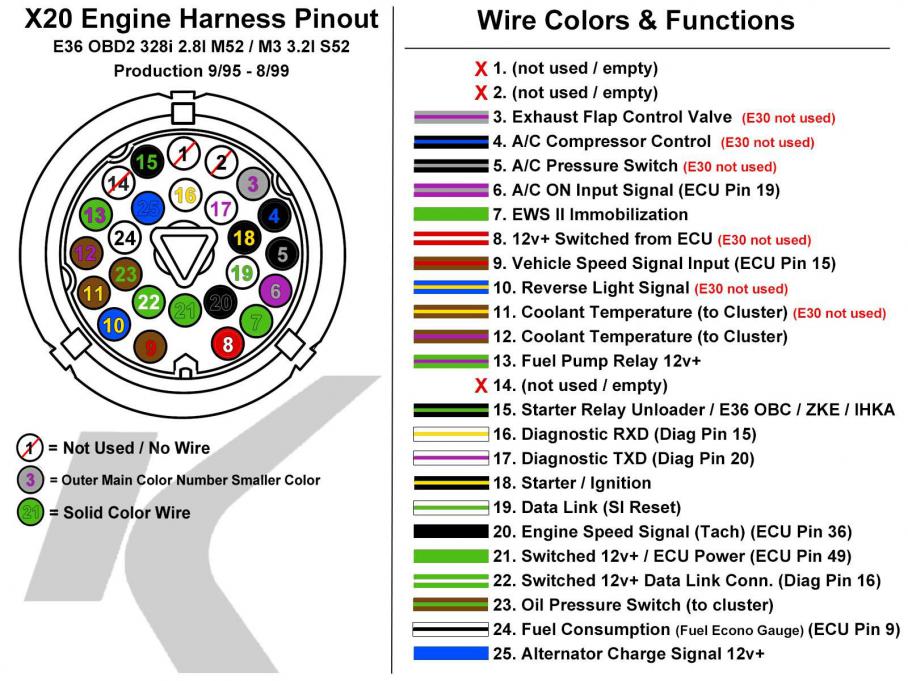

          These should be the relevant pinouts if you're interested. Thanks to Kadunza for making these.
          Attached Files
          Originally posted by priapism
          My girl don't know shit, but she bakes a mean cupcake.
          Originally posted by shameson
          Usually it's best not to know how much money you have into your e30

            Comment

            • redrobinwgn
              Noobie
              • Jul 2018
              • 6
              #4
              Awesome. Thanks for the info!

                Comment

                • nando
                  Moderator
                  • Nov 2003
                  • 34827
                  #5
                  square adapters are basically impossible to make because the engine side connector housing is NLA. If you want to remove it off your original engine harness, I'm sure one of the people who make adapters could do it.
                  Build thread

                  Bimmerlabs

                    Comment

                    • E30SPDFRK
                      Moderator
                      • Jul 2007
                      • 5689
                      #6
                      Garagistic 3D prints new engine side square plugs.
