    Timing Chain lower sprocket bolt?nut

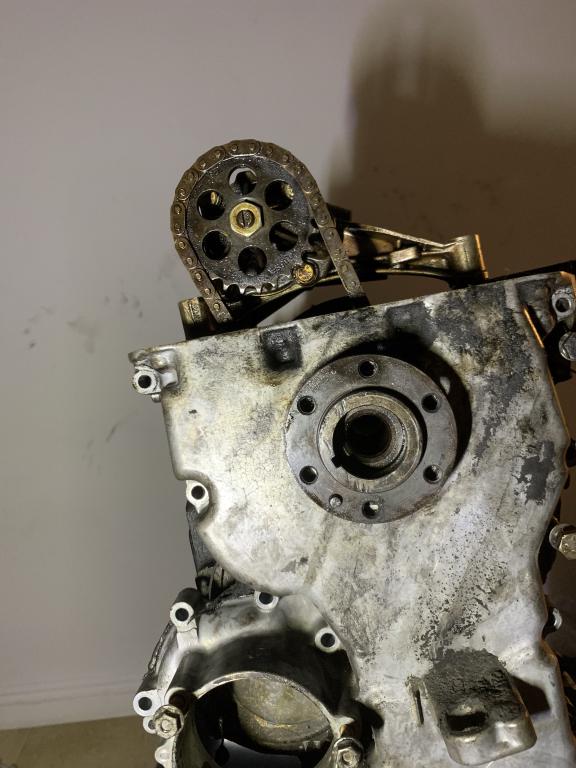

    I am tearing down a M50B25 engine and I cannot get the bolt/nut off of the
    lower sprocket of the timing chain.
    Also when I was removing the TDC wheel the thick round part behind it did not come out and I cannot get that out either.

    How would I go about getting these 2 things off.
    These are the only 2 things I need off of the block and I can take out the crank.
    Attached Files

    #2
    The oil pump nut is reverse thread. Look closely at the nut and you will see and arrow that says "loosen".

    The crank hub just pulls off, probably is crudded in there. I use a slide hammer and a bolt on one of the holes, or a 3 jaw puller.
    john@m20guru.com
    Links:
    Transaction feedback: Here, here and here. Thanks :D

    Comment


      #3
      just unbolt the whole pump..tilt it forward and remove the pump
      88 e30/s50 gt35r turbo m3



      96 gt4094r turbo m3
      452 rwhp, 455 rwtq at 14 psi 91 octane
      681 rwhp, 684 rwtq at 25 psi E65

      Comment


        #4
        Or put the bolt back in a little,
        hang a 2 or 3 jaw puller on it, and tug.
        Once it breaks loose,
        it comes off pretty easily.

        +1 for leaving the oil pump sprocket on the pump....
