    Central locking wire cut drivers side

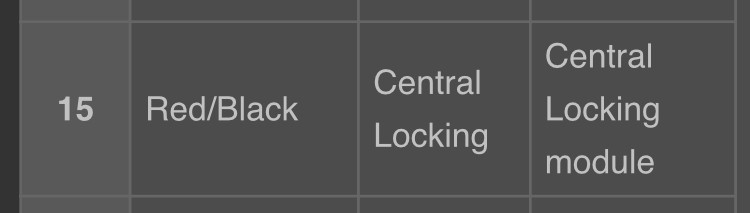

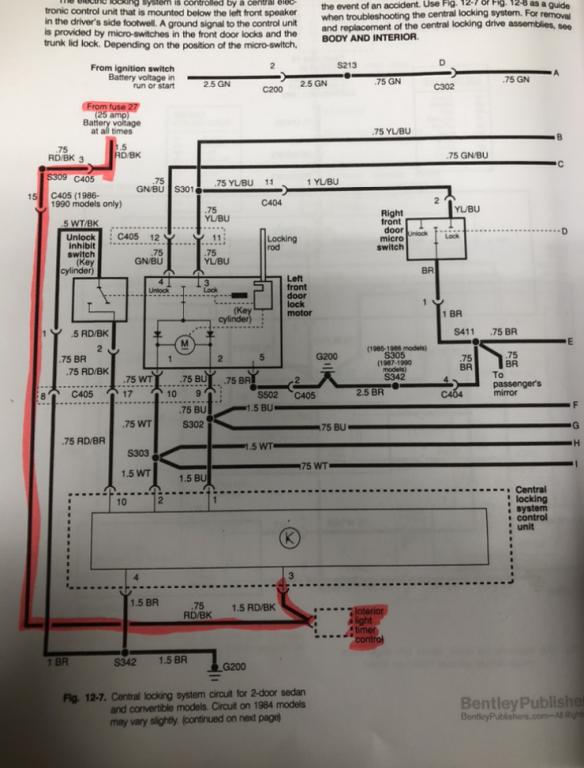

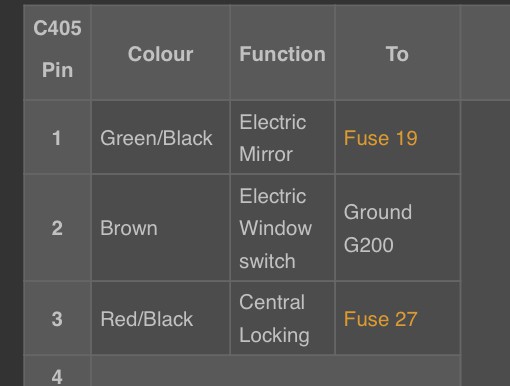

    My diver side door lock is not functioning. After some digging, I popped off the driver side speaker and found that the #3 and #15 pin connector wires were cut. After digging on the internet and the Bentley manual, it seems I need to run these wires to the 27 fuse and the other to the central locking system. Anybody had this experience?
    Attached Files
  • Rockonp04
    Member
    • Sep 2020
    • 75

    #2

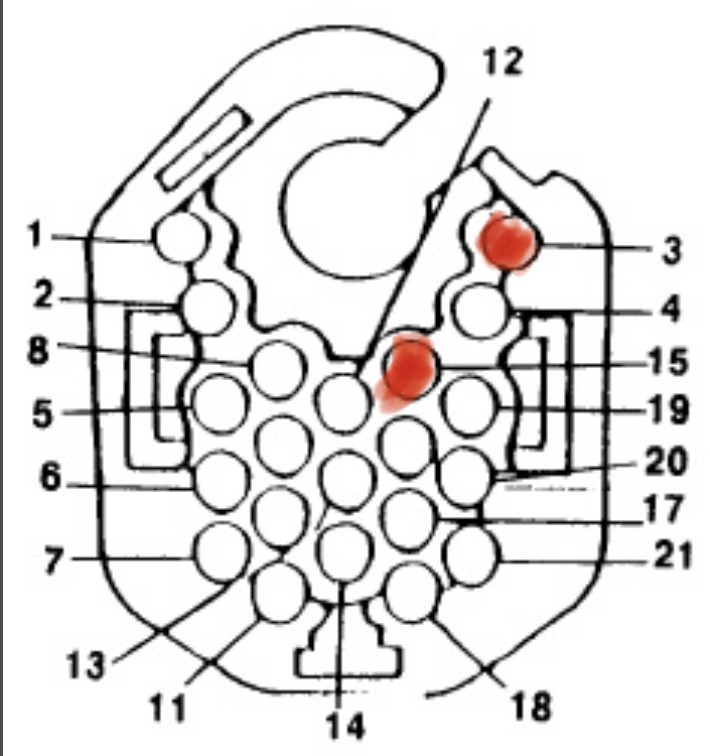

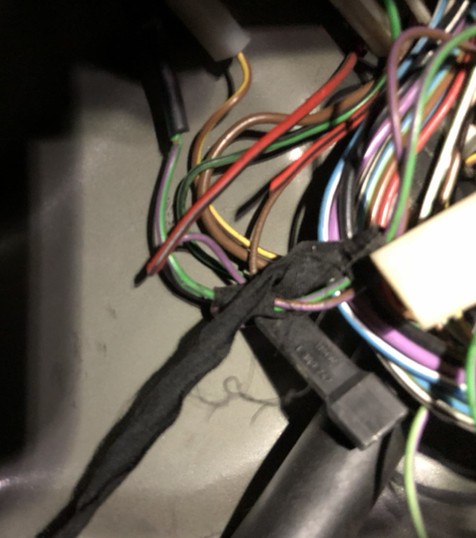

    Pic of the pins which were cut. Driver side door only opens from trunk.
    Attached Files

    Comment

    • Rockonp04
      Member
      • Sep 2020
      • 75

      #3

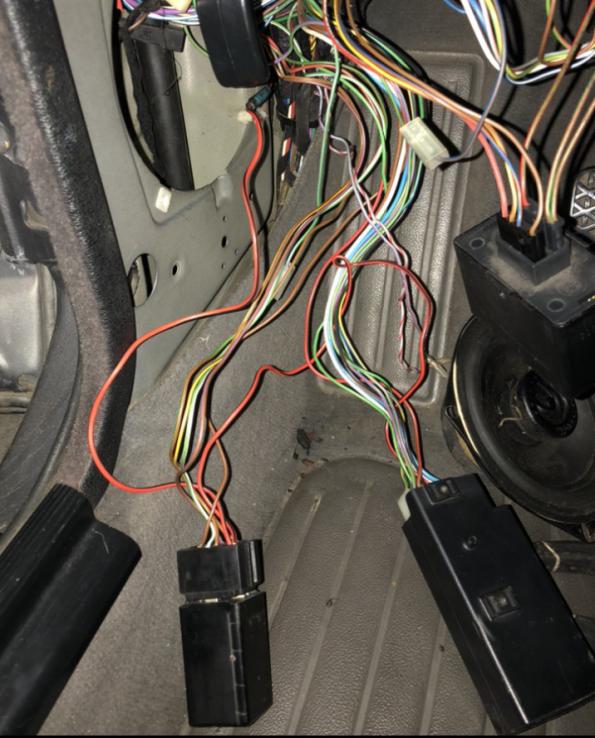

      I found this.



      I'm the third owner so I think someone has been there before me. Still doesn’t explain the driver’s side door not opening.

      Comment

      • bmwman91
        No R3VLimiter
        • Oct 2004
        • 3134

        #4
        Are they just cut, and can be spliced back on to the rest of the wires, or were the rest of the wires completely removed?

        Transaction Feedback: LINK

        Comment

        • Rockonp04
          Member
          • Sep 2020
          • 75

          #5
          Originally posted by bmwman91
          Are they just cut, and can be spliced back on to the rest of the wires, or were the rest of the wires completely removed?
          I think someone cut and spliced, eliminating the redundant wire going to the door. The link https://www.rtsauto.com/two-of-most-...w-to-fix-them/ shows how to do it. It has been done but I think the actuator is broken. I pulled the door panel and did the trick where I removed the battery cable and then reattached it to the battery and the actuator didn't make a clicking noise as it should as directed in the Haynes manual. This leads me to believe the actuator is shot. But the trunk is the only way I can open the driver's door and the actuator still works but just from the trunk.
